PAL22VP10CF-10DC datasheet, PDF

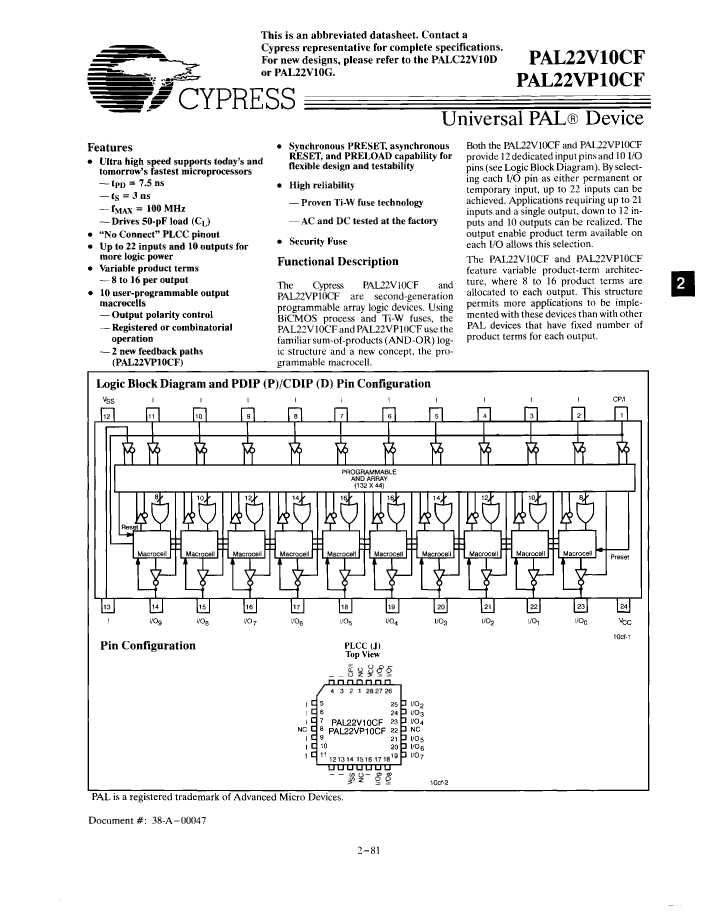

PAL22VP10CF-10DC: DescriptionOT PLD, 10ns, PAL-Type, BICMOS, CDIP24, 0.300 INCH, CERDIP-24; CategoryProgrammable logic devices Programmable logic; File Size45KB，1 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

PAL22VP10CF-10DC Overview

OT PLD, 10ns, PAL-Type, BICMOS, CDIP24, 0.300 INCH, CERDIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	DIP
package instruction	0.300 INCH, CERDIP-24
Contacts	24
Reach Compliance Code	compliant
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
Architecture	PAL-TYPE
maximum clock frequency	90 MHz
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	31.877 mm
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	10 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
