LMS485 5V Low Power RS-485 / RS-422 Differential Bus Transceiver
OBSOLETE
LMS485
October 12, 2011
5V Low Power RS-485 / RS-422 Differential Bus Transceiver
General Description
The LMS485 is a low power differential bus/line transceiver
designed for high speed bidirectional data communication on
multipoint bus transmission lines. It is designed for balanced
transmission lines. It meets ANSI Standards TIA/EIA RS422-
B, TIA/EIA RS485-A and ITU recommendation and V.11 and
X.27. The LMS485 combines a TRI-STATE
®
differential line
driver and differential input receiver, both of which operate
from a single 5.0V power supply. The driver and receiver have
an active high and active low, respectively, that can be exter-
nally connected to function as a direction control. The driver
and receiver differential inputs are internally connected to
form differential input/output (I/O) bus ports that are designed
to offer minimum loading to bus whenever the driver is dis-
abled or when V
CC
= 0V. These ports feature wide positive
and negative common mode voltage ranges, making the de-
vice suitable for multipoint applications in noisy environments.
The LMS485 is available in a 8-Pin SOIC and 8-Pin DIP pack-
ages. It is a drop-in socket replacement to Maxim’s MAX485
Features
■
■
■
■
■
■
■
■
■
■
■
Meet ANSI standard RS-485-A and RS-422-B
Data rate 2.5 Mbps
Single supply voltage operation, 5V
Thermal shutdown protection
Short circuit protection
Low power BiCMOS
Allows up to 32 transceivers on the bus
Open circuit fail-safe for receiver
Extended operating temperature range −40°C to 85°C
Drop-in replacement to MAX485
Available in 8-pin SOIC and 8-Pin DIP package
Applications
■
■
■
■
■
■
■
■
Low power RS-485 systems
Network hubs, bridges, and routers
Point of sales equipment (ATM, barcode scanners,…)
Local area networks (LAN)
Integrated service digital network (ISDN)
Industrial programmable logic controllers
High speed parallel and serial applications
Multipoint applications with noisy environment
Typical Application
20062601

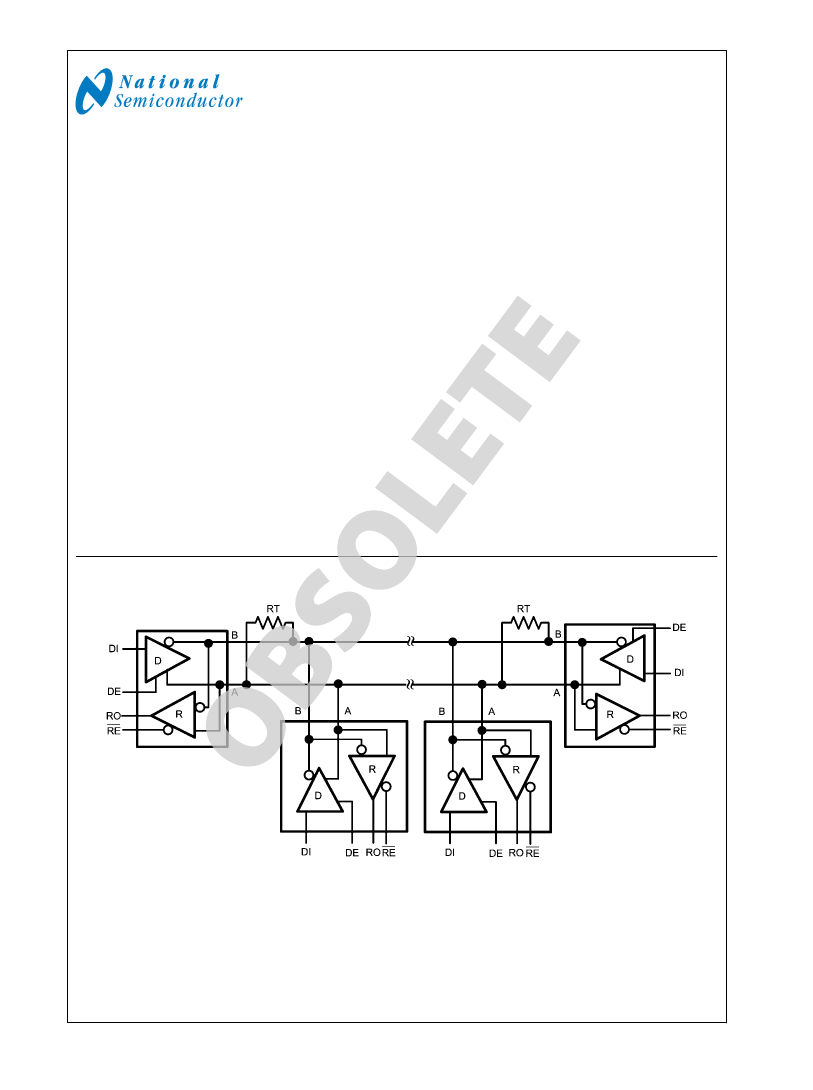

A Typical multipoint application is shown in the above figure. Terminating resistors, RT, are typically required but only located at the two ends of the cable.
Pull up and pull down resistors maybe required at the end of the bus to provide failsafe biasing. The biasing resistors provide a bias to the cable when all
drivers are in TRI-STATE, See National Application Note, AN-847 for further information.
TRI-STATE
®
is a registered trademark of National Semiconductor Corporation.
© 2011 National Semiconductor Corporation
200626
Print Date/Time: 2011/10/12 10:59:46
www.national.com
200626 Version 3 Revision 1
LMS485
Connection Diagram
8-Pin SOIC / DIP
20062602
Top View
Truth Table
DRIVER SECTION
RE
X
X
X
RECEIVER SECTION
RE
L
L
H
L
Note: * = Non Terminated, Open Input only
X = Irrelevant
Z = TRI-STATE
H = High level
L = Low level
DE
H
H
L
DE
L
L
X
L
DI
H
L
X
A-B
A
H
L
Z
B
L
H
Z
RO
H
L
Z
H
≥
+0.2V
≤
−0.2V
X
OPEN *
Pin Descriptions
Pin #
1
2
3
4
5
6
7
8
I/O
O
I
I
I
N/A
I/O
I/O
N/A
Name
RO
RE
DE
DI
GND
A
B
V
CC
Function
Receiver Output: If A > B by 200 mV, RO will be high; If A < B by 200mV, RO will be low. RO will be
high also if the inputs (A and B) are open (non-terminated)
Receiver Output Enable: RO is enabled when RE is low; RO is in TRI-STATE when RE is high
Driver Output Enable: The driver outputs (A and B) are enabled when DE is high; they are in TRI-
STATE when DE is low. Pins A and B also function as the receiver input pins (see below)
Driver Input: A low on DI forces A low and B high while a high on DI forces A high and B low when
the driver is enabled
Ground
Non-inverting Driver Output and Receiver Input pin. Driver Output levels conform to RS-485 signaling
levels
Inverting Driver Output and Receiver Input pin. Driver Output levels conform to RS-485 signaling
levels
Power Supply: 4.75V
≤
V
CC
≤
5.25V
www.national.com
200626 Version 3 Revision 1
2
Print Date/Time: 2011/10/12 10:59:46
LMS485
Ordering Information
Package
Part Number
LMS485CM
8-Pin SOIC
LMS485CMX
LMS485IM
LMS485IMX
8-Pin DIP
LMS485CNA
LMS485INA
Package Marking
LMS485CM
LMS485IM
LMS485CNA
LMS485INA
Transport Media
95 Units/Rail
2.5k Units Tape and Reel
95 Units/Rail
2.5k Units Tape and Reel
40 Units/Rail
40 Units/Rail
N08E
M08A
NSC Drawing
3
200626 Version 3 Revision 1
Print Date/Time: 2011/10/12 10:59:46
