DS7830F datasheet, PDF - EEWORLD Datasheet

DS7830F: DescriptionIC LINE DRIVER, CDIP14, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size64KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

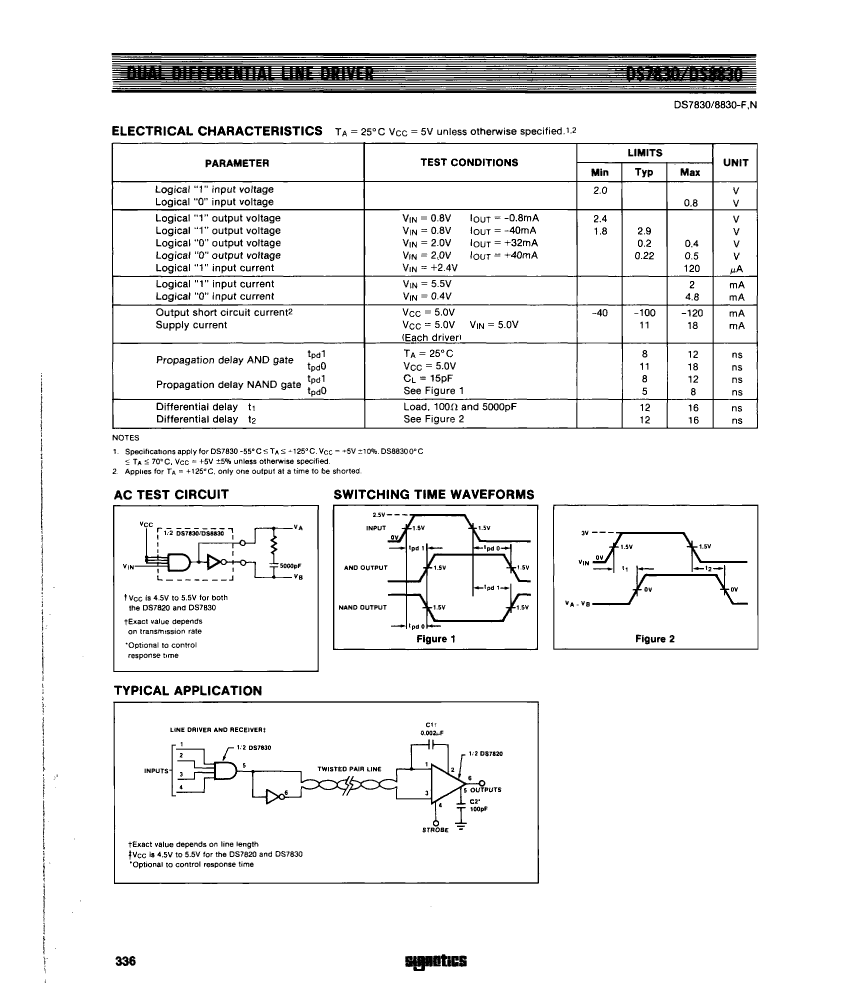

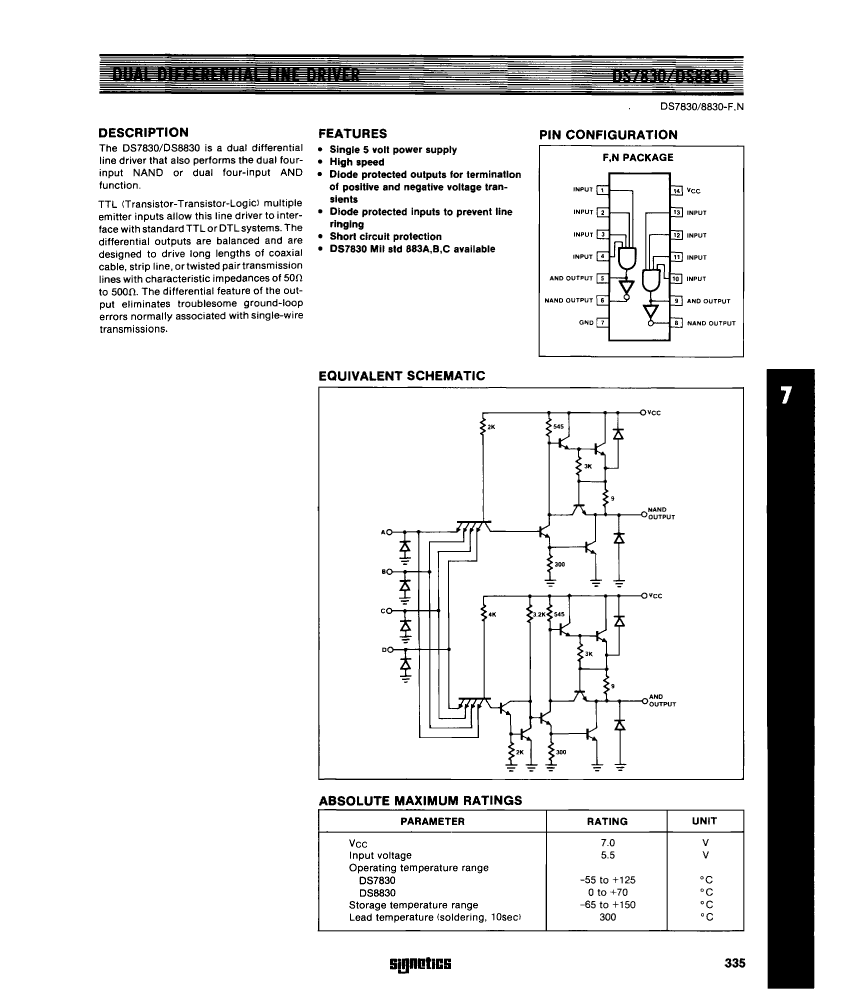

DS7830F Overview

IC LINE DRIVER, CDIP14, Line Driver or Receiver

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	2
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDIP-T14
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
maximum transmission delay	18 ns

	DS7830F	DS8830F	DS7830N
Description	IC LINE DRIVER, CDIP14, Line Driver or Receiver	IC LINE DRIVER, CDIP14, Line Driver or Receiver	IC LINE DRIVER, PDIP14, Line Driver or Receiver
package instruction	DIP,	DIP, DIP14,.3	DIP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Differential output	YES	YES	YES
Number of drives	2	2	2
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
maximum transmission delay	18 ns	18 ns	18 ns
Filter level	MIL-STD-883	-	MIL-STD-883
Terminal pitch	-	2.54 mm	2.54 mm
Base Number Matches	-	1	1
