KM23V16205BSG-12 datasheet, PDF

Datasheet> All Categories > storage> storage> KM23V16205BSG-12

KM23V16205BSG-12: DescriptionMASK ROM, 1MX16, 120ns, CMOS, PDSO70, 0.500 INCH, SSOP-70; Categorystorage storage; File Size154KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM23V16205BSG-12 Overview

MASK ROM, 1MX16, 120ns, CMOS, PDSO70, 0.500 INCH, SSOP-70

KM23V16205BSG-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	SSOP
package instruction	SSOP, SOP70,.63,32
Contacts	70
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
Other features	TTL COMPATIBLE I/O; CONFIGURABLE AS 512K X 32; PAGE ACCESS TIME = 30NS
Spare memory width	16
JESD-30 code	R-PDSO-G70
JESD-609 code	e0
length	28.57 mm
memory density	16777216 bit
Memory IC Type	MASK ROM
memory width	16
Number of functions	1
Number of terminals	70
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP70,.63,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum standby current	0.00003 A
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	12.7 mm

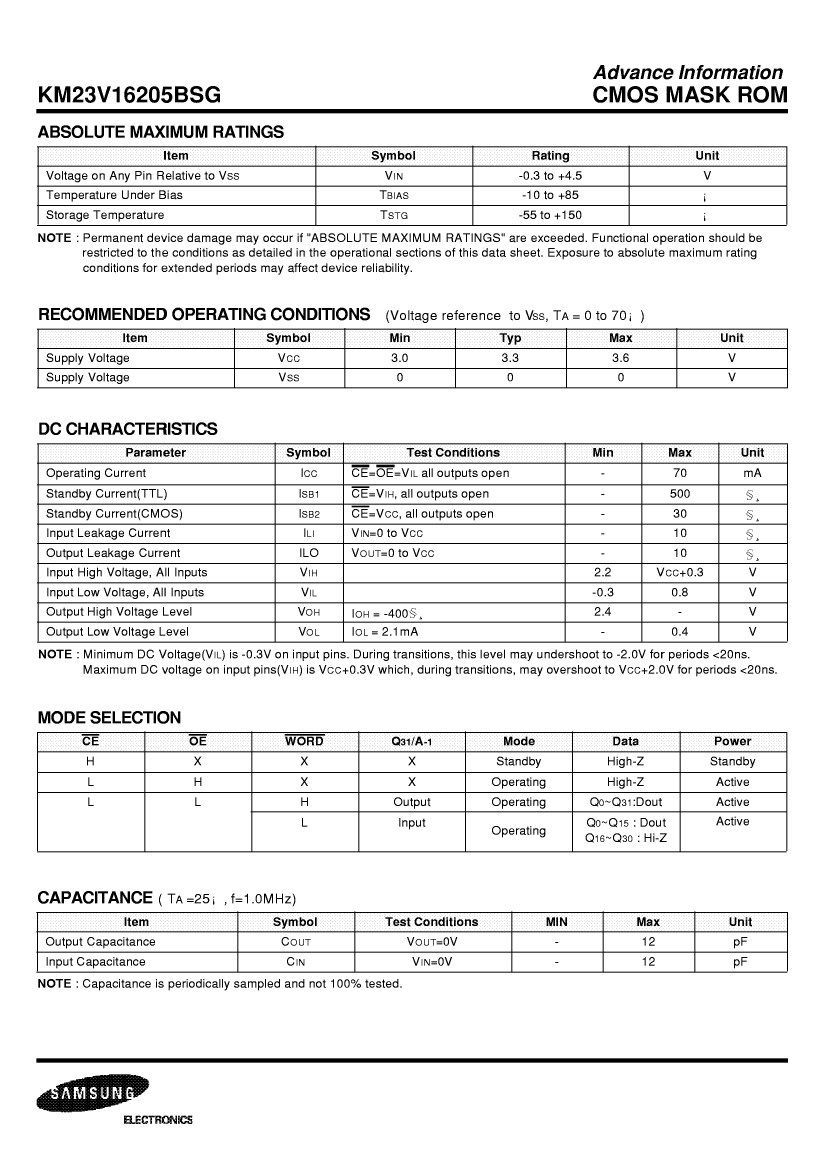

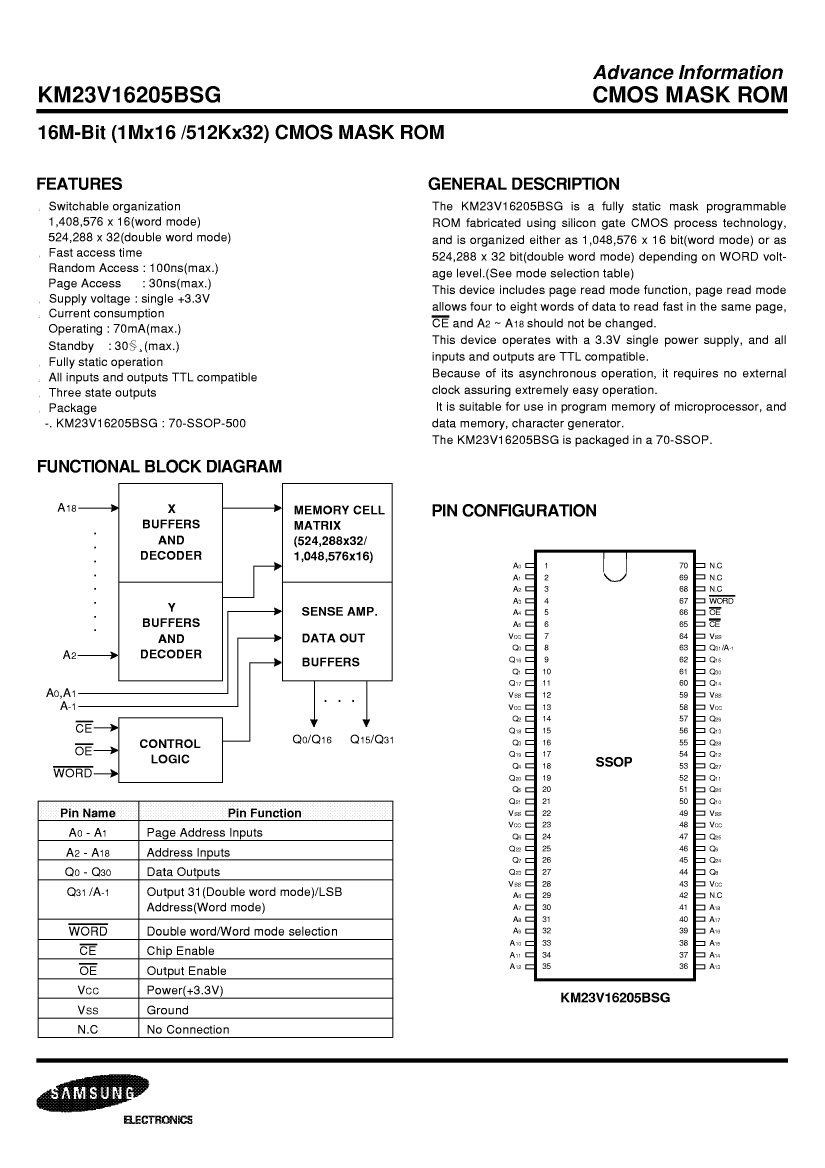

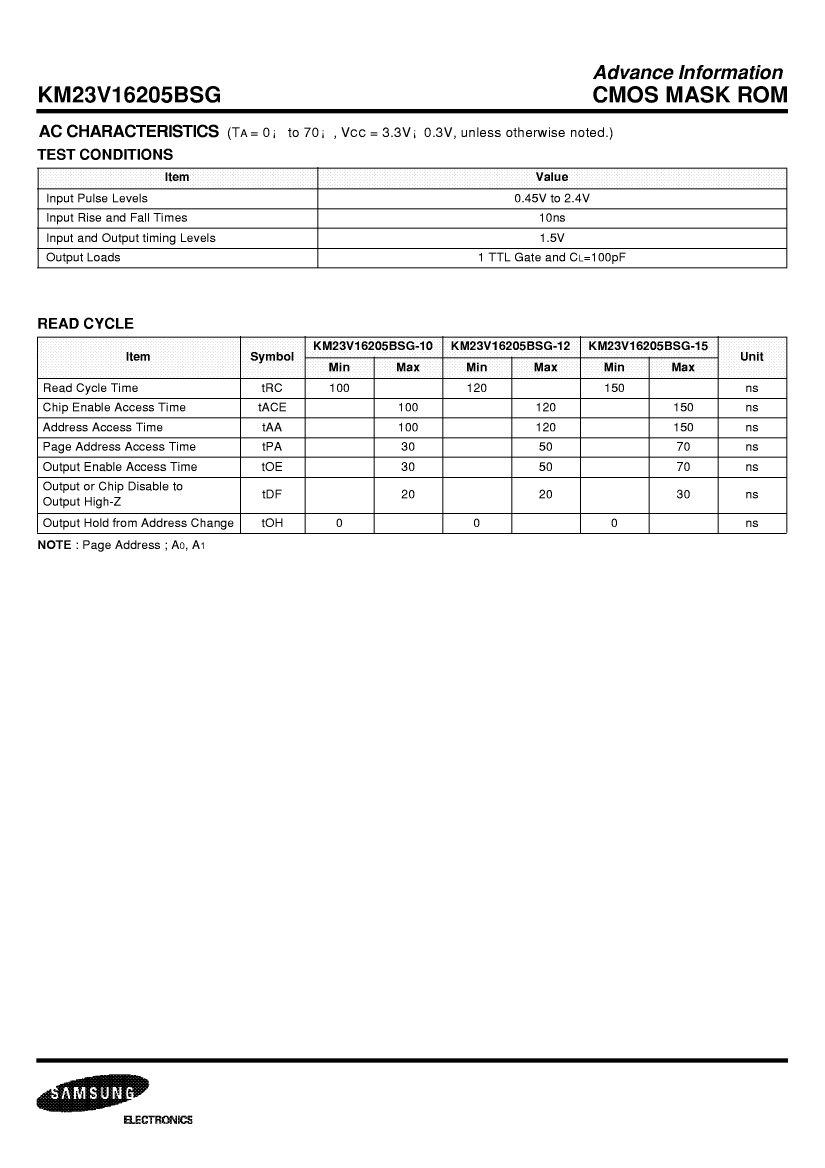

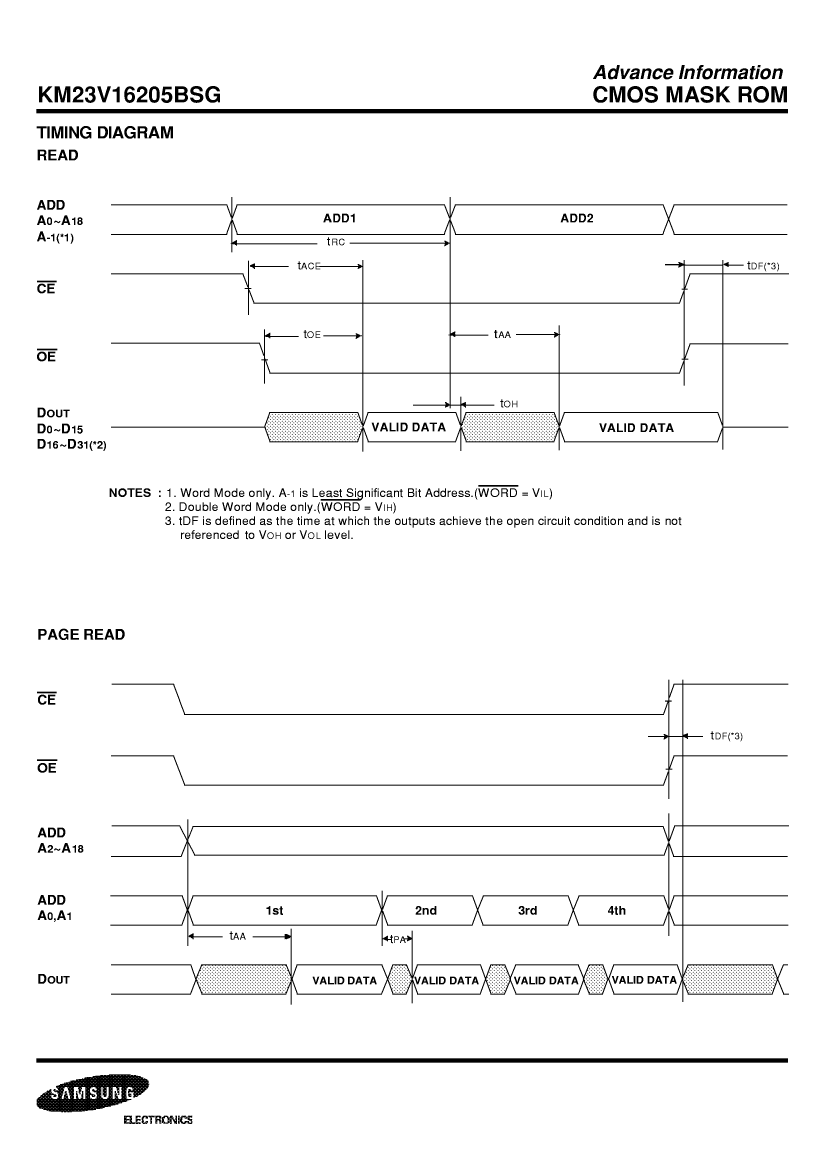

KM23V16205BSG-12 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KM23V16205BSG-12 Related Products

	KM23V16205BSG-12	KM23V16205BSG-15	KM23V16205BSG-10
Description	MASK ROM, 1MX16, 120ns, CMOS, PDSO70, 0.500 INCH, SSOP-70	MASK ROM, 1MX16, 150ns, CMOS, PDSO70, 0.500 INCH, SSOP-70	MASK ROM, 1MX16, 100ns, CMOS, PDSO70, 0.500 INCH, SSOP-70
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SSOP	SSOP	SSOP
package instruction	SSOP, SOP70,.63,32	SSOP, SOP70,.63,32	SSOP, SOP70,.63,32
Contacts	70	70	70
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	120 ns	150 ns	100 ns
Other features	TTL COMPATIBLE I/O; CONFIGURABLE AS 512K X 32; PAGE ACCESS TIME = 30NS	TTL COMPATIBLE I/O; CONFIGURABLE AS 512K X 32; PAGE ACCESS TIME = 30NS	TTL COMPATIBLE I/O; CONFIGURABLE AS 512K X 32; PAGE ACCESS TIME = 30NS
Spare memory width	16	16	16
JESD-30 code	R-PDSO-G70	R-PDSO-G70	R-PDSO-G70
JESD-609 code	e0	e0	e0
length	28.57 mm	28.57 mm	28.57 mm
memory density	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	16	16	16
Number of functions	1	1	1
Number of terminals	70	70	70
word count	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP
Encapsulate equivalent code	SOP70,.63,32	SOP70,.63,32	SOP70,.63,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	3.1 mm	3.1 mm
Maximum standby current	0.00003 A	0.00003 A	0.00003 A
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	12.7 mm	12.7 mm	12.7 mm
