LH534P00D-12 datasheet, PDF - EEWORLD Datasheet

LH534P00D-12: DescriptionMASK ROM, 512KX8, 120ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40; Categorystorage storage; File Size108KB，5 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

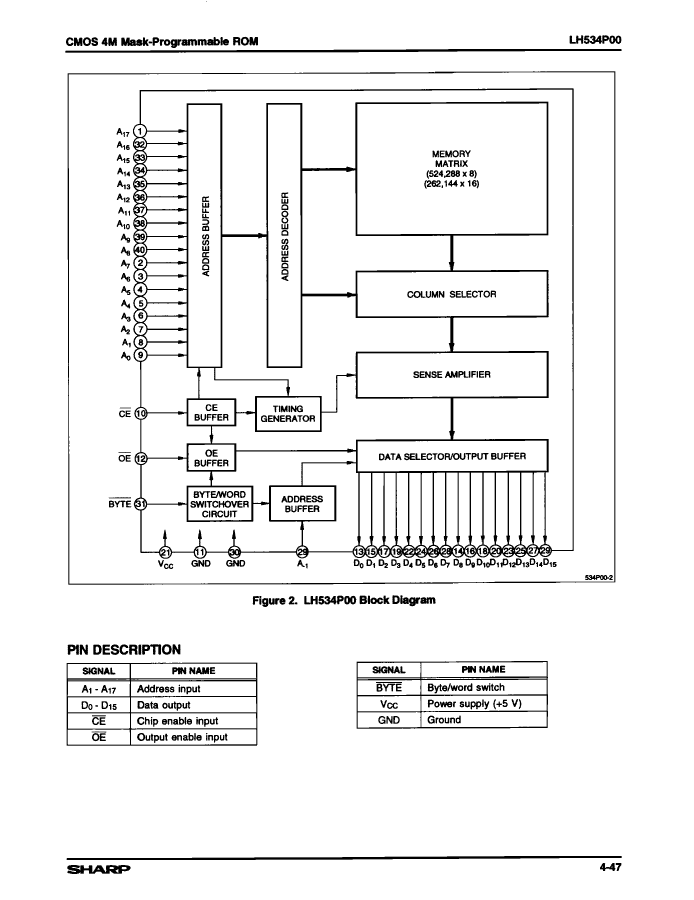

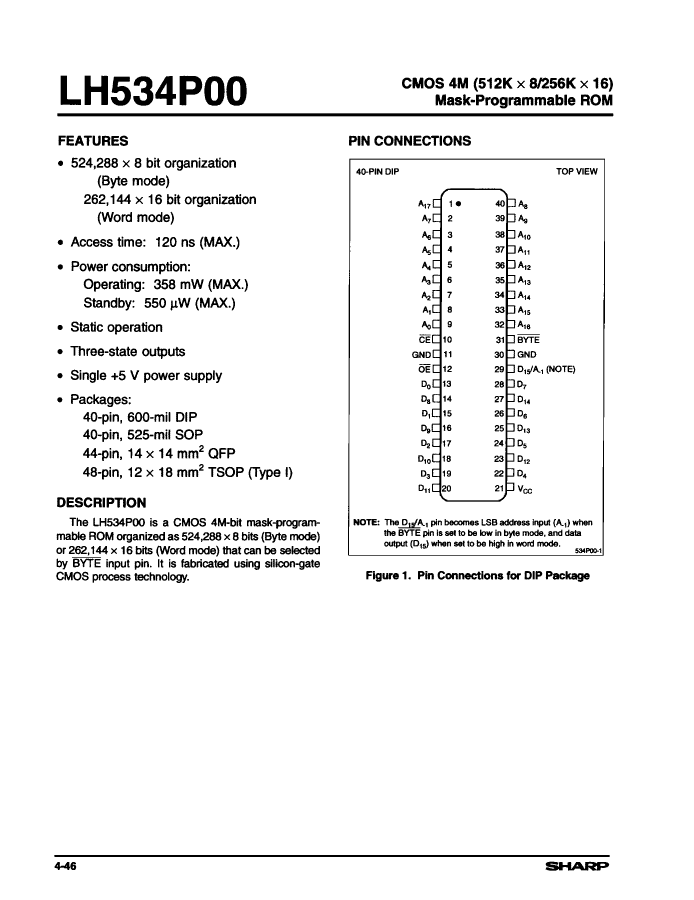

LH534P00D-12 Overview

MASK ROM, 512KX8, 120ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-40
Reach Compliance Code	unknown

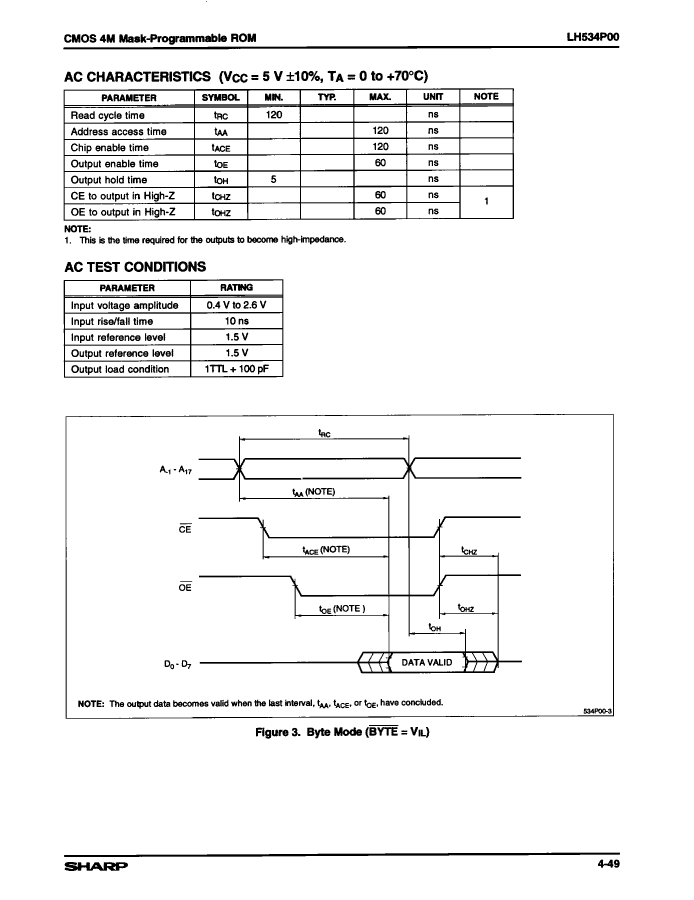

Maximum access time	120 ns
Spare memory width	16
JESD-30 code	R-PDIP-T40
length	52 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	40
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS

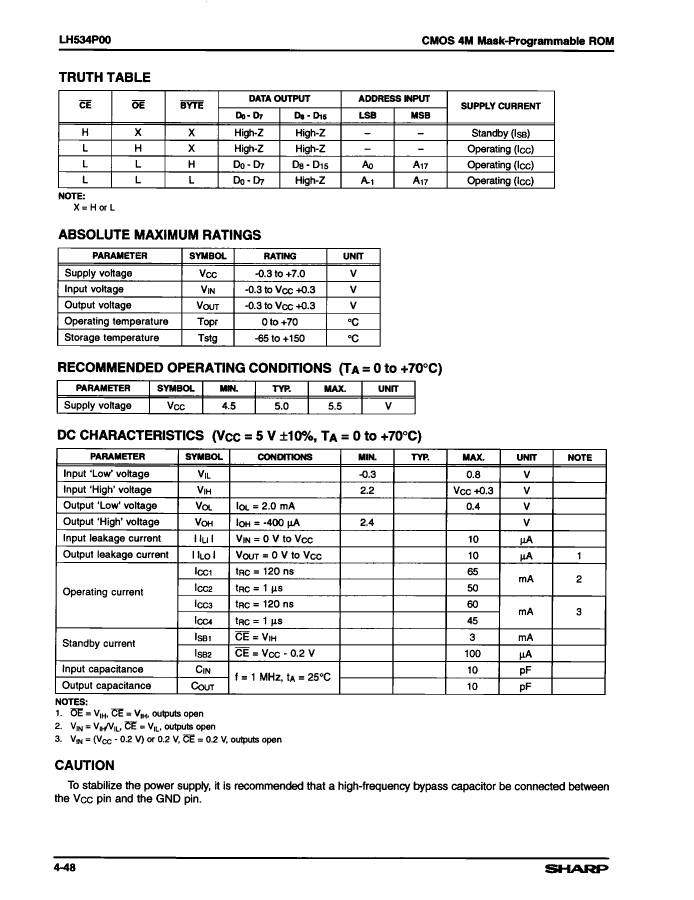

Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

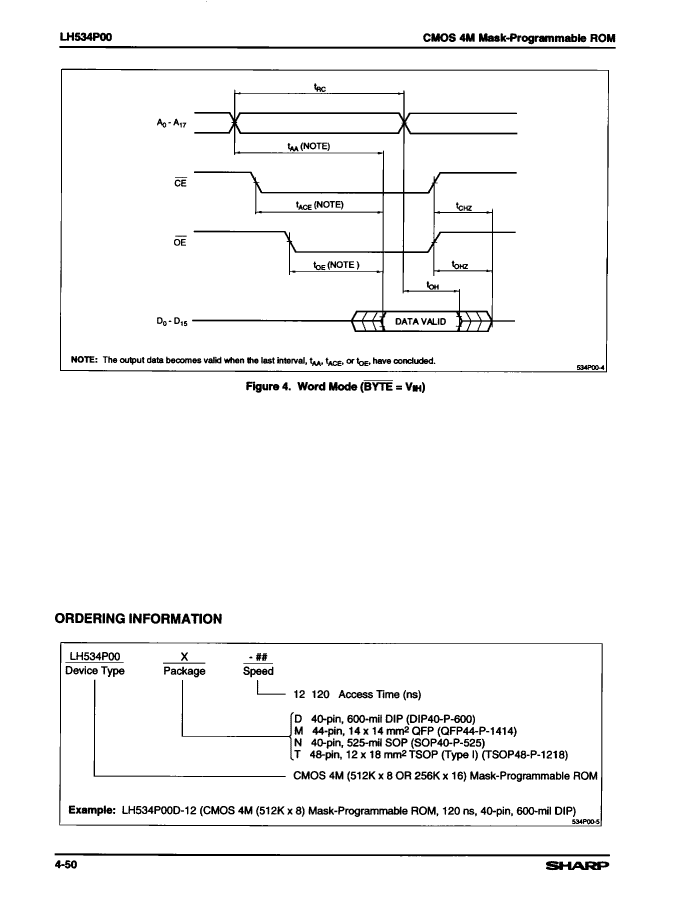

	LH534P00D-12	LH534P00N-12
Description	MASK ROM, 512KX8, 120ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 512KX8, 120ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40
Maker	SHARP	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-40	0.525 INCH, PLASTIC, SOP-40
Reach Compliance Code	unknown	unknown
Maximum access time	120 ns	120 ns
Spare memory width	16	16
JESD-30 code	R-PDIP-T40	R-PDSO-G40
length	52 mm	26.3 mm
memory density	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	8	8
Number of functions	1	1
Number of terminals	40	40
word count	524288 words	524288 words
character code	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.4 mm	3.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	15.24 mm	11.3 mm
