UPD42274LE-80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> UPD42274LE-80

UPD42274LE-80: DescriptionIC,VRAM,FAST PAGE,256KX4,CMOS,SOJ,28PIN,PLASTIC; Categorystorage storage; File Size2MB，27 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD42274LE-80 Overview

IC,VRAM,FAST PAGE,256KX4,CMOS,SOJ,28PIN,PLASTIC

UPD42274LE-80 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	unknown
Maximum access time	80 ns
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	MEMORY CIRCUIT
memory width	4
Number of terminals	28
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX4
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.004 A
Maximum slew rate	0.16 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL

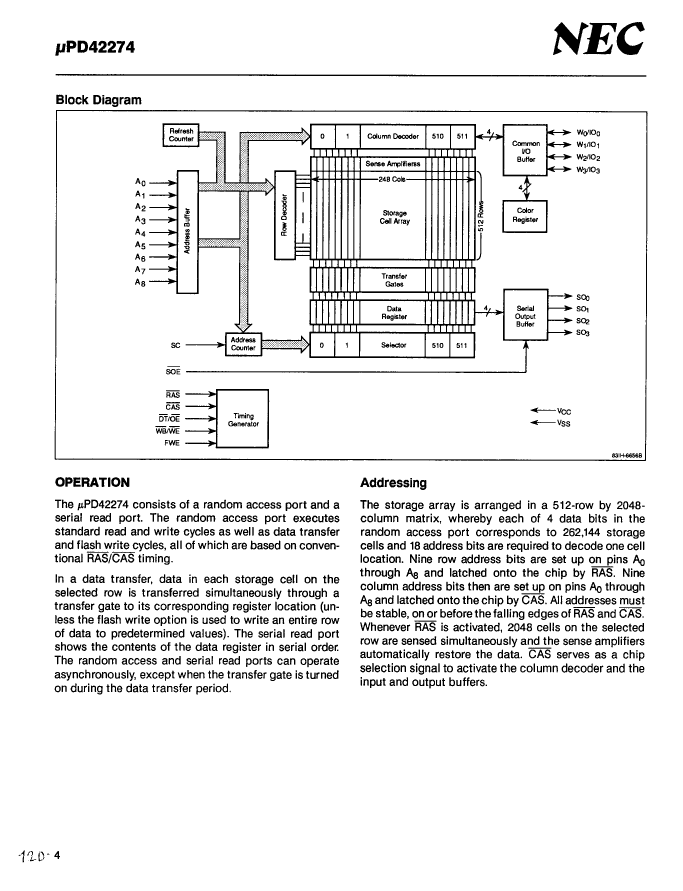

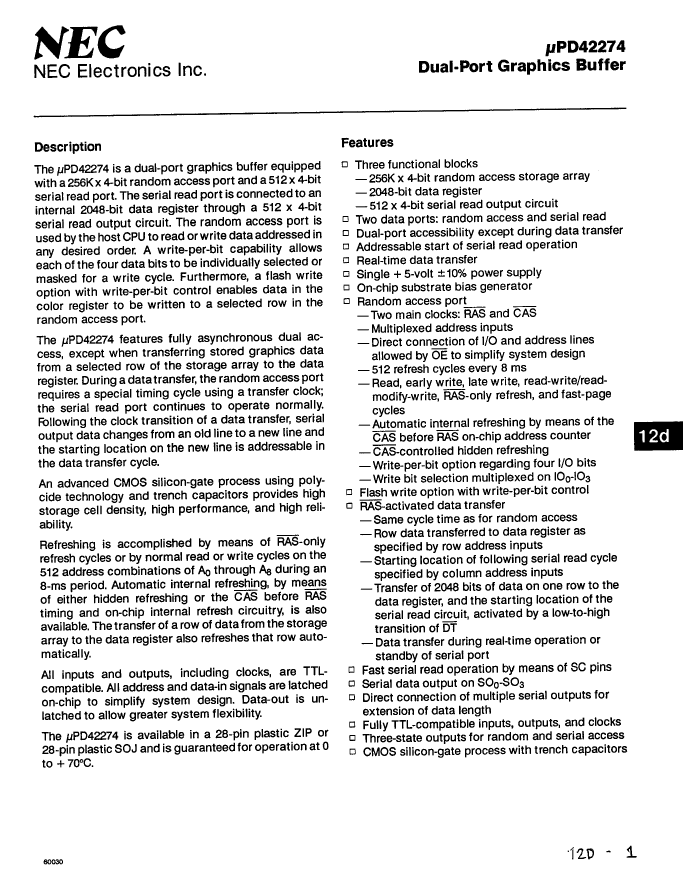

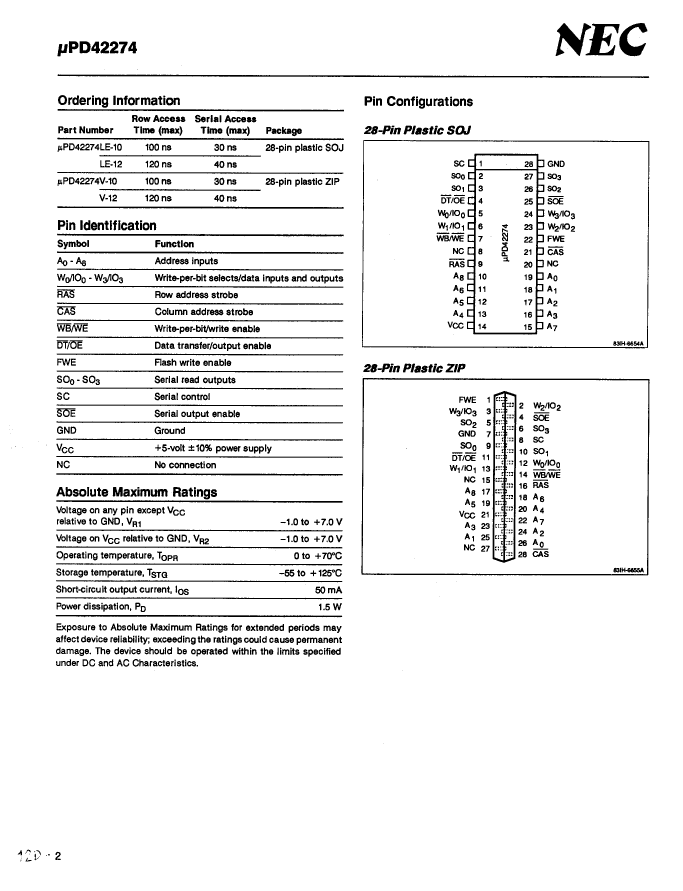

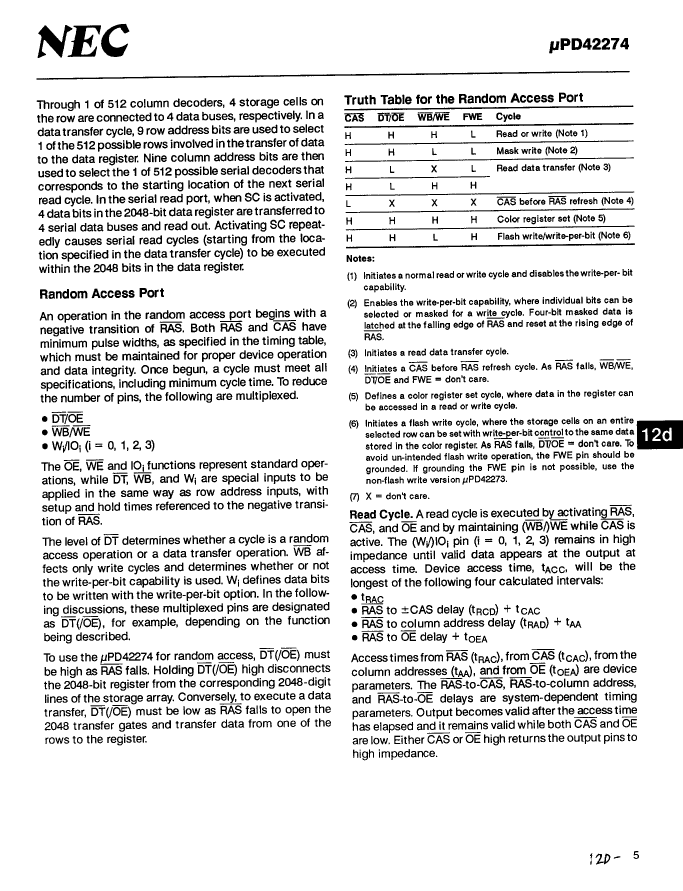

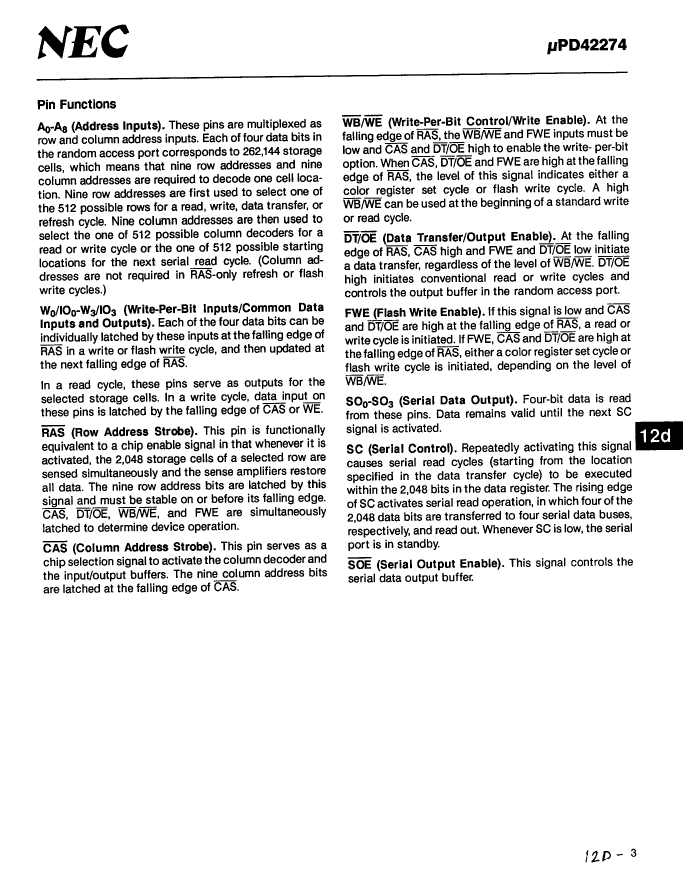

Preview

Download Datasheet

View All

UPD42274LE-80 Related Products

	UPD42274LE-80	UPD42274V-10	UPD42274V-12	UPD42274V-80	UPD42274LE-12	UPD42274LE-10
Description	IC,VRAM,FAST PAGE,256KX4,CMOS,SOJ,28PIN,PLASTIC	IC,VRAM,FAST PAGE,256KX4,CMOS,ZIP,28PIN,PLASTIC	IC,VRAM,FAST PAGE,256KX4,CMOS,ZIP,28PIN,PLASTIC	IC,VRAM,FAST PAGE,256KX4,CMOS,ZIP,28PIN,PLASTIC	IC,VRAM,FAST PAGE,256KX4,CMOS,SOJ,28PIN,PLASTIC	256KX4 VIDEO DRAM, 100ns, PDSO28, 0.400 INCH, PLASTIC, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	80 ns	100 ns	120 ns	80 ns	120 ns	100 ns
JESD-30 code	R-PDSO-J28	R-PZIP-T28	R-PZIP-T28	R-PZIP-T28	R-PDSO-J28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT
memory width	4	4	4	4	4	4
Number of terminals	28	28	28	28	28	28
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	ZIP	ZIP	ZIP	SOJ	SOJ
Encapsulate equivalent code	SOJ28,.44	ZIP28,.1	ZIP28,.1	ZIP28,.1	SOJ28,.44	SOJ28,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Maximum slew rate	0.16 mA	0.16 mA	0.14 mA	0.16 mA	0.14 mA	0.16 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	DUAL	DUAL
Parts packaging code	-	ZIP	ZIP	ZIP	-	SOJ
Contacts	-	28	28	28	-	28
