HYM5V64804TFG-70 datasheet, PDF

Datasheet> All Categories > storage> storage> HYM5V64804TFG-70

HYM5V64804TFG-70: DescriptionEDO DRAM Module, 8MX64, 70ns, CMOS, PDMA168, DIMM-168; Categorystorage storage; File Size434KB，11 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HYM5V64804TFG-70 Overview

EDO DRAM Module, 8MX64, 70ns, CMOS, PDMA168, DIMM-168

HYM5V64804TFG-70 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	DIMM
package instruction	,
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH
JESD-30 code	R-PDMA-N168
memory density	536870912 bit
Memory IC Type	EDO DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	168
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX64
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL

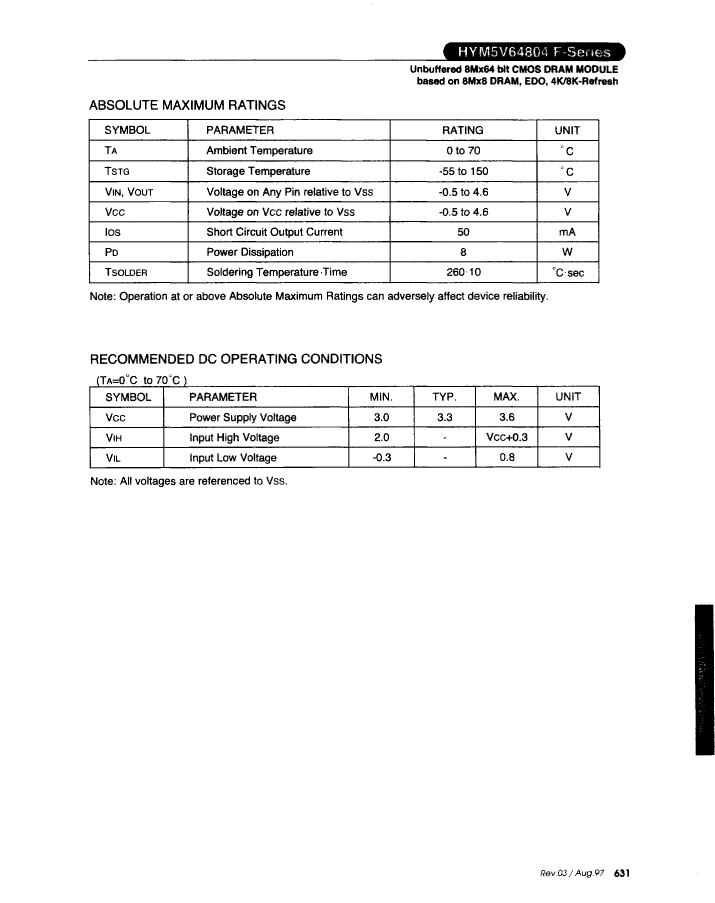

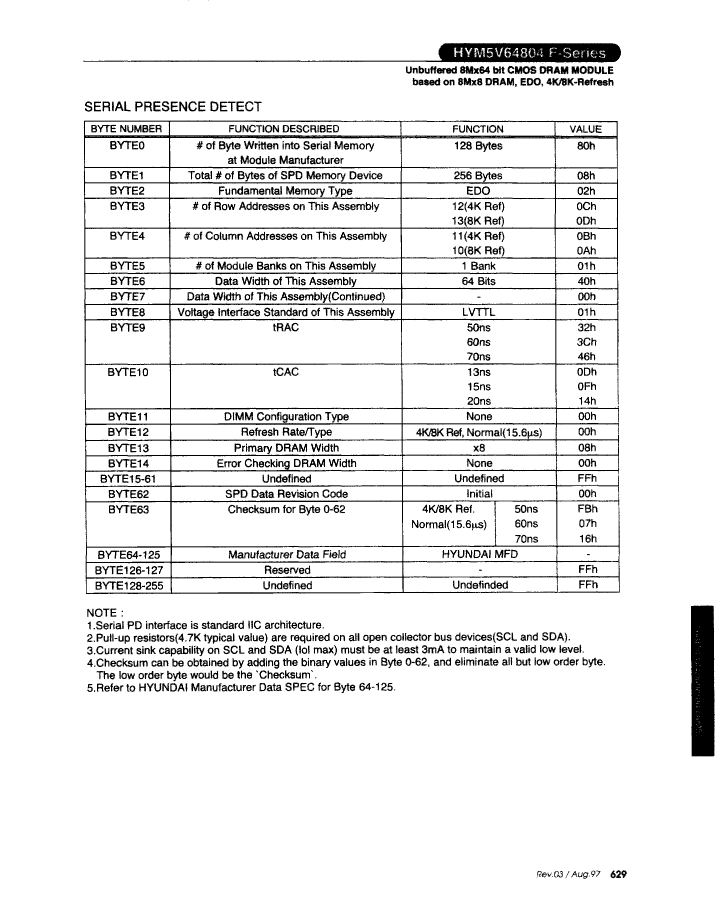

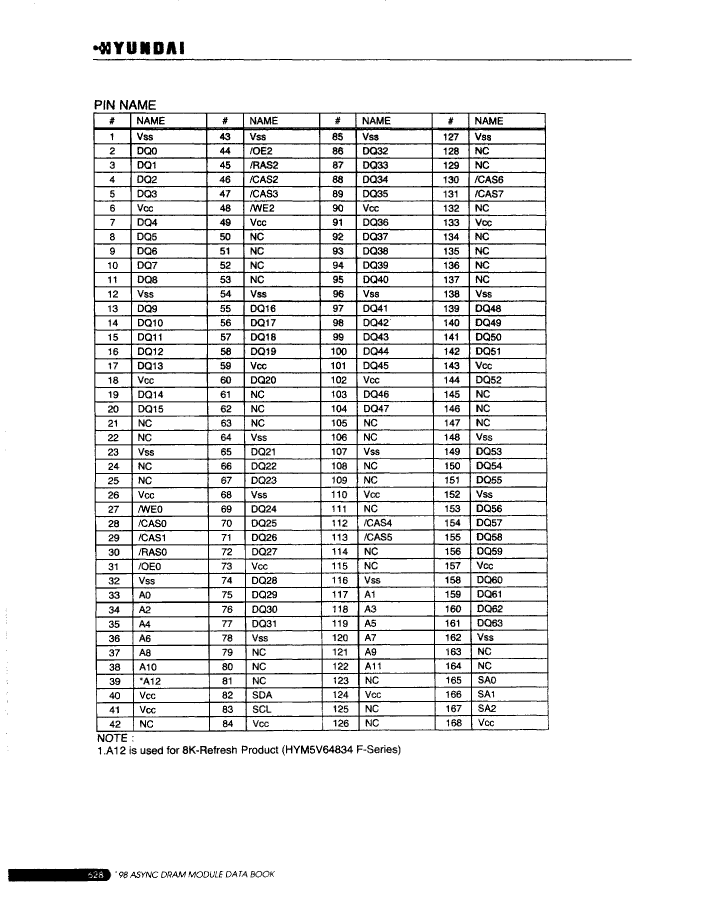

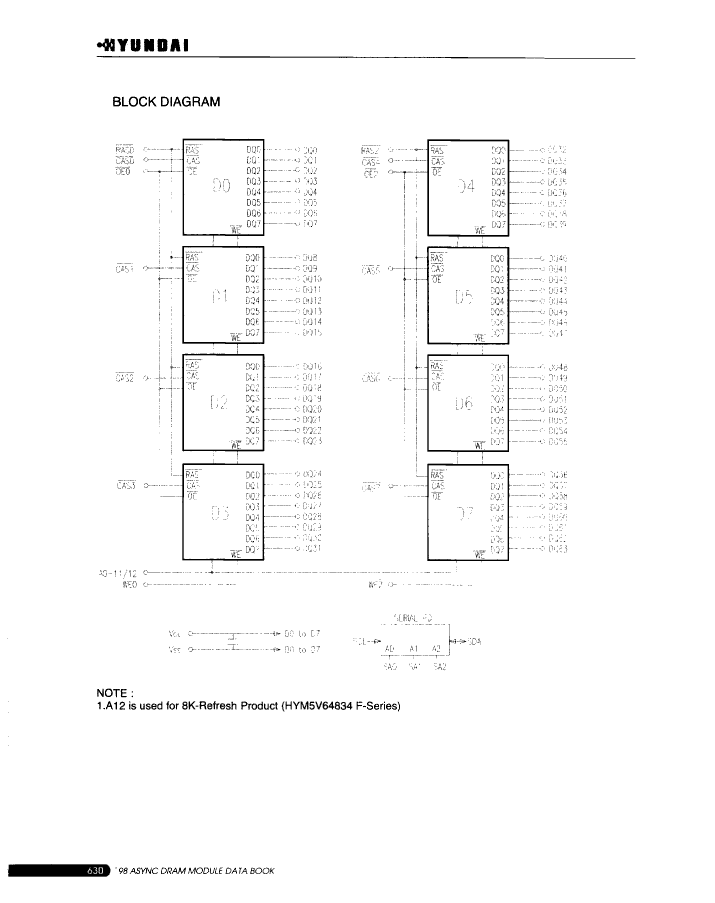

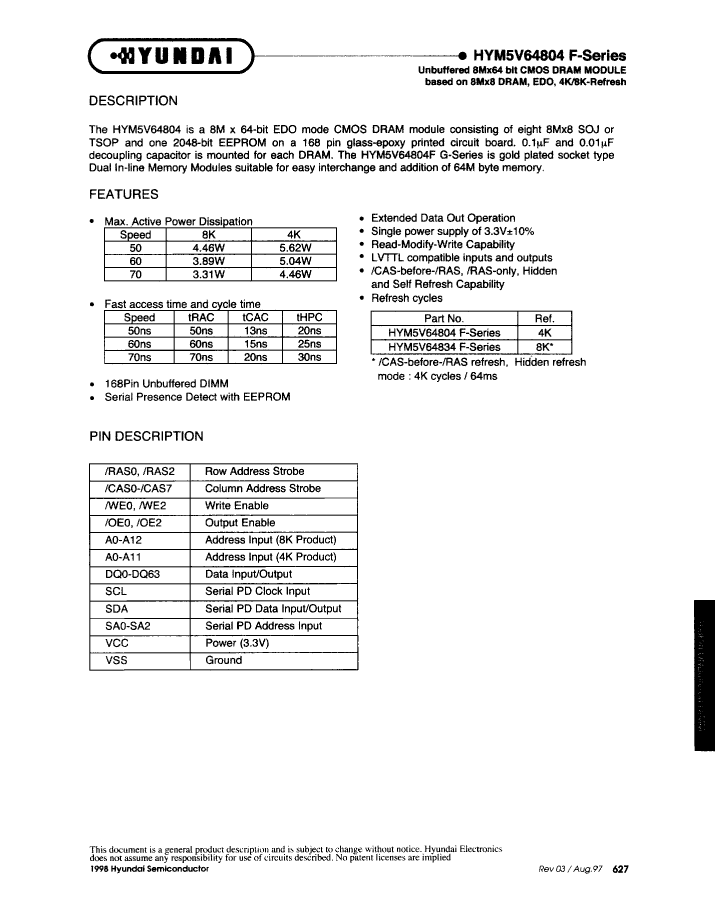

Preview

Download Datasheet

View All

HYM5V64804TFG-70 Related Products

	HYM5V64804TFG-70	HYM5V64834TFG-60	HYM5V64834FG-60	HYM5V64834TFG-50	HYM5V64834TFG-70	HYM5V64834FG-50	HYM5V64804FG-60	HYM5V64804FG-50	HYM5V64804TFG-60	HYM5V64804TFG-50
Description	EDO DRAM Module, 8MX64, 70ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 60ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 60ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 50ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 70ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 50ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 60ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 50ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 60ns, CMOS, PDMA168, DIMM-168	EDO DRAM Module, 8MX64, 50ns, CMOS, PDMA168, DIMM-168
Parts packaging code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Contacts	168	168	168	168	168	168	168	168	168	168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	60 ns	60 ns	50 ns	70 ns	50 ns	60 ns	50 ns	60 ns	50 ns
Other features	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH	CAS BEFORE RAS/RAS ONLY/HIDDEN/ SELF REFRESH
JESD-30 code	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168	R-PDMA-N168
memory density	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bit	536870912 bi
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	64	64	64	64	64	64	64	64	64	64
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	168	168	168	168	168	168	168	168	168	168
word count	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8MX64	8MX64	8MX64	8MX64	8MX64	8MX64	8MX64	8MX64	8MX64	8MX64
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SK Hynix	-	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
