U74HC00-P14-R

Description
NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, TSSOP-14
Categorylogic    logic
File Size135KB,6 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Download Datasheet Parametric View All

U74HC00-P14-R Overview

NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, TSSOP-14

U74HC00-P14-R Parametric

Parameter NameAttribute value
MakerUNISONIC TECHNOLOGIES CO.,LTD
Parts packaging codeTSSOP
package instructionTSSOP,
Contacts14
Reach Compliance Codecompliant
seriesHC/UH
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length5 mm
Logic integrated circuit typeNAND GATE
Number of functions4
Number of entries2
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)90 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width4.4 mm

U74HC00-P14-R Preview

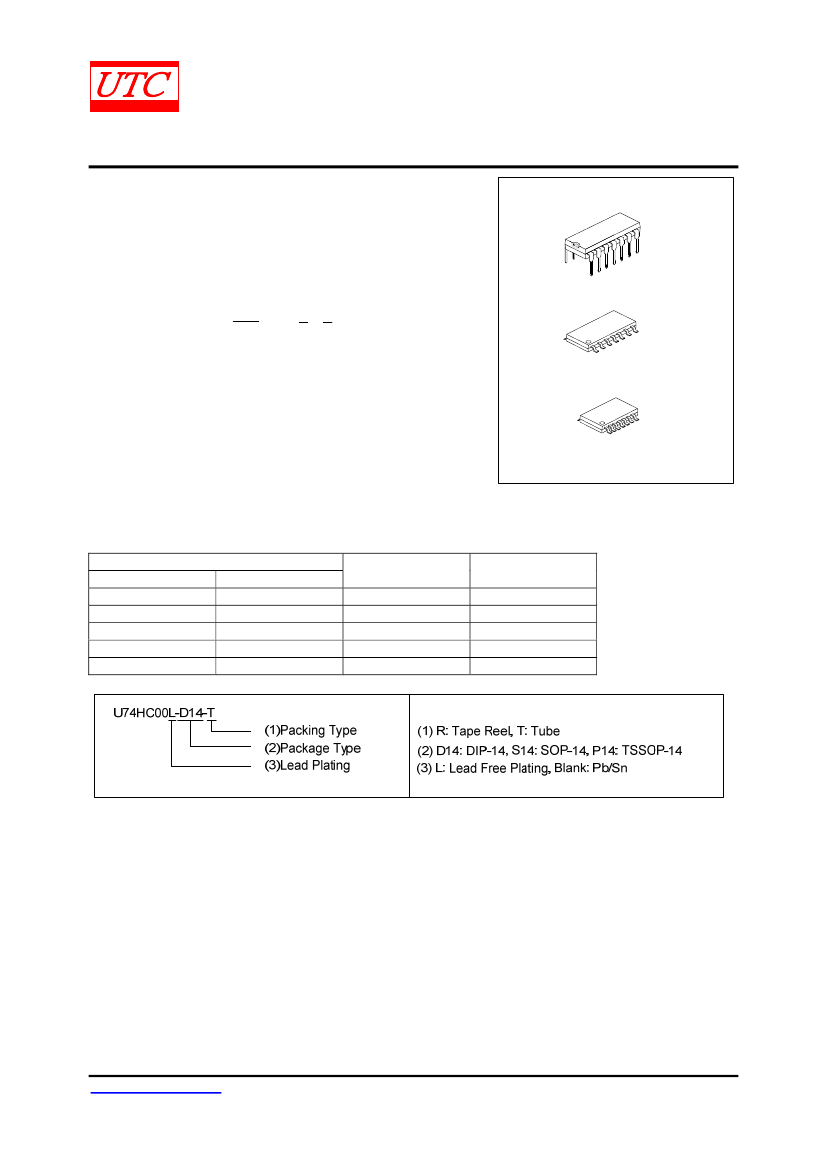

UNISONIC TECHNOLOGIES CO., LTD
U74HC00
QUADRUPLE 2-INPUT
POSITIVE-NAND GATES
DESCRIPTION
The
U74HC00
is a Quadruple 2-input positive-NAND gate with
provides the function Y = A • B or Y = A + B.
DIP-14
CMOS IC
FEATURES
* Operation voltage range:
* Low power dissipation:
2.0 V ~6.0 V
I
CC
=20μA(Max)
SOP-14
TSSOP-14
*Pb-free plating product number::
U74HC00L
ORDERING INFORMATION
Ordering Number
Normal
Lead Free Plating
U74HC00-D14-T
U74HC00L-D14-T
U74HC00-S14-T
U74HC00L-S14-T
U74HC00-S14-R
U74HC00L-S14-R
U74HC00-P14-T
U74HC00L-P14-T
U74HC00-P14-R
U74HC00L-P14-R
Package
DIP-14
SOP-14
SOP-14
TSSOP-14
TSSOP-14
Packing
Tube
Tube
Tape Reel
Tube
Tape Reel
www.unisonic.com.tw
Copyright © 2008 Unisonic Technologies Co., Ltd
1 of 6
QW-R502-068.C
U74HC00
PIN CONFIGURATION
1A
1B
1Y
2A
2B
2Y
GND
1
2
3
4
5
6
7
14 V
CC
13 4B
12 4A
11 4Y
10 3B
9
8
3A
3Y
CMOS IC
FUNCTION TABLE
(each inverter)
INPUT
A
H
L
X
B
H
X
L
OUTPUT
Y
L
H
H
LOGIC DIAGRAM
(positive logic)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 6
QW-R502-068.C
U74HC00
ABSOLUTE MAXIMUM RATINGS
(unless
otherwise specified)(Note 1)
PARAMETER
CMOS IC
SYMBOL
RATINGS
UNIT
Supply Voltage
V
CC
-0.5 ~ 7.0
V
Input Clamp Current
I
IK
±20
mA
Output Clamp Current
I
OK
±20
mA
Output Current
I
OUT
±25
mA
V
CC
or GND
Current
I
CC
±50
mA
Storage Temperature
T
STG
-65 ~ +150
°С
Note
: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
Thermal Resistance Junction Ambient
SOP-14
DIP-14
TSSOP-14
SYMBOL
θ
JA
RATINGS
76
80
113
UNIT
°С/W
°С/W
°С/W
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Supply Voltage
Input Voltage
Output Voltage
Input Transition Rise or Fall Rate
SYMBOL
V
CC
V
IN
V
OUT
t
R
, t
F
TEST CONDITIONS
MIN
2
0
0
TYP
5
MAX
6
V
CC
V
CC
1000
500
400
85
UNIT
V
V
V
ns
°С
V
CC
= 2 V
V
CC
= 4.5V
V
CC
= 6 V
Operating Temperature
T
A
-40
Note: All unused inputs of the device must be held at V
CC
or GND to ensure proper device operation.
STATIC CHARACTERISTICS
(Ta = 25°С)
PARAMETER
High-Level Input Voltage
SYMBOL
V
IH
TEST CONDITIONS
V
CC
= 2 V
V
CC
= 4.5V
V
CC
= 6 V
V
CC
= 2 V
V
CC
= 4.5 V
V
CC
= 6 V
V
CC
= 2V, V
IN
= V
IH
or V
IL,
I
OH
=
−20µA
V
CC
= 4.5V, V
IN
= V
IH
or V
IL,
I
OH
=
−20µA
V
CC
= 6V, V
IN
= V
IH
or V
IL,
I
OH
=
−20µA
V
CC
= 4.5V, V
IN
= V
IH
or V
IL,
I
OH
=
−4mA
V
CC
= 6V, V
IN
= V
IH
or V
IL,
I
OH
=
−5.2mA
V
CC
= 2V, V
IN
= V
IH
or V
IL,
I
OL
= 20µA
V
CC
= 4.5V, V
IN
= V
IH
or V
IL,
I
OL
= 20µA
V
CC
= 6V, V
IN
= V
IH
or V
IL,
I
OL
= 20µA
V
CC
= 4.5V, V
IN
= V
IH
or V
IL,
I
OL
= 4mA
V
CC
= 6V, V
IN
= V
IH
or V
IL,
I
OL
= 5.2mA
V
CC
= 6V, V
IN
= V
CC
or 0
V
CC
= 6V, V
IN
= V
CC
or 0, I
OUT
= 0
V
CC
=2V~6V
MIN
TYP
MAX
1.5
3.15
4.2
UNIT
V
Low-Level Input Voltage
V
IL
High-Level Output Voltage
V
OH
0.5
1.35
1.8
1.9
4.4
5.9
3.98
5.48
V
1.998
4.999
5.999
4.3
5.8
0.002
0.001
0.001
0.17
0.15
±0.1
3
V
Low-Level Output Voltage
V
OL
Input Leakage Current
Quiescent Supply Current
Input Capacitance
I
I(LEAK)
I
Q
C
IN
0.1
0.1
0.1
0.26
0.26
±100
2
10
V
nA
µA
pF
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 6
QW-R502-068.C
U74HC00
PARAMETER
Propagation Delay,
A or B to Y
Output Transition Times
SYMBOL
t
PLH
, t
PHL
TEST CONDITIONS
V
CC
=2V, C
L
=50pF
V
CC
=4.5V, C
L
=50pF
V
CC
=6V, C
L
=50pF
V
CC
=2V, C
L
=50pF
V
CC
=4.5V, C
L
=50pF
V
CC
=6V, C
L
=50pF
MIN
TYP
45
9
8
38
8
6
CMOS IC
DYNAMIC CHARACTERISTICS
(T
A
=25°С, Input: t
R
=t
F
=6ns; PRR≤1MHz,
unless otherwise specified
)
MAX
90
18
15
75
15
13
UNIT
ns
t
TLH
, t
THL
ns
OPERATING CHARACTERISTICS
(T
A
=25°С,
unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITION
MIN
TYP
Power Dissipation Capacitance
Cpd
No load
20
Note: All unused inputs of the device must be held at V
CC
or GND to ensure proper device operation.
MAX
UNIT
pF
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 6
QW-R502-068.C
U74HC00
TEST CIRCUIT AND WAVEFORMS
CMOS IC
Note:
CL includes probe and jig capacitance.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 6
QW-R502-068.C
