PA28F400BX-L150: DescriptionFlash, 512KX8, 150ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size2MB，43 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

PA28F400BX-L150 Overview

Flash, 512KX8, 150ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44

PA28F400BX-L150 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	SOIC
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Other features	BYTE PROGRAMMABLE; BLOCK ERASE; DEEP POWERDOWN
Spare memory width	16
startup block	BOTTOM/TOP
JESD-30 code	R-PDSO-G44
length	28.2 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	2.62 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm

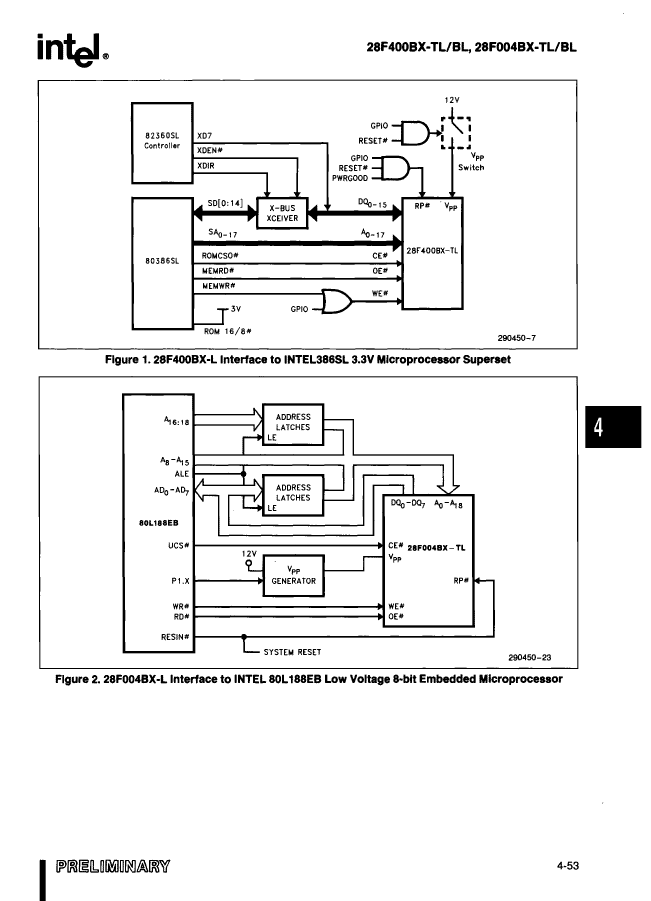

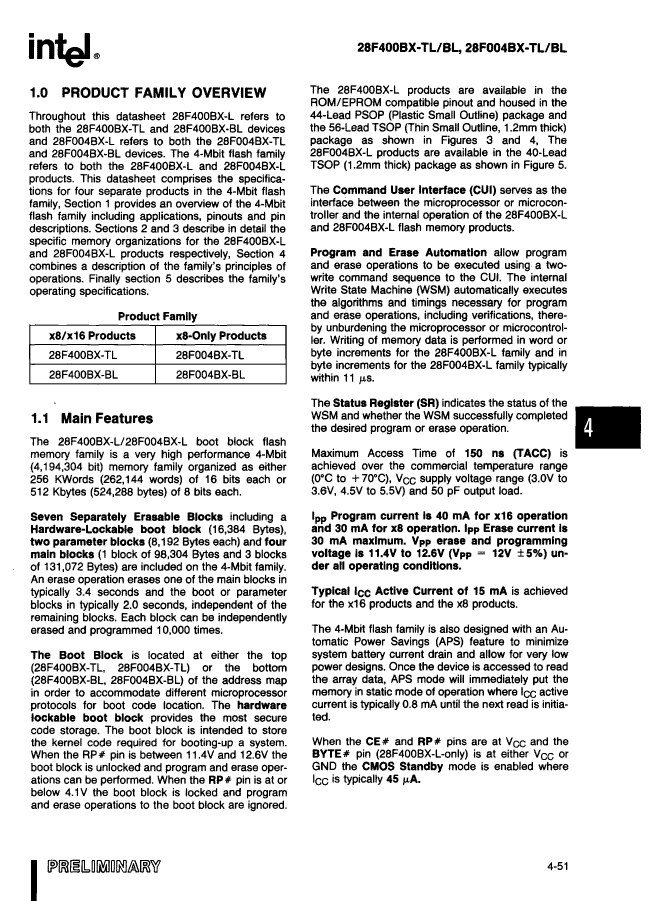

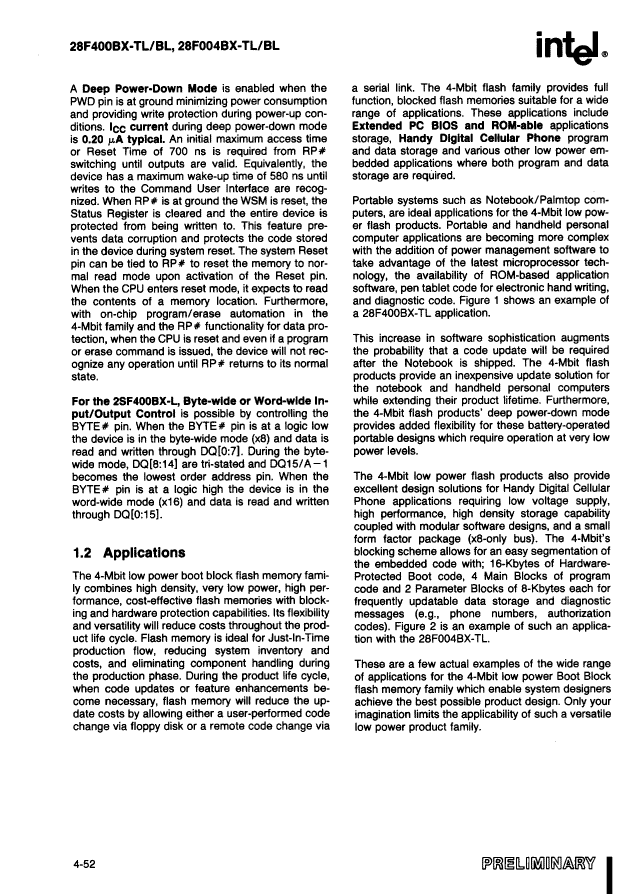

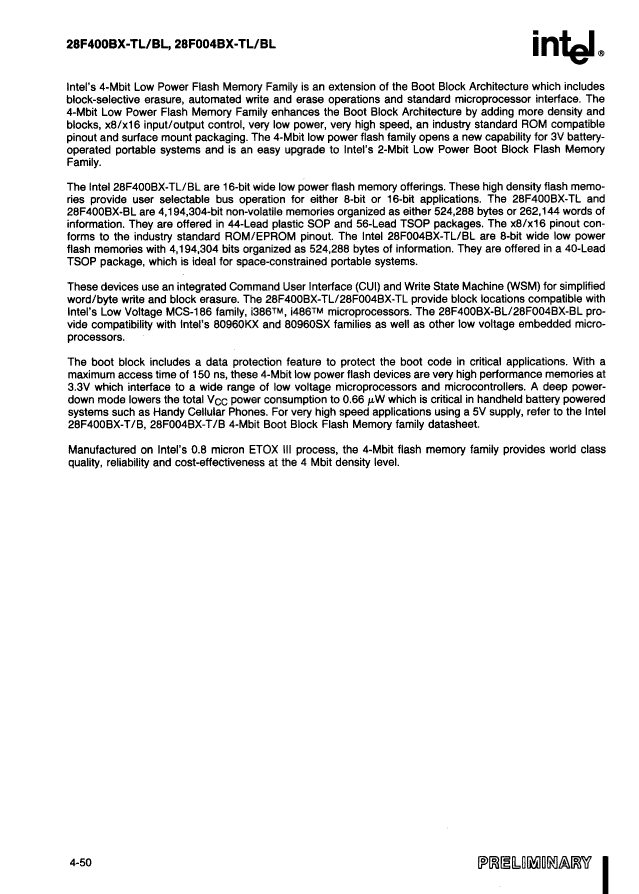

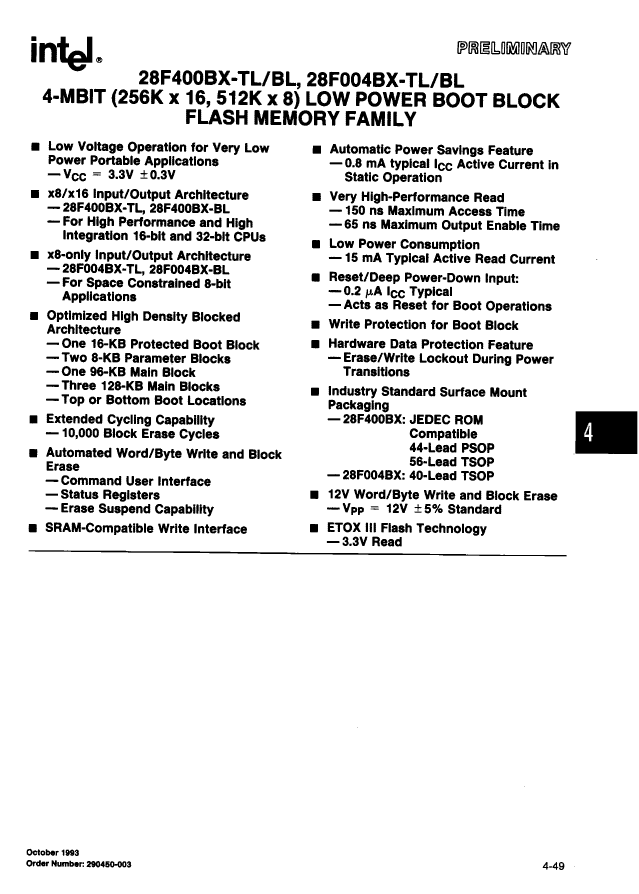

Preview

Download Datasheet

View All

PA28F400BX-L150 Related Products

	PA28F400BX-L150	E28F004BX-L150	E28F400BX-L150
Description	Flash, 512KX8, 150ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44	Flash, 512KX8, 150ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 512KX8, 150ns, PDSO56, 14 X 20 MM, 1.20 MM HEIGHT, TSOP-56
Maker	Intel	Intel	Intel
Parts packaging code	SOIC	TSOP	TSOP
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44	10 X 20 MM, TSOP-40	14 X 20 MM, 1.20 MM HEIGHT, TSOP-56
Contacts	44	40	56
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	150 ns	150 ns	150 ns
Other features	BYTE PROGRAMMABLE; BLOCK ERASE; DEEP POWERDOWN	BYTE PROGRAMMABLE; BLOCK ERASE; DEEP POWERDOWN	BYTE PROGRAMMABLE; BLOCK ERASE; DEEP POWERDOWN
startup block	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP
JESD-30 code	R-PDSO-G44	R-PDSO-G40	R-PDSO-G56
length	28.2 mm	18.4 mm	18.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	44	40	56
word count	524288 words	524288 words	524288 words
character code	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Programming voltage	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.62 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE
width	13.3 mm	10 mm	14 mm
Spare memory width	16	-	16
