MT28F016S2VG-7V datasheet, PDF

Datasheet> All Categories > storage> storage> MT28F016S2VG-7V

MT28F016S2VG-7V: DescriptionFlash, 2MX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40; Categorystorage storage; File Size397KB，12 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F016S2VG-7V Overview

Flash, 2MX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40

MT28F016S2VG-7V Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	TSOP1
package instruction	10 X 20 MM, PLASTIC, TSOP1-40
Contacts	40
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	70 ns
Other features	SELECTABLE 3V OR 5V VPP
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	18.4 mm
memory density	16777216 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	32
Number of terminals	40
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP40,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	235
power supply	3/5 V
Programming voltage	3 V
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	1.2 mm
Department size	64K
Maximum standby current	0.00001 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
switch bit	NO
type	NOR TYPE
width	10 mm

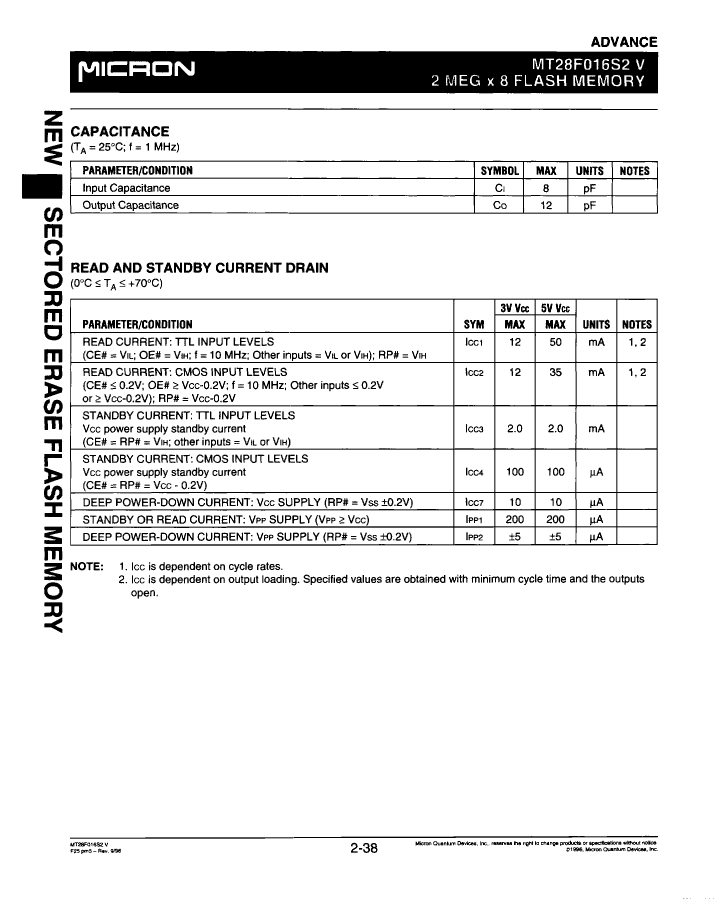

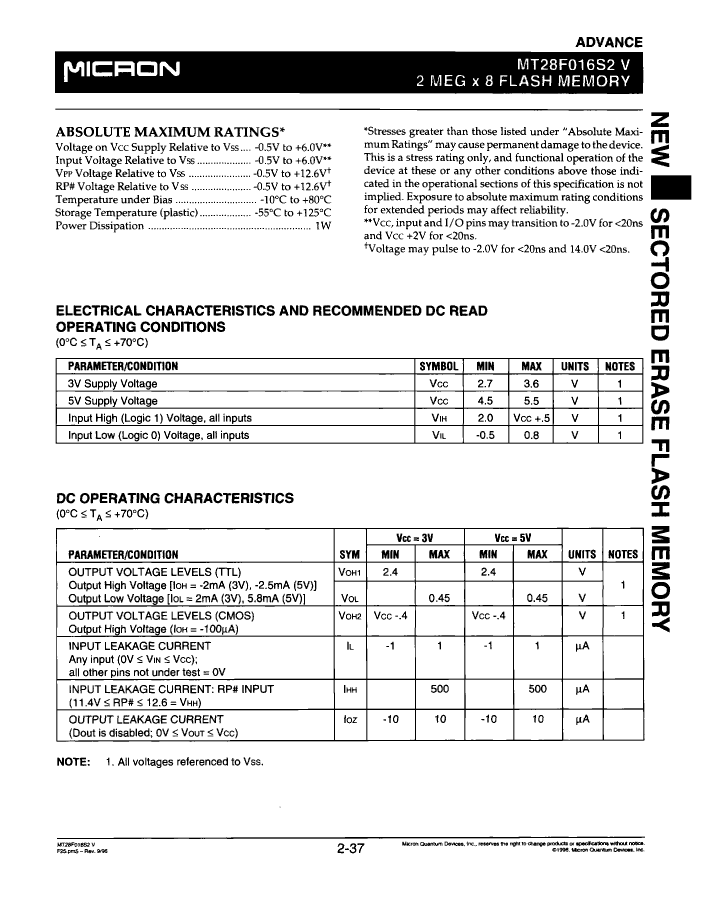

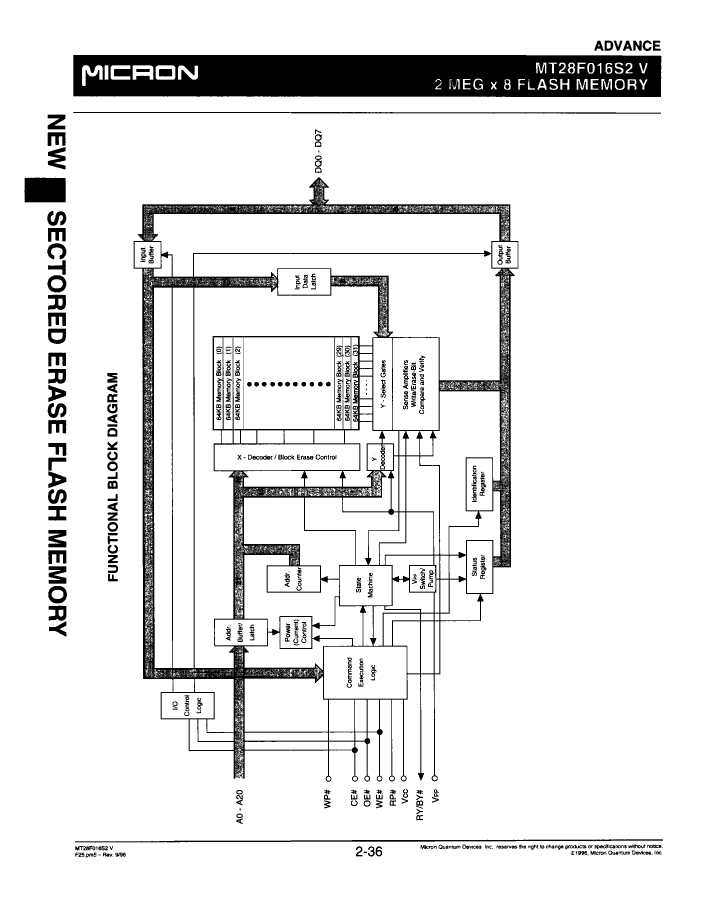

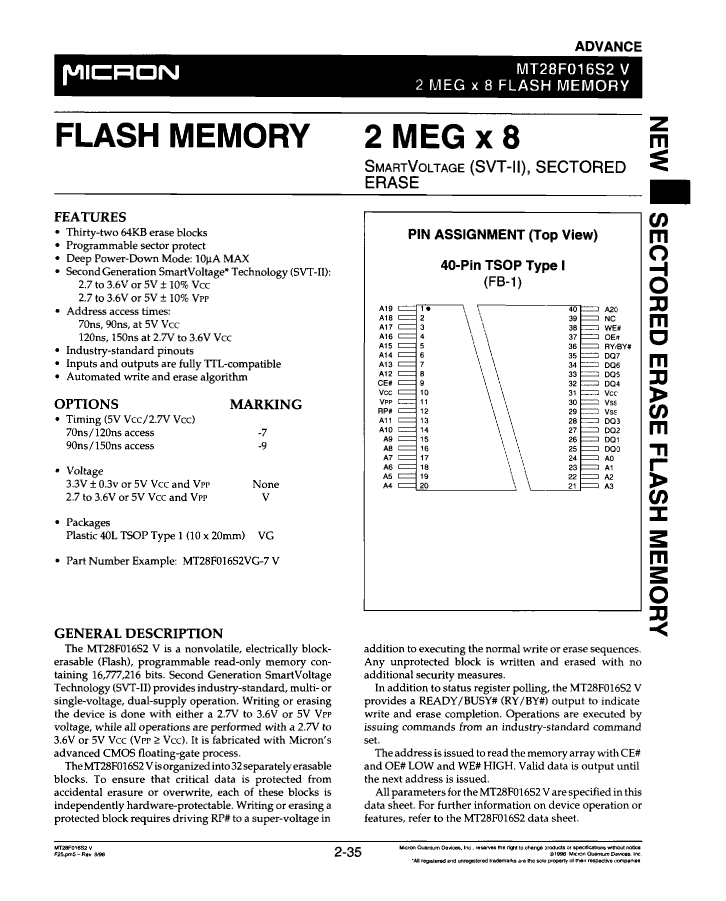

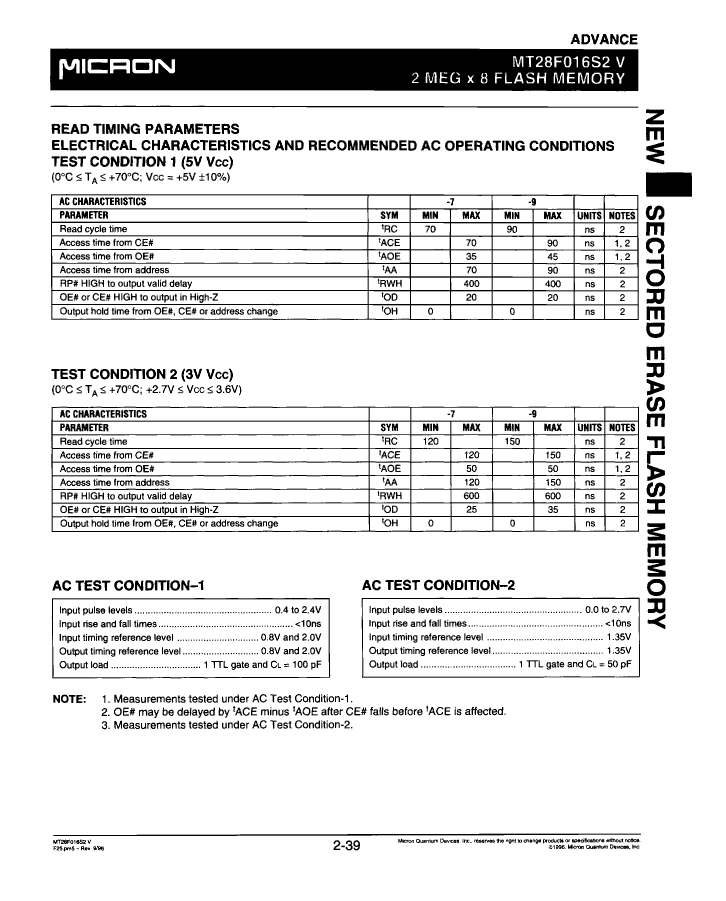

Preview

Download Datasheet

View All

MT28F016S2VG-7V Related Products

	MT28F016S2VG-7V	MT28F016S2VG-9V	MT28F016S2VG-9VTR	MT28F016S2VG-7VTR
Description	Flash, 2MX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 2MX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 2MX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 2MX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	TSOP1	TSOP1	TSOP1	TSOP1
package instruction	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	TSOP1,	10 X 20 MM, PLASTIC, TSOP1-40
Contacts	40	40	40	40
Reach Compliance Code	not_compliant	not_compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	70 ns	90 ns	90 ns	70 ns
Other features	SELECTABLE 3V OR 5V VPP	SELECTABLE 3V OR 5V VPP	SELECTABLE 3V OR 5V VPP	SELECTABLE 3V OR 5V VPP
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	40	40	40	40
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	235	235	235	235
Programming voltage	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	10 mm	10 mm	10 mm	10 mm
