Datasheet> All Categories > Discrete semiconductor> diode> UG2006-T

UG2006-T: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size121KB，4 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

UG2006-T Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2

UG2006-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	DO-15
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal surface	Bright Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

NOT RECOMMENDED

FOR NEW DESIGN

UG2001 - UG2007

2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER

Features

•

Glass Passivated Die Construction

Ultra-Fast Switching for High Efficiency

Surge Overload Rating to 60A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant (Note 4)

Mechanical Data

•

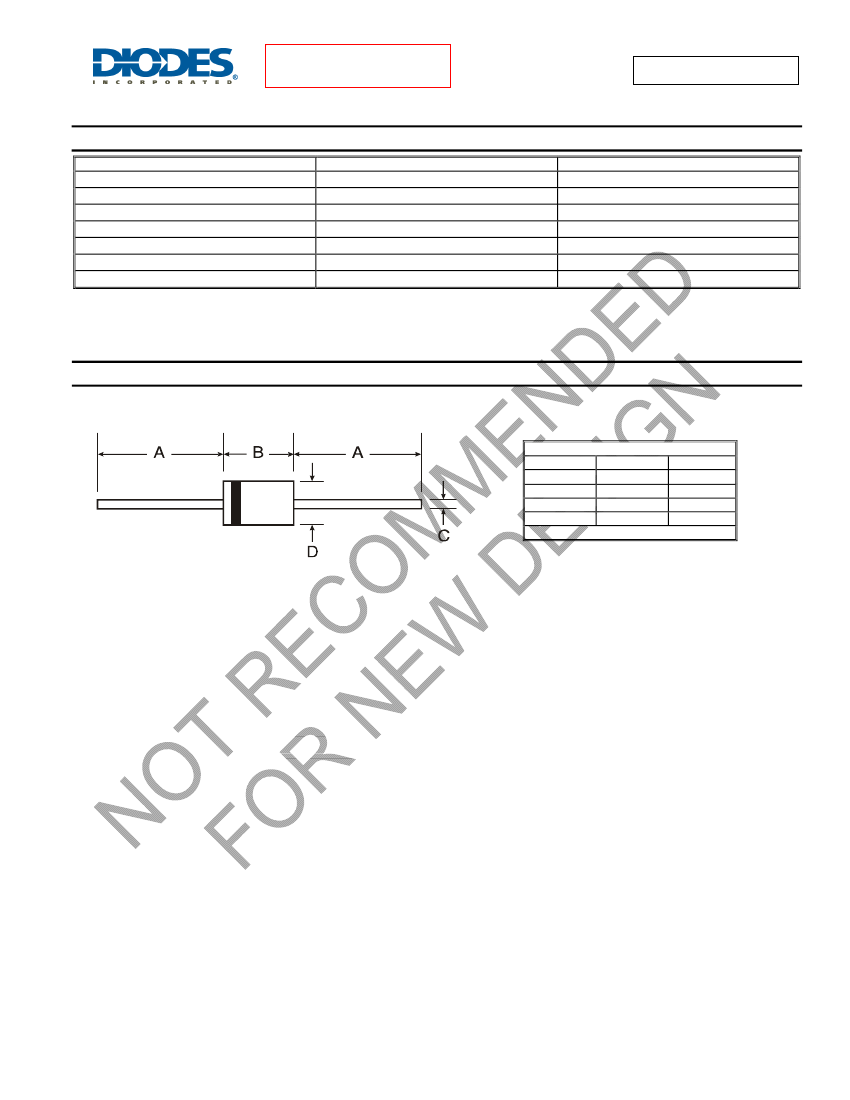

Case: DO-15

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Finish - Tin. Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Ordering Information: See Page 3

Weight: 0.4 grams (approximate)

Maximum Ratings

= 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitance load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage (Note 5)

RMS Reverse Voltage

Average Rectified Output Current @T

= 55°C (Note 1)

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

Symbol

RRM

RWM

R(RMS)

FSM

UG2001 UG2002 UG2003 UG2004 UG2005 UG2006 UG2007 Unit

100

200

140

400

280

2.0

600

420

800

560

1000

700

Thermal Characteristics

Characteristic

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Symbol

STG

Value

-55 to +150

Unit

°C/W

°C

Electrical Characteristics

Characteristic

Forward Voltage

Peak Reverse Current

at Rated DC Blocking Voltage (Note 5)

Typical Total Capacitance (Note 2)

Reverse Recovery Time (Note 3)

Notes:

= 25°C unless otherwise specified

Symbol

UG2001 UG2002 UG2003 UG2004 UG2005 UG2006 UG2007 Unit

1.0

1.3

1.7

5.0

μA

100

@ I

= 2.0A

@ T

= 25°C

@ T

= 100°C

Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

Measured with I

= 0.5A, I

= 1.0A, I

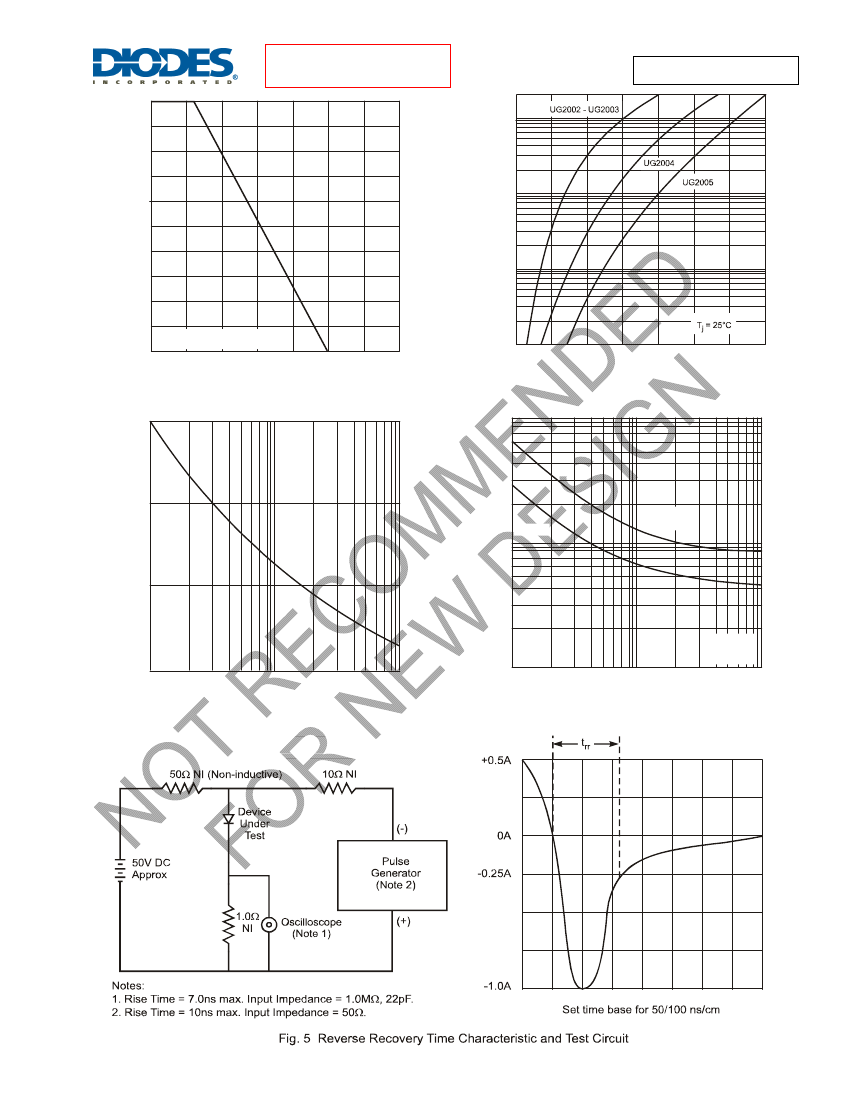

= 0.25A. See figure 5.

EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html.

Short duration pulse test used to minimize self-heating effect.

UG2001 - UG2007

Document number: DS27009 Rev. 5 - 3

1 of 4

www.diodes.com

October 2010

NOT RECOMMENDED

FOR NEW DESIGN

UG2001 - UG2007

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

UG2001 - UG2007

Document number: DS27009 Rev. 5 - 3

4 of 4

www.diodes.com

October 2010
