ISL59123IIZ-T7

Description
Video Amplifier
CategoryAnalog mixed-signal IC    Consumption circuit
File Size760KB，10 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

ISL59123IIZ-T7 Online Shopping

Suppliers Part Number Price MOQ In stock
ISL59123IIZ-T7 - - View Buy Now

ISL59123IIZ-T7 Overview

Video Amplifier

ISL59123IIZ-T7 Parametric

Parameter NameAttribute value
MakerRenesas Electronics Corporation
package instruction,
Reach Compliance Codecompliant
Commercial integrated circuit typesVIDEO AMPLIFIER

ISL59123IIZ-T7 Preview

ISL59123
W DESIGNS
N D E D F OR N E
E
T
N O T R E C O MM
REPLACEMEN
C O MM E N D E D
at
NO RE
upport Center
ur Technical S tersil.com/tsc
contact o
IL or www.in
1-888-INTERS
DATASHEET
FN6432
Rev 1.00
April 4, 2007
Triple Channel Video Driver with LPF
The ISL59123 is a triple channel reconstruction filter with a
-3dB roll-off frequency of 18MHz. Operating from single
supplies ranging from +2.5V to +3.6V and sinking a low 4mA
quiescent current, the ISL59123 is ideally suited for low
power, battery-operated applications. An enable pin allows
the part to be placed in a 500nA shutdown mode in less than
30ns.
The ISL59123 is designed to meet the needs for extremely
low power and bandwidth requirements in battery-operated
communication, instrumentation, and modern industrial
applications such as video on demand, cable set-top boxes,
MP3 players, and HDTV. The ISL59123 is offered in a
space-saving chipscale package guaranteed to a 0.57mm
maximum height constraint and specified for operation from
-40°C to +85°C temperature range.
Features
• 3rd order 18MHz reconstruction filter
• 4mA typical supply current
• Less than 500nA maximum power-down current
• 2.5V to 3.6V supply range
• CSP package
• Pb-free plus anneal available (RoHS compliant)
Applications
• Video amplifiers
• Portable and handheld products
• Communications devices
• Video on demand
• Cable set-top boxes
Block Diagram
50mV
V
IN
1
18MHz
- +
X2
V
OUT
1
• Satellite set-top boxes
• MP3 players
• HDTV
50mV
V
IN
2
18MHz
- +
X2
V
OUT
2
• Personal video recorder
Pinout
ISL59123
(9 BALL WLCSP)
TOP VIEW
50mV
V
IN
3
18MHz
- +
X2
V
OUT
3
A
1
2
3
V
IN
1
EN
BIASING AND
CONTROL
B
V
IN
2
C
V
IN
3
GND
V
OUT
1
EN
V
OUT
2
V
DD
V
OUT
3
Ordering Information
PART NUMBER (Note)
ISL59123IIZ-T7
PART MARKING TAPE AND REEL
123Z
7”
TEMP. RANGE (°C)
-40 to +85
PACKAGE (Pb-free)
9 Ball 3x3 WLCSP
PKG. DWG. #
W3x3.9B
NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate
termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL
classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
FN6432 Rev 1.00
April 4, 2007
Page 1 of 10
ISL59123
Absolute Maximum Ratings
(T
A
= +25°C)
Supply Voltage from V
DD
to GND . . . . . . . . . . . . . . . . . . . . . . . 4.2V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . V
DD
+0.3V to GND -0.3V
Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +125°C
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +125°C
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . .2500V
Machine Model (Per EIAJ ED-4701 Method C-111) . . . . . . . .300V
Thermal Information
Thermal Resistance (Typical)
JA
(°C/W)
9 Ball WLCSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
105
Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below
http://www.intersil.com/pbfree/Pb-FreeReflow.asp
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typ values are for information purposes only. Unless otherwise noted, all tests are
at the specified temperature and are pulsed tests, therefore: T
J
= T
C
= T
A
Electrical Specifications
PARAMETER
INPUT CHARACTERISTICS
V
DD
I
DD
I
DD_OFF
C
IN
I
IN
V
OLS
A
V
V
DD
= 3.3V, T
A
= +25°C, R
SOURCE
= 200, R
L
= 150 to GND, unless otherwise specified.
CONDITIONS
MIN
TYP
MAX
UNIT
DESCRIPTION
Supply Voltage Range
Quiescent Supply Current
Shutdown Supply Current
V
IN
Input Capacitance
V
IN
Input Bias Current
Output Level Shift Voltage
Voltage Gain
Channel-to Channel Gain Mismatch
DC Power Supply Rejection
Output Voltage High Swing
Output Short-Circuit Current
V
DD
= 2.7V to 3.3V
V
IN
= 2V, R
L
= 150 to GND
V
IN
= 2V, V
OUT
shorted to GND through 10
V
IN
= 0V, V
OUT
shorted to V
DD
through 10
0.0V < V
IN
< 2.0V
V
IN
= 0V, no load (minimum output voltage)
R
L
= 150
V
IN
= 500mV, EN = V
DD
, no load
EN = 0V
2.5
4.0
3.6
6.0
0.5
10
0.01
1
150
2.04
±1.75
V
mA
µA
pF
µA
mV
V/V
%
dB
V
mA
mA
45
1.95
100
1.99
±0.5
63
A
V
PSRR
V
OH
I
SC
2.85
100
140
3.1
140
200
±0.003
±1
0.8
I
ENABLE
V
IL
V
IH
R
OUT
Enable Input Current
Disable Threshold
Enable Threshold
Shutdown Output Impedance
0V < V
EN
< 3.3V
V
DD
= 2.7V to 3.3V
V
DD
= 2.7V to 3.3V
EN = 0V DC
EN = 0V, f = 4.5MHz
2.0
5.0
µA
V
V
6.4
1.5
8.0
k
k
AC PERFORMANCE
BW
Passband Gain
Stopband Gain
-3dB Bandwidth
Normalized Gain at 11MHz
Normalized Stopband Gain (minimum
limits guaranteed by design and bench
characterization)
Differential Gain
Differential Phase
Group Delay Variation
Signal To Noise Ratio
Positive Slew Rate
R
L
= 150, C
L
= 5pF
R
L
= 150, C
L
= 5pF
f = 43MHz
f = 54MHz
NTSC and PAL
NTSC and PAL
f = 400kHz, 5MHz
100% white signal
10% to 90%, V
IN
= 1V step
40
-0.5
-11
-16
-16
-21
0.10
0.5
5.4
65
55
18
+0.5
MHz
dB
dB
dB
%
°
ns
dB
V/µs
dG
dP
D/DT
SNR
+SR
FN6432 Rev 1.00
April 4, 2007
Page 2 of 10
ISL59123
Electrical Specifications
PARAMETER
-SR
t
F
t
R
t
ON
t
OFF
V
DD
= 3.3V, T
A
= +25°C, R
SOURCE
= 200, R
L
= 150 to GND, unless otherwise specified.
(Continued)
CONDITIONS
90% to 10%, V
IN
= 1V step
2.5V
STEP
, 80% to 20%
2.5V
STEP
, 20% to 80%
V
IN
= 500mV, V
OUT
to 1%
V
IN
= 500mV, V
OUT
to 1%
MIN
50
TYP
60
25
22
250
30
MAX
UNIT
V/µs
ns
ns
ns
ns
DESCRIPTION
Negative Slew Rate
Fall Time
Rise Time
Enable Time
Disable Time
Pin Descriptions
PIN NUMBER
A1
A2
A3
B1
B2
B3
C1
C2
C3
PIN NAME
V
IN
1
GND
V
OUT
1
V
IN
2
EN
V
OUT
2
V
IN
3
V
DD
V
OUT
3
Video input for Channel 1
Ground
Video output for Channel 1
Video input for Channel 2
Enable
Video output for Channel 2
Video input for Channel 3
Positive power supply
Video output for Channel 3
DESCRIPTION

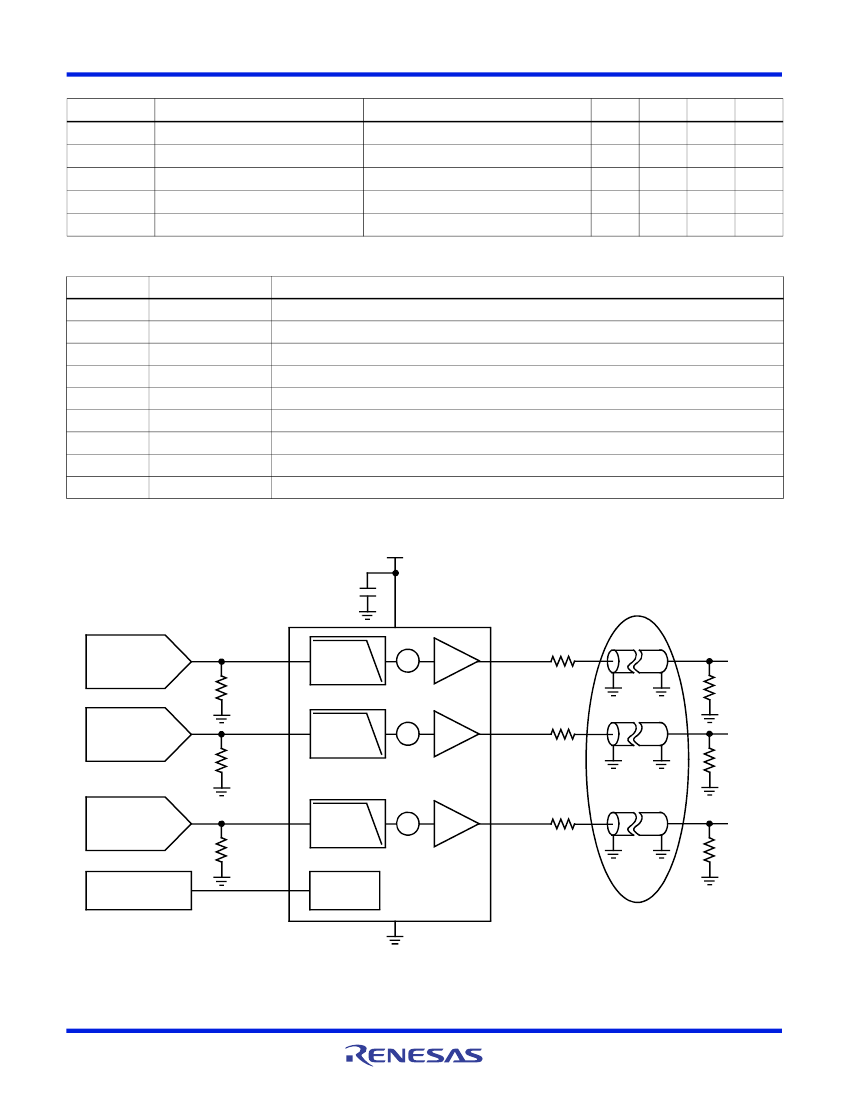

Component Video Connection Diagram
3.3V
0.1F
V DD
Y
CURRENT DAC
200
P
B
CURRENT DAC
200
V
IN
2
18MHz
50mV
- +
X2
V
OUT
2
75
V
IN
1
18MHz
50mV
- +
X2
V
OUT
1
75
COMPONENT
VIDEO CABLE
Y
OUT
75
P
BOUT
75
P
R
CURRENT DAC
200
V
IN
3
18MHz
50mV
- +
X2
V
OUT
3
75
P
ROUT
75
C
OR TIE TO 3.3V
EN
BIASING AND
CONTROL
FN6432 Rev 1.00
April 4, 2007
Page 3 of 10
ISL59123
Composite and S-Video Connection Diagram
3.3V
0.1F
V DD
Y (LUMA)
CURRENT DAC
200
C (CHROMA)
CURRENT DAC
200
V
IN
2
50mV
18MHz
- +
X2
V
OUT
2
75
V
IN
1
50mV
18MHz
- +
X2
V
OUT
1
75
S-VIDEO CABLE
Y
OUT
75
C
OUT
75
CVBS
CURRENT DAC
200
V
IN
3
50mV
18MHz
- +
X2
V
OUT
3
75
CVBS
OUT
75
C
OR TIE TO 3.3V
EN
BIASING AND
CONTROL
FN6432 Rev 1.00
April 4, 2007
Page 4 of 10
ISL59123

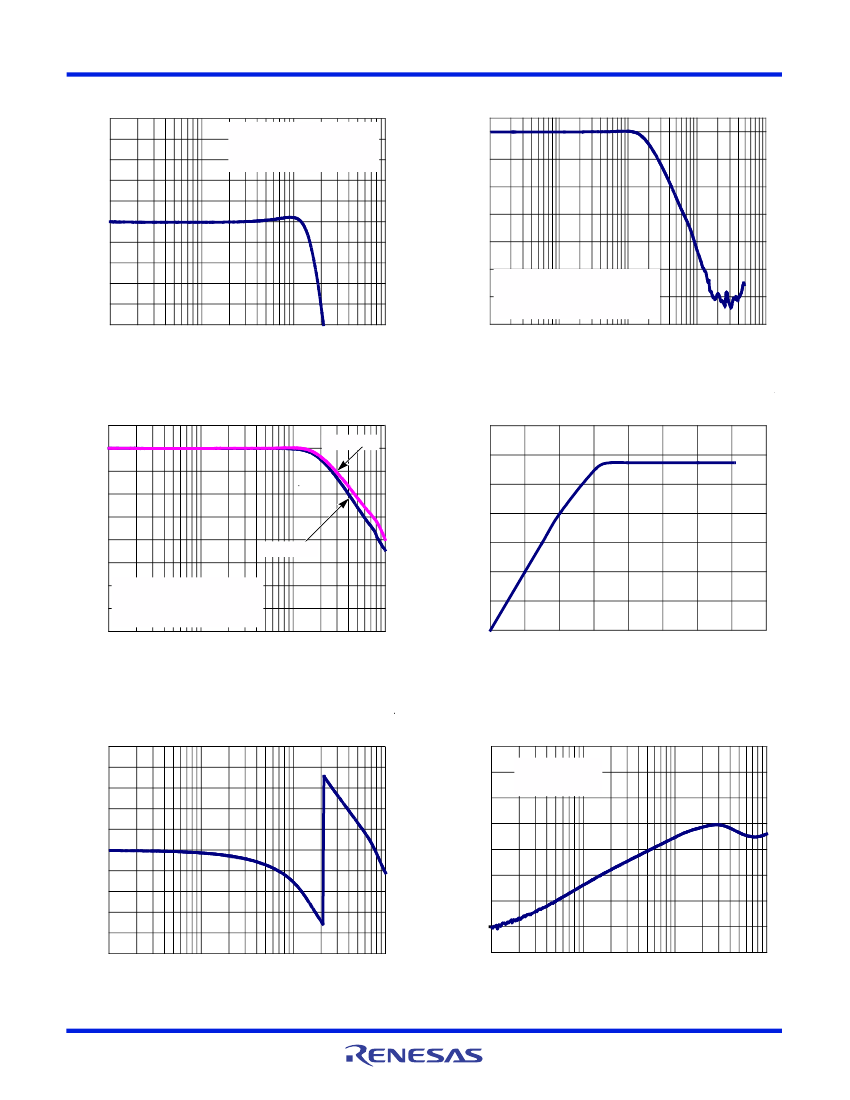

Typical Performance Curves
5.0
4.0
3.0
2.0
GAIN (dB)
1.0
V
DD
= +3.3V, R
L
= 150 unless otherwise noted
0
-10
-20
GAIN (dB)
-30
-40
-50
-60
V
DD
= +3.3V
R
L
= 150
INPUT SWING = +0.3V TO +1.0V
R
SOURCE
= 200
1M
10M
100M
FREQUENCY (Hz)
1G
V
DD
= +3.3V
R
L
= 150
INPUT SWING = +0.3V TO +1.0V
R
SOURCE
= 200
0.0
-1.0
-2.0
-3.0
-4.0
-5.0
0.1M
1M
10M
FREQUENCY (Hz)
100M
-70
0.1M
FIGURE 1. GAIN vs FREQUENCY -0.1dB
FIGURE 2. GAIN vs FREQUENCY -3dB POINT
10
0
-10
-20
V
OUT
(V
P-P
)
GAIN (dB)
-30
-40
-50
-60
-70
V
DD
= +3.3V
R
L
= 150
INPUT SWING = +0.3V TO +1.0V
R
SOURCE
= 200
1M
10M
FREQUENCY (Hz)
100M
C
L
= 10pF
C
L
= 27pF
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
-80
0.1M
0
0.5
1.0
1.5
2.0
2.5
V
IN
(V
P-P
)
3.0
3.5
4.0
FIGURE 3. GAIN vs FREQUENCY FOR VARIOUS C
LOAD
FIGURE 4. MAXIMUM OUTPUT MAGNITUDE vs INPUT
MAGNITUDE
250
200
150
100
PSRR (dB)
PHASE (°)
50
0
-50
-100
-150
-200
-250
0.1M
1M
10M
FREQUENCY (Hz)
100M
0
-10
-20
-30
-40
-50
-60
-70
-80
0.1M
V
DD
= +3.3V
V
AC
= 100mV
P-P
1M
10M
FREQUENCY (Hz)
100M
FIGURE 5. PHASE vs FREQUENCY
FIGURE 6. PSRR vs FREQUENCY
FN6432 Rev 1.00
April 4, 2007
Page 5 of 10
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

base amplitude modulation circuit

DA conversion circuit for 2-digit BCD code input

Simple AC power phase sequence indicator

CT computer room intercom circuit diagram

Winning amusement machine

Integrating circuit

OV9650 based on 210 (i2 bus not connected, help!)
I am a junior, and I am currently using a 210 OV9650 camera (bare board). Since the training teacher refused to explain, I had to stand and do it. In addition, I am not well educated, so I am really t...
vison康 ARM Technology
Who has the STM32L011D3P6 project template?
Can you send me an engineering template for this chip?...
GuDuDeRener stm32/stm8
How to Generate Random Arrays in DSP 2812
2812 eCAN module ECanaMboxes.MBOX5.MDRL.all = 0x01234567; ECanaMboxes.MBOX5.MDRH.all = 0x89ABCDEF; Send data through mailbox No. 5 I now want to use mailbox No. 5 to send some random arrays. How to wr...
williams Embedded System
Simple questions, experts and novices are welcome to come in
Today, I posted the most posts in 24 hours, which is unprecedented. I usually have time to go online every few days, (*^__^*) Hehe... It seems that I have nothing to do today.Here comes the problem. I...
mlyxlpk007 Talking
Are recruitments for embedded Linux positions very strict about "work experience"?
[i=s]This post was last edited by Nubility on 2021-1-30 16:19[/i]As the title says, the poster is preparing to switch careers from hardware to embedded Linux development, and has been self-taught for ...
Nubility Integrated technical exchanges
Has anyone designed with SV?
It goes without saying that SV can be used for verification, but it is said that SV can also be used for design in the future, and this is the trend. Are there people who use SV for design now? If so,...
eeleader FPGA/CPLD
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. CC4532330KL
  2. TV06RQW-21-75P-LC
  3. ABM3-FREQ4-S-R050-E-4-T
  4. 531AB212M000BG
  5. CF-634225-26I
  6. FFC-128DM22B
  7. SWCC22A2080B1L6
  8. STL1-2470GTT-15-25U
  9. AME8501AEETAA21L
  10. 1SMA4736-AU_A0_00001
  11. ZMM55-C6V2BT/R7
  12. P6KE20A-AU_R2_100A1

Popular Articles

  1. Application of digital filtering function in circuit noise interference test
  2. mc9s08dz60 BootLoader based on bin file
  3. What functions does the transformer tester have?
  4. Xiaomi helps the OLED TV market explode
  5. Foreign media: The US launched a "chip war" against China, highlighting the crisis of late capitalism
  6. How to use a digital multimeter to distinguish leakage or induction charging
  7. Honor Magic V detailed parameters and renderings: Snapdragon 8 + punch-hole internal screen + 50MP triple main camera
  8. 4412 GPIO initialization
  9. Over 180,000 shares closed the limit down! Zoyi Technology changed its actual controller and terminated its private placement
  10. Basic Questions and Answers on the Use of Multimeter

Technical ResourceMore

  1. Design and implementation of distance meter based on PSD technology
  2. Compressed sensing theory and development
  3. ADXRS453 - High Performance Digital Output Gyroscope
  4. SPMC65P2204A/SPMC65P2202A Chinese data, pdf datasheet (microcontroller OTP with ADC)
  5. LVDS Application Manual
  6. Design of fingerprint recognition electronic password lock based on single chip microcomputer
  7. Greek network electronic magazine editing system.
  8. Student materials for C course
  9. Capacitive load stability
  10. Piezoelectric Transformer Equivalent Circuit Parameter Measurement and Performance Simulation

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1171  1100  174  554  841  24  23  4  12  17
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
