GS8320EV18/32/36T-250/225/200/166/150/133
100-Pin TQFP
Commercial Temp
Industrial Temp
Features
• FT pin for user-configurable flow through or pipeline
operation
• Dual Cycle Deselect (DCD) operation
• 1.8 V +10%/–10% core power supply
• 1.8 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipeline mode
• Byte Write (BW) and/or Global Write (GW) operation
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 100-lead TQFP package
• Pb-Free 100-lead TQFP package available
2M x 18, 1M x 32, 1M x 36
36Mb Sync Burst SRAMs
250 MHz–133 MHz
1.8 V V
DD
1.8 V I/O
interleave order with the Linear Burst Order (LBO) input. The
Burst function need not be used. New addresses can be loaded
on every cycle with no degradation of chip performance.
Flow Through/Pipeline Reads
The function of the Data Output register can be controlled by
the user via the FT mode pin (Pin 14). Holding the FT mode
pin low places the RAM in Flow Through mode, causing
output data to bypass the Data Output Register. Holding FT
high places the RAM in Pipeline mode, activating the rising-
edge-triggered Data Output Register.
DCD Pipelined Reads
The GS8320EV18/32/36T is a DCD (Dual Cycle Deselect)
pipelined synchronous SRAM. SCD (Single Cycle Deselect)
versions are also available. DCD SRAMs pipeline disable
commands to the same degree as read commands. DCD RAMs
hold the deselect command for one full cycle and then begin
turning off their outputs just after the second rising edge of
clock.
Byte Write and Global Write
Byte write operation is performed by using Byte Write enable
(BW) input combined with one or more individual byte write
signals (Bx). In addition, Global Write (GW) is available for
writing all bytes at one time, regardless of the Byte Write
control inputs.
Sleep Mode
Low power (Sleep mode) is attained through the assertion
(High) of the ZZ signal, or by stopping the clock (CK).
Memory data is retained during Sleep mode.
Core and Interface Voltages
The GS8320EV18/32/36T operates on a 1.8 V power supply.
All input are 1.8 V compatible. Separate output power (V
DDQ
)
pins are used to decouple output noise from the internal circuits
and are 1.8 V compatible.
Functional Description
Applications
The GS8320EV18/32/36T is a 37,748,736-bit high
performance synchronous SRAM with a 2-bit burst address
counter. Although of a type originally developed for Level 2
Cache applications supporting high performance CPUs, the
device now finds application in synchronous SRAM
applications, ranging from DSP main store to networking chip
set support.
Controls
Addresses, data I/Os, chip enables (E1, E2, E3), address burst
control inputs (ADSP, ADSC, ADV), and write control inputs
(Bx, BW, GW) are synchronous and are controlled by a
positive-edge-triggered clock input (CK). Output enable (G)
and power down control (ZZ) are asynchronous inputs. Burst
cycles can be initiated with either ADSP or ADSC inputs. In
Burst mode, subsequent burst addresses are generated
internally and are controlled by ADV. The burst address
counter may be configured to count in either linear or
Parameter Synopsis
t
KQ
tCycle
Curr
(x18)
Curr
(x32/x36)
t
KQ
tCycle
Curr
(x18)
Curr
(x32/x36)
-250 -225 -200 -166 -150 -133 Unit
2.5 2.7 3.0 3.5 3.8 4.0 ns
4.0 4.4 5.0 6.0 6.6 7.5 ns
285
350
6.5
6.5
205
235
265
320
7.0
7.0
195
225
245
295
7.5
7.5
185
210
220 210 185 mA
260 240 215 mA
8.0 8.5 8.5 ns
8.0 8.5 8.5 ns
175 165 155 mA
200 190 175 mA
Pipeline
3-1-1-1
Flow
Through
2-1-1-1
Rev: 1.02 10/2004
1/24
© 2001, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
Preliminary
GS8320EV18/32/36T-250/225/200/166/150/133

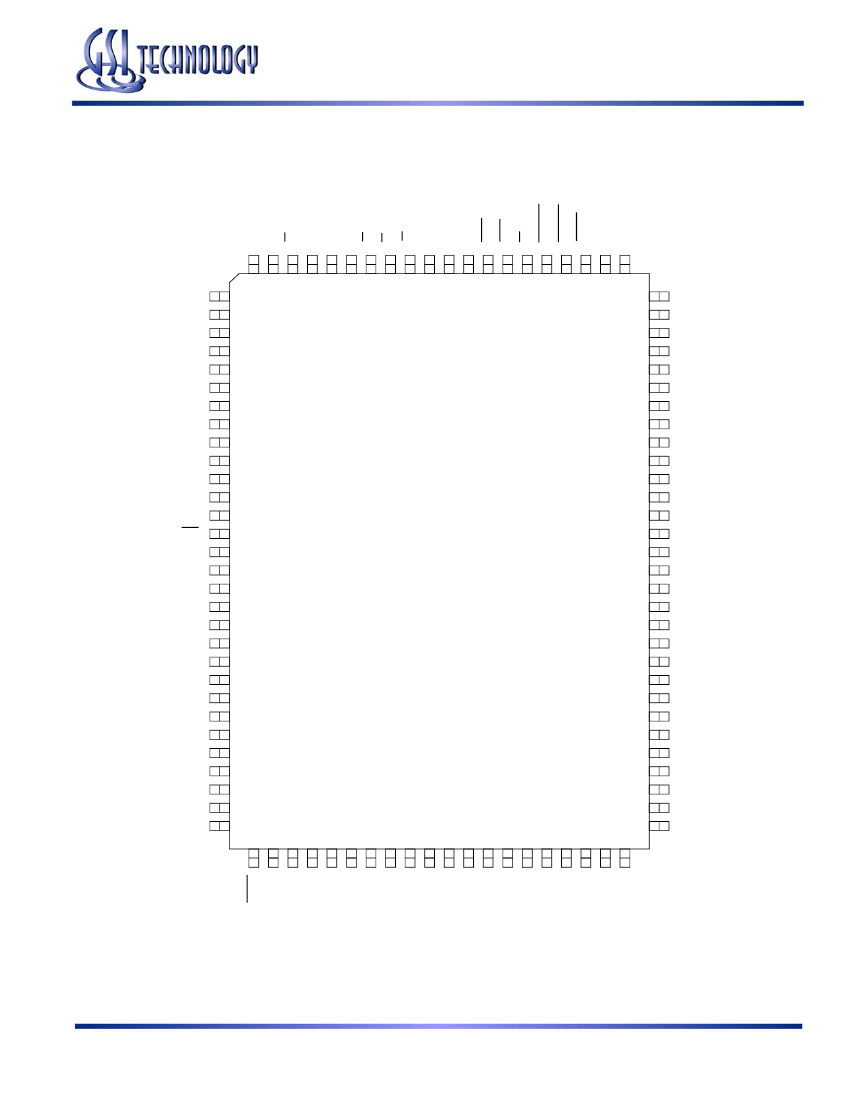

TQFP Pin Description
Symbol
A
0
, A
1
A
DQ
A
DQ
B1
DQ
C
DQ
D
NC
BW
B
A
, B
B
B
C
, B
D
CK
GW
E
1
, E
3
E
2
G
ADV
ADSP, ADSC
ZZ
FT
LBO
V
DD
V
SS
V
DDQ
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Type
I
I
Description
Address field LSBs and Address Counter preset Inputs
Address Inputs
I/O
Data Input and Output pins
No Connect
Byte Write—Writes all enabled bytes; active low
Byte Write Enable for DQ
A
, DQ
B
Data I/Os; active low
Byte Write Enable for DQ
C
, DQ
D
Data I/Os; active low
Clock Input Signal; active high
Global Write Enable—Writes all bytes; active low
Chip Enable; active low
Chip Enable; active high
Output Enable; active low
Burst address counter advance enable; active low
Address Strobe (Processor, Cache Controller); active low
Sleep Mode control; active high
Flow Through or Pipeline mode; active low
Linear Burst Order mode; active low
Core power supply
I/O and Core Ground
Output driver power supply
