MUR820F-BP-HF: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC, ITO-220AC, 2 PIN; CategoryDiscrete semiconductor diode; File Size506KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

MUR820F-BP-HF Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC, ITO-220AC, 2 PIN

MUR820F-BP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	R-PSFM-T2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	SUPER FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

20736 Marilla Street Chatsworth

CA 91311

Phone:(818) 701-4933

Fax: (818) 701-4939

MUR810F

MUR820F

MUR840F

MUR860F

Amp

Super Fast

Rectifier

100

to 600

Volts

ITO-220AC

Features

•

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Low Forward Voltage Drop

Halogen free available upon request by adding suffix "-HF"

Maximum Ratings

Operating Temperature: -55 C to +150 C

Storage Temperature: -55 C to +150 C

MCC

Part

Number

MUR810F

MUR820F

MUR840F

MUR860F

Device

Marking

MUR810F

MUR820F

MUR840F

MUR860F

Maximum

Recurrent

Peak

Reverse

Voltage

100V

200V

400V

600V

Maximum

RMS

Voltage

70V

140V

280V

420V

Maximum

Blocking

Voltage

100V

200V

400V

600V

Electrical Characteristics @ 25 C Unless Otherwise Specified

Average Forward

Current

Peak Forward Surge

Current

Maximum Instantaneous

Forward Voltage

MUR810F-MUR820F

MUR840F

MUR860F

F(AV)

FSM

125A

= 100 C

8.3ms，half

sine

PIN 1

PIN 2

0.95V

1.30V

1.50V

8A;

25°C

DIM

MIN

14.40

---

2.55

6.30

---

12.70

MAX

15.40

10.30

2.85

6.90

4.10

13.80

5.10

---

0.90

---

0.80

3.40

2.60

---

4.80

3.10

---

2.90

2.50

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Maximum Reverse

Recovery Time

MUR810F-MUR820F

MUR840F-860F

5uA

500uA

25°C

125°C

Trr

= 0.5A,I

1A,

REC

35ns = 0.25A

50ns

Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7a.

INCHES

MIN

MAX

.606

.567

---

.406

.100

.112

.248

.272

---

.161

.543

.500

.200

---

.035

---

.032

.134

.102

---

.189

.123

---

.114

.098

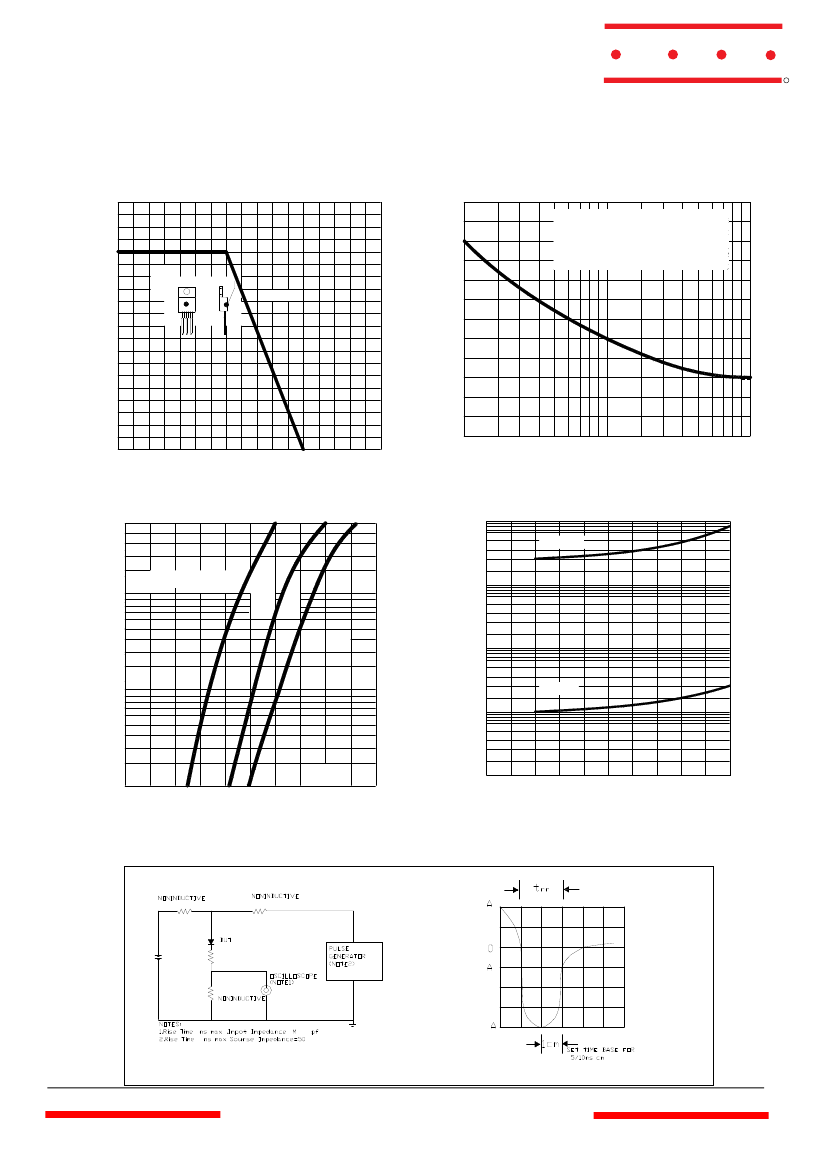

www.mccsemi.com

Revision:

1 of 3

2017/01/01
