PA2007NLT Overview

PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)

PA2007NLT Parametric

Parameter Name	Attribute value
Number of functions	2
Minimum operating temperature	-40 Cel
Maximum operating temperature	130 Cel
Maximum pulse rise time	55.5 ns
Processing package description	ROHS COMPLIANT
each_compli	Yes
state	Active
Transformer type	PULSE TRANSFORMER
application	GATE DRIVE
Isolation voltage	1500 V
Manufacturer Series	PA2007NL
Installation features	SURFACE MOUNT
cking_method	TAPE & REEL
Dimensions	L9.02XB8.64XH7.62 (mm)
Primary inductance	1490 µH
terminal coating	NOT SPECIFIED
匝数比NP:NS	1:1
heigh	7.62 mm
length	9.02 mm
width	8.64 mm
dditional_feature	BREADTH DIM INCLUDES TERMINAL ALSO

Preview

Download Datasheet

View All

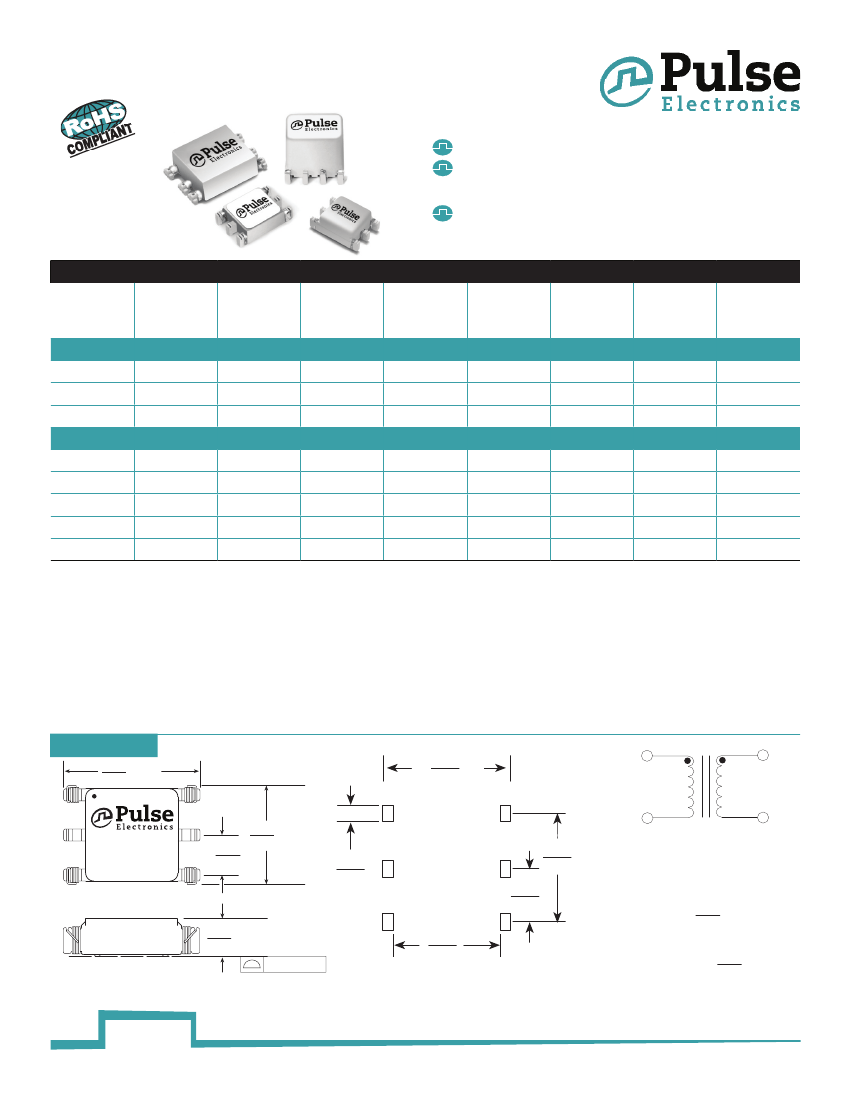

SMT Gate Drive Transformers

PA200xNL Basic and Operational Insulation

Higher Volt-µsec capability

Basic insulation (1.4mm creepage/clearance)

and operational available

Operating frequency: 50kHz and up

Electrical Specifications @ 25°C - Operating Temperature -40°C to 130°C

5

Part

Number

1, 2

Turns

Ratio

1:1

1:1:1

1:1

2:1:1

2.5:1:1

Pri-Sec

Insulation

(VRMS)

1500

MAX

V*µsec

12

60

20

26

53

52

47

1

Primary

Inductance

(µH MIN)

403

1800

437

840

864

1490

1425

1486

Leakage

Inductance

(µH MAX)

0.46

0.60

0.85

0.75

0.80

DCR

Primary

(Ω MAX)

0.60

1.60

0.85

1.05

0.82

1.15

DCR

Secondary

(Ω MAX)

0.60

1.60

0.85

1.05

0.82

1.15

0.575

0.425

Package Size

(L x W x H)

(mm MAX)

8.6 x 6.7 x 2.5

9.0 x 8.6 x 7.6

8.6 x 6.7 x 3.6

11.8 x 8.8 x 4.0

9.0 x 8.6 x 7.6

OPERATIONAL INSULATION

PA2001NL

PA2002NL

PA2004NL

PA2005NL

PA2006NL

PA2007NL

PA2008NL

PA2009NL

BASIC INSULATION (1.4MM CREEPAGE AND CLEARANCE BETWEEN PRIMARY AND SECONDARY)

Notes:

1. The maximum volt-µsec limits the peak flux density to 2800 Gauss when used in

a unipolar drive application. For bi-polar drive applications, a maximum volt-

µsec

of two times this rating is acceptable (i.e. 2* (volt*µsec rating) Volt*µsec =

(voltage applied to the primary) * dutycycle / Frequency = V * alpha / Freq_ Hz =

V *

µsec

2. Leakage inductance is measured at primary terminals with all secondaries shorted.

3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. PA2002NL becomes PA2002NLT). Pulse complies to industry standard

tape and reel specification EIA481.

4. The “NL” suffix indicates an RoHS-compliant part number.

5. The temperature of the component (ambient plus temperature rise) must be within

the stated operating temperature range.

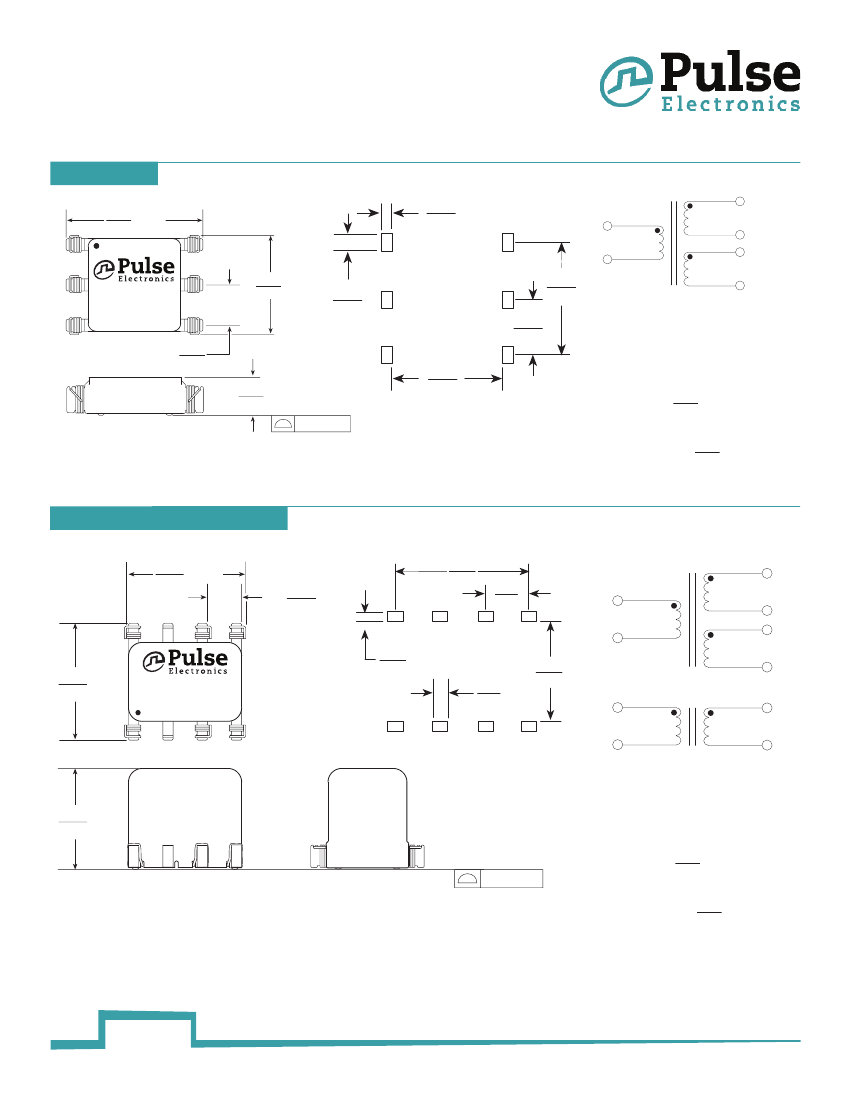

Mechanical

PA2001NL

.340

MAX

8,64

0.365

9,27

Schematic

1

6

4

Weight

.........................0.28 grams

Tape & Reel

.....................1500/reel

Tube

...................................60/tube

Dimensions:

Inches

mm

Unless otherwise specified,

all tolerances are

±

.010

0,25

1

Date Code

Country of Origin

PA2001NL

4X

.100

2,54

.265

MAX

6,73

0.07

1,78

.100

2,54

3

.200

5,08

.098

MAX

2,49

.005/0,13

3

.240

6,1

4 SURFACES

4

USA 858 674 8100

1

Germany 49 7032 7806 0

Singapore 65 6287 8998

SUGGESTED PAD LAYOUT

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P663.G (04/14)

pulseelectronics.com
