PS7122AL-2B-E4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PS7122AL-2B-E4

PS7122AL-2B-E4: DescriptionTRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX; CategoryLED optoelectronic/LED; File Size280KB，15 Pages; ManufacturerCEL; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

PS7122AL-2B-E4 Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX

PS7122AL-2B-E4 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Processing package description	LEAD FREE, DIP-6
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
terminal coating	TIN BISMUTH
structure	SINGLE
Optoelectronic device type	TRANSISTOR OUTPUT
Maximum input control current	50 mA
Maximum insulation voltage	1500 V
On-state resistance	8 ohm
Maximum output current	200 A

Preview

Download Datasheet

View All

Solid State Relay

OCMOS FET

PS7122A-1B,-2B,PS7122AL-1B,-2B

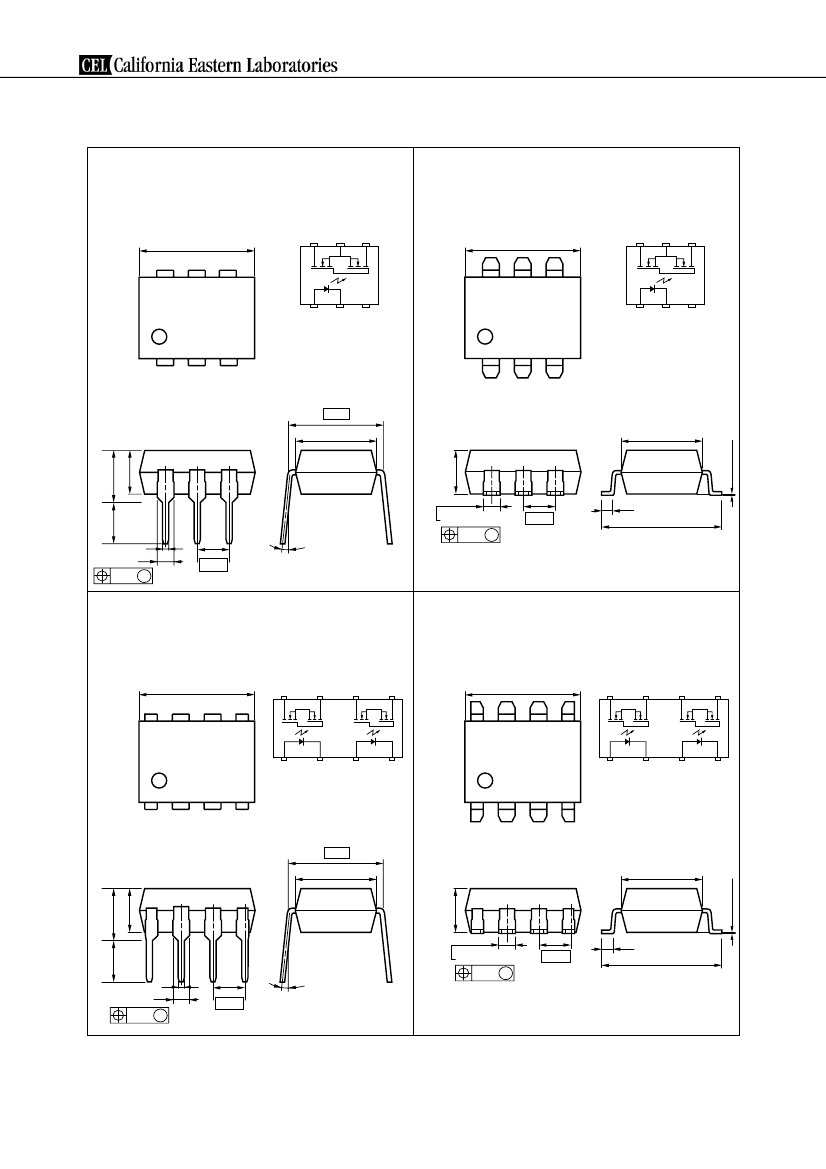

6, 8-PIN DIP, 250 V BREAK DOWN VOLTAGE

NORMALLY CLOSE TYPE

1-ch, 2-ch Optical Coupled MOS FET

−NEPOC

Series−

DESCRIPTION

side (input side) and normally close (N.C.) contact MOS FETs on the output side.

The PS7122AL-1B, -2B have a surface mount type lead.

They are suitable for analog signal control because of their low offset and high linearity.

FEATURES

• 1 channel type (1 b output) or 2 channel type (1 b + 1 b output)

• Low LED operating current (I

= 2 mA)

• Designed for AC/DC switching line changer

• Small package (6, 8-pin DIP)

• Low offset voltage

• Ordering number of taping product : PS7122AL-1B-E3, E4: 1 000 pcs/reel

<R>

• Pb-Free product

• Safety standards

: PS7122AL-2B-E3, E4: 1 000 pcs/reel

• UL approved: File No. E72422

• BSI approved: No. 8245/8246

• CSA approved: No. CA 101391

APPLICATIONS

• Exchange equipment

• FA/OA equipment

• Measurement equipment

Document No. PN10274EJ02V0DS (2nd edition)

Date Published July 2006 NS CP(K)

The mark <R> shows major revised points.

1997, 2006

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

The PS7122A-1B, -2B and PS7122AL-1B, -2B are solid state relays containing GaAs LEDs on the light emitting

PS7122AL-2B-E4 Related Products

	PS7122AL-2B-E4	PS7122A-1B	PS7122A-2B	PS7122AL-1B-E3	PS7122AL-1B-E4	PS7122AL-1B-E4-A	PS7122AL-2B	PS7122AL-2B-E3	PS7122AL-2B-E3-A	PS7122AL-2B-E4-A
Description	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Processing package description	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-6	LEAD FREE, DIP-8	LEAD FREE, DIP-6
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	Transferred	TRANSFERRED
terminal coating	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
structure	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE
Optoelectronic device type	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT
Maximum insulation voltage	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
On-state resistance	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm	8 ohm
Number of functions	1	1	1	1	1	1	1	1	-	1
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-	Yes
Maximum input control current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	-	50 mA
Maximum output current	200 A	200 A	200 A	200 A	200 A	200 A	200 A	200 A	-	200 A
