BRPY1204W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BRPY1204W

Preview

BRPY1204W: DescriptionDual Color LED, Red/yellow Green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size103KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

BRPY1204W Overview

Dual Color LED, Red/yellow Green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4

BRPY1204W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
color	RED/YELLOW GREEN
color@wavelength	Red/Yellow
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2 V
Lens type	WATER CLEAR
Nominal luminous intensity	33.6/24.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
peak wavelength	660/570 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
Terminal pitch	2.7 mm
perspective	88 deg

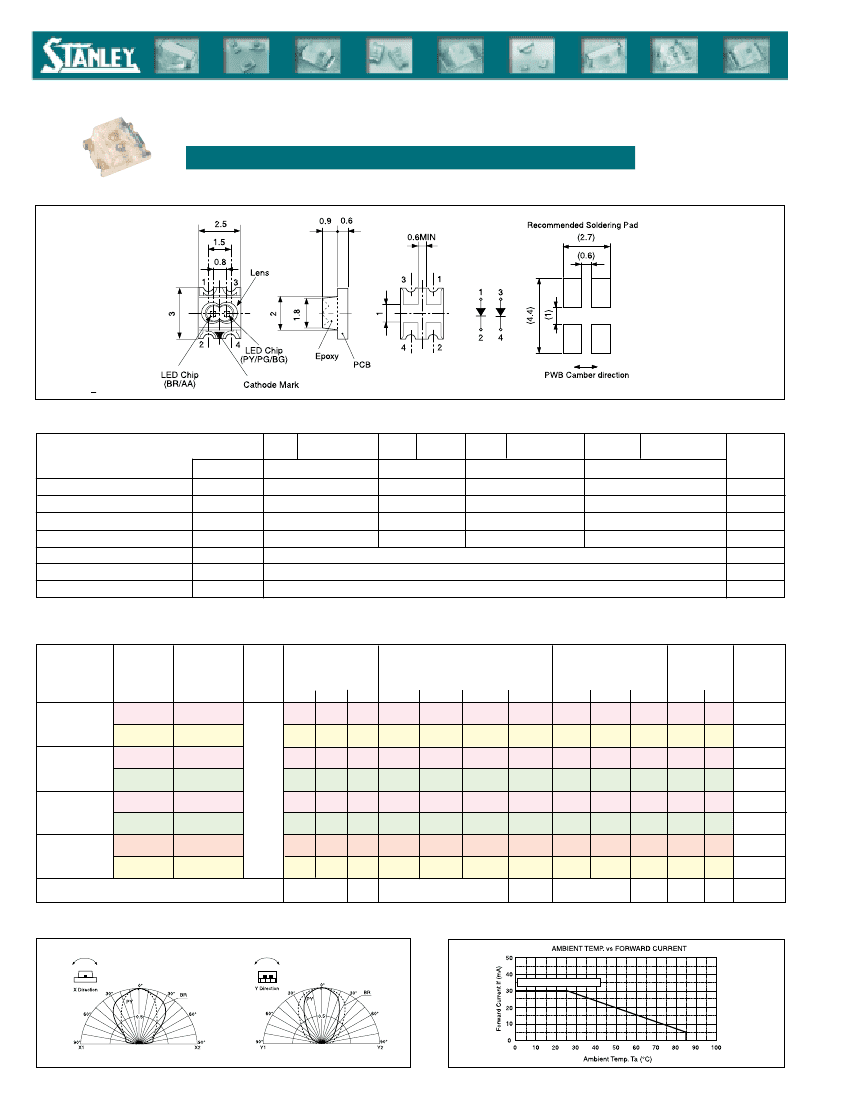

BRPY1204W Preview

BI-COLOR LED

1204W Standar d T ype with Inner Lens

S

s

Outline Dimensions

T

A

N

D

A

R

D

C

O

L

O

R

Unit: mm

Tolerances + 0.2

s

Absolute Maximum Ratings

Item

Symbol

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating*

Red Yellow Green Red

BRPY

75

30

70

4

Green

75

30

70

4

Red

Pure Green Orange

BRBG

75

30

70

4

-30 to +85

-40 to +100

0.42 (DC) 0.93 (Pulse)

(Ta=25°C)

Yellow Green

AAPY

75

30

70

4

mW

mA

V

°C

mA/°C

Units

BRPG

Pd

I

F

I

FM

V

R

Topr

Tstg

∆I

F

* Ta=25°C, I

FM

applies for the pulse width

≤

1msec. and duty cycle

≤1/20.

s

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Red (BR)

Yellow Green (PY)

Red (BR)

Green (PG)

Red (BR)

Pure Green(BG)

Orange (AA)

Yellow Green (PY)

*The viewing angle is an average and will vary by color

(Ta=25°C)

Lens

Color

Luminous

Intensity

IV

MIN.

TYP.

I

F

Wavelength

Peak

λp

TYP.

Spectral Line

Dominant Half Width

∆λ

λd

TYP.

I

F

TYP

.

Forward

Voltage

V

F

MAX.

I

F

Reverse Viewing

Current

IR

Angle

MAX.

V

R

(2

θ

1/2)

BRPY1204W

GaAIAs

GaP

GaAIAs

GaP

GaAlAs

GaP

GaAsP

GaP

Units

6.0

Water 6.0

Clear 6.0

0.9

5.0

6.0

33.6

24

33.6

12

33.6

4.8

9

12

20

mA

660

570

660

560

660

555

605

570

647

572

647

567

647

558

606

572

nm

30

20

mA

1.7

2.1

1.7

2.1

1.7

2.1

2.2

2.1

V

2.0

2.5

2.0

2.5

2.0

2.5

20

mA

100

µA

4

V

100°

80°

100°

80°

100°

80°

Deg.

BRPG1204W

BRBG1204W

AAPY1204W

mcd

s

Spatial Distribution

s

Operation Current Derating Chart (DC)

BRPY, BRPG, BRBG, AAPY

*Spatial distribution is viewed as a typical illustration and will vary by color

30

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BRPY1204W Related Products

	BRPY1204W	BRPG1204W
Description	Dual Color LED, Red/yellow Green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4	Dual Color LED, Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Stanley Electric Co	Stanley Electric Co
package instruction	3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4	3 X 2.50 MM, 1.50 MM HEIGHT, ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant	compliant
color	RED/YELLOW GREEN	RED/GREEN
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	33.6/24.0 mcd	33.6/12.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED
total height	1.5 mm	1.5 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	660/570 nm	660/560 nm
shape	RECTANGULAR	RECTANGULAR
size	2.5 mm	2.5 mm
surface mount	YES	YES
Terminal pitch	2.7 mm	2.7 mm
perspective	88 deg	88 deg
