PS9324L, PS9324L2
DESCRIPTION
Data Sheet
R08DS0060EJ0100
Rev.1.00
Apr 26, 2013
HIGH CMR, 10 Mbps OPEN COLLECTOR OUTPUT TYPE, 6-PIN SDIP PHOTOCOUPLER
The PS9324L and PS9324L2 are optical coupled high-speed, active low type isolators containing a GaAlAs LED on the
input side and a photodiode and a signal processing circuit on the output side on one chip.
The PS9324L is lead bending type (Gull-wing) for surface mounting.
The PS9324L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
FEATURES
•
•
•
•
•
•
•
•
•
High common mode transient immunity (CM
H
, CM
L
=
±15
kV/
μ
s MIN.)
Half size of 8-pin DIP
Long creepage distance (8 mm MIN.: PS9324L2)
High-speed (10 Mbps)
High-speed response (t
PHL
= 75 ns MAX., t
PLH
= 75 ns MAX.)
Low power consumption (V
CC
= 3.3/5 V)
Open collector output
High isolation voltage (BV = 5 000 Vr.m.s.)
Embossed tape product : PS9324L-E3 : 2 000 pcs/reel
: PS9324L2-E3: 2 000 pcs/reel
•
Pb-Free product
•
Safety standards
•
UL approved: No. E72422
•
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
•
SEMKO approved (EN 60065, EN 60950)
•
DIN EN 60747-5-5 (VDE 0884-5) approved (Option)
PIN CONNECTION
(Top View)
6
5
4
1. Anode
2. NC
3. Cathode
4. GND
5. V
O
6. V
CC
1
2
3
APPLICATIONS
•
Measurement equipment
•
PDP
•
FA Network
R08DS0060EJ0100 Rev.1.00
Apr 26, 2013
SHIELD
Page 1 of 17
A Business Partner of Renesas Electronics Corporation.
PS9324L, PS9324L2

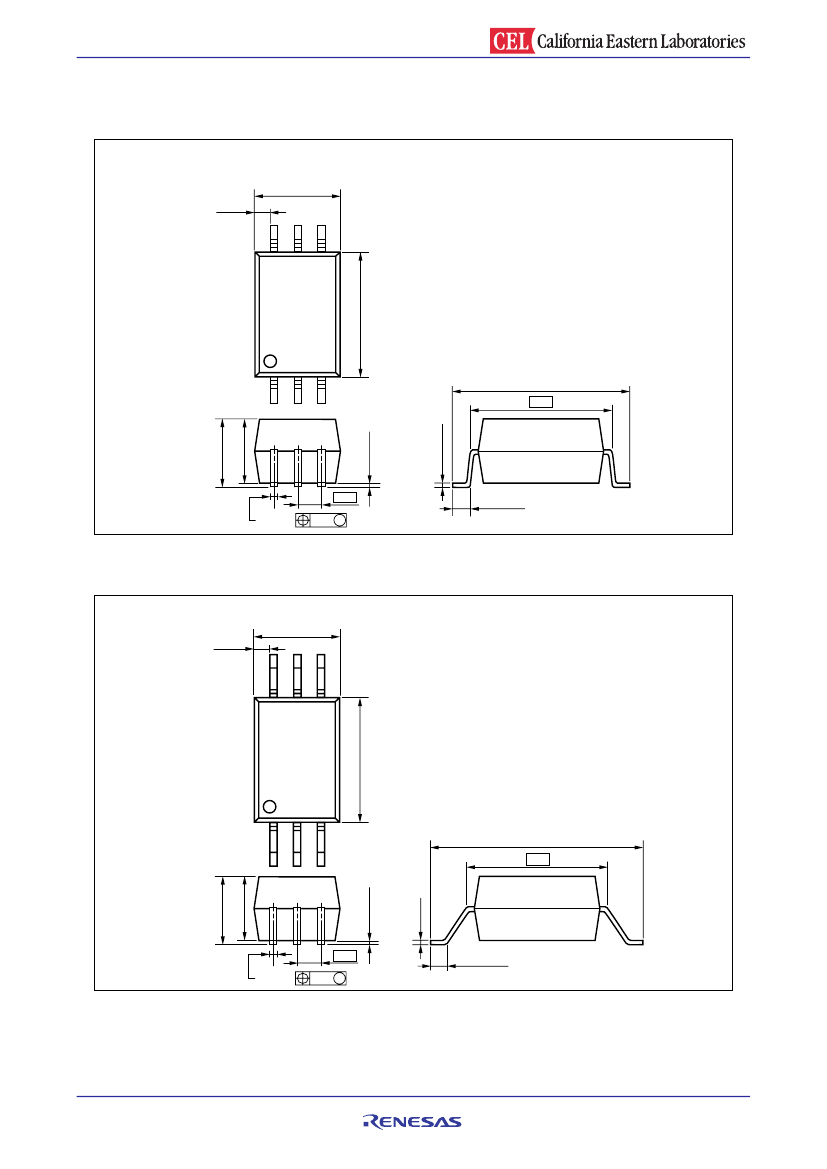

PACKAGE DIMENSIONS (UNIT: mm)
Lead Bending Type (Gull-wing) For Surface Mount
PS9324L
4.58±0.3
(0.82)
6.8±0.25
9.7±0.3
7.62
1.27
0.4±0.1
0.25 M
0.2±0.15
0.25±0.15
3.7±0.25
3.5±0.2
0.8±0.25
Lead Bending Type (Gull-wing) For Long Creepage Distance (Surface Mount)
PS9324L2
4.58±0.3
(0.82)
6.8±0.25
11.5±0.3
7.62
1.27
0.4±0.1
0.25 M
0.25±0.15
3.7±0.25
0.2±0.15
3.5±0.2
0.75±0.25
R08DS0060EJ0100 Rev.1.00
Apr 26, 2013
Page 2 of 17
A Business Partner of Renesas Electronics Corporation.
PS9324L, PS9324L2
BLOCK DIAGRAM
6
MARKING EXAMPLE
R
9324
N331
No. 1 pin Mark
Company initial
Type Number
Assembly Lot
N
3 31
Week Assembled
Year Assembled
(Last 1 Digit)
Rank Code
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS9324L
7 mm
7 mm
0.4 mm
PS9324L2
8 mm
8 mm
0.4 mm
R08DS0060EJ0100 Rev.1.00
Apr 26, 2013
Page 3 of 17
A Business Partner of Renesas Electronics Corporation.
PS9324L, PS9324L2
ORDERING INFORMATION
Part Number
PS9324L
PS9324L-E3
PS9324L2
PS9324L2-E3
PS9324L-V
PS9324L-V-E3
Order Number
PS9324L-AX
PS9324L-E3-AX
PS9324L2-AX
PS9324L2-E3-AX
PS9324L-V-AX
PS9324L-V-E3-AX
Solder Plating
Specification
Pb-Free
(Ni/Pd/Au)
Packing Style
20 pcs (Tape 20 pcs cut)
Embossed Tape 2 000
pcs/reel
20 pcs (Tape 20 pcs cut)
Embossed Tape 2 000
pcs/reel
20 pcs (Tape 20 pcs cut)
Embossed Tape 2 000
pcs/reel
20 pcs (Tape 20 pcs cut)
Embossed Tape 2 000
pcs/reel
Note:
Safety Standard
Approval
Standard products
UL, CSA ,SEMKO
approval)
Standard products
UL, CSA ,SEMKO
approval)
DIN EN 60747-5-5
(VDE 0884-5)
Approved (Option)
DIN EN 60747-5-5
(VDE 0884-5)
Approved (Option)
PS9324L2
PS9324L
PS9324L2
Application
1
Part Number
∗
PS9324L
PS9324L2-V
PS9324L2-V-E3
PS9324L2-V-AX
PS9324L2-V-E3-AX
∗1.
For the application of the Safety Standard, following part number should be used.
R08DS0060EJ0100 Rev.1.00
Apr 26, 2013
Page 4 of 17
A Business Partner of Renesas Electronics Corporation.
PS9324L, PS9324L2
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Detector
Forward Current
Reverse Voltage
Supply Voltage
Output Voltage
Output Current
2
Power Dissipation
∗
Isolation Voltage
∗
Operating Ambient Temperature
Storage Temperature
3
∗
1
Symbol
I
F
V
R
V
CC
V
O
I
O
P
C
BV
T
A
T
stg
Ratings
25
5
7
7
25
200
5 000
−40
to +110
−55
to +125
Unit
mA
V
V
V
mA
mW
Vr.m.s.
°C
°C
Notes:
∗1.
Reduced to 0.2 mA/°C at T
A
= 25°C or more.
∗2.
Reduced to 4.0 mW/°C at T
A
= 75°C or more.
∗3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-3 shorted together, 4-6 shorted together.
RECOMMENDED OPERATING CONDITIONS
Parameter
Low Level Input Current
High Level Input Current
Supply Voltage
TTL (R
L
= 1 kΩ, loads)
Pull-up Resistor
Symbol
V
FL
I
FH
V
CC
N
R
L
MIN.
0
3.8
2.7
330
TYP.
6
MAX.
0.8
7.5
5.5
5
4k
Unit
V
mA
V
Ω
R08DS0060EJ0100 Rev.1.00
Apr 26, 2013
Page 5 of 17
