GS8662D36BD-167I

Description
Standard SRAM, 2MX36, 0.5ns, CMOS, PBGA165, 15 X 13 MM, 1 MM PITCH, FPBGA-165
Categorystorage    storage
File Size1MB,37 Pages
ManufacturerGSI Technology
Websitehttp://www.gsitechnology.com/
Download Datasheet Parametric View All

GS8662D36BD-167I Overview

Standard SRAM, 2MX36, 0.5ns, CMOS, PBGA165, 15 X 13 MM, 1 MM PITCH, FPBGA-165

GS8662D36BD-167I Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerGSI Technology
Parts packaging codeBGA
package instruction15 X 13 MM, 1 MM PITCH, FPBGA-165
Contacts165
Reach Compliance Codecompliant
ECCN code3A991.B.2.B
Maximum access time0.5 ns
Other featuresPIPELINED ARCHITECTURE
JESD-30 codeR-PBGA-B165
JESD-609 codee0
length15 mm
memory density75497472 bit
Memory IC TypeSTANDARD SRAM
memory width36
Number of functions1
Number of terminals165
word count2097152 words
character code2000000
Operating modeSYNCHRONOUS
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
organize2MX36
Package body materialPLASTIC/EPOXY
encapsulated codeLBGA
Package shapeRECTANGULAR
Package formGRID ARRAY, LOW PROFILE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.4 mm
Maximum supply voltage (Vsup)1.9 V
Minimum supply voltage (Vsup)1.7 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formBALL
Terminal pitch1 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width13 mm

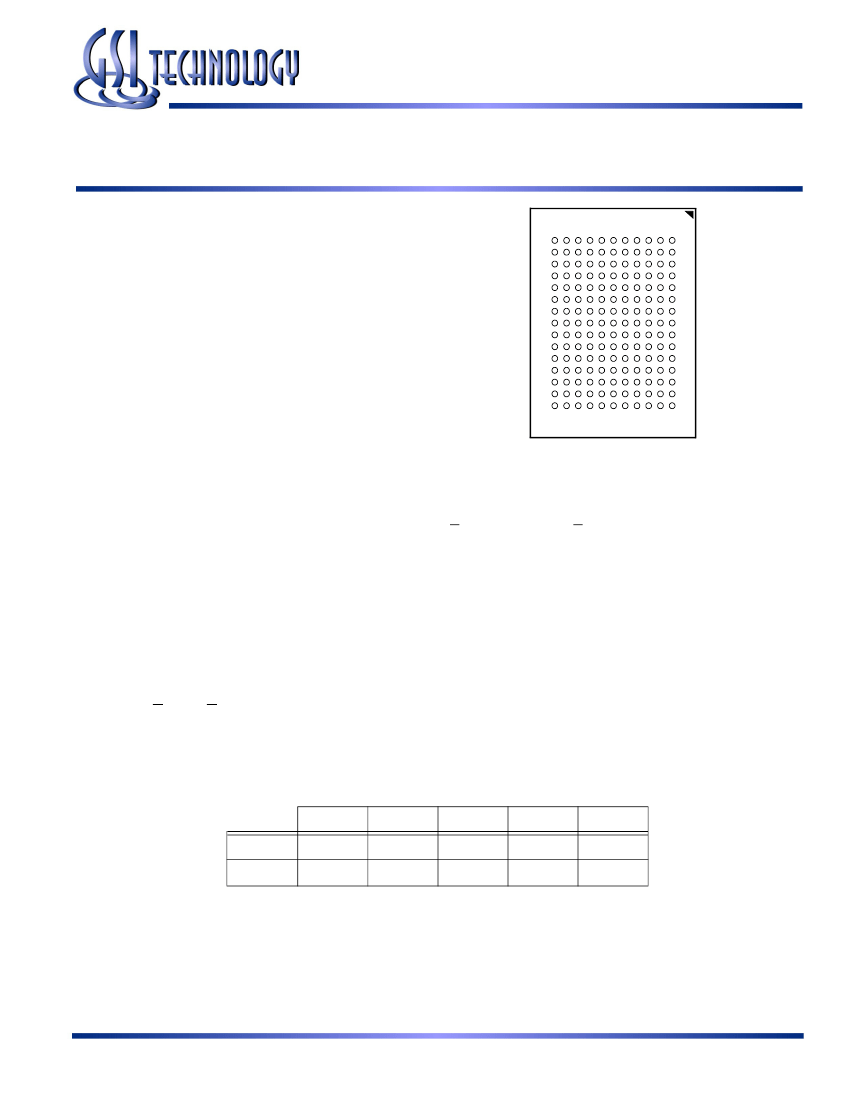

Preliminary
GS8662D08/09/18/36BD-400/350/333/300/250
165-Bump BGA
Commercial Temp
Industrial Temp
Features
• Simultaneous Read and Write SigmaQuad™ Interface
• JEDEC-standard pinout and package
• Dual Double Data Rate interface
• Byte Write controls sampled at data-in time
• Burst of 4 Read and Write
• 1.8 V +100/–100 mV core power supply
• 1.5 V or 1.8 V HSTL Interface
• Pipelined read operation
• Fully coherent read and write pipelines
• ZQ pin for programmable output drive strength
• IEEE 1149.1 JTAG-compliant Boundary Scan
• Pin-compatible with present 144 Mb devices
• 165-bump, 13 mm x 15 mm, 1 mm bump pitch BGA package
• RoHS-compliant 165-bump BGA package available
72Mb SigmaQuad-II
TM
Burst of 4 SRAM
400 MHz–250 MHz
1.8 V V
DD
1.8 V and 1.5 V I/O
Bottom View
165-Bump, 13 mm x 15 mm BGA
1 mm Bump Pitch, 11 x 15 Bump Array
C clock inputs. C and C are also independent single-ended
clock inputs, not differential inputs. If the C clocks are tied
high, the K clocks are routed internally to fire the output
registers instead.
Because Separate I/O SigmaQuad-II B4 RAMs always transfer
data in four packets, A0 and A1 are internally set to 0 for the
first read or write transfer, and automatically incremented by 1
for the next transfers. Because the LSBs are tied off internally,
the address field of a SigmaQuad-II B4 RAM is always two
address pins less than the advertised index depth (e.g., the 4M
x 18 has a 1M addressable index).
SigmaQuad™ Family Overview
The GS8662D08/09/18/36BD are built in compliance with
the SigmaQuad-II SRAM pinout standard for Separate I/O
synchronous SRAMs. They are 75,497,472-bit (72Mb)
SRAMs. The GS8662D08/09/18/36BD SigmaQuad SRAMs
are just one element in a family of low power, low voltage
HSTL I/O SRAMs designed to operate at the speeds needed to
implement economical high performance networking systems.
Clocking and Addressing Schemes
The GS8662D08/09/18/36BD SigmaQuad-II SRAMs are
synchronous devices. They employ two input register clock
inputs, K and K. K and K are independent single-ended clock
inputs, not differential inputs to a single differential clock input
buffer. The device also allows the user to manipulate the
output register clock inputs quasi independently with the C and
- 400
tKHKH
tKHQV
2.5 ns
0.45 ns
-350
2.86 ns
0.45 ns
- 333
3.0 ns
0.45 ns
-300
3.3 ns
0.45 ns
-250
4.0 ns
0.45 ns
Rev: 1.01 11/2010
1/37
© 2010, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
