SERIES 21
BEAU Terminal Blocks
BEAU

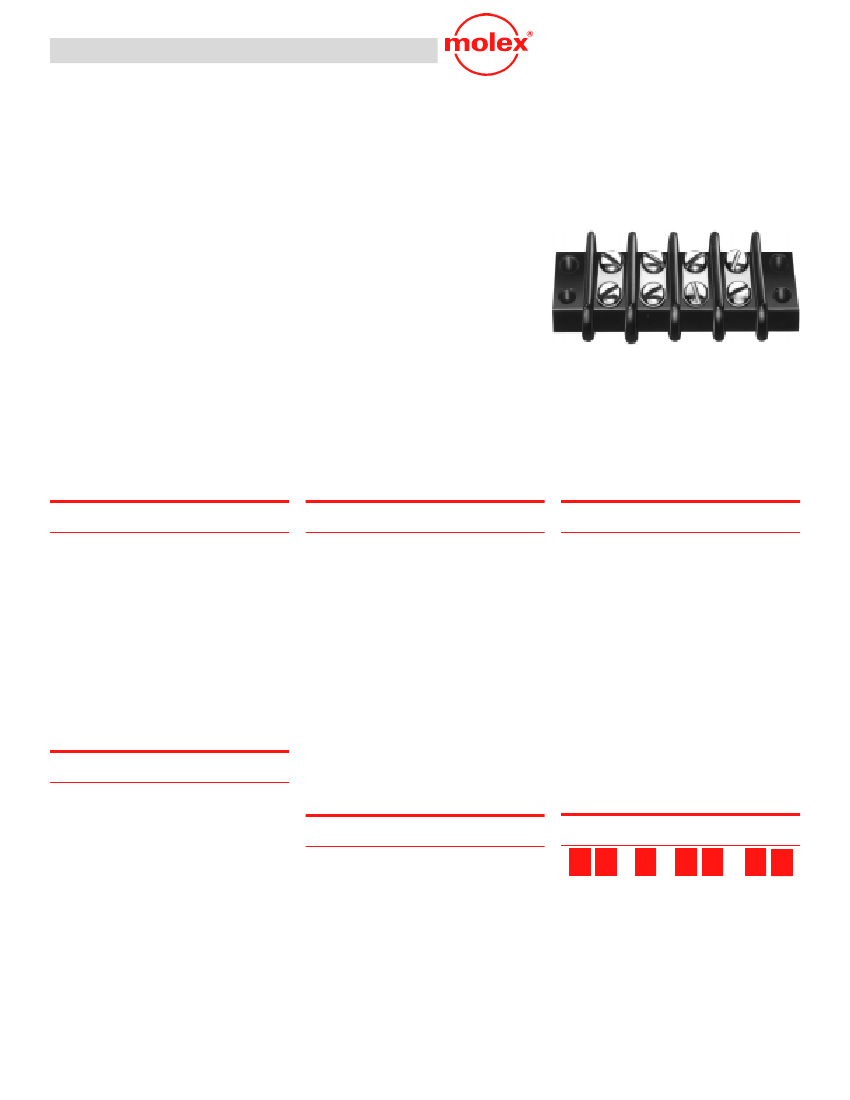

.563" Double Row Phenolic Barrier Terminal Strip
Description
The series 21 phenolic double row
terminal strip is a power product rated for
30 Amps @ 300 Volts and 150° C. The
terminal block is offered in feed-thru and
closed bottom designs and is available in a
variety of terminal and screw styles.
The robust #8-32 screw is standard,
making the product compatible with 10
AWG wire applications without the
addition of wire clamps.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
•
Robust and durable
#8-32 screw
insures years of reliability and allows
for 10 AWG wire without wire
clamps.
Closed bottom and feed-thru
construction allows the product series
to be PCB, bulkhead or panel
mounted, satisfying any of your
applications.
High temperature phenolic
insulator
out performs thermoplastic com-
pounds.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
•
•
•
PRODUCT RATINGS
#8-32 BINDING HEAD SCREW
UL
Class B
30 Amps @ 300 V 10 AWG
Class C
30 Amps @ 300 V 10 AWG
CSA
Class B
Class C
30 Amps @ 300 V 10 AWG
30 Amps @ 300 V 10 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire range
OPTIONS
-45
-45-56
-49
-50
-58
-59
-60
-61
-66
-C
-CB
Slotted screw
Stainless steel screws, slotted
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
One row screws supplied un-
assembled
One row screws not supplied
Bonded marker strip
No mounting ends
Closed bottom
10500 VDC
>5000 Megohms
16 in-lbs.
18 in-lbs.
5/16"
10 to 18 AWG
#8-32 WIRE CLAMP SCREW
UL
Class B
30 Amps @ 300 V 10 AWG
Class C
30 Amps @ 300 V 10 AWG
CSA
Class B
Class C
30 Amps @ 300 V 10 AWG
30 Amps @ 300 V 10 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
150
o
C
150
o
C
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
General purpose phenolic,
UL94VO, black
Brass, nickel plate
#8-32, phillips/slotted, steel,
zinc chromate plate

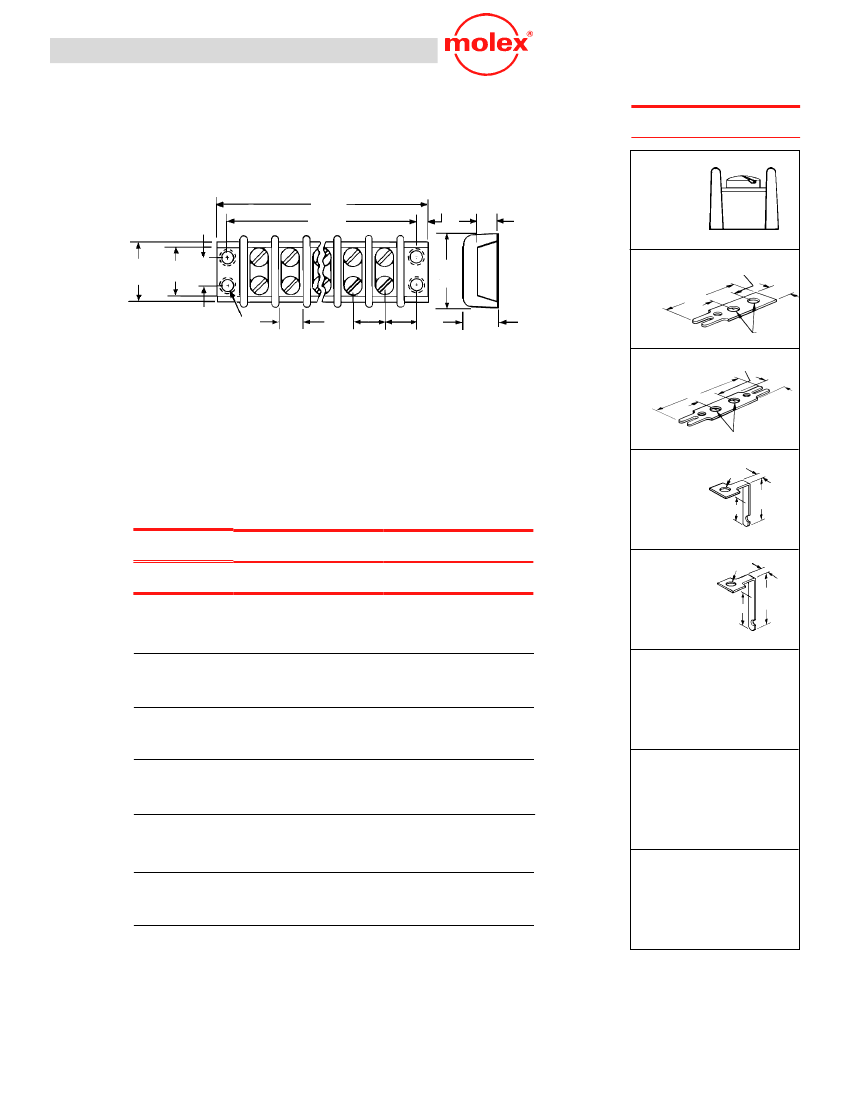

HOW TO ORDER
2 1
SERIES
X
TERMINAL
STYLE
012
35
X X - X X
NO. OF
POLES
2 to 26
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
