KMM5321000AVG-7 datasheet, PDF

Datasheet> All Categories > storage> storage> KMM5321000AVG-7

KMM5321000AVG-7: DescriptionFast Page DRAM Module, 1MX32, 70ns, CMOS, SIMM-72; Categorystorage storage; File Size327KB，11 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM5321000AVG-7 Overview

Fast Page DRAM Module, 1MX32, 70ns, CMOS, SIMM-72

KMM5321000AVG-7 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	21.717 mm
self refresh	NO
Maximum standby current	0.008 A
Maximum slew rate	0.84 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

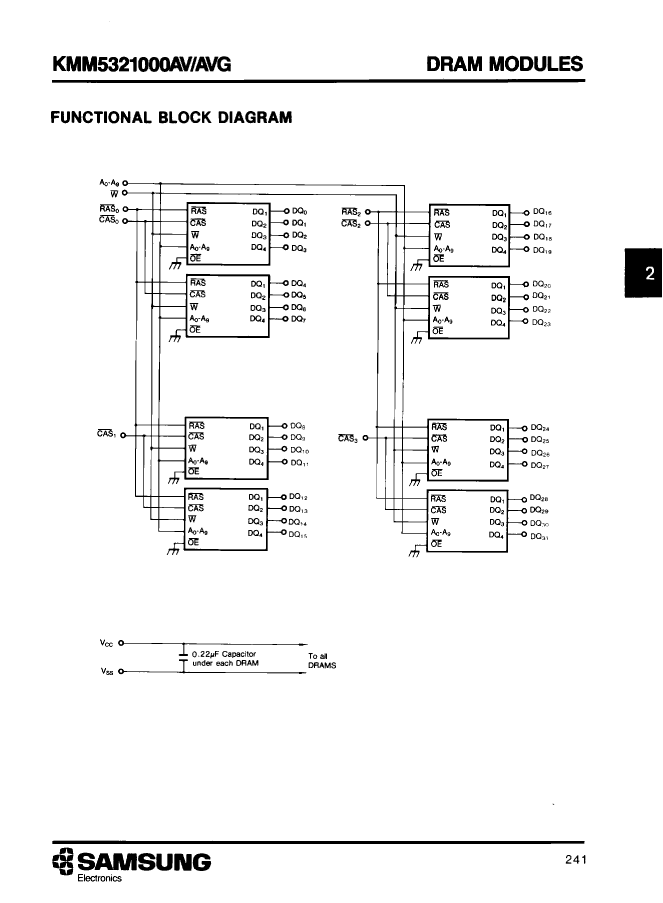

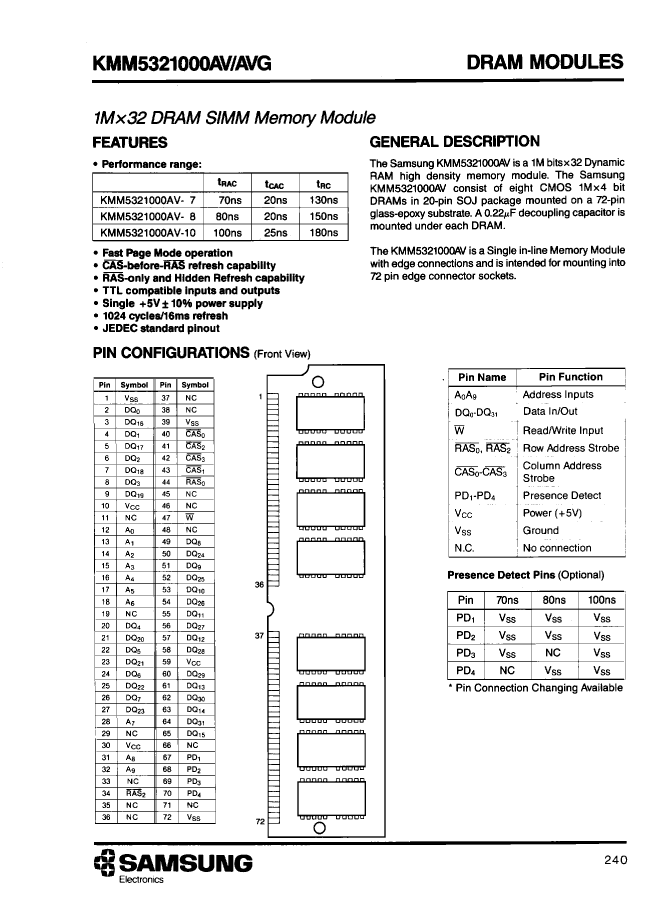

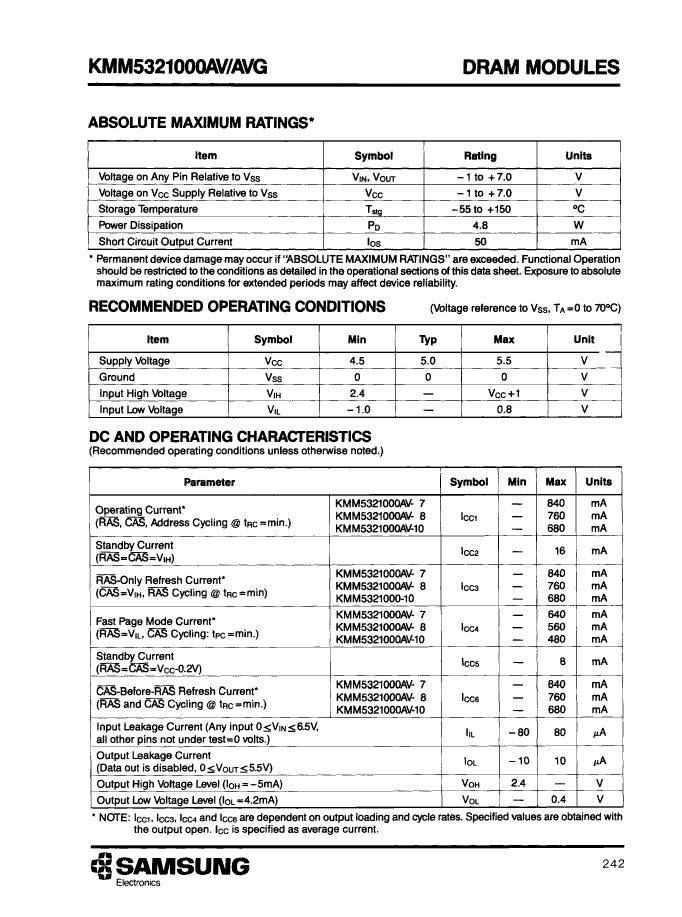

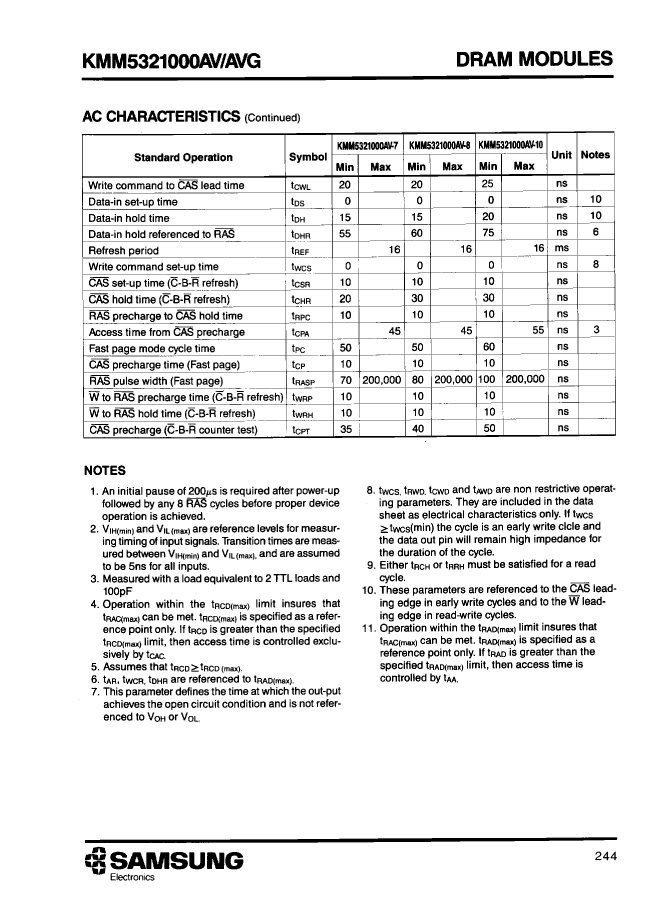

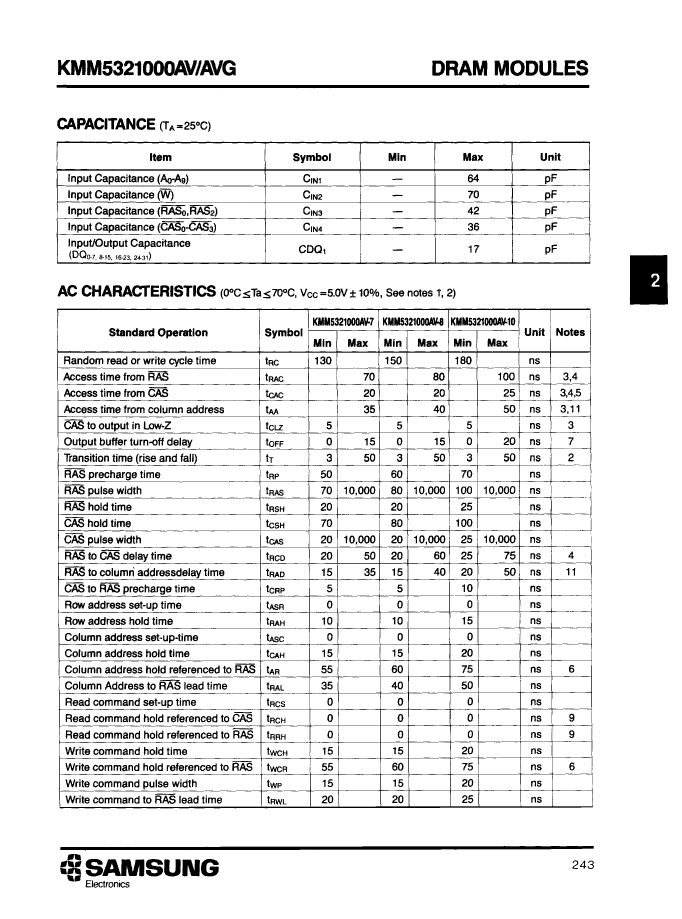

Preview

Download Datasheet

View All

KMM5321000AVG-7 Related Products

	KMM5321000AVG-7	KMM5321000AVG-10	AE6A1950	KMM5321000AV-8	KMM5321000AVG-8	KMM5321000AV-7
Description	Fast Page DRAM Module, 1MX32, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 1MX32, 100ns, CMOS, SIMM-72	Small and light size	Fast Page DRAM Module, 1MX32, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 1MX32, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 1MX32, 70ns, CMOS, SIMM-72
Maker	SAMSUNG	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SIMM	SIMM	-	SIMM	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72	-	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72	-	72	72	72
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	-	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	100 ns	-	80 ns	80 ns	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	-	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON	COMMON	-	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	-	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	33554432 bit	33554432 bit	-	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	-	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	-	32	32	32
Number of functions	1	1	-	1	1	1
Number of ports	1	1	-	1	1	1
Number of terminals	72	72	-	72	72	72
word count	1048576 words	1048576 words	-	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	-	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C	70 °C
organize	1MX32	1MX32	-	1MX32	1MX32	1MX32
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	-	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	-	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	-	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	-	1024	1024	1024
Maximum seat height	21.717 mm	21.717 mm	-	21.717 mm	21.717 mm	21.717 mm
self refresh	NO	NO	-	NO	NO	NO
Maximum standby current	0.008 A	0.008 A	-	0.008 A	0.008 A	0.008 A
Maximum slew rate	0.84 mA	0.68 mA	-	0.76 mA	0.76 mA	0.84 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	NO	-	NO	NO	NO
technology	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	-	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
