LH538R00AN-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH538R00AN-12

LH538R00AN-12: DescriptionMASK ROM, 1MX8, 120ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32; Categorystorage storage; File Size95KB，5 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH538R00AN-12 Overview

MASK ROM, 1MX8, 120ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32

LH538R00AN-12 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-32
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-PDSO-G32
length	20.6 mm
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	11.3 mm

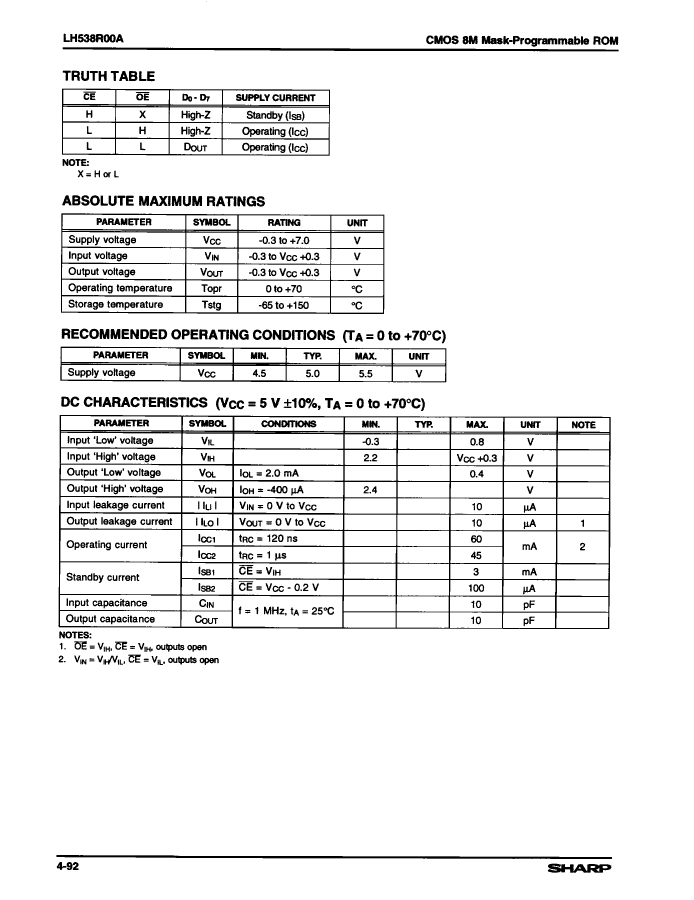

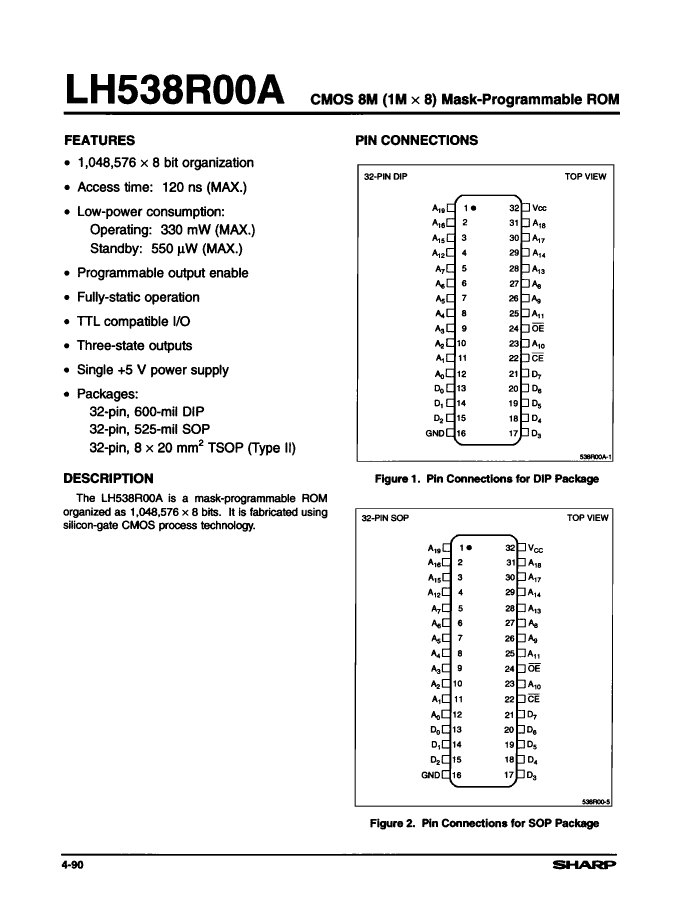

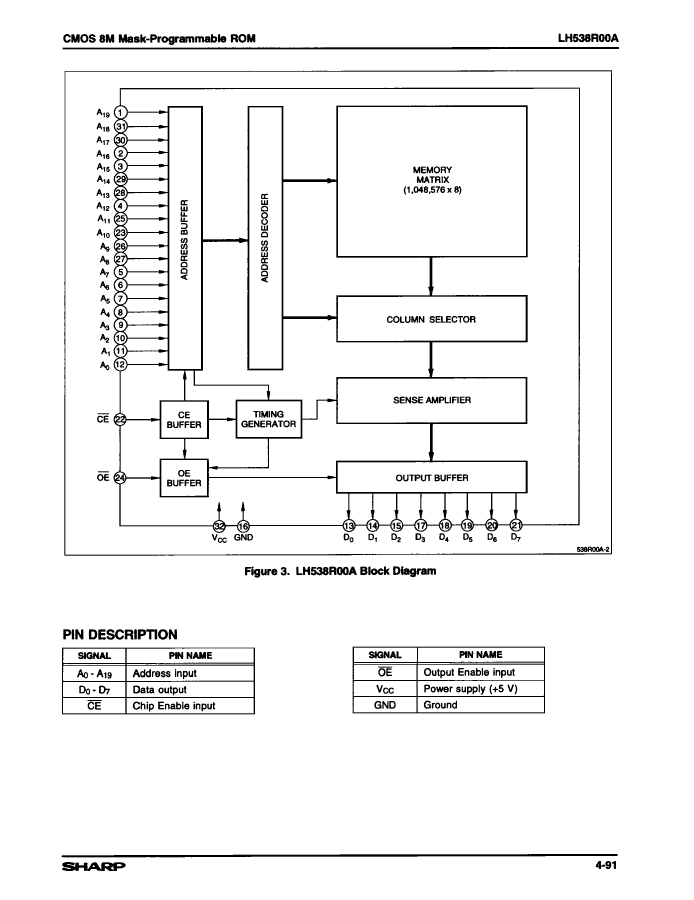

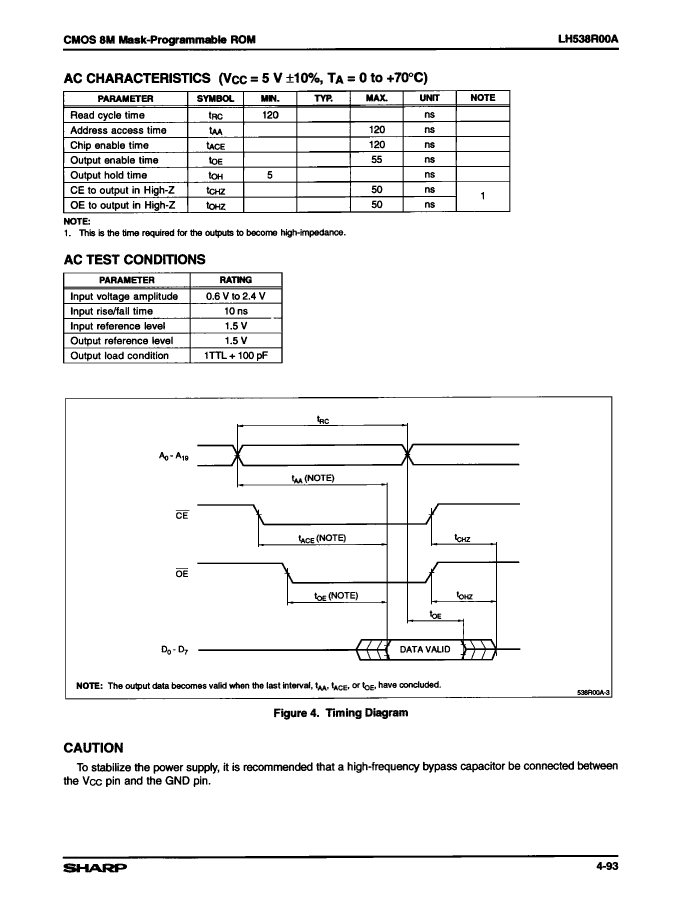

LH538R00AN-12 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LH538R00AN-12 Related Products

	LH538R00AN-12	LH538R00AT-12	LH538R00AD-12
Description	MASK ROM, 1MX8, 120ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	MASK ROM, 1MX8, 120ns, CMOS, PDSO32, 8 X 20 MM, PLASTIC, TSOP2-32	MASK ROM, 1MX8, 120ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32
Maker	SHARP	SHARP	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-32	8 X 20 MM, PLASTIC, TSOP2-32	0.600 INCH, PLASTIC, DIP-32
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	120 ns
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDIP-T32
length	20.6 mm	18.4 mm	41 mm
memory density	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	32	32	32
word count	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	1.2 mm	5.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	0.5 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	11.3 mm	8 mm	15.24 mm
