DPS512M8MKH-15C: DescriptionStandard SRAM, 512KX8, 15ns, CMOS, PDSO36, PLASTIC, TSOP2-36; Categorystorage storage; File Size136KB，6 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPS512M8MKH-15C Overview

Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, PLASTIC, TSOP2-36

DPS512M8MKH-15C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	TSOP2
package instruction	TSOP,
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	15 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS
JESD-30 code	R-PDSO-G36
length	18.41 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	36
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	10.16 mm

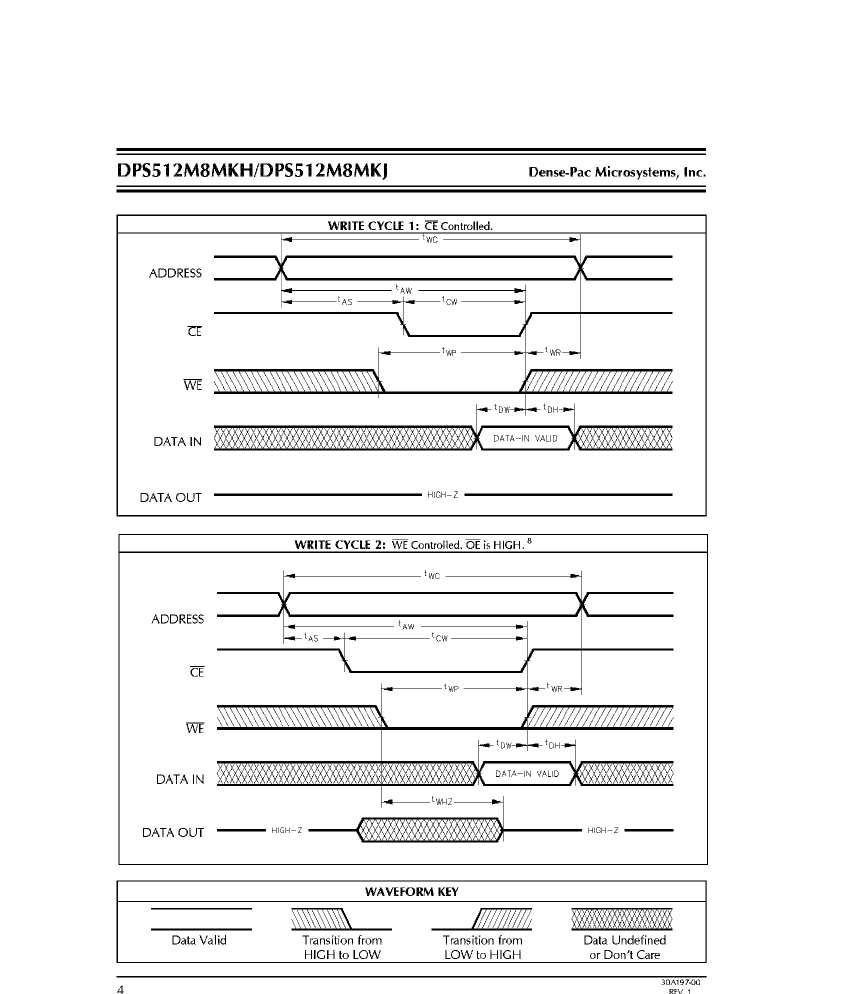

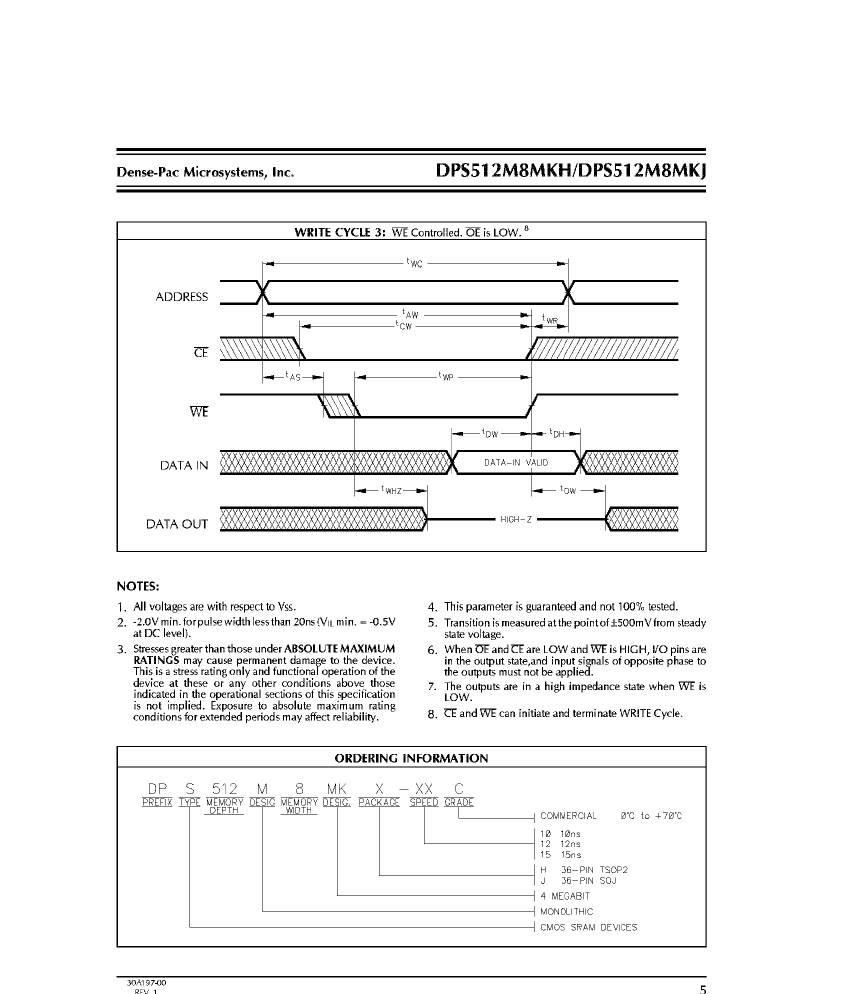

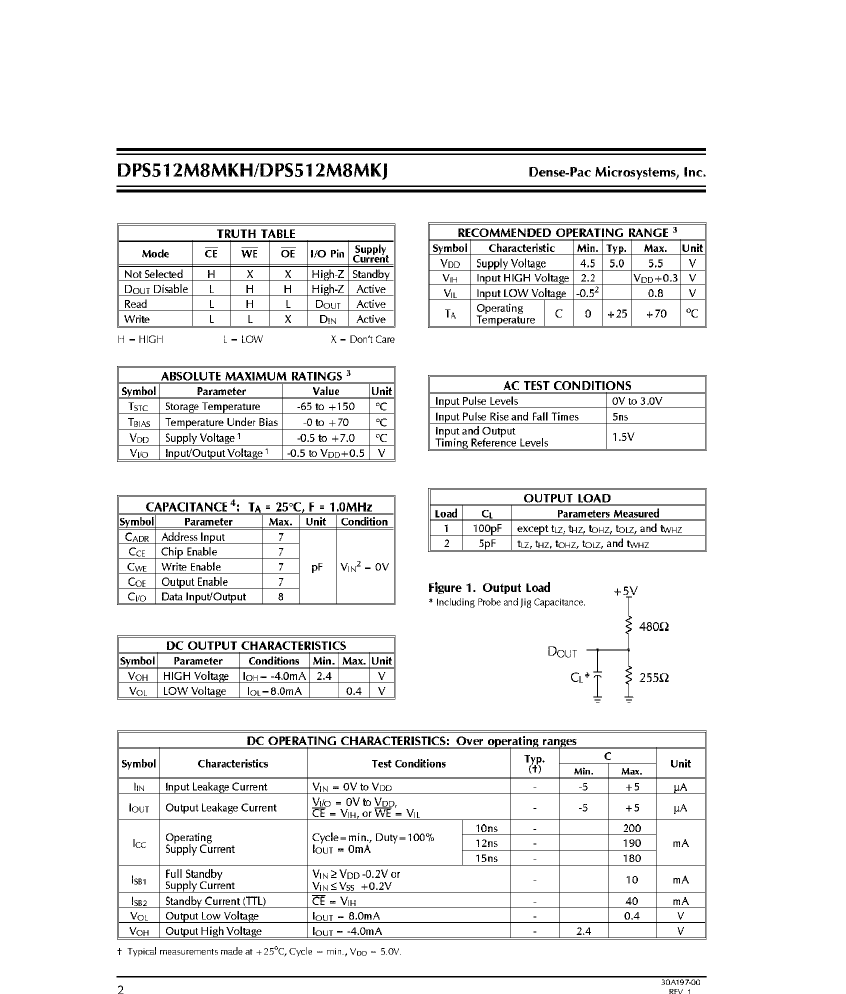

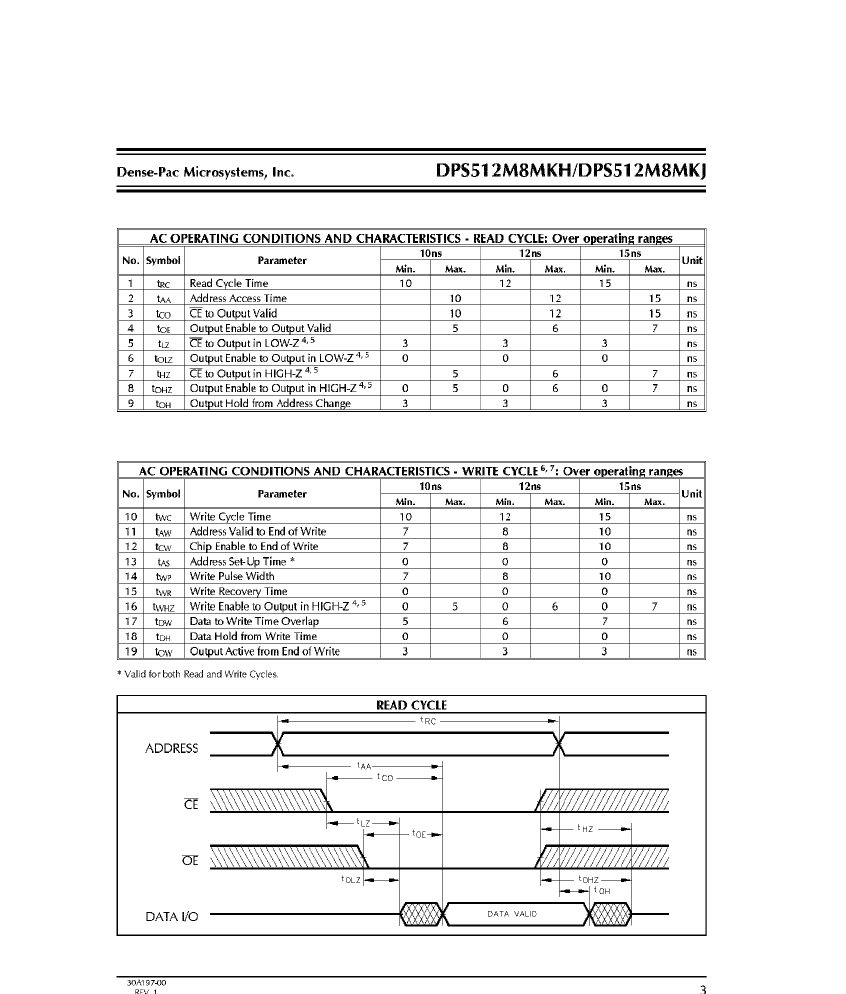

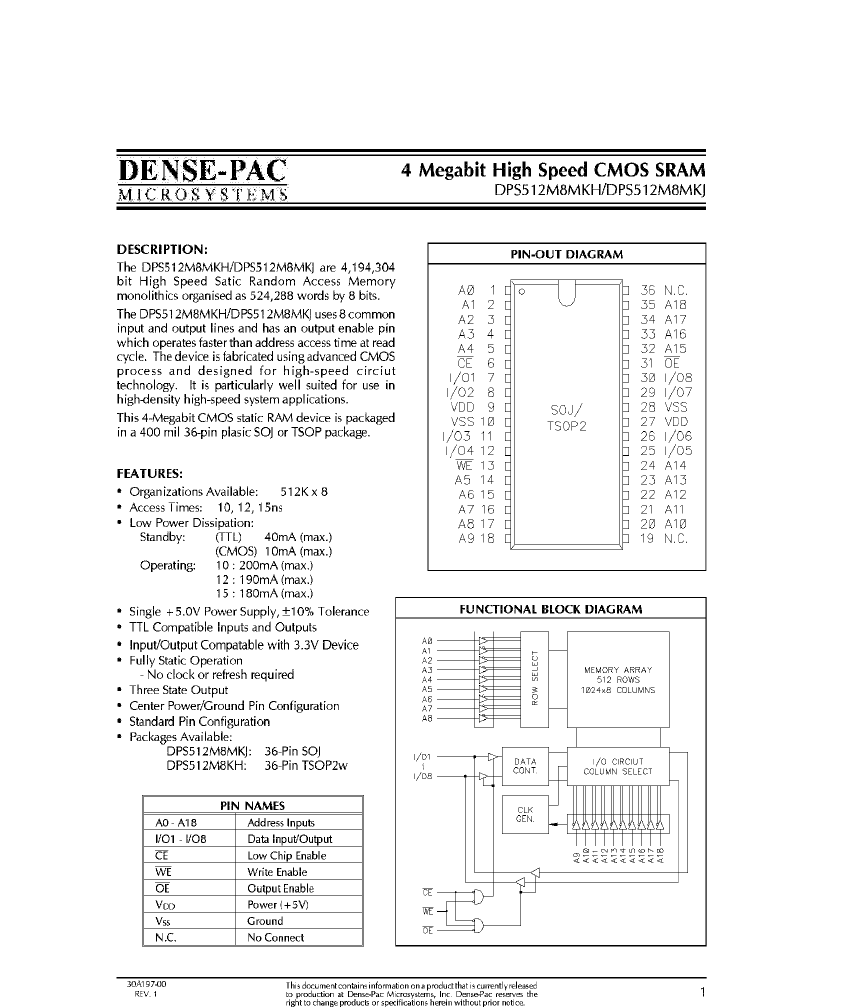

Preview

Download Datasheet

View All

DPS512M8MKH-15C Related Products

	DPS512M8MKH-15C	DPS512M8MKH-12C	DPS512M8MKJ-12C	DPS512M8MKJ-10C	DPS512M8MKJ-15C	DPS512M8MKH-10C
Description	Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, PLASTIC, TSOP2-36	Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, PLASTIC, TSOP2-36	Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 10ns, CMOS, PDSO36, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 10ns, CMOS, PDSO36, PLASTIC, TSOP2-36
Maker	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
Parts packaging code	TSOP2	TSOP2	SOJ	SOJ	SOJ	TSOP2
package instruction	TSOP,	TSOP,	SOJ,	SOJ,	SOJ,	TSOP,
Contacts	36	36	36	36	36	36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	12 ns	12 ns	10 ns	15 ns	10 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS
JESD-30 code	R-PDSO-G36	R-PDSO-G36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-G36
length	18.41 mm	18.41 mm	23.5 mm	23.5 mm	23.5 mm	18.41 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	36	36	36	36	36	36
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	SOJ	SOJ	SOJ	TSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	3.76 mm	3.76 mm	3.76 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	J BEND	J BEND	J BEND	GULL WING
Terminal pitch	1 mm	1 mm	1.27 mm	1.27 mm	1.27 mm	1 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
