UPD42S17400LG3-A60-7JD datasheet, PDF

Datasheet> All Categories > storage> storage> UPD42S17400LG3-A60-7JD

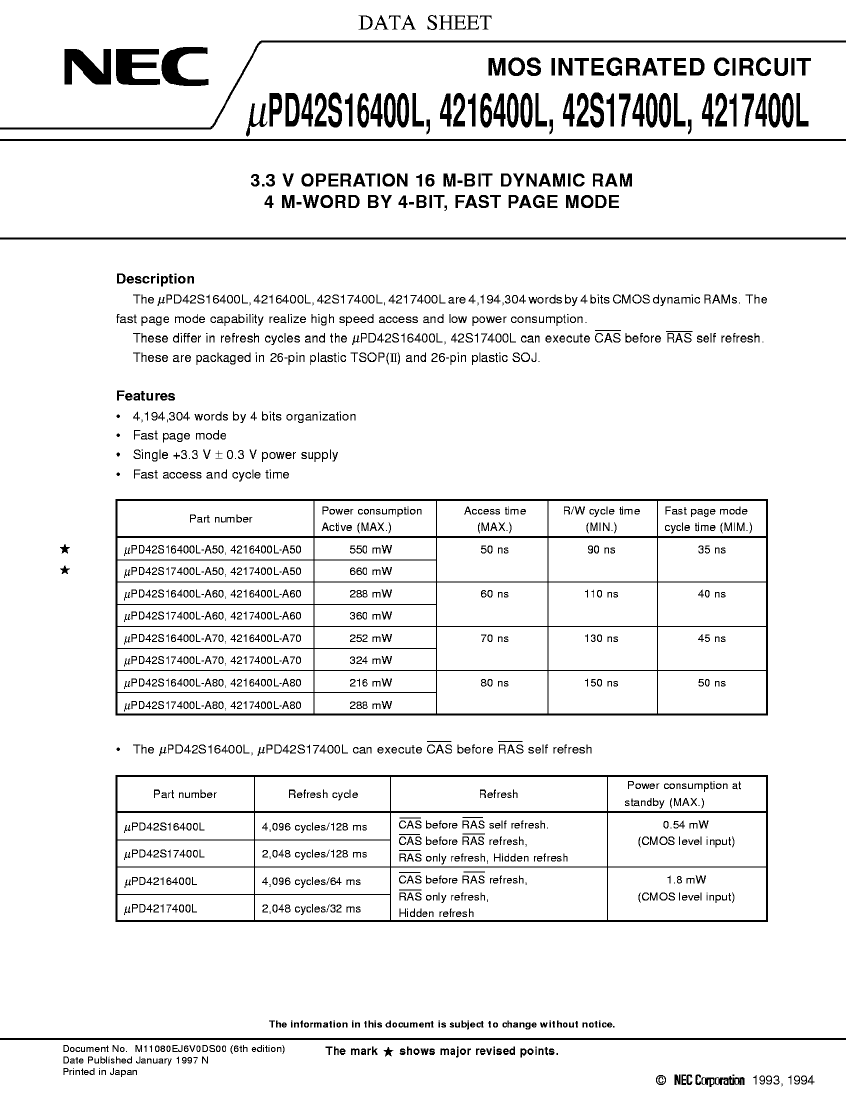

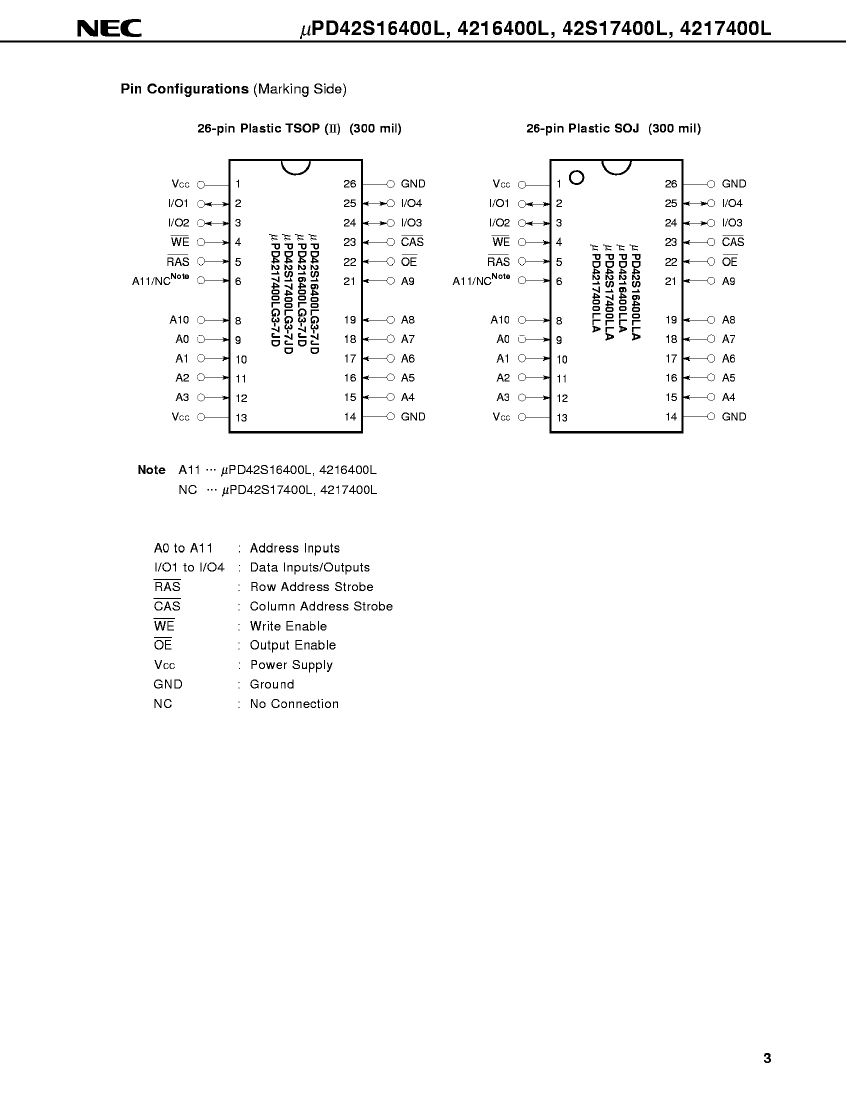

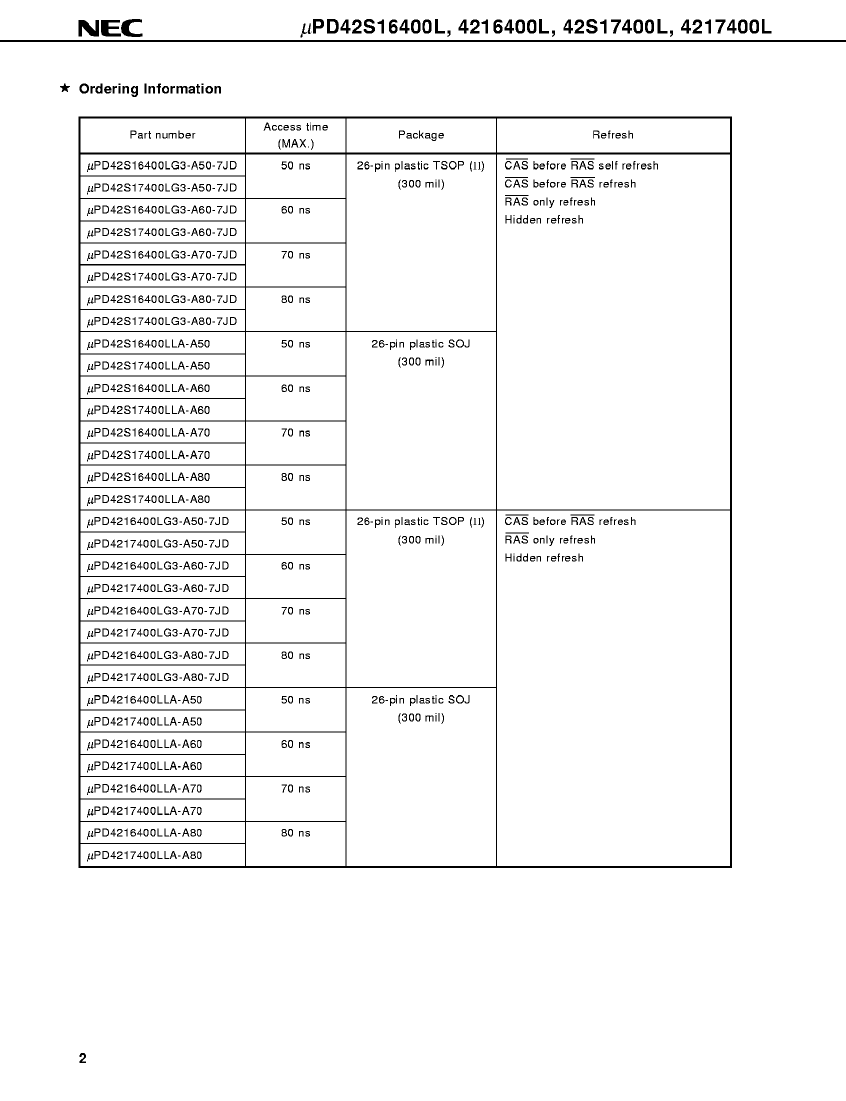

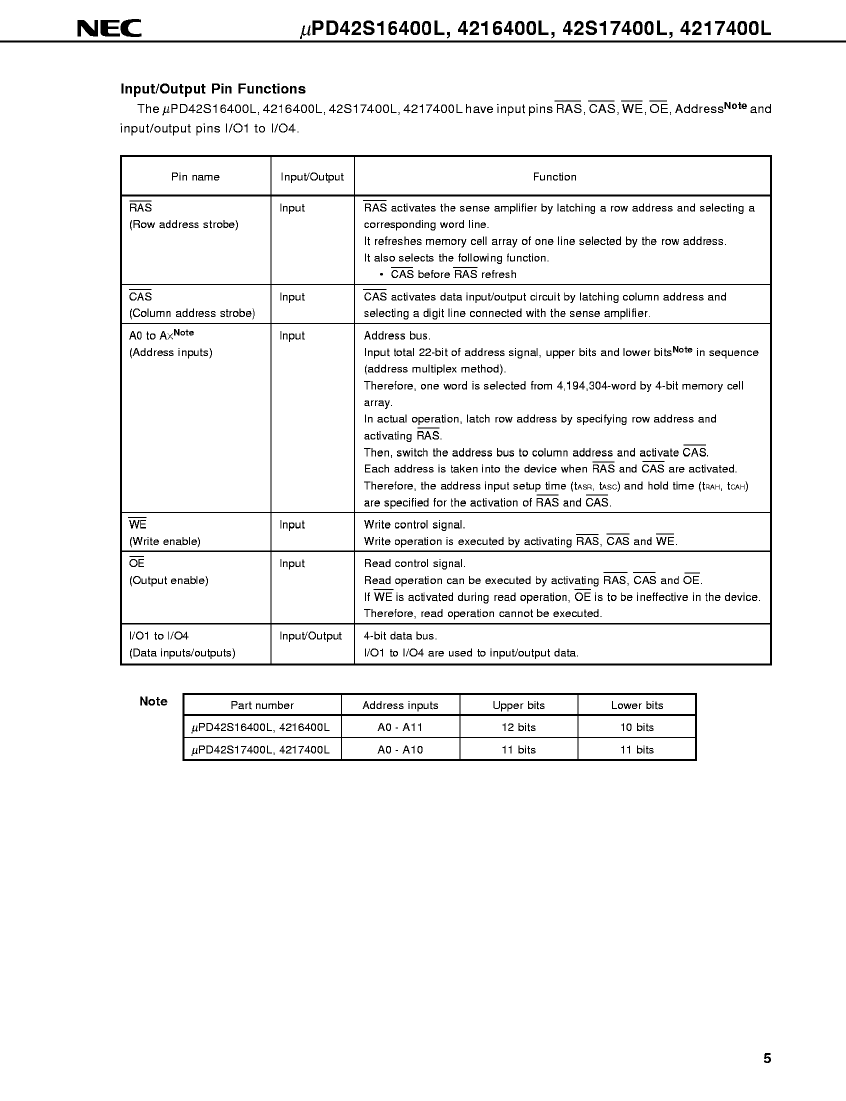

UPD42S17400LG3-A60-7JD: DescriptionFast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24; Categorystorage storage; File Size518KB，32 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD42S17400LG3-A60-7JD Overview

Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24

UPD42S17400LG3-A60-7JD Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	26
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH
JESD-30 code	R-PDSO-G24
length	17.14 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

UPD42S17400LG3-A60-7JD Related Products

	UPD42S17400LG3-A60-7JD	UPD4216400LG3-A50-7JD	UPD42S17400LLA-A50	UPD4216400LG3-A80-7JD	UPD4216400LLA-A50	UPD42S17400LG3-A50-7JD	UPD42S16400LG3-A60-7JD	UPD42S17400LG3-A70-7JD	UPD42S17400LG3-A80-7JD
Description	Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24	Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24	Fast Page DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
Parts packaging code	TSOP2	TSOP2	SOJ	TSOP2	SOJ	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	TSOP2,	SOJ,	TSOP2,	SOJ,	TSOP2,	TSOP2,	TSOP2,	TSOP2,
Contacts	26	26	24	26	24	26	26	26	26
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	50 ns	50 ns	80 ns	50 ns	50 ns	60 ns	70 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-J24	R-PDSO-G24	R-PDSO-J24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
length	17.14 mm	17.14 mm	17.3 mm	17.14 mm	17.3 mm	17.14 mm	17.14 mm	17.14 mm	17.14 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	SOJ	TSOP2	SOJ	TSOP2	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	3.7 mm	1.2 mm	3.7 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	J BEND	GULL WING	J BEND	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
