TC51V17805CST-60 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> TC51V17805CST-60

Preview

TC51V17805CST-60: DescriptionIC 2M X 8 EDO DRAM, 60 ns, PDSO28, 0.300 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM; Categorystorage storage; File Size885KB，27 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC51V17805CST-60 Overview

IC 2M X 8 EDO DRAM, 60 ns, PDSO28, 0.300 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM

TC51V17805CST-60 Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	TSOP
package instruction	TSOP2,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G28
length	18.41 mm
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.7 mm

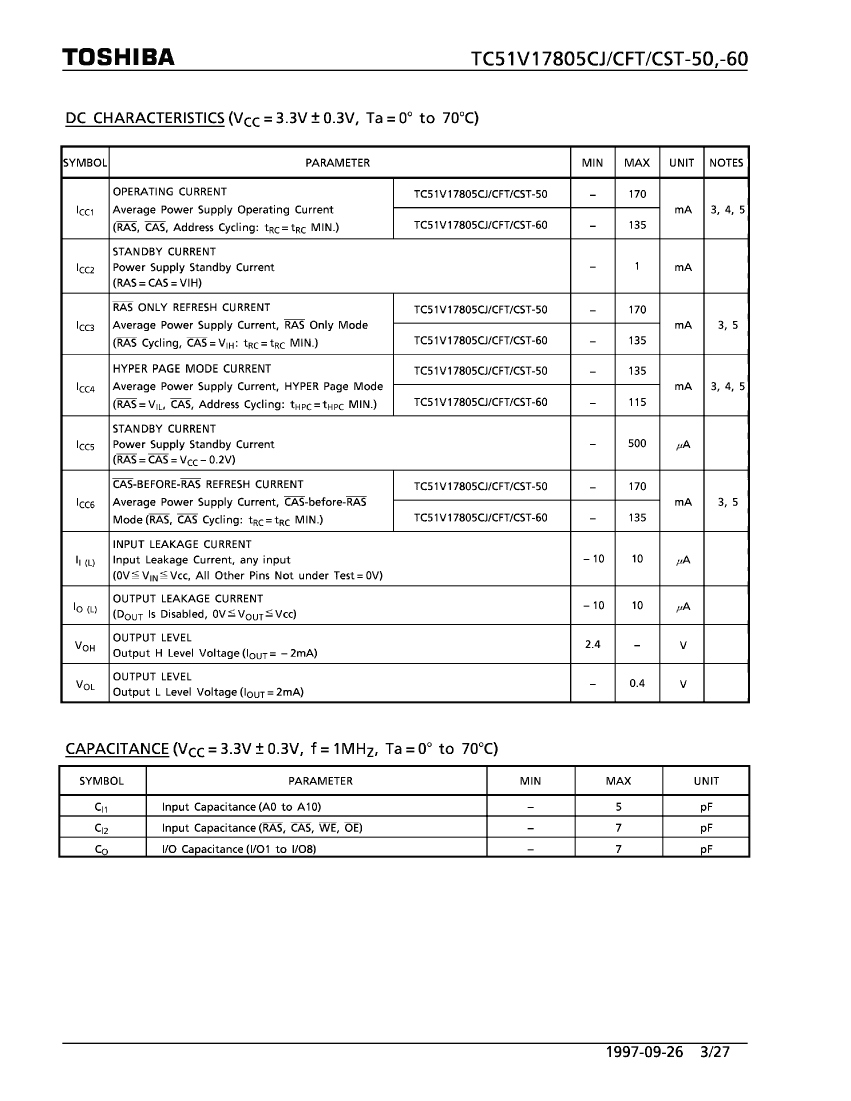

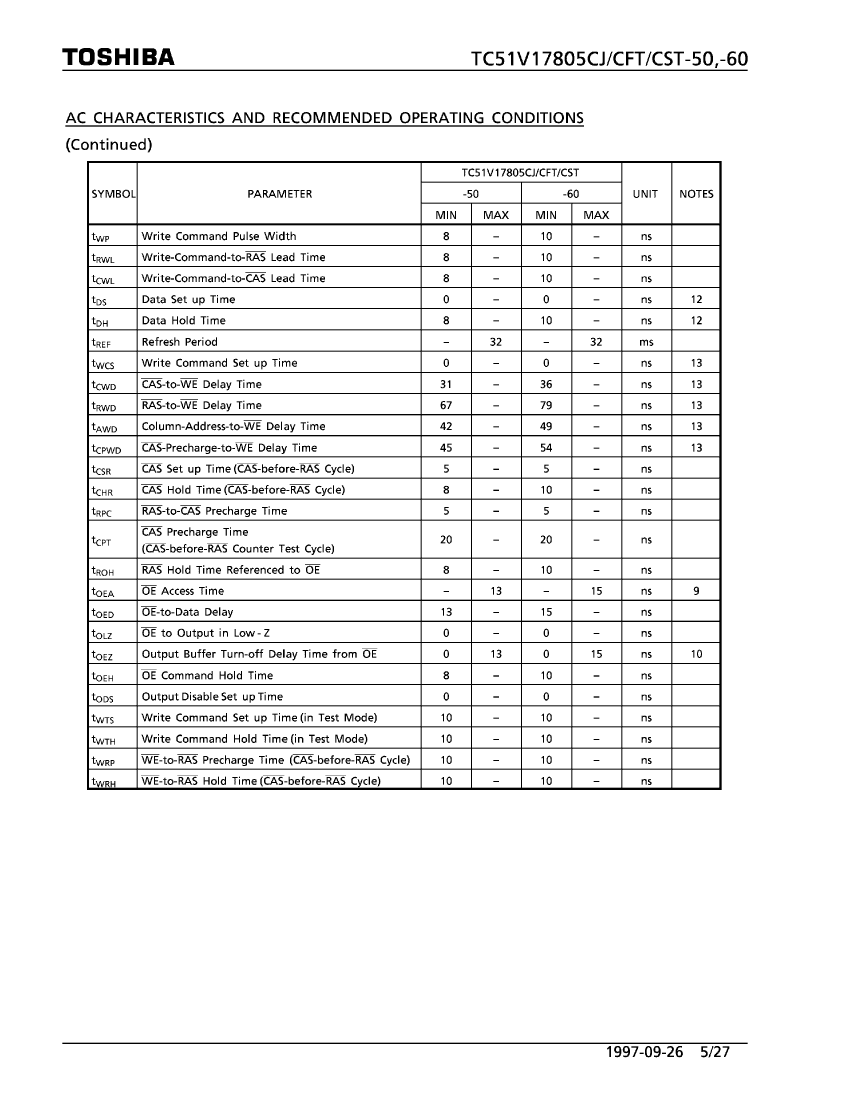

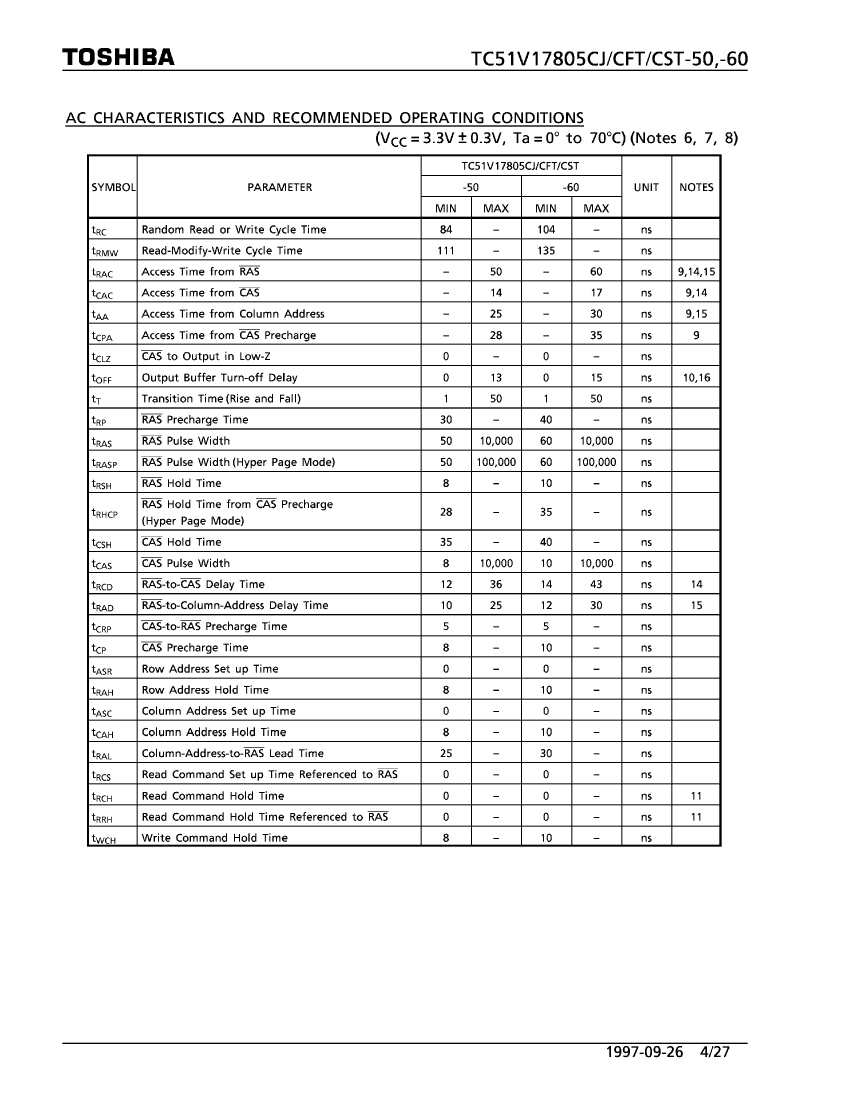

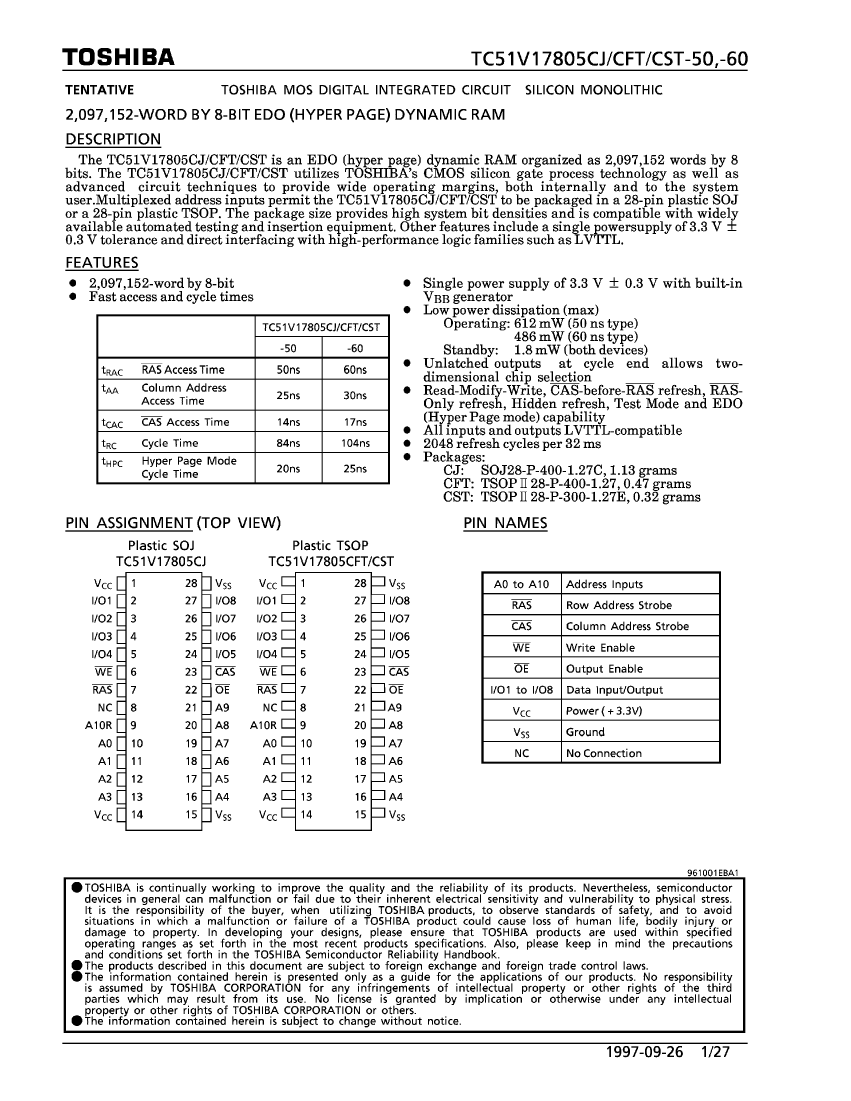

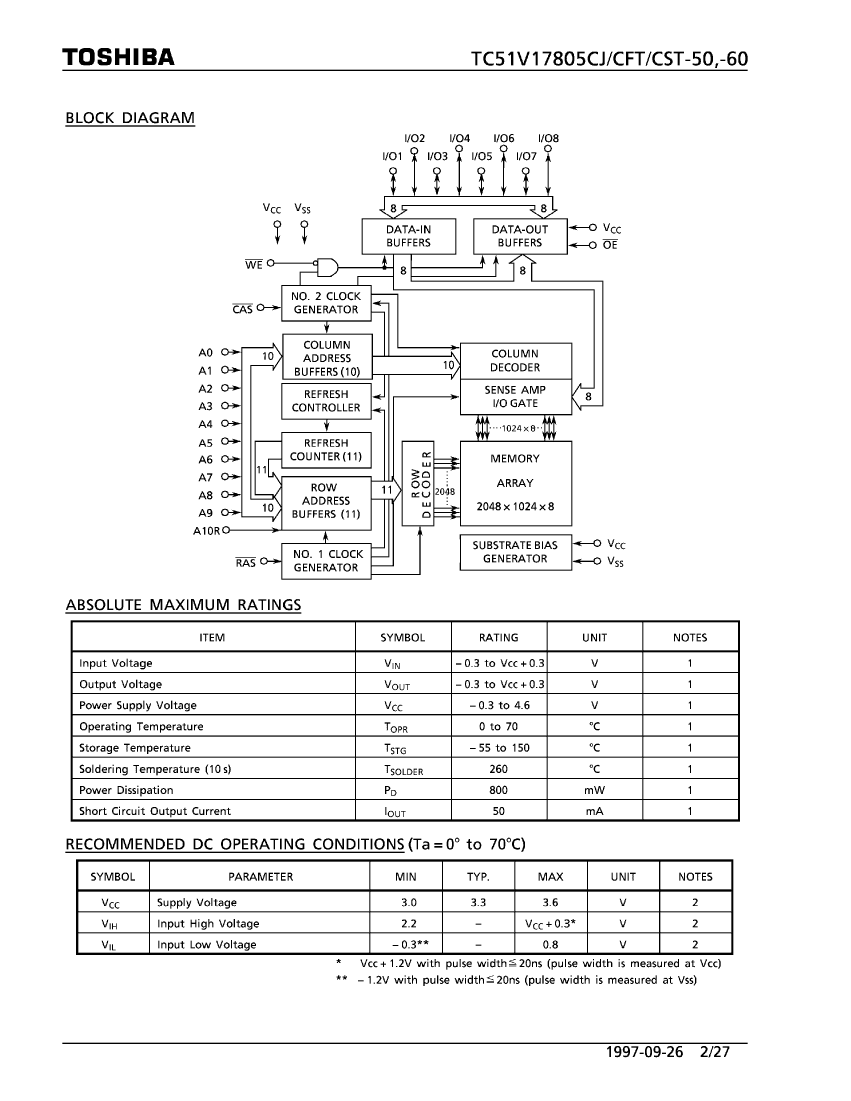

TC51V17805CST-60 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC51V17805CST-60 Related Products

	TC51V17805CST-60	TC51V17805CST-50	TC51V17805CJ-60	TC51V17805CFT-60	TC51V17805CFT-50	TC51V17805CJ-50
Description	IC 2M X 8 EDO DRAM, 60 ns, PDSO28, 0.300 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM	IC 2M X 8 EDO DRAM, 50 ns, PDSO28, 0.300 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM	IC 2M X 8 EDO DRAM, 60 ns, PDSO28, 0.400 INCH, 1.27 MM PITCH, PLASTIC, SOJ-28, Dynamic RAM	IC 2M X 8 EDO DRAM, 60 ns, PDSO28, 0.400 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM	IC 2M X 8 EDO DRAM, 50 ns, PDSO28, 0.400 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28, Dynamic RAM	IC 2M X 8 EDO DRAM, 50 ns, PDSO28, 0.400 INCH, 1.27 MM PITCH, PLASTIC, SOJ-28, Dynamic RAM
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	TSOP	TSOP	SOJ	TSOP	TSOP	SOJ
package instruction	TSOP2,	0.300 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28	0.400 INCH, 1.27 MM PITCH, PLASTIC, SOJ-28	0.400 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28	0.400 INCH, 1.27 MM PITCH, PLASTIC, TSOP2-28	0.400 INCH, 1.27 MM PITCH, PLASTIC, SOJ-28
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	50 ns	60 ns	60 ns	50 ns	50 ns
Other features	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/ CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28
length	18.41 mm	18.41 mm	18.42 mm	18.41 mm	18.41 mm	18.42 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	SOJ	TSOP2	TSOP2	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	3.7 mm	1.2 mm	1.2 mm	3.7 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.7 mm	7.7 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
