K8P2915UQB-DC4D0 datasheet, PDF

K8P2915UQB-DC4D0: DescriptionFlash, 8MX16, 70ns, PBGA80, 11 X 8 MM, FBGA-80; Categorystorage storage; File Size1MB，54 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

K8P2915UQB-DC4D0 Overview

Flash, 8MX16, 70ns, PBGA80, 11 X 8 MM, FBGA-80

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMSUNG
Parts packaging code	BGA
package instruction	BGA, BGA80,8X12,32
Contacts	80
Reach Compliance Code	compliant
ECCN code	3A991.B.1.A
Maximum access time	70 ns
startup block	BOTTOM/TOP
command user interface	YES
Universal Flash Interface	YES
Data polling	YES
JESD-30 code	R-PBGA-B80
memory density	134217728 bit
Memory IC Type	FLASH
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of departments/size	16,254
Number of terminals	80
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX16
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA80,8X12,32
Package shape	RECTANGULAR
Package form	GRID ARRAY
page size	8 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	3/3.3 V
Programming voltage	2.7 V
Certification status	Not Qualified
ready/busy	YES
Department size	4K,32K
Maximum standby current	0.00003 A
Maximum slew rate	0.055 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE

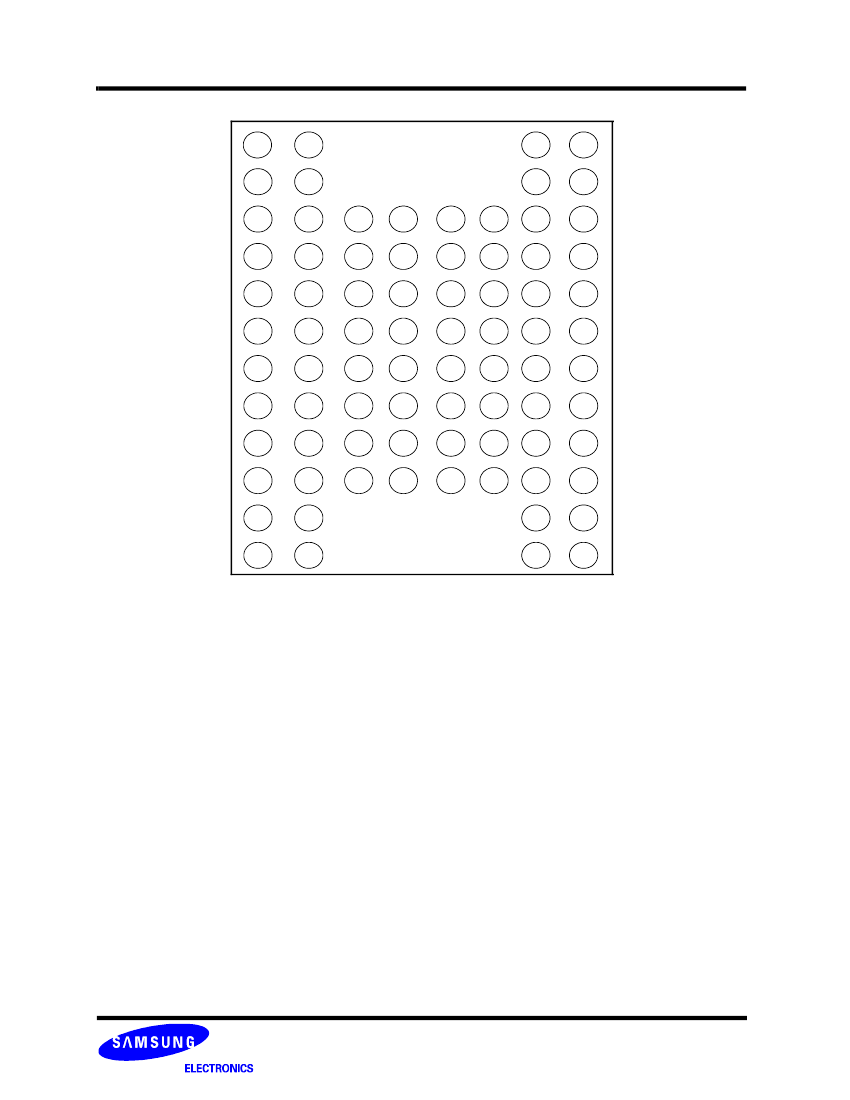

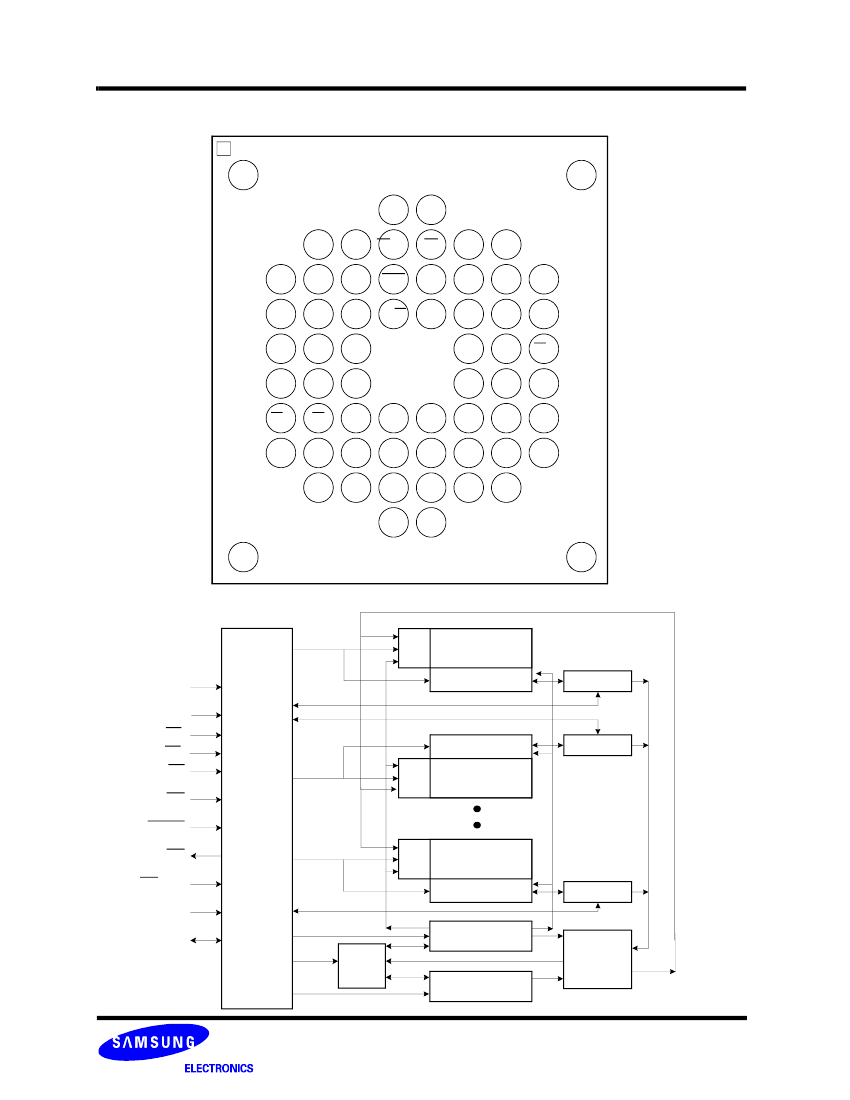

K8P2915UQB

FLASH MEMORY

128Mb B-die Page NOR Specification

INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS,

AND IS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE,

TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL

INFORMATION IN THIS DOCUMENT IS PROVIDED

ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND.

1. For updates or additional information about Samsung products, contact your nearest Samsung office.

2. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar

applications where Product failure couldresult in loss of life or personal or physical harm, or any military or

defense application, or any governmental procurement to which special terms or provisions may apply.

* Samsung Electronics reserves the right to change products or specification without notice.

Revision 1.1

October, 2006
