IBM0712161KU1A-33F: DescriptionRambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62; Categorystorage storage; File Size5MB，68 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

IBM0712161KU1A-33F Overview

Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62

IBM0712161KU1A-33F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IBM
Parts packaging code	BGA
package instruction	TBGA, BGA62,12X9,40/32
Contacts	62
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	BLOCK ORIENTED PROTOCOL
Maximum clock frequency (fCLK)	300 MHz
I/O type	COMMON
JESD-30 code	R-PBGA-B62
JESD-609 code	e0
length	11.79 mm
memory density	134217728 bit
Memory IC Type	RAMBUS DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	62
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
organize	8MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TBGA
Encapsulate equivalent code	BGA62,12X9,40/32
Package shape	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE
power supply	1.8/2.5,2.5 V
Certification status	Not Qualified
refresh cycle	16384
Maximum seat height	1.185 mm
Maximum supply voltage (Vsup)	2.63 V
Minimum supply voltage (Vsup)	2.37 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
width	8.95 mm

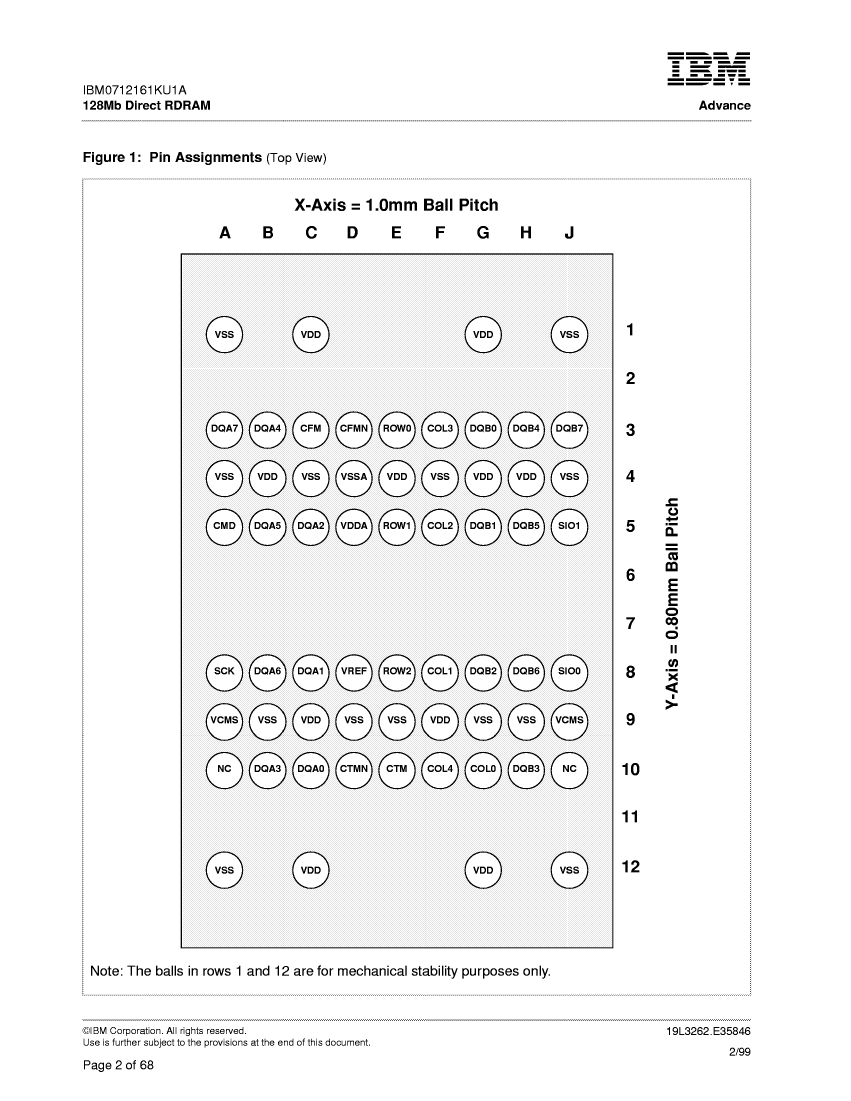

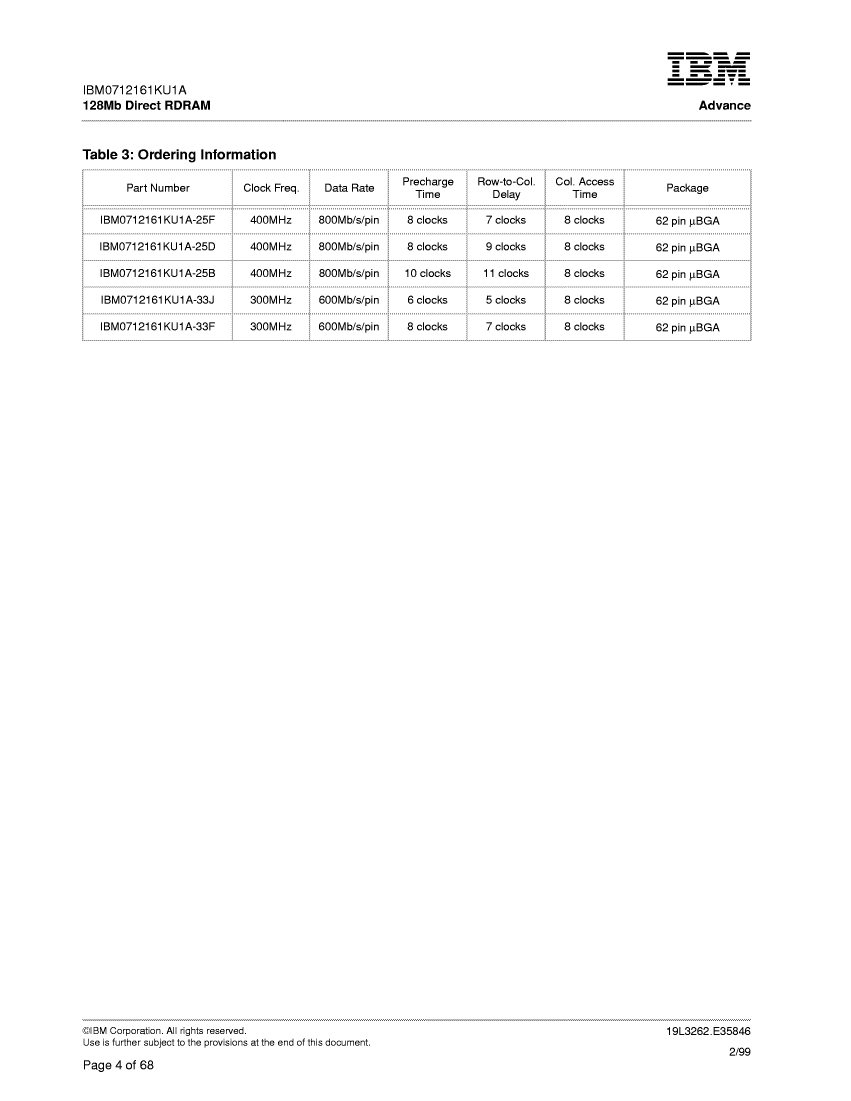

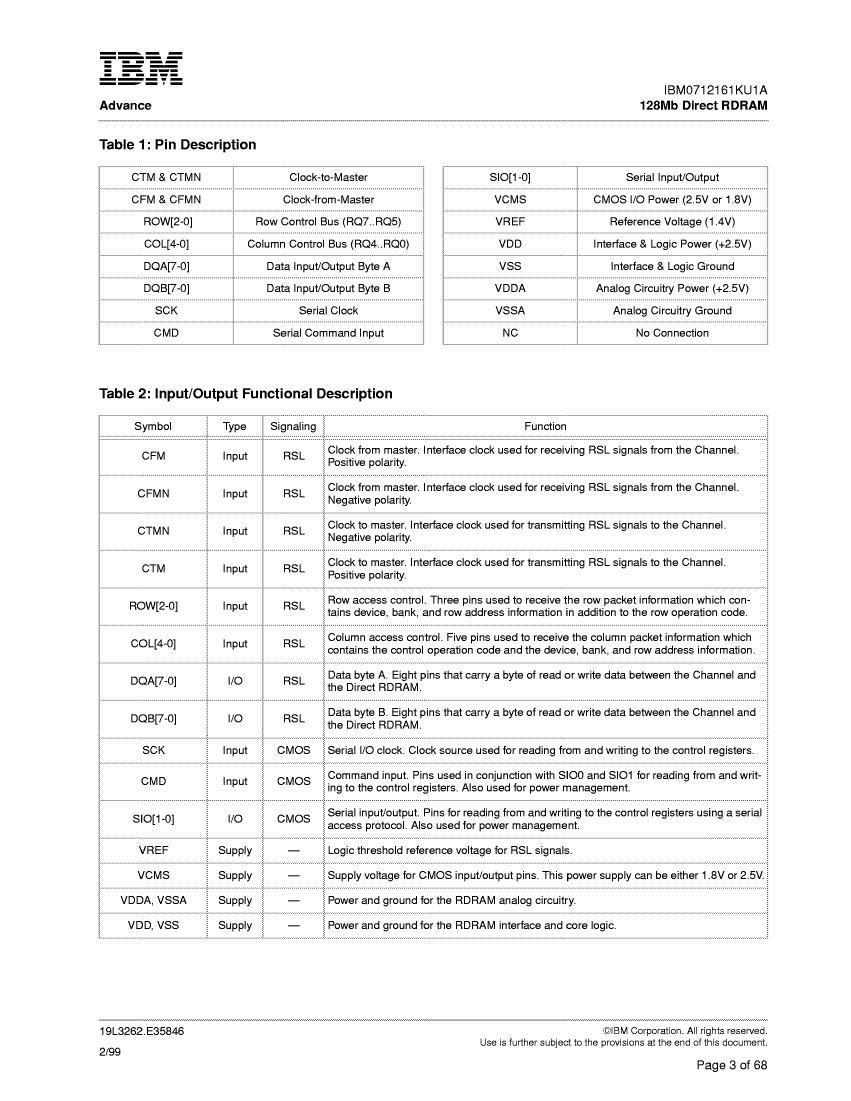

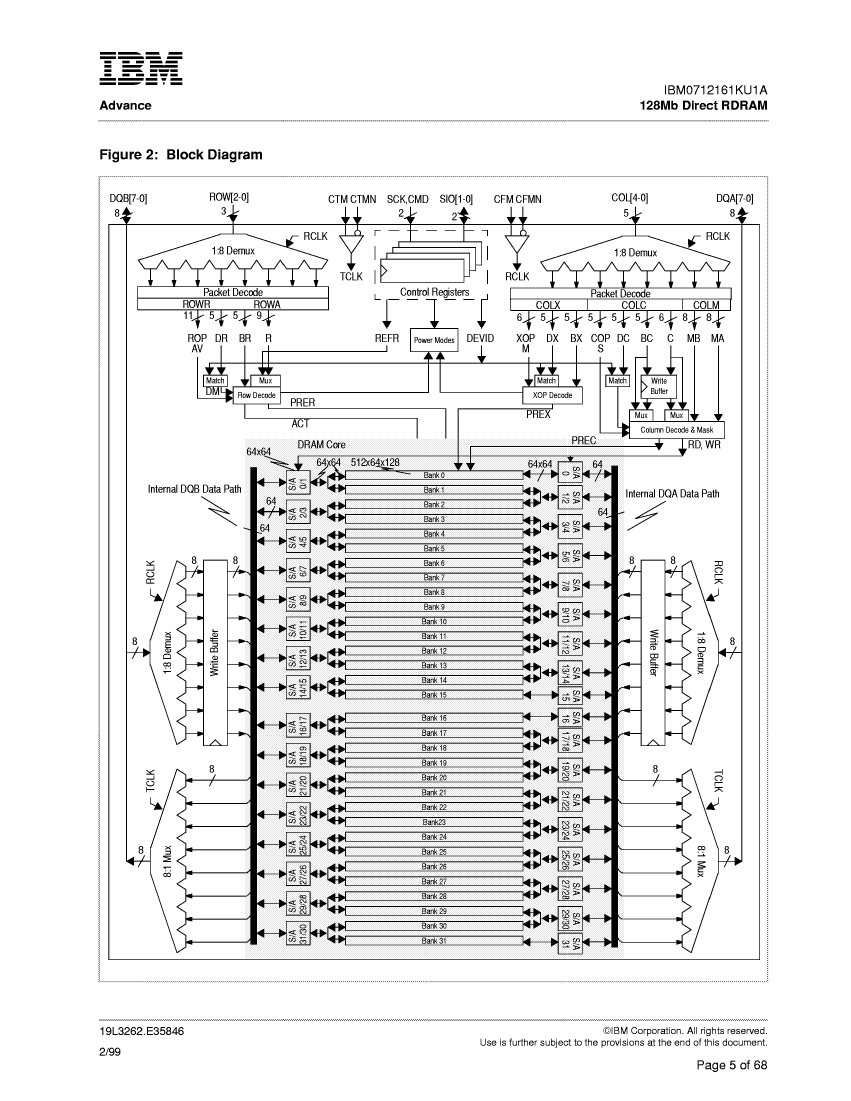

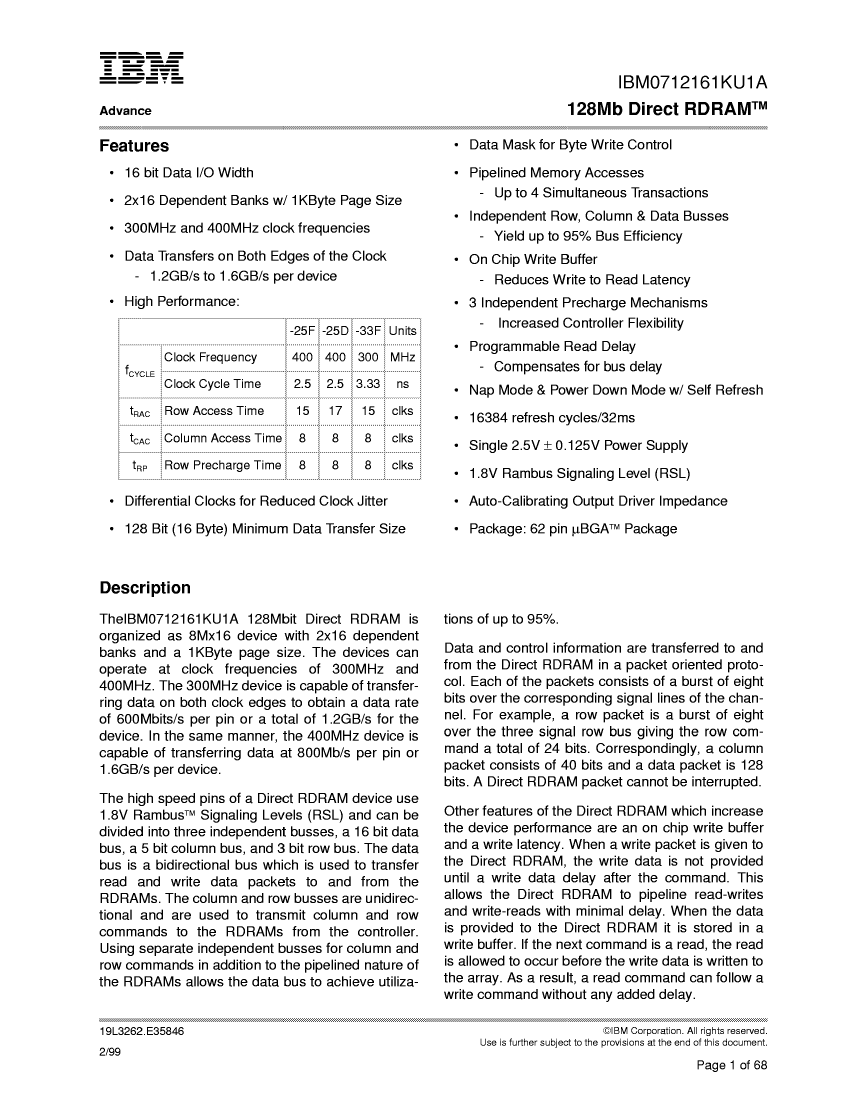

IBM0712161KU1A-33F Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IBM0712161KU1A-33F Related Products

	IBM0712161KU1A-33F	IBM0712161KU1A-25F	IBM0712161KU1A-25D	IBM0712161KU1A-33J	IBM0712161KU1A-25B
Description	Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62	Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62	Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62	Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62	Rambus DRAM, 8MX16, CMOS, PBGA62, 1 MM PITCH, MICRO, BGA-62
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IBM	IBM	IBM	IBM	IBM
Parts packaging code	BGA	BGA	BGA	BGA	BGA
package instruction	TBGA, BGA62,12X9,40/32	TBGA, BGA62,12X9,40/32	TBGA, BGA62,12X9,40/32	TBGA, BGA62,12X9,40/32	TBGA, BGA62,12X9,40/32
Contacts	62	62	62	62	62
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL
Maximum clock frequency (fCLK)	300 MHz	400 MHz	400 MHz	300 MHz	400 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PBGA-B62	R-PBGA-B62	R-PBGA-B62	R-PBGA-B62	R-PBGA-B62
JESD-609 code	e0	e0	e0	e0	e0
length	11.79 mm	11.79 mm	11.79 mm	11.79 mm	11.79 mm
memory density	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bi
Memory IC Type	RAMBUS DRAM	RAMBUS DRAM	RAMBUS DRAM	RAMBUS DRAM	RAMBUS DRAM
memory width	16	16	16	16	16
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	62	62	62	62	62
word count	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000	8000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
organize	8MX16	8MX16	8MX16	8MX16	8MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TBGA	TBGA	TBGA	TBGA	TBGA
Encapsulate equivalent code	BGA62,12X9,40/32	BGA62,12X9,40/32	BGA62,12X9,40/32	BGA62,12X9,40/32	BGA62,12X9,40/32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE	GRID ARRAY, THIN PROFILE	GRID ARRAY, THIN PROFILE	GRID ARRAY, THIN PROFILE	GRID ARRAY, THIN PROFILE
power supply	1.8/2.5,2.5 V	1.8/2.5,2.5 V	1.8/2.5,2.5 V	1.8/2.5,2.5 V	1.8/2.5,2.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	16384	16384	16384	16384	16384
Maximum seat height	1.185 mm	1.185 mm	1.185 mm	1.185 mm	1.185 mm
Maximum supply voltage (Vsup)	2.63 V	2.63 V	2.63 V	2.63 V	2.63 V
Minimum supply voltage (Vsup)	2.37 V	2.37 V	2.37 V	2.37 V	2.37 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	BALL	BALL	BALL	BALL	BALL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
width	8.95 mm	8.95 mm	8.95 mm	8.95 mm	8.95 mm
