NP48N055KLE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> NP48N055KLE

NP48N055KLE: DescriptionProduct Scout Automotive; CategoryDiscrete semiconductor The transistor; File Size815KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

NP48N055KLE Overview

Product Scout Automotive

NP48N055KLE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	D2PAK
package instruction	MP-25ZK, TO-263, 3 PIN
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	100 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	55 V
Maximum drain current (Abs) (ID)	48 A
Maximum drain current (ID)	48 A
Maximum drain-source on-resistance	0.024 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	85 W
Maximum pulsed drain current (IDM)	140 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

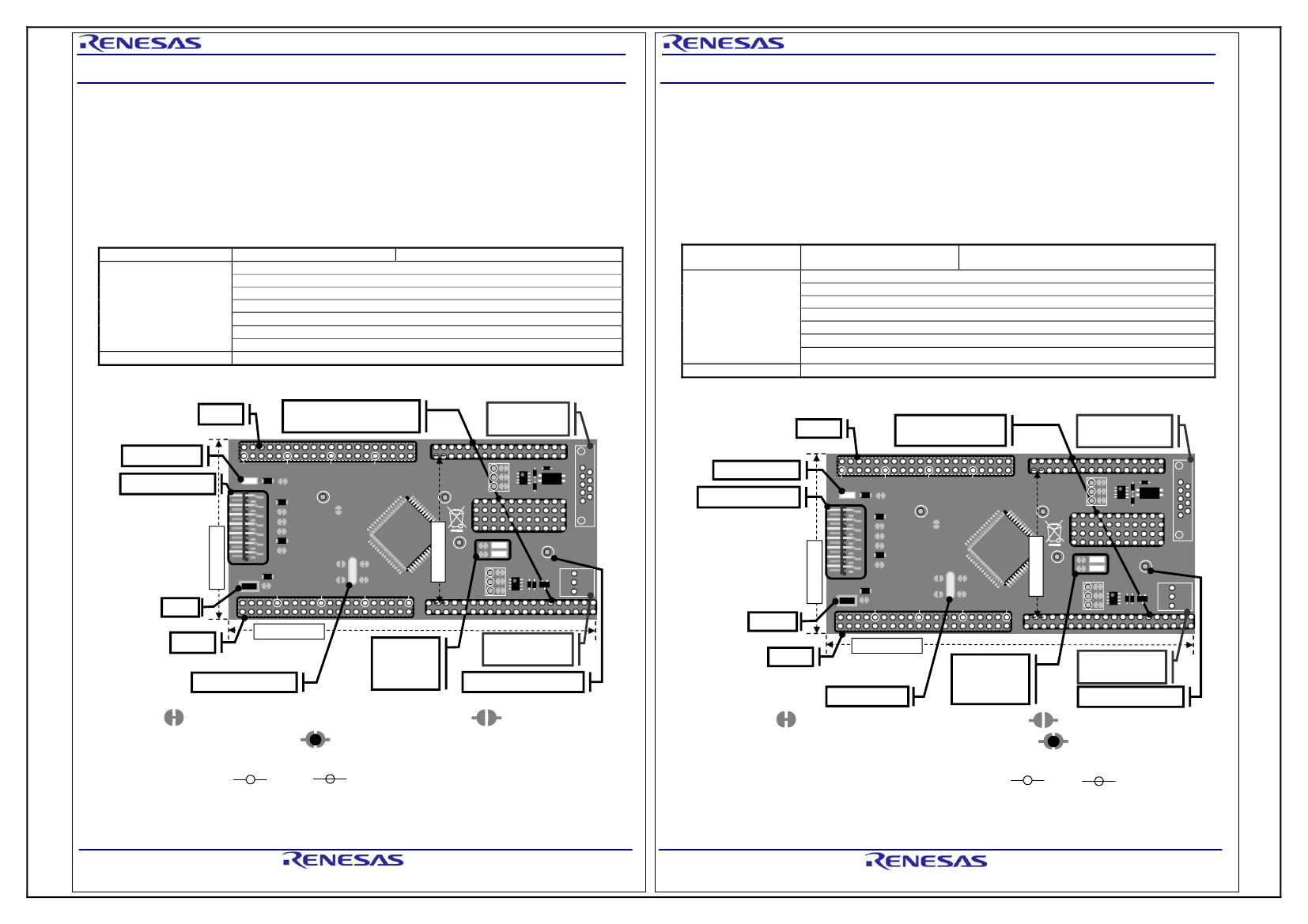

ユーザーズ・マニュアル

User’s Manual

RL78/F13 ターゲット・ボード

QB-R5F10BMG-TB ユーザーズ・マニュアル

R20UT2272XJ0200

Rev 2.00 2013.08.07

RL78/F13 Target board

QB-R5F10BMG-TB User’s Manual

R20UT2272XJ0200

Rev 2.00 2013.08.07

本½品は、ルネサスエレクトロニクス½のプログラミング機½付きオンチップ½デバッグ½エミュレータ E1 を½用して、マイコンの動½を試

すためのターゲット½ボードです。

①RL78/F13 ターゲット½ボード(QB-R5F10BMG-TB)の特徴

●RL78/F13(R5F10BMG)搭載

●4MHz の発振子を搭載

●ユニバーサル½エリア(2.54mm ピッチ)を搭載

●フラッシュ½メモリ½プログラミングおよびオンチップ½デバッグに対応(TOOL0 端子½用)

●マイコンの端子を周辺ボード½コネクタに配½した高拡張性

The QB-R5F10BMG-TB is a target board used for evaluating microcontroller operations, using the E1, the Renesas Electronics

on-chip debug emulator with programming function.

(1) Rl78/F13 target board (QB-R5F10BMG-TB) features

●

Incorporates RL78/F13 (R5F10BMG).

●

A 4MHz resonator is mounted

●

Equipped with universal area (2.54 mm pitch)

●

Supports both flash memory programming and on-chip debugging (using TOOL0 pin)

●

Highly extendable; peripheral board connectors are equipped with microcontroller pins

(2) hardware specifications

②ハードウエア仕様

CPU R5F10BMG

搭載部品

メイン½クロック動½周波数

最大 32MHz(ボード上の発振子 4MHz を½う場合)

CN1,CN2: 周辺ボードコネクタ(2.54mm ピッチ) 40pin ½ケット x2(パッドのみ)

CN3: 14pin コネクタ(E1 接続用)

CN4: LIN コネクタ(パッドのみ), CN5: CAN コネクタ(パッドのみ)

Power LED: 赤 x1(LED3)

評価用 LED: 黄 x2(LED1 は P66,LED2 は P67 へ接続)

評価用 SW: SW1(INTP0 へ接続)

メイン½クロック(OSC1): 4MHz 発振子(X1,X2 へ接続)

2.7V½5.5V (OSC1:4MHz 発振子½用時)

CPU R5F10BMG

Embedded parts

Main clock operating frequency

32 MHz max. (when use 4MHz resonator mounted on

board)

CN1, CN2: Peripheral board connectors (2.54 mm pitch), 40-pin socket



2 (pad only)

CN3: 14-pin connector (for E1 connection)

CN4: LIN connector (pad only), CN5: CAN connector (pad only)

Power LED: Red



1 (LED3)

Test LED: Yellow



2 (LED1 connected to P66, LED2 connected to P67)

Test SW: SW1 (connected to INTP0)

Main clock (OSC1): 4 MHz resonator(connected to X1 and X2)

2.7V to 5.5 V (when 4MHz resonator used at OSC1)

動½電圧

③寸法、部品配½など

Operating voltage

(3) Dimensions and parts layout

CN1

Power LED

14pinコネクタ

LED3

ユニバーサル½エリア

(合計３カ所)

CN2

SS-77229 JAPAN

CANコネクタ

(パッドのみ)

CN5 CAN

CN1

Power LED

14pin connector

LED3

Universal area

(3places in total)

CN2

SS-77229 JAPAN

CAN connector

(pad only)

OCD/Flash Program

CN3 13

CN4

LIN

SW1

CN2

109.22mm

評価用LED

上:LED2

下:LED1

SW1

CN2

LINコネクタ

(パッドのみ)

LIN用外部入力電源

Pattern on the board:

109.22mm

Test LED

upper:LED2

lower:LED1

メイン½クロック

基板上のパターン

LIN connector

(pad only)

+12 VDD for LIN

Main Clock

について:パターンをカットすることで、その回路はオープンとなります。

Splitting this wiring leaves open the relevant circuit (

To reconnect the circuit, short the circuit by soldering (

再度接続させたい場合は半田ショートしてください。

P66,P67 を½用する場合は LED の左のショートパッドをパターンカットしてください。

回路図のパッドの表示オープン:

④½用上の注意

・本½品に関してのサポートはお受けしておりません。初期不良の場合に限り、交換いたします。

ショート:

(4) Notes on use

When using P66 and P67, cut off the short pad on the left side of LED.

Showing of the pad on circuit diagram.

open:

short:

●

Renesas Electronics will not provide any support for this board, but the board can be exchanged with a new product only when

it has an initial failure.

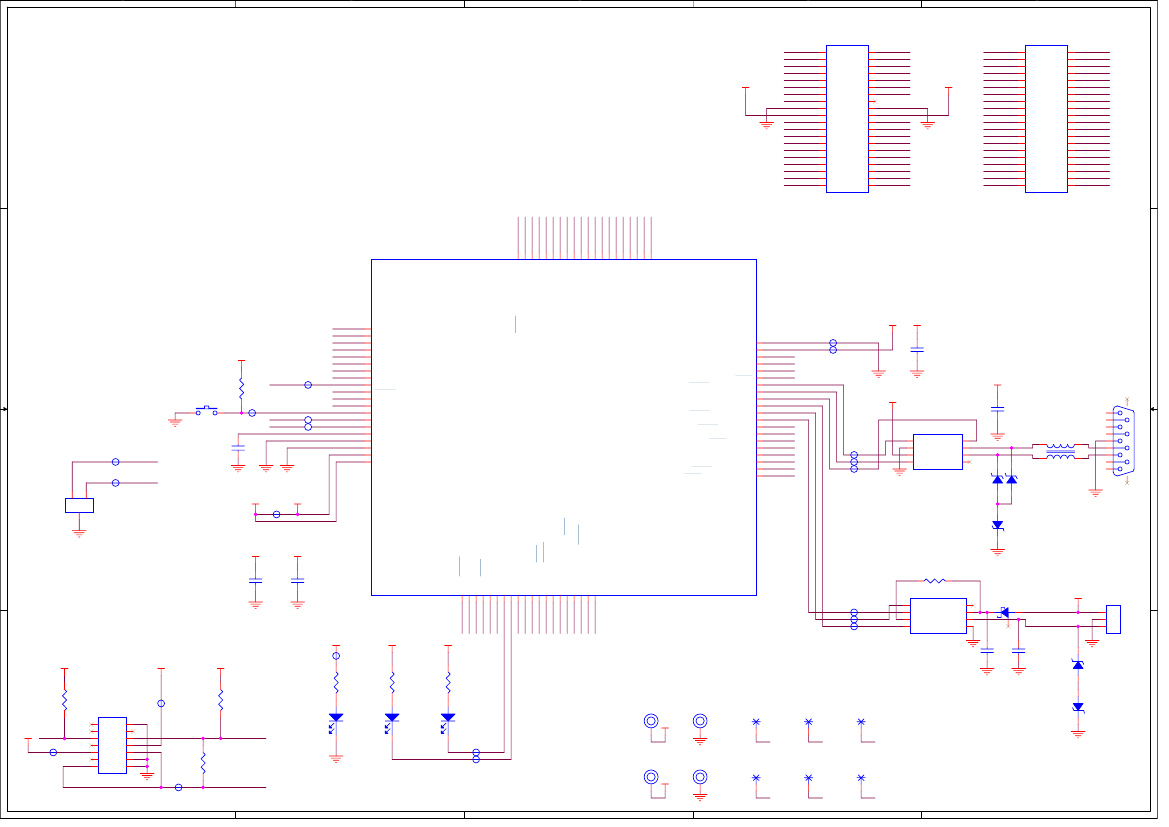

R20UT2272XJ0200 Rev.2.00

2013.08.07

Page 1 of 2

R20UT2272XJ0200 Rev.2.00

2013.08.07

CN4

LIN

SW1

4MHz

SW1

P10

P11

VDD

P12

QB-R5F10BMG-TB(e)

VDD

GND

EVDD

CN3_VDD

RESET

RL78

CN3_EVDD

P67

/F13

TOOL0

OSC1

GND

P66

P122

P14

P121

P53

P13

CN1

OCD/Flash Program

55.88mm

45.72mm

CN3 13

+12V

55.88mm

LED2

LED1

P10

P11

VDD

P12

QB-R5F10BMG-TB(e)

VDD

GND

EVDD

CN3_VDD

RESET

RL78

CN3_EVDD

P67

/F13

TOOL0

OSC1

GND

P66

P122

P14

P121

P53

P13

CN1

45.72mm

4MHz

LED2

LED1

+12V

Page 1 of 2

CN5 CAN
