DATASHEET
HIN202, HIN206, HIN207, HIN208, HIN211, HIN213
+5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External
Capacitors
The HIN202, HIN206, HIN207, HIN208, HIN211, HIN213
family of RS-232 transmitters/receivers interface circuits
meet all ElA RS-232E and V.28 specifications, and are
particularly suited for those applications where
12V
is not
available. They require a single +5V power supply and
feature onboard charge pump voltage converters which
generate +10V and -10V supplies from the 5V supply. The
family of devices offers a wide variety of RS-232
transmitter/receiver combinations to accommodate various
applications (see Selection Table).
The HIN206, HIN211 and HIN213 feature a low power
shutdown mode to conserve energy in battery powered
applications. In addition, the HIN213 provides two active
receivers in shutdown mode allowing for easy “wakeup”
capability.
The drivers feature true TTL/CMOS input compatibility, slew
rate-limited output, and 300 power-off source impedance.
The receivers can handle up to
30V
input, and have a 3k
to 7k input impedance. The receivers also feature
hysteresis to greatly improve noise rejection.
FN3980
Rev 19.00
August 6, 2015
Features
• Pb-Free Plus Anneal Available (RoHS Compliant)
(See Ordering Info)
• Meets All RS-232E and V.28 Specifications
• Requires Only 0.1F or Greater External Capacitors
• High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . .120kbit/s
• Two Receivers Active in Shutdown Mode (HIN213)
• Requires Only Single +5V Power Supply
• Onboard Voltage Doubler/Inverter
• Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
• Low Power Shutdown Function (Typ) . . . . . . . . . . . . .1A
• Three-State TTL/CMOS Receiver Outputs
• Multiple Drivers
-
10V
Output Swing for +5V lnput
- 300 Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/s Maximum Slew Rate
• Multiple Receivers
-
30V
Input Voltage Range
- 3k to 7k Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection
Applications
• Any System Requiring RS-232 Communications Port
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation
- Modems
Selection Table
PART
NUMBER
HIN202
HIN206
HIN207
HIN208
HIN211
HIN213
POWER SUPPLY
VOLTAGE
+5V
+5V
+5V
+5V
+5V
+5V
NUMBER OF
RS-232
DRIVERS
2
4
5
4
4
4
NUMBER OF
RS-232
RECEIVERS
2
3
3
4
5
5
NUMBER OF
0.1F
EXTERNAL
CAPACITORS
4 Capacitors
4 Capacitors
4 Capacitors
4 Capacitors
4 Capacitors
4 Capacitors
LOW POWER
SHUTDOWN/TTL
THREE-STATE
No/No
Yes/Yes
No/No
No/No
Yes/Yes
Yes/Yes
NUMBER OF
RECEIVERS
ACTIVE IN
SHUTDOWN
0
0
0
0
0
2
FN3980 Rev 19.00
August 6, 2015
Page 1 of 20
HIN202, HIN206, HIN207, HIN208, HIN211, HIN213
Ordering Information
PART NO.
HIN202CBZ
(See Note)
HIN202CBZ-T
(See
Note)
HIN202CBNZ
(See
Note)
HIN202CBNZ-T
(See Note)
HIN202CPZ
(See Note)
HIN202IBZ
(See Note)
HIN202IBNZ
(See Note)
HIN202IBNZ-T
(See Note)
HIN207CAZ
(See Note)
(No longer
available,
recommended
replacement:
HIN207ECAZ)
HIN207CAZ-T
(See Note)
(No longer
available,
recommended
replacement:
HIN207ECAZ-T)
TEMP.
RANGE (°C)
0 to 70
0 to 70
PACKAGE
16 Ld SOIC (W)
(Pb-free)
16 Ld SOIC (W)
Tape and Reel
(Pb-free)
16 Ld SOIC (N)
(Pb-free)
16 Ld SOIC (N)
Tape and Reel
(Pb-free)
16 Ld PDIP
16 Ld SOIC (W)
(Pb-free)
16 Ld SOIC (N)
(Pb-free)
16 Ld SOIC (N)
Tape and Reel
(Pb-free)
24 Ld SSOP
(Pb-free)
PKG.
DWG. #
M16.3
M16.3
Ordering Information
(Continued)
PART NO.
HIN208CBZ
(See Note)
(No longer
available,
recommended
replacement:
HIN208ECBZ-T)
HIN208CBZ-T
(See Note)
(No longer
available,
recommended
replacement:
HIN208ECBZ-T)
HIN211CAZ
(See Note)
HIN211CAZ-T
(See Note)
HIN211CBZ
(See Note)
HIN211CBZ-T
(See Note)
HIN213CAZ
(See Note)
TEMP.
RANGE (°C)
0 to 70
PACKAGE
24 Ld SOIC
(Pb-free)
PKG.
DWG. #
M24.3
0 to 70
0 to 70
M16.15
M16.15
0 to 70
24 Ld SOIC
Tape and Reel
(Pb-free)
M24.3
0 to 70
-40 to 85
-40 to 85
-40 to 85
E16.3
M16.3
M16.15
M16.15
0 to 70
0 to 70
28 Ld SSOP
(Pb-free)
28 Ld SSOP
Tape and Reel
(Pb-free)
28 Ld SOIC
(Pb-free)
28 Ld SOIC
Tape and Reel
(Pb-free)
28 Ld SSOP
(Pb-free)
28 Ld SSOP
Tape and Reel
(Pb-free)
M28.209
M28.209
0 to 70
0 to 70
M28.3
M28.3
0 to 70
M24.209
0 to 70
0 to 70
M28.209
M28.209
0 to 70
24 Ld SSOP
Tape and Reel
(Pb-free)
M24.209
HIN213CAZ-T
(See Note)
NOTE:
Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
FN3980 Rev 19.00
August 6, 2015
Page 2 of 20
HIN202, HIN206, HIN207, HIN208, HIN211, HIN213

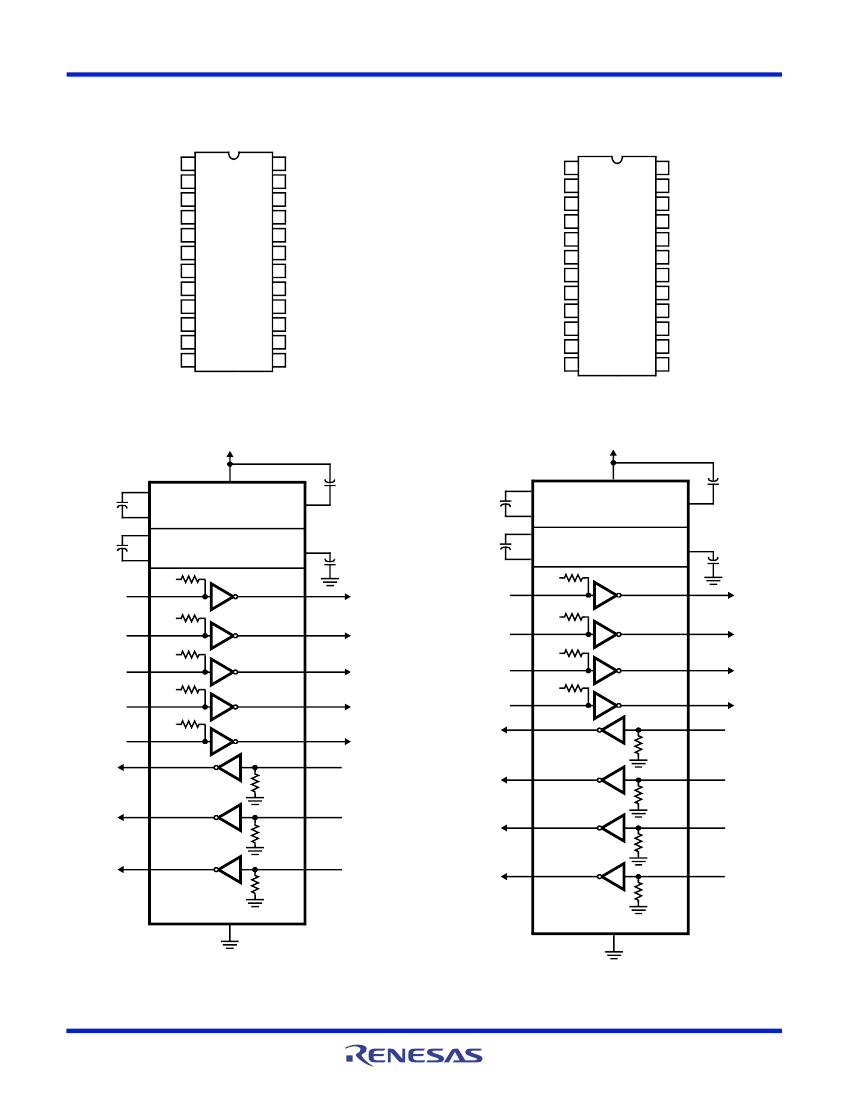

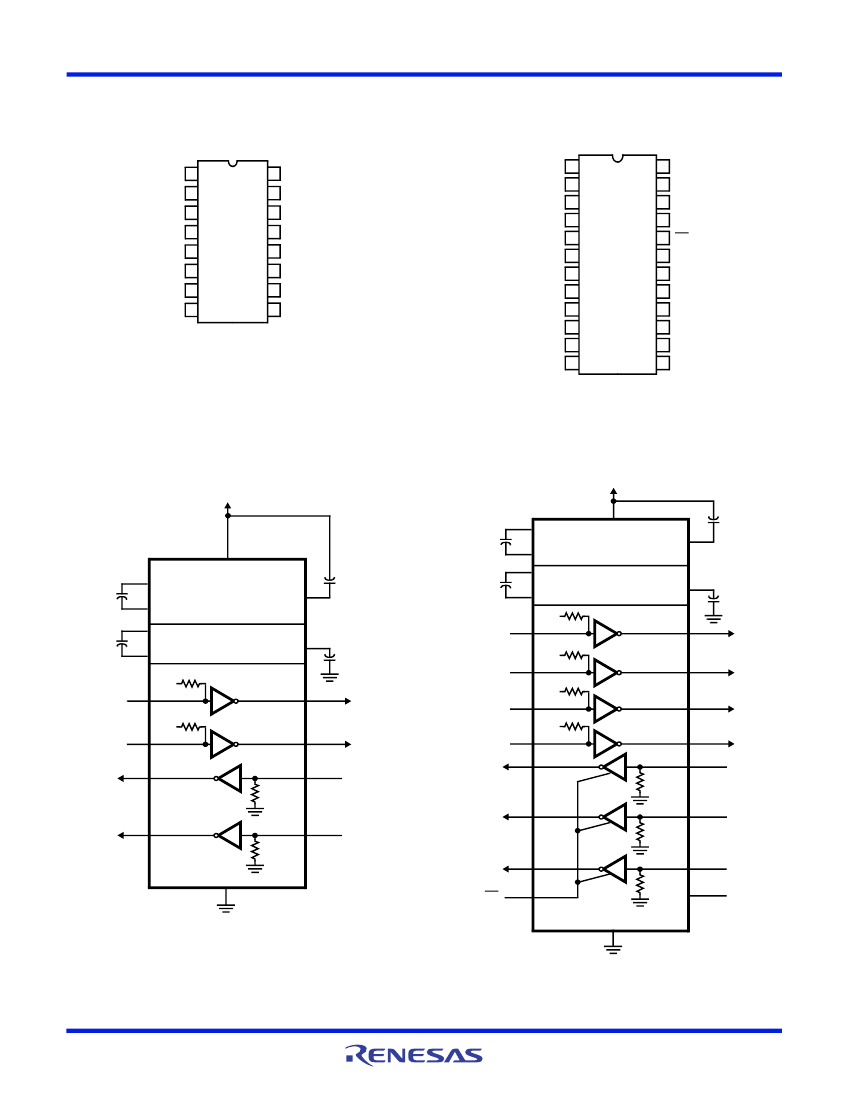

Pin Descriptions
PIN
V
CC
V+
V-
GND
C1+
C1-
C2+
C2-
T
IN
T
OUT
R
IN
R
OUT
EN, EN
SD, SD
NC
Power Supply Input 5V
10%,
(5V
5%
HIN207).
Internally generated positive supply (+10V nominal).
Internally generated negative supply (-10V nominal).
Ground Lead. Connect to 0V.
External capacitor (+ terminal) is connected to this lead.
External capacitor (- terminal) is connected to this lead.
External capacitor (+ terminal) is connected to this lead.
External capacitor (- terminal) is connected to this lead.
Transmitter Inputs. These leads accept TTL/CMOS levels. An internal 400kpull-up resistor to V
CC
is connected to each lead.
Transmitter Outputs. These are RS-232 levels (nominally
10V).
Receiver Inputs. These inputs accept RS-232 input levels. An internal 5kpull-down resistor to GND is connected to each input.
Receiver Outputs. These are TTL/CMOS levels.
Receiver enable Input. With EN = 5V (HIN213 EN = 0V), the receiver outputs are placed in a high impedance state.
Shutdown Input. With SD = 5V (HIN213 SD = 0V), the charge pump is disabled, the receiver outputs are in a high impedance state
(except R4 and R5 of HIN213) and the transmitters are shut off.
No Connect. No connections are made to these leads.
FUNCTION
FN3980 Rev 19.00
August 6, 2015
Page 3 of 20
