5962-01-284-2917 datasheet, PDF

5962-01-284-2917: DescriptionIC,LATCH,DUAL,2-BIT,HCT-CMOS,DIP,16PIN,CERAMIC; Categorylogic logic; File Size374KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

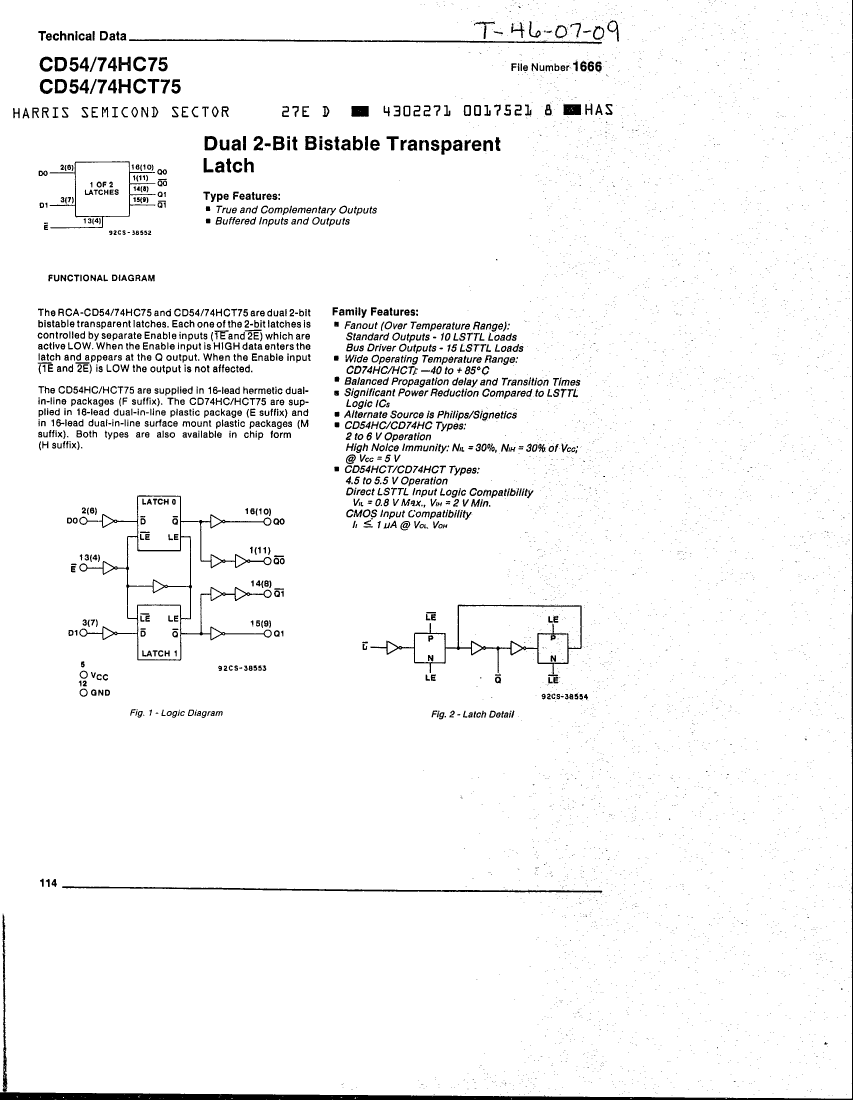

5962-01-284-2917 Overview

IC,LATCH,DUAL,2-BIT,HCT-CMOS,DIP,16PIN,CERAMIC

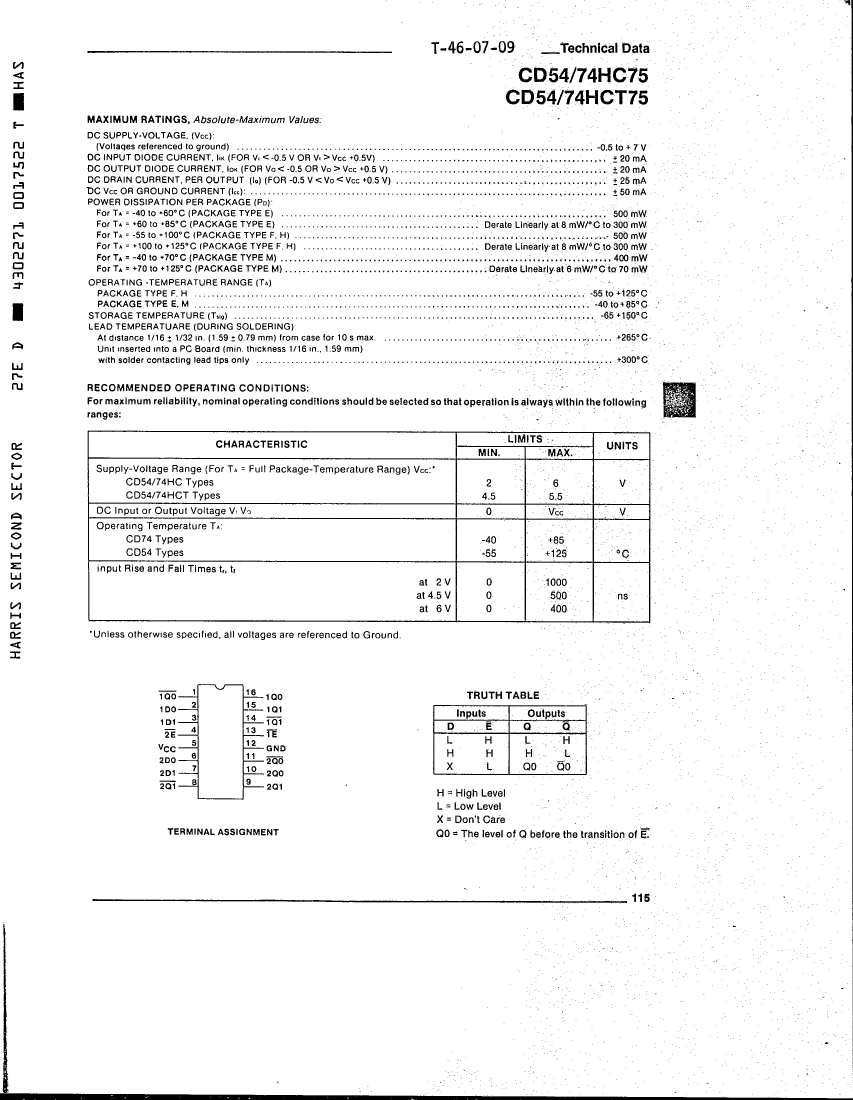

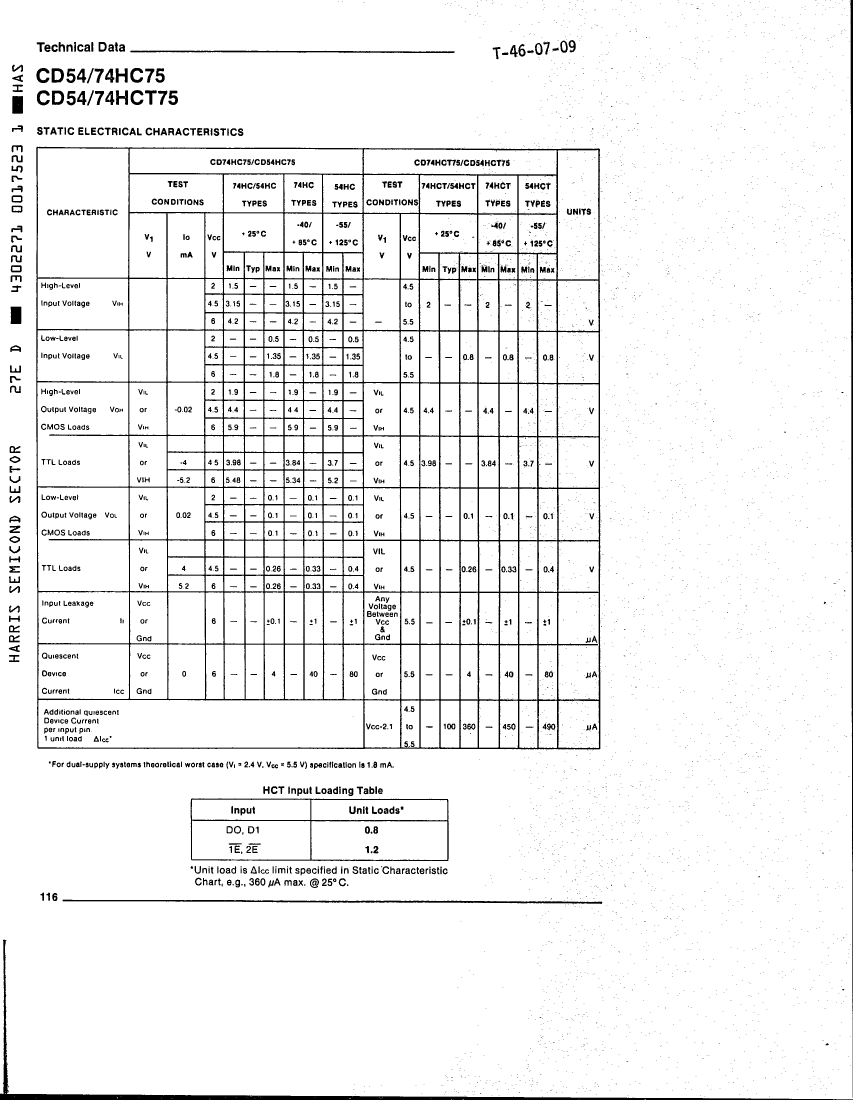

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-XDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.004 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

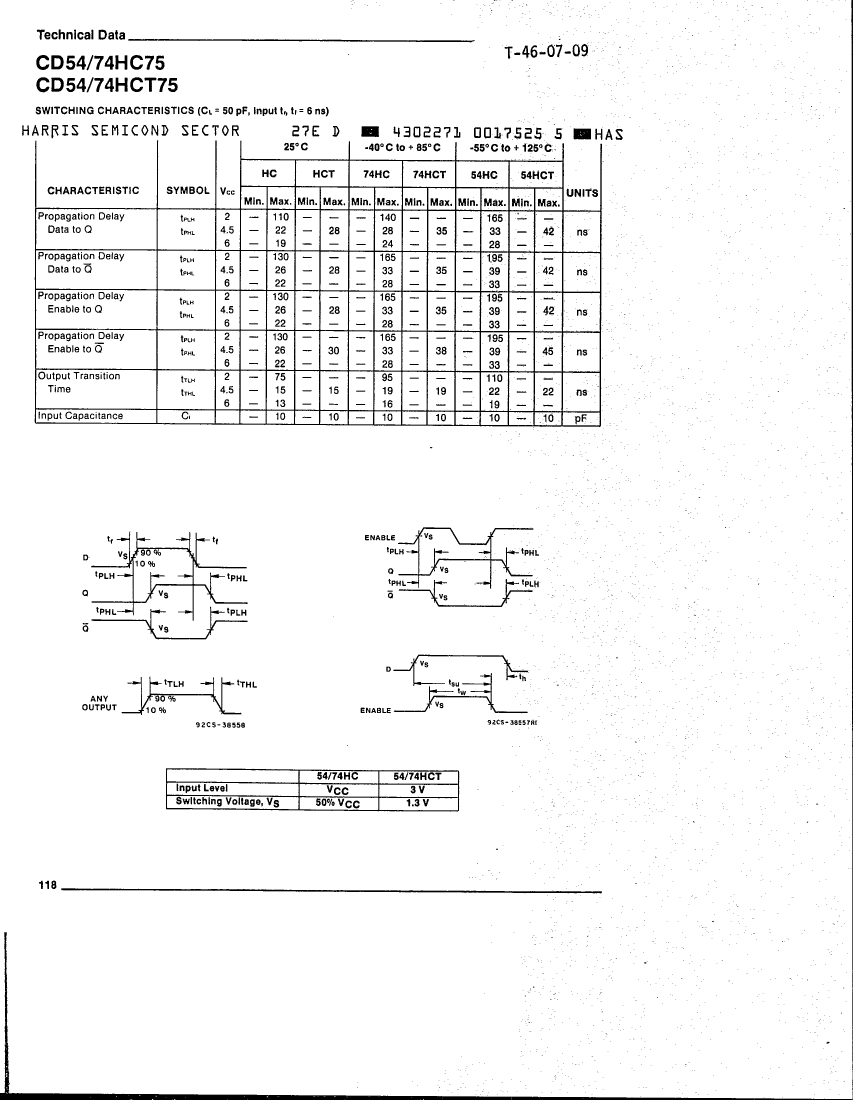

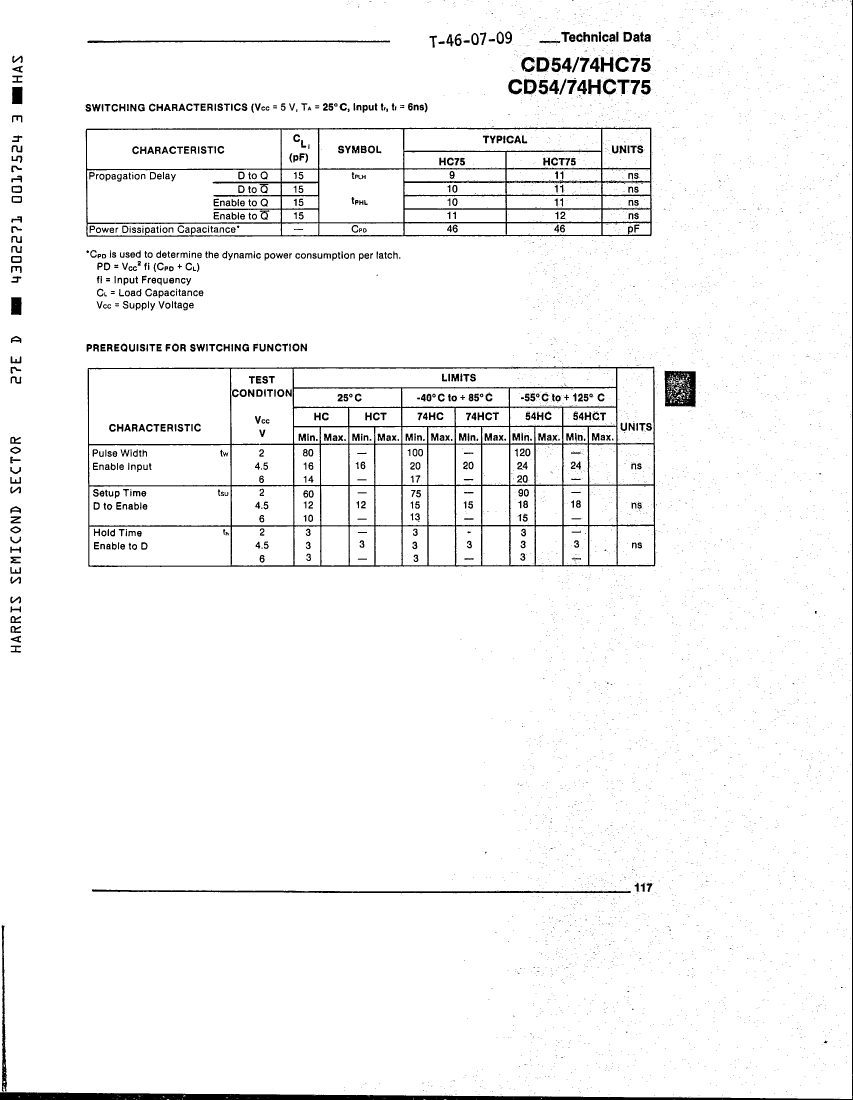

Prop。Delay @ Nom-Sup	42 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	5962-01-284-2917	CD54HCT75H	CD74HCT75M	CD54HC75H
Description	IC,LATCH,DUAL,2-BIT,HCT-CMOS,DIP,16PIN,CERAMIC	CD54HCT75H	D LATCH	IC,LATCH,DUAL,2-BIT,HC-CMOS,DIE
package instruction	DIP, DIP16,.3	, DIE OR CHIP	SOP, SOP16,.25	, DIE OR CHIP
Reach Compliance Code	not_compliant	unknown	not_compliant	unknown
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of digits	2	2	2	2
Number of functions	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	DIP16,.3	DIE OR CHIP	SOP16,.25	DIE OR CHIP
power supply	5 V	5 V	5 V	2/6 V
Prop。Delay @ Nom-Sup	42 ns	42 ns	42 ns	33 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
