Solid State Relay
OCMOS FET
PS7804-1A
4-PIN ULTRA SMALL FLAT-LEAD,
LOW ON-STATE RESISTANCE
1-ch Optical Coupled MOS FET
−NEPOC
Series−
DESCRIPTION
The PS7804-1A is a low output capacitance solid state relay containing a GaAs LED on the light emitting side
(input side) and MOS FETs on the output side.
An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 50%
compared with the PS72xx series.
It is suitable for high-frequency signal control, due to its low C
×
R, low output capacitance, and low off-state
leakage current.
FEATURES
• Ultra small flat-lead package (4.2 (L)
×
2.5 (W)
×
1.85 (H) mm)
• Low C
×
R (C
×
R = 30 pF •
Ω)
• Low on-state resistance (R
on
= 1.1
Ω
TYP.)
• Large continuous load current (I
L
= 400 mA)
• 1 channel type (1 a output)
• Designed for AC/DC switching line changer
• Low offset voltage
• Ordering number of taping product: PS7804-1A-F3: 3 500 pcs/reel
• Pb-Free product
• Safety standards
• UL approved: No. E72422
1
2
4
PIN CONNECTION
(Top View)
3
1. LED Anode
2. LED Cathode
3. MOS FET
4. MOS FET
APPLICATIONS
• Measurement equipment
Document No. PN10683EJ02V0DS (2nd edition)
Date Published October 2008 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
2007, 2008
PS7804-1A
PACKAGE DIMENSIONS (UNIT: mm)
2.5±0.3
4
3
0.2 MAX.
4.2±0.2
N
0.2±0.1
1
2
3.0 MAX.
1.85±0.05
0.15
+0.1
–0.05
4.6±0.2
3.6
+0.3
–0.4
0.4±0.1
1.27
0.2±0.1
<R>
MARKING EXAMPLE
04
N
801
No.1 pin
mark
(Nicked
corner)
Last number of
type No. : 04
*1
*2
An initial of "NEC"
Assembly lot
8 01
(Marking details)
Week assembled
Year assembled
*1
The marking corresponds to the last two digits
of the part number below.
PS7804-1A
*2
Bar
: Pb-Free
2
Data Sheet PN10683EJ02V0DS
0.36
PS7804-1A
ORDERING INFORMATION
Part Number
PS7804-1A
PS7804-1A-F3
Order Number
PS7804-1A-A
PS7804-1A-F3-A
Solder Plating
Specification
Pb-Free
Packing Style
50 pcs (Tape 50 pcs cut)
Embossed Tape 3 500 pcs/reel
Safety Standard
Approval
Standard products
(UL approved)
Application
*1
Part Number
PS7804-1A
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Peak Forward Current
MOS FET
Break Down Voltage
Continuous Load Current
Pulse Load Current
*2
*1
Symbol
I
F
V
R
P
D
I
FP
V
L
I
L
I
LP
Ratings
50
5.0
50
1
60
400
800
Unit
mA
V
mW
A
V
mA
mA
(AC/DC Connection)
Power Dissipation
Isolation Voltage
*3
P
D
BV
P
T
T
A
T
stg
250
500
300
−40
to +85
−40
to +100
mW
Vr.m.s.
mW
°C
°C
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
µ
s, Duty Cycle = 1%
*2
PW = 100 ms, 1 shot
*3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
RECOMMENDED OPERATING CONDITIONS (T
A
= 25°C)
Parameter
LED Operating Current
LED Off Current
Symbol
I
F
I
F
MIN.
4.5
0.1
TYP.
5
MAX.
20
Unit
mA
mA
Data Sheet PN10683EJ02V0DS
3
PS7804-1A
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
Parameter
Diode
Forward Voltage
Reverse Current
MOS FET
Off-state Leakage Current
Output Capacitance
Coupled
LED On-state Current
On-state Resistance
Turn-on Time
*1, 2
*1, 2
Symbol
V
F
I
R
I
Loff
C
out
I
Fon
R
on
t
on
t
off
R
I-O
C
I-O
I
F
= 5 mA
V
R
= 5 V
V
D
= 60 V
Conditions
MIN.
TYP.
1.1
MAX.
1.4
5.0
Unit
V
µ
A
nA
pF
mA
Ω
ms
0.1
27
1.0
35
4.0
V
D
= 0 V, f = 1 MHz
I
L
= 400 mA
I
F
= 5 mA, I
L
= 400 mA, t
≤
10 ms
I
F
= 5 mA, V
O
= 5 V, R
L
= 500
Ω,
PW
≥
2 ms
V
I-O
= 0.5 kV
DC
V = 0 V, f = 1 MHz
10
9
1.1
0.15
0.05
1.5
0.5
0. 5
Turn-off Time
Isolation Resistance
Isolation Capacitance
Ω
0.3
pF
*1
Test Circuit for Switching Time
I
F
Pulse Input
V
L
Input
50%
0
V
O
= 5 V
Input monitor
R
in
R
L
V
O
monitor
Output
90%
10%
t
on
t
off
*2
The turn-on time and turn-off time are specified as input-pulse width
≥
2 ms.
Be aware that when the device operates with an input-pulse width less than 2 ms, the turn-on time and turn-off
time will increase.
4
Data Sheet PN10683EJ02V0DS
PS7804-1A

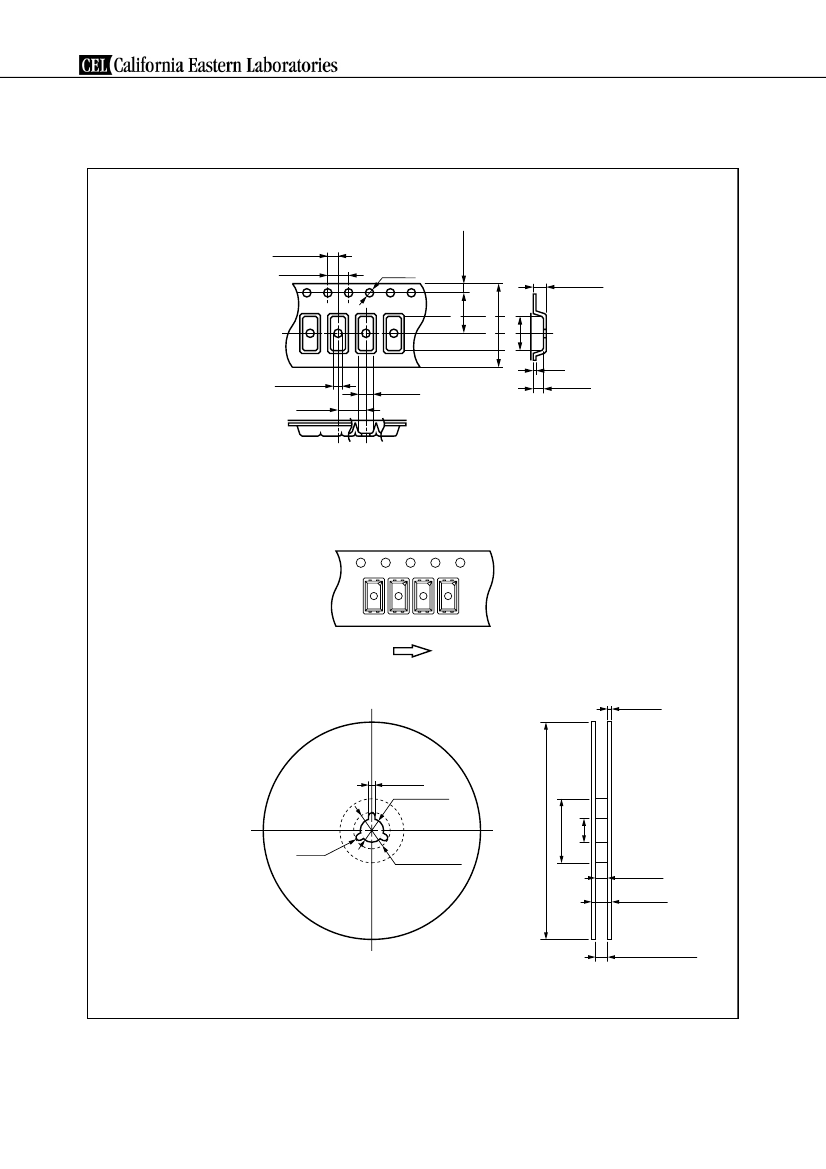

TAPING SPECIFICATIONS (UNIT: mm)
Outline and Dimensions (Tape)
2.0±0.05
4.0±0.1
1.5
+0.1
–0
1.75±0.1
2.9 MAX.
12.0±0.2
5.3±0.1
5.5±0.05
0.3
1.55±0.05
4.0±0.1
2.9±0.1
2.4±0.1
Tape Direction
PS7804-1A-F3
N
N
N
N
Outline and Dimensions (Reel)
2.0±0.5
φ
330±2.0
φ
100±1.0
2.0±0.5
φ
13.0±0.2
R 1.0
φ
21.0±0.8
φ
13.0±0.2
13.5±1.0
17.5±1.0
Packing: 3 500 pcs/reel
11.9 to 15.4
Outer edge of
flange
Data Sheet PN10683EJ02V0DS
5
