PCI Express™ Jitter Attenuator
874005
DATA SHEET
G
ENERAL
D
ESCRIPTION
The 874005 is a high performance Differential-to-LVDS Jitter
Attenuator designed for use in PCI Express systems. In some
PCI Express systems, such as those found in desktop PCs, the
PCI Express clocks are generated from a low bandwidth, high
phase noise PLL frequency synthesizer. In these systems, a jitter
attenuator may be required to attenuate high frequency random
and deterministic jitter components from the PLL synthesizer
and from the system board. The 874005 has 3 PLL bandwidth
modes: 200kHz, 400kHz, and 800kHz. The 200kHz mode will
provide maximum jitter attenuation, but with higher PLL tracking
skew and spread spectrum modulation from the motherboard
synthesizer may be attenuated. The 400kHz provides an
intermediate bandwidth that can easily track triangular spread
profiles, while providing good jitter attenuation. The 800kHz
bandwidth provides the best tracking skew and will pass most
spread profiles, but the jitter attenuation will not be as good
as the lower bandwidth modes. Because some 2.5Gb serdes
have x20 multipliers while others have than x25 multipliers, the
874005 can be set for 1:1 mode or 5/4 multiplication mode (i.e.
100MHz input/125MHz output) using the F_SEL pins.
The 874005 uses IDT’s 3
rd
Generation FemtoClock
®
PLL technology to achive the lowest possible phase noise.
The device is packaged in a 24 Lead TSSOP package, making
it ideal for use in space constrained applications such as PCI
Express add-in cards.
F
EATURES
•
Five differential LVDS output pairs
•
One differential clock input
•
CLK and nCLK supports the following input types:
LVPECL, LVDS, LVHSTL, SSTL, HCSL
•
Output frequency range: 98MHz - 160MHz
•
Input frequency range: 98MHz - 128MHz
•
VCO range: 490MHz - 640MHz
•
Cycle-to-cycle jitter: 30ps (maximum)
•
3.3V operating supply
•
3 bandwidth modes allow the system designer to make
jitter attenuation/tracking skew design trade-offs
•
0°C to 70°C ambient operating temperature
•
Available in lead-free RoHS compliant package
PLL B
ANDWIDTH
BW_SEL
0 = PLL Bandwidth: ~200kHz
Float = PLL Bandwidth: ~400kHz (Default)
1 = PLL Bandwidth: ~800kHz
B
LOCK
D
IAGRAM
P
IN
A
SSIGNMENT
nQB2
nQA1
QA1
V
DDO
QA0
nQA0
MR
BW_SEL
V
DDA
F_SELA
V
DD
OEA
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
QB2
V
DDO
QB1
nQB1
QB0
nQB0
F_SELB
OEB
GND
GND
nCLK
CLK
874005
24-Lead TSSOP
4.40mm x 7.8mm x 0.92mm
package body
G Package
Top View
874005 REVISION B 7/20/15
1
©2015 Integrated Device Technology, Inc.
874005 DATA SHEET
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1, 24
2, 3
4, 23
5, 6
7
Name
nQB2, QB2
nQA1, QA1
V
DDO
QA0, nQA0
MR
Output
Output
Power
Output
Input
Type
Description
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Output supply pins.
Differential output pair. LVDS interface levels.
Active HIGH Master Reset. When logic HIGH, the internal dividers are
reset causing the true outputs (nQx) to go low and the inverted outputs
Pulldown
(Qx) to go high. When logic LOW, the internal dividers and the outputs
are enabled. LVCMOS/LVTTL interface levels.
Pullup/
PLL Bandwidth input. See Table 3B.
Pulldown
Analog supply pin.
Pulldown
Frequency select pin for QAx,nQAx outputs.
LVCMOS/LVTTL interface levels.
Core supply pin.
Pullup
Output enable pin for QA pins. When HIGH, the QAx/nQAx outputs are
active. When LOW, the QAx,nQAx outputs are in a high impedance state.
LVCMOS/LVTTL interface levels.
Inverting differential clock input.
Power supply ground.
Output enable pin for QB pins. When HIGH, the QBx/nQBx outputs are
Pullup active. When LOW, the QBx,nQBx outputs are in a high impedance state.
LVCMOS/LVTTL interface levels.
Frequency select pin for QBx,nQBx outputs.
Pulldown
LVCMOS/LVTTL interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
8
9
10
11
12
13
14
15, 16
17
18
19, 20
21, 22
BW_SEL
V
DDA
F_SELA
V
DD
OEA
CLK
nCLK
GND
OEB
F_SELB
nQB0, QB0
nQB1, QB1
Input
Power
Input
Power
Input
Input
Input
Power
Input
Input
Output
Output
Pulldown Non-inverting differential clock input.
Pullup
NOTE:
Pullup
and
Pulldown
refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
51
51
Maximum
Units
pF
kΩ
kΩ
T
ABLE
3A. O
UTPUT
E
NABLE
F
UNCTION
T
ABLE
Inputs
OEA/OEB
0
1
HiZ
Enabled
Outputs
QAx/nQAx
QBx/nQBx
HiZ
Enabled
T
ABLE
3B. PLL B
ANDWIDTH
/PLL B
YPASS
C
ONTROL
Inputs
PLL_BW
0
1
Float
PLL Band-
width
~200kHz
~800kHz
~400kHz
PCI Express™ Jitter Attenuator
2
REVISION B 7/20/15
874005 DATA SHEET
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
DD
Inputs, V
I
Outputs, V
O
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
DD
+ 0.5 V
-0.5V to V
DDO
+ 0.5V
70°C/W (0 lfpm)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional
operation of product at these conditions or any conditions
beyond those listed in the
DC Characteristics
or
AC Charac-
teristics
is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect product reliability.
T
ABLE
4A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
V
DD
V
DDA
V
DDO
I
DD
I
DDA
I
DDO
Parameter
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
Output Supply Current
Test Conditions
Minimum
3.135
3.135
3.135
Typical
3.3
3.3
3.3
Maximum
3.465
3.465
3.465
85
15
115
Units
V
V
V
mA
mA
mA
T
ABLE
4B. LVCMOS/LVTTL DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
V
IH
Parameter
Input High Voltage
OEA, OEB, MR,
F_SELA, F_SELB
BW_SEL
V
IL
V
IM
I
IH
Input Low Voltage
Input Mid Voltage
Input High Current
OEA, OEB, MR,
F_SELA, F_SELB
BW_SEL
BW_SEL
OEA, OEB
F_SELA, F_SELB
MR, BW_SEL
BW_SEL,
OEA, OEB
MR,
F_SELA, F_SELB
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= 3.465V, V
IN
= 0V
V
DD
= 3.465V, V
IN
= 0V
-150
-5
V
DD
/2 - 0.1
Test Conditions
Minimum
2
V
DD
- 0.4
-0.3
0.8
0.4
V
DD
/2 + 0.1
5
150
Typical
Maximum
V
DD
+ 0.3
Units
V
V
V
V
V
µA
µA
µA
µA
I
IL
Input Low Current
REVISION B 7/20/15
3
PCI Express™ Jitter Attenuator
874005 DATA SHEET
T
ABLE
4C. D
IFFERENTIAL
DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
I
IH
I
IL
V
PP
Parameter
Input High Current
Input Low Current
CLK
nCLK
CLK
nCLK
Test Conditions
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
-5
-150
0.15
1.3
V
DD
- 0.85
Minimum
Typical
Maximum
150
5
Units
µA
µA
µA
µA
V
V
Peak-to-Peak Input Voltage
V
CMR
Common Mode Input Voltage; NOTE 1, 2
GND + 0.5
NOTE 1: Common mode voltage is defined as V
IH
.
NOTE 2: For single ended applications, the maximum input voltage for CLK, nCLK is V
DD
+ 0.3V.
T
ABLE
4D. LVDS DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
V
OD
Δ
V
OD
Parameter
Differential Output Voltage
V
OD
Magnitude Change
Offset Voltage
V
OS
Magnitude Change
Test Conditions
Minimum
275
1.2
Typical
375
1.35
Maximum
485
50
1.5
50
Units
mV
mV
V
mV
V
OS
Δ
V
OS
T
ABLE
5. AC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
f
MAX
tjit(cc)
tsk(o)
t
R
/ t
F
odc
Parameter
Output Frequency
Cycle-to-Cycle Jitter, NOTE 1
Output Skew; NOTE 2, 3
Output Rise/Fall Time
Output Duty Cycle
20% to 80%
300
48
Test Conditions
Minimum
98
15
Typical
Maximum
160
30
90
550
52
Units
MHz
ps
ps
ps
%
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established
when the device is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet
specifications after thermal equilibrium has been reached under these conditons.
NOTE 1: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at V
DDO
/2.
NOTE 3: These parameters are guaranteed by characterization. Not tested in production.

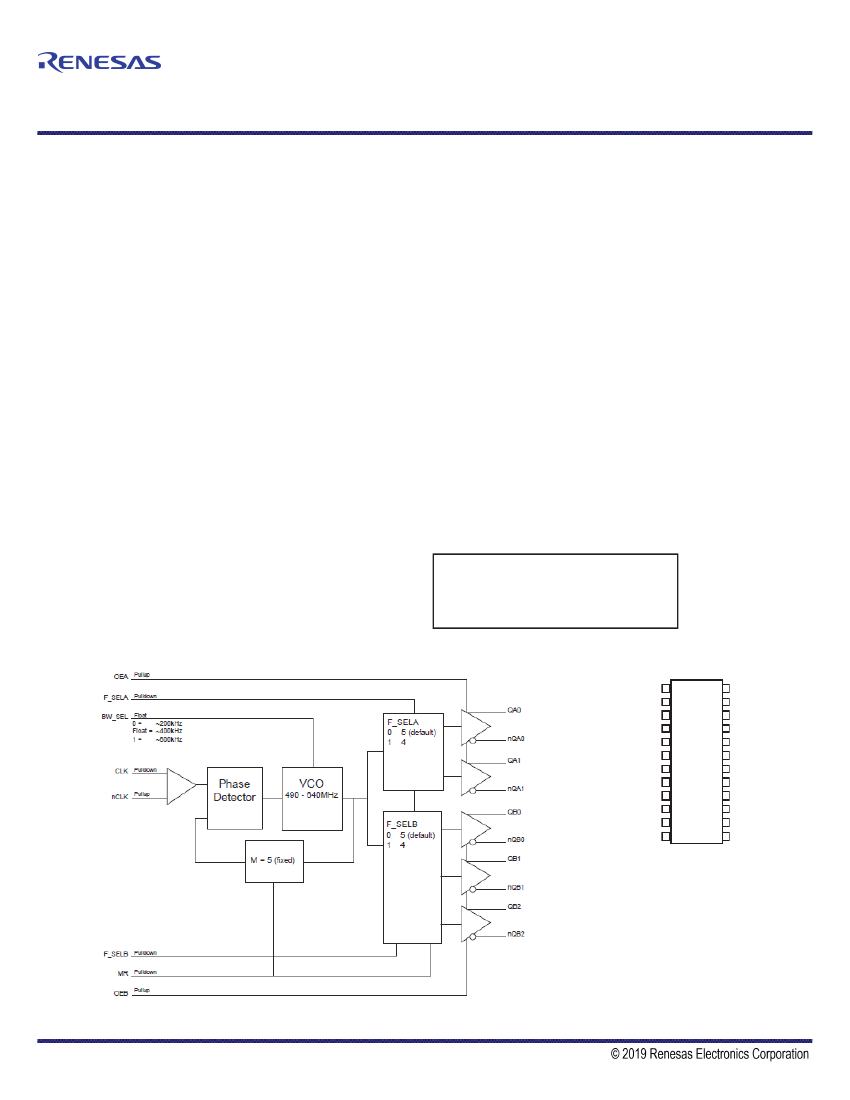

PCI Express™ Jitter Attenuator
4
REVISION B 7/20/15
874005 DATA SHEET
P
ARAMETER
M
EASUREMENT
I
NFORMATION

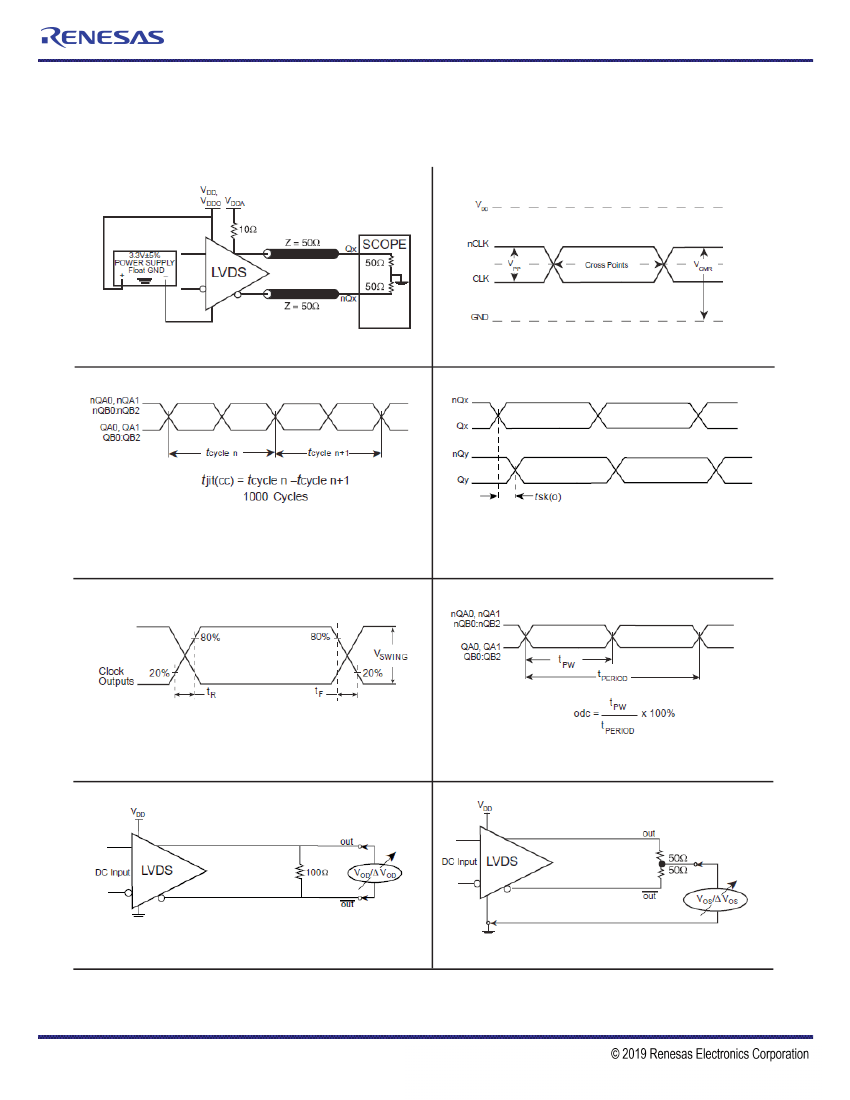

3.3V LVDS O
UTPUT
L
OAD
AC T
EST
C
IRCUIT
D
IFFERENTIAL
I
NPUT
L
EVEL
C
YCLE
-
TO
-C
YCLE
J
ITTER
O
UTPUT
S
KEW
O
UTPUT
R
ISE
/F
ALL
T
IME
O
UTPUT
D
UTY
C
YCLE
/P
ULSE
W
IDTH
/P
ERIOD
D
IFFERENTIAL
O
UTPUT
V
OLTAGE
S
ETUP
O
FFSET
V
OLTAGE
S
ETUP
REVISION B 7/20/15
5
PCI Express™ Jitter Attenuator
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

874005AGLF Related Products

874005AGLF 874005AGLFT
Description TSSOP-24, Tube TSSOP-24, Reel
Brand Name Integrated Device Technology Integrated Device Technology
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker IDT (Integrated Device Technology) IDT (Integrated Device Technology)
Parts packaging code TSSOP TSSOP
package instruction TSSOP, TSSOP,
Contacts 24 24
Manufacturer packaging code PGG24 PGG24
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
series 874005 874005
Input adjustment DIFFERENTIAL DIFFERENTIAL
JESD-30 code R-PDSO-G24 R-PDSO-G24
JESD-609 code e3 e3
length 7.8 mm 7.8 mm
Logic integrated circuit type PLL BASED CLOCK DRIVER PLL BASED CLOCK DRIVER
Humidity sensitivity level 1 1
Number of functions 1 1
Number of terminals 24 24
Actual output times 5 5
Maximum operating temperature 70 °C 70 °C
Output characteristics 3-STATE 3-STATE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP TSSOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Same Edge Skew-Max（tskwd） 0.09 ns 0.09 ns
Maximum seat height 1.2 mm 1.2 mm
Maximum supply voltage (Vsup) 3.465 V 3.465 V
Minimum supply voltage (Vsup) 3.135 V 3.135 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V
surface mount YES YES
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed
Terminal form GULL WING GULL WING
Terminal pitch 0.65 mm 0.65 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 4.4 mm 4.4 mm
minfmax 98 MHz 98 MHz

Recommended Resources

Production of power carrier communication switch circuit based on 51 microcontroller

Two simple mains leakage alarm circuits and production

Charger circuit that can restore the vitality of over-discharged batteries

Hall switch liquid level automatic control circuit

Charging circuit diagram using thyristor control

845ddr computer motherboard circuit diagram_64

[Security Lecture]: Chapter 2 Intrusion Detection and Alarm Technology
This chapter has 155 pages, which is nearly 1/3 of the book. It may not be conducive to everyone's learning if I post so many photos, so I made it into a PDF and uploaded it, splitting it into 2 packa...
zcgzanne Industrial Control Electronics
I received the grand prize from EEWORLD today.
:loveliness: :loveliness: Very happy :Laugh: :Laugh:Thank you EEWORLD for providing so many good learning platforms for everyone. My partner and I will continue to work hard!! :Mad:...
drjloveyou ADI Reference Circuit
DB1300 kernel startup information problem
Hello everyone, I encountered such a problem when debugging the kernel recently: Start = 0x80104730, range = (0x80100000,0x80582584), format = SREC Linux version 2.6.29.4-rmi-126-DB1300 (root@liuyang-...
dld2 Embedded System
A newbie asking for help, thanks for the help!
Does anyone know how to expand the 30 IO interfaces on the FL2440 development board to about 120 IO interfaces? Thank you!!! :Cry::Cry::Cry:...
myranx ARM Technology
Interrupt System of C6000 Series DSP
Looking carefully at the above figure, we can see that C6455 has the following interrupts: 1. Reset 2. NMI non-maskable interrupt 3. EXCEP hardware exception 4. 12 normal interrupts INT[15:4]...
Jacktang Microcontroller MCU
Is there any PLC programming software similar to VB6.0?
As title...
hellomcu Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 87347-638
  2. EQDP-014-06.00-TEU-TED-1-B
  3. 1360-3-34-3-11-1
  4. SSB6TE050700
  5. 2CCS551001R0325
  6. GMSM5-10SSM1
  7. MO8921MA4-C0H-25N0-0121169999Y
  8. MXDEHFR80M0
  9. SGM2122-AYN6G
  10. C3030WV-F-10P
  11. D2541H-22P-RD-G15
  12. C4201WVD-F1-2x11P-G30

Popular Articles

  1. S3C2440—1. Familiarity with bare metal development board
  2. On the eve of the semiconductor equipment market blowout, how can local manufacturers take advantage of the situation?
  3. WPG World Peace Group launches power supply solution for epidemic prevention medical equipment based on Onsemi products
  4. ZDS2022 Oscilloscope 100 Practical Videos 81: Problems with the Waveform Display Mechanism
  5. VeriSilicon's Dai Weimin: From IP Chip to Chip Platform
  6. Mobileye Launches New EyeQ® Ultra™ System-on-Chip for Autonomous Vehicles
  7. Keysight Technologies Releases 2022 Technology Trend Predictions
  8. UBOOT-1.1.6 transplantation on S3C2410 (based on GEC2410)
  9. Some tips for Siemens S7-200PLC programming
  10. 产能释放效应显著，星源材质2021年净利润同比增133%

Technical ResourceMore

  1. ZTE Circuit Basic Training
  2. Japanese Industrial Standards--General Rules for Printed Circuit Boards
  3. STBlueMS_Android-master
  4. 3D-LAYOUT video
  5. Selection of coordinate transformation coefficients and their impact on motor control algorithms
  6. USB CDC Class Introductory Training
  7. Industrial Autonomous Vehicle Project Report
  8. MATLAB Case 16 Data Classification of Single-layer Competitive Neural Networks—Patient Cancer Incidence Prediction.rar
  9. Altium-Common 3D Package Library (Step) [Common Patch] XTAL 11.2X4.7X3.6.rar
  10. 開關電源專業英語

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1756  1337  2277  2079  1059  36  27  46  42  22
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
