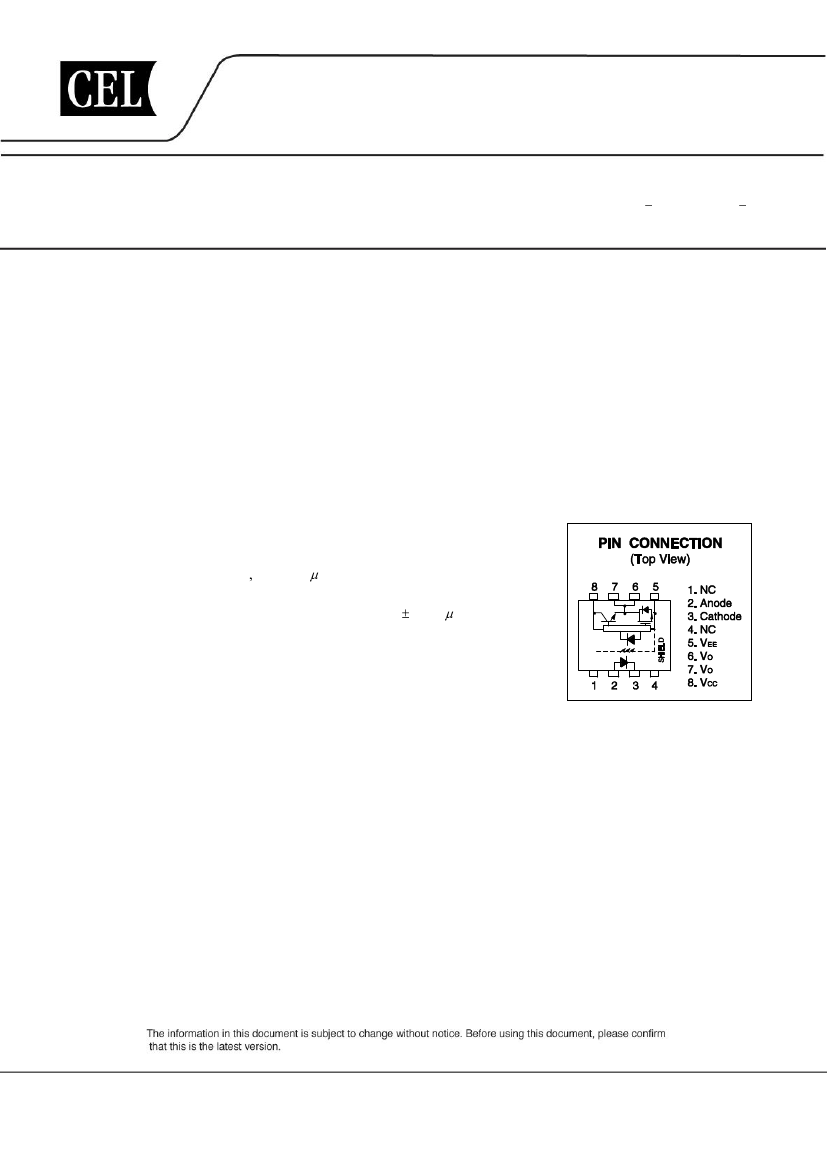

PHOTOCOUPLER
PS9552,PS9552L1,PS9552L2,PS9552L3
2.5 A OUTPUT CURRENT, HIGH CMR
IGBT GATE DRIVE PHOTOCOUPLER
8-PIN DIP PHOTOCOUPLER
DESCRIPTION

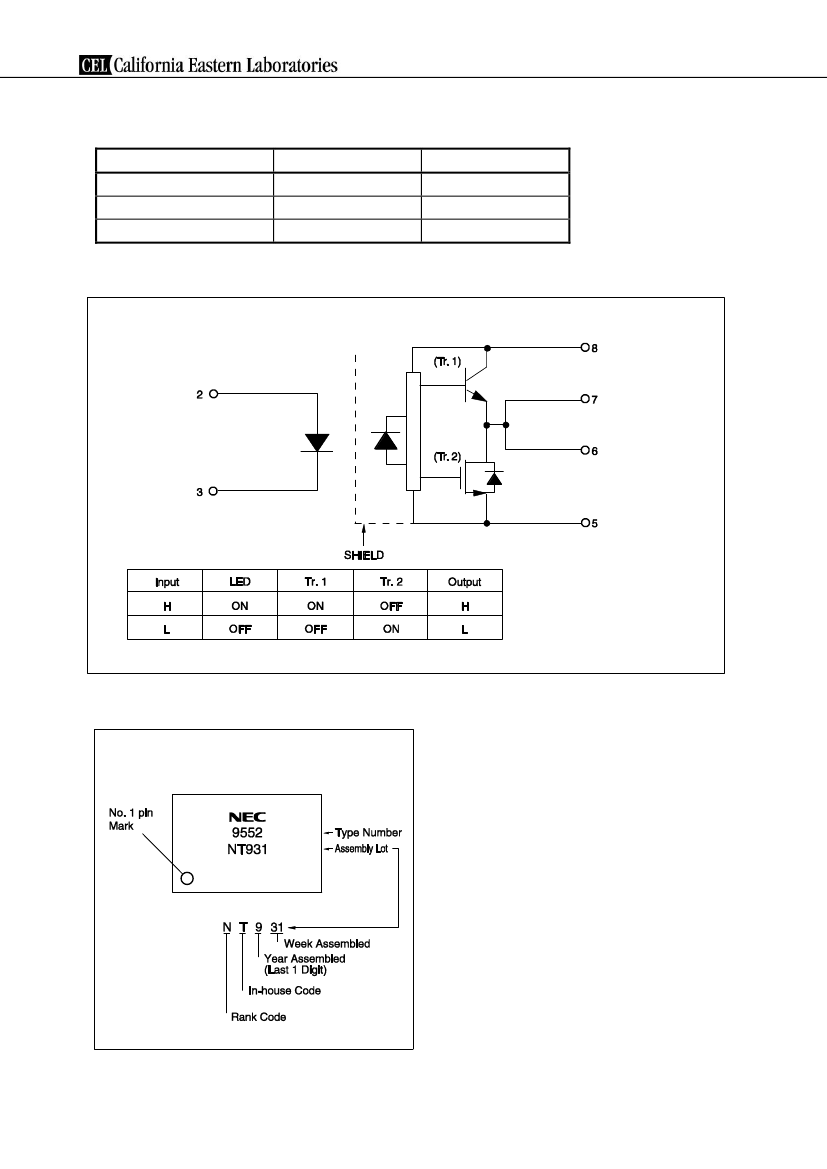

The PS9552, PS9552L1, PS9552L2 and PS9552L3 are optically coupled isolators containing a GaAlAs LED on
the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one
chip.
The PS9552 Series is designed specifically for high common mode transient immunity (CMR), high output current
and high switching speed.
The PS9552 Series is suitable for driving IGBTs and MOS FETs.

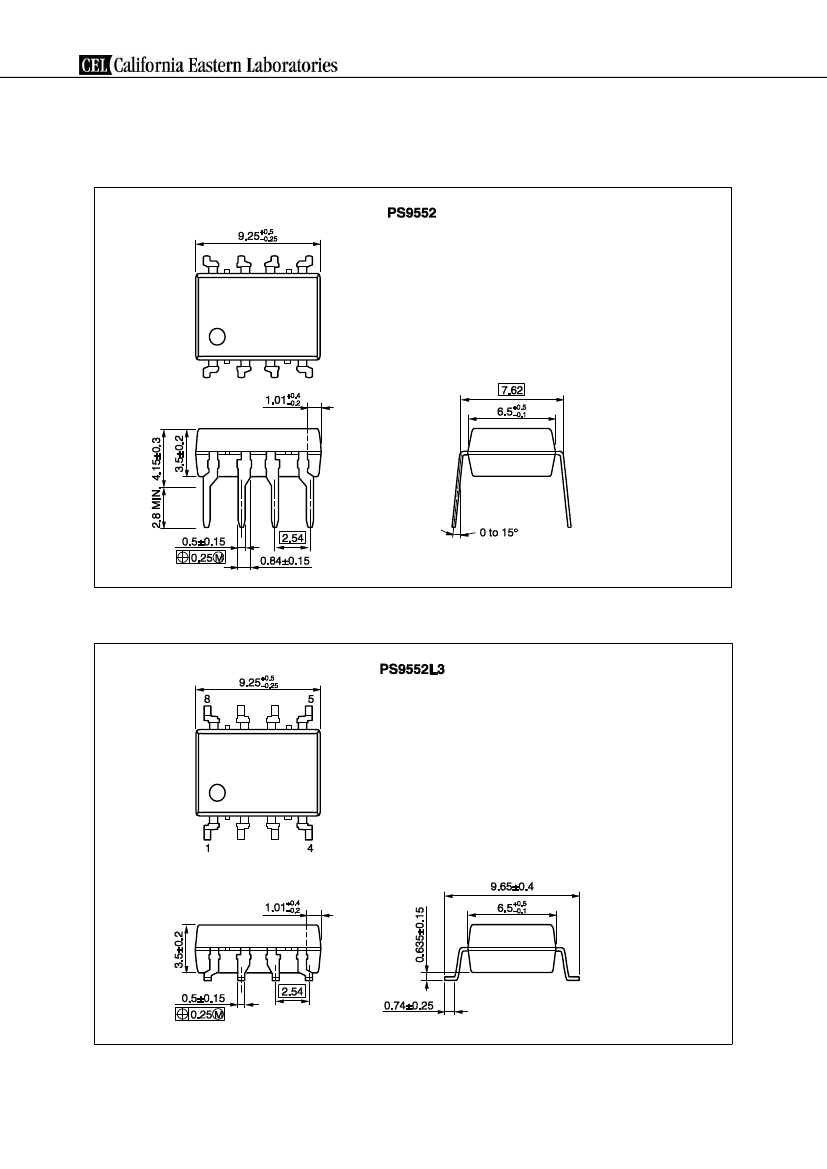

The PS9552 Series is in a plastic DIP (Dual In-line Package).

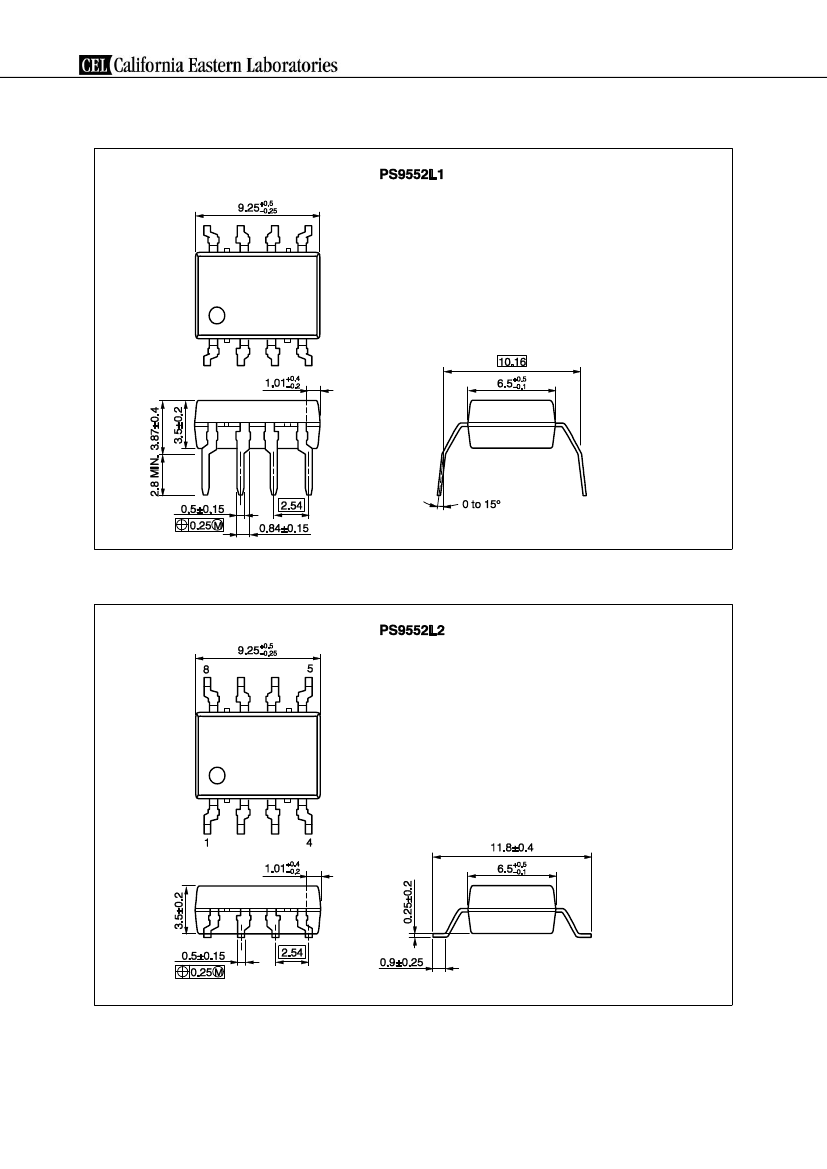

The PS9552L1 is lead bending type for long creepage distance.
The PS9552L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
The PS9552L3 is lead bending type (Gull-wing) for surface mounting.
NEPOC Series
FEATURES
• Long creepage distance (8 mm MIN.: PS9552L1, PS9552L2)
• Large peak output current (2.5 A MAX., 2.0 A MIN.)
• High speed switching (t
PLH
t
PHL
= 0.5 s MAX.)
• UVLO (Under Voltage Lock Out) protection with hysteresis
• High common mode transient immunity (CM
H
, CM
L
= 25 kV/ s MIN.)
• Ordering number of tape product: PS9552L2-E3: 1 000 pcs/reel
: PS9552L3-E3: 1 000 pcs/reel
<R>
• Pb-Free product
• Safety standards
• UL approved: No. E72422
<R>
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• BSI approved: No. 8937, 8938
• SEMKO approved: No. 615433
• NEMKO approved: No. P06207243
• DEMKO approved: No. 314091
• FIMKO approved: No. FI 22827
<R>
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40019182 (Option)
APPLICATIONS
• IGBT, Power MOS FET Gate Driver
• Industrial inverter
• IH (Induction Heating)
Document No. PN10589EJ07V0DS (7th edition)
Date Published September 2009 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS9552,PS9552L1,PS9552L2,PS9552L3
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
PS9552
PS9552L1
PS9552L2
PS9552L3
PS9552L2-E3
PS9552L3-E3
PS9552-V
PS9552L1-V
PS9552L2-V
PS9552L3-V
PS9552L2-V-E3
PS9552L3-V-E3
PS9552-AX
PS9552L1-AX
PS9552L2-AX
PS9552L3-AX
PS9552L2-E3-AX
PS9552L3-E3-AX
PS9552-V-AX
PS9552L1-V-AX
PS9552L2-V-AX
PS9552L3-V-AX
PS9552L2-V-E3-AX
PS9552L3-V-E3-AX
Embossed Tape 1 000 pcs/reel
Magazine case 50 pcs
DIN EN60747-5-2
(VDE0884 Part2)
Approved (Option)
Embossed Tape 1 000 pcs/reel
Pb-Free
(Ni/Pd/Au)
Magazine case 50 pcs
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
approved)
Application Part
Number*
1
PS9552
PS9552L1
PS9552L2
PS9552L3
PS9552L2
PS9552L3
PS9552
PS9552L1
PS9552L2
PS9552L3
PS9552L2
PS9552L3
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10589EJ07V0DS
5
