17.50 in
444 mm
17.36 in
441 mm
I/S
20.00 in
508 mm

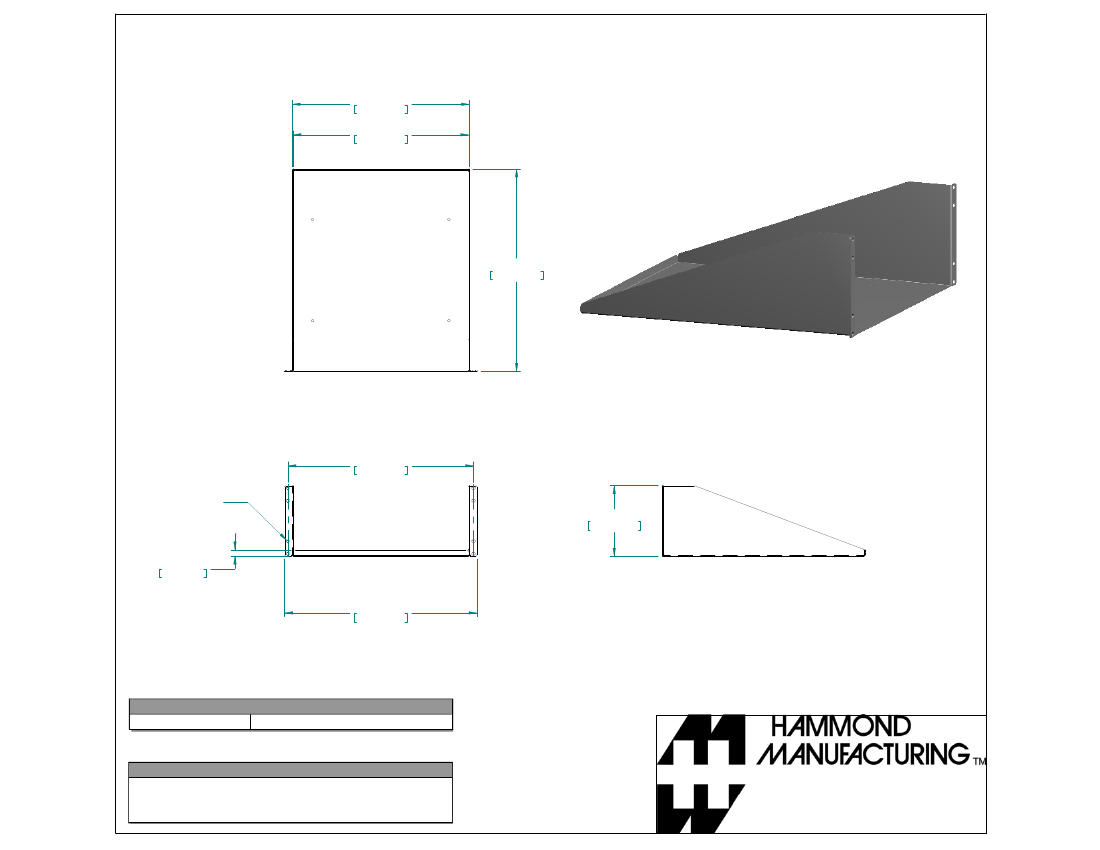

TOP VIEW
18.32 in
465 mm
8X
O
0.25 X 0.38
SLOT
.62 in
16 mm
6.97 in
177 mm
FRONT VIEW
19.01 in
483 mm
SIDE VIEW
PART NUMBERS
RASU190720BK1 PAINTED BLACK TEXTURED
Data subject to change without notice. Isometric drawing not to scale.
NOTES
Maximum Weight 200 lb
Mounting Hardware not Supplied with Shelf
www.hammondmfg.com
PART NO.
RASU190720
