3382-624-14101P datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3382-624-14101P

3382-624-14101P: DescriptionRF TNC Connector; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

3382-624-14101P Overview

RF TNC Connector

3382-624-14101P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	RF TNC CONNECTOR
Manufacturer's serial number	3382-624-14101P
Base Number Matches	1

Preview

Download Datasheet

View All

REV

DESCRIPTION

PRELIMINARY DWG

EWR11-ER34495

ER35710

APPD

DATE

DCam

11/2/11

xxx

1.056 26.82

.128 3.25

WHEN ASSEMBLED

.820 20.83

.361 9.17

1/2-28 UNEF-2A

.375[9.53] HEX

.150

±.001

3.81

±.03

7/16-28 UNEF-2A

MARK: KINGS 3382-624-14101P (DATE CODE)

.625[15.88] HEX

.109 2.77

GASKET

.218

+.000

5.54

-.00

- .003

.08

ONE FLAT

.687[17.45] HEX

NOTES: UNLESS OTHERWISE SPECIFIED

1. INTERFACE PER MIL-STD-348,SERIES TNCA,SOCKET CONTACT .

2. MATERIAL SPECIFICATIONS:

BODY AND NUT: STAINLESS STEEL PER ASTM A582

INSULATOR: TEFLON PER ASTM D1710

GASKET: SILICONE RUBBER PER A-A-59588

LOCKWASHER: SPRING STEEL

SOLDER SLEEVE AND CLAMP NUT: BRASS PER ASTM B16

CENTER CONTACT: BERYLLIUM COPPER PER ASTM B196

.505

+.005

12.83

+.13

- .000

.00

3. FINISH SPECIFICATIONS:

CENTER CONTACT:

.000050 MIN GOLD PER ASTM B488 OVER

.000050 MIN NICKEL PER AMS-QQ-N-290

SOLDER SLEEVE: .000015 MIN GOLD PER ASTM B488 OVER .000080 MIN NICKEL

PER AMS-QQ-N-290

CLAMP NUT: .000100 MIN NICKEL PER AMS-QQ-N-290 OVER

COPPER FLASH PER ASTM B734

ALL OTHER METAL PARTS:

PASSIVATE PER ASTM A967

4. ELECTRICAL SPECIFICATIONS:

IMPEDANCE; 50 OHMS

FREQUENCY RANGE: DC TO 18GHz

VSWR: 1.20 MAX

5. CLAMP NUT, SOLDER SLEEVE, GASKET, LOCKWASHER & NUT SHIPPED LOOSE.

6. DESIGNED FOR USE WITH 141 REFLEX OR EQUIVALENT CABLE.

7. ASSEMBLE TO CABLE USING CABLING PROCEDURE CAP 6-06.

8. CONNECTOR MEETS REQUIREMENTS OF THE DEFENSE FEDERAL AQUISITION

REGULATION AS STATED IN CLAUSE 252.225-7014, ALTERNATIVE 1.

DMF029 B

CATALOG P/N: 3382-624-14101P

.218

+.003

5.54

+.08

- .000

.00

RECOMMENDED MOUNTING HOLE

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX [X.X] ± .01 [0.3]

.XXX [X.XX] ± .005 [0.13]

.XXXX [X.XXX] ± .XXXX

ANGLES: ± 2°

SCALE: 3:1

Winchester Electronics Corporation

62 Barnes Industrial Road North

Wallingford, Connecticut 06492

CUSTOMER

SALES DRAWING

DRAWN

DCam

APPROVED

MSem

DATE APPROVED

08/24/11

DATE APPROVED

08/25/11

THIRD

ANGLE

9. IW P/N TJB-TPRF085-2

DATE

08/25/11

DATE

08/25/11

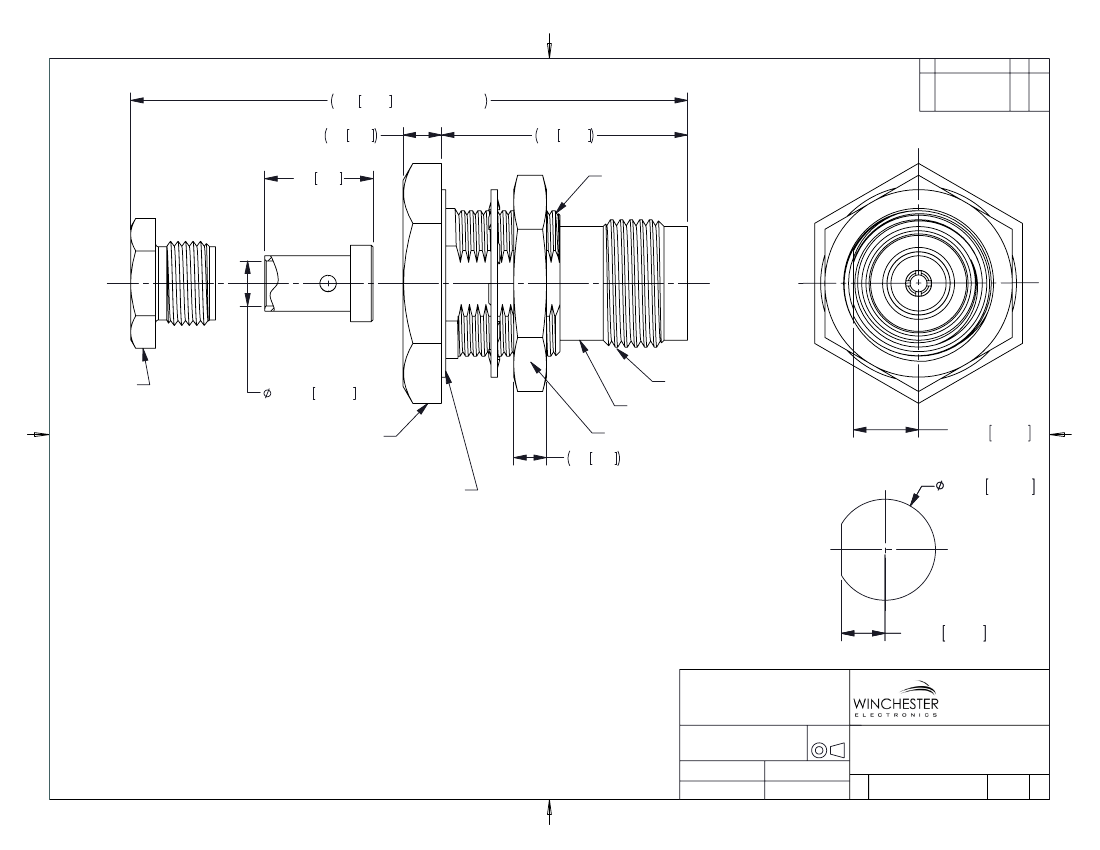

TNC 18 GHz BULKHEAD CABLE JACK

SOLDER/CLAMP

(RoHS & DFARS COMPLIANT)

SD3382-624-14101P

SHT

1 02

REV
