8D0-L-15F35PN

Description
MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size136KB,1 Pages
ManufacturerSOURIAU
Environmental Compliance
Download Datasheet Parametric Compare View All

8D0-L-15F35PN Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,

8D0-L-15F35PN Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSOURIAU
Reach Compliance Codecompliant
Other featuresSTANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsFLUID RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL PLATED
Shell materialALUMINUM ALLOY
Housing size15
Termination typeSOLDER
Total number of contacts37

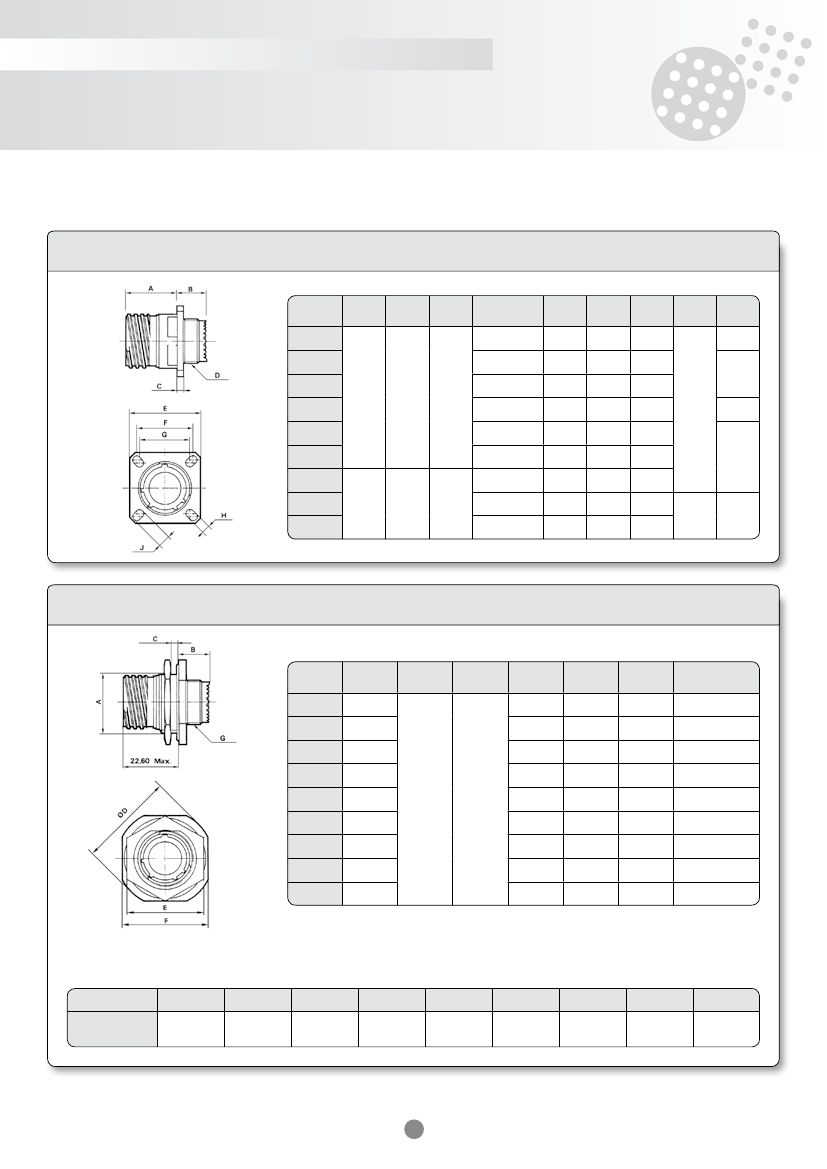

8D0-L-15F35PN Preview

8D - D38999 Aluminum Series
Dimensions
Receptacle type 0
Shell
size
09 (A)
1 (B)
1
1 (C)
3
15 (D)
1 (E)
7
1 (F)
9
21 (G)
23 (H)
25 (J)
20.1
1
1.54
3.2
20.9
10.72
2.5
A Max B Max C Max
D Thread
M1
2 x 1-6g
M1
5 x 1-6g
M18 x 1-6g
M22 x 1-6g
M25 x 1-6g
M28 x 1-6g
M31 x 1-6g
M34 x 1-6g
M37 x 1-6g
E
±0.3
23.8
26.2
28.6
31
33.3
36.5
39.7
42.9
46
F
18.26
20.62
23.01
24.61
26.97
29.36
31.75
34.93
38.1
G
1
5.09
18.26
20.62
23.01
24.61
26.97
29.36
31.75
34.93
3.91
6.1
5
4.93
3.25
H
±0.2
J
±0.2
5.49
4.93
4.4
Receptacle type 7
Shell
size
09 (A)
1 (B)
1
1 (C)
3
15 (D)
1 (E)
7
1 (F)
9
21 (G)
23 (H)
25 (J)
A
±0.15
16.53
19.07
23.82
26.97
30.1
5
33.32
36.50
39.67
42.85
B Max
C Max
D Max
30.5
35.2
38.4
41.6
E Max
23
26
31
34
37
41
46
47
51.23
F
±0.4
27
31.8
34.9
38.1
41.3
46
49.2
52.4
55.6
G Thread
M1
2 x 1-6g
M1
5 x 1-6g
M18 x 1-6g
M22 x 1-6g
M25 x 1-6g
M28 x 1-6g
M31 x 1-6g
M34 x 1-6g
M37 x 1-6g
9.9
3.2
44.8
49.5
52.7
55.9
59
Recommended coupling torque on panel for jam nut receptacle (type 7)
Shell
Coupling torque
(±0.5 N.m)
09 (A)
4
1 (B)
1
5
1 (C)
3
7
15 (D)
8
1 (E)
7
9
1 (F)
9
10
21 (G)
1
2
23 (H)
1
3
25 (J)
1
4
Note: All dimensions are in millimeters (mm)
20

8D0-L-15F35PN Related Products

8D0-L-15F35PN
Description MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
Is it lead-free? Lead free
Is it Rohs certified? conform to
Maker SOURIAU
Reach Compliance Code compliant
Other features STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type SOLID
Body/casing type RECEPTACLE
Connector type MIL SERIES CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrier
Contact point gender MALE
Contact material COPPER ALLOY
Coupling type THREADED
DIN compliance NO
empty shell NO
Environmental characteristics FLUID RESISTANT
Filter function NO
IEC compliance NO
JESD-609 code e4
MIL compliance YES
Plug information MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO
Installation type BOARD AND PANEL
Options GENERAL PURPOSE
Shell surface NICKEL PLATED
Shell material ALUMINUM ALLOY
Housing size 15
Termination type SOLDER
Total number of contacts 37
