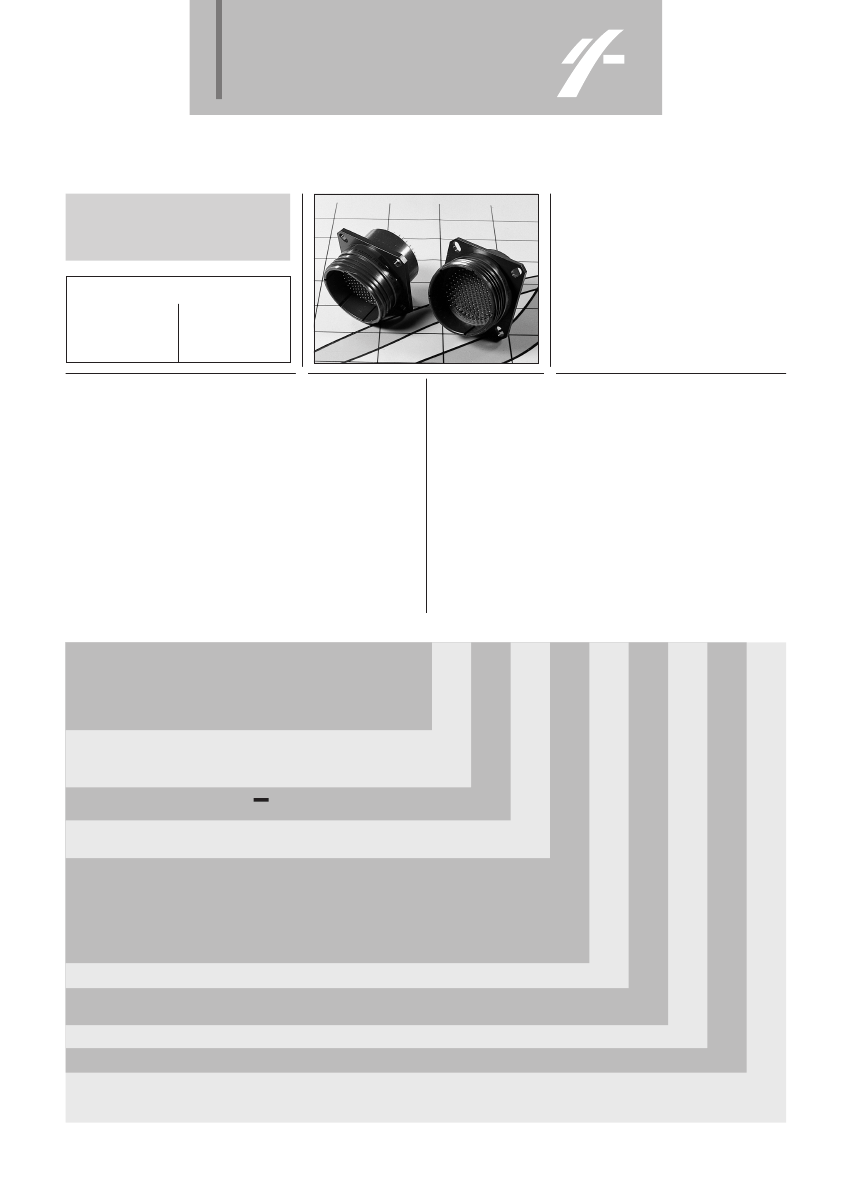

souriau
8FLT-8FT-8FST-8FD
Applications
Description
MIL-C 38999
circular filter connectors are
widely used in military and aeronautical
applications. They are suitable for severe
operating conditions.
These connectors are based directly on
standard specifications :
They are intermeatable and interchangeable
as to the mounting with standard connectors
of the same series.
Standards
Standards
•
8FLT
MIL-C 38999 series I •
8FD
MIL-C38999 series III
NFC 93422, HE 308
•
8FT
MIL-C 38999 series II
DTAT C 5935X0001
NFC 93422, HE 309
•
8FST
VG 96912 series I
PAN 6433-1
PAN 6433-2
BS 9522 N 003
Characteristics
Mechanical
These connectors are fitted with tubular filters : see description on
page 4.
• Shells : alluminium alloy, olive green cadmium or nickel plated.
• Insulators : thermo-setting plastic.
• Interfacial and peripheral seals : fluoro-silicone rubber.
• Contacts : machined copper alloy gold plated, 1.27 micron min.
gold over 2 microns min. nickel on contact area.
Contact retention force : # 22 : 45 Nmin. - # 16, # 20 : 67 Nmin.
Environmental
Temperature -55°C › 125°C - MIL - STD 1344, method 1003,
condition A NFC 20714
Sealing
leakage 16 cm3/h - NFC 20717 with differential
pressure of 2 bars - altitude immersion (8FD) MIL-STD
1344, method 1004
Humidity
10 cycles 24 h - MIL - STD 1344, method 1002, type II
except step 7b - NFC 20703
Salt spray
• 48 h-G and L plating - MIL - STD 1344, method 1001,
condition B - NFC 20711
• 500 h-B plating - MIL - STD 1344, method 1001,
condition C
Durability
500 cycles - mating/unmating
Vibration
• 30 g (sine) - MIL-STD 202, method 204, condition G
• 41,7 Grms (random) - MIL-STD 1344, method 2005,
condition VI, letter J
Shock
300 g - 3 ms - MIL-STD 1344, method 2004
Ordering information
basic series
-
-
-
-
8FLT :
38999 Series I, HE 308 type
8FT :
38999 Series II, HE 309 type
8FST :
VG 96912 Series 1 type
8FD :
38999 Series III type
8FLT 00
-
13
G
35
P
N
M -***
shell type :
- 00 :
square flange receptacle
- 03 :
square flange receptacle
(rear mounting) (series I and II only)
- 07 :
jam nut receptacle
-
-C
:
solder bucket
:
straight spill
termination
shell size :
8FLT-8FD : 09-11-13-15-17-19-21-23-25
8FT-8FST : 08-10-12-14-16-18-20-22-24
- G :
olive green cadmium (standard)
- B :
olive green cadmium (salt spray 500 h)
- F :
nickel
plating • for 8FLT, 8FT, 8FST series :
• for 8FD series III :
- W :
olive green cadmium (salt spray 500 h)
- F :
nickel
contact layout :
(

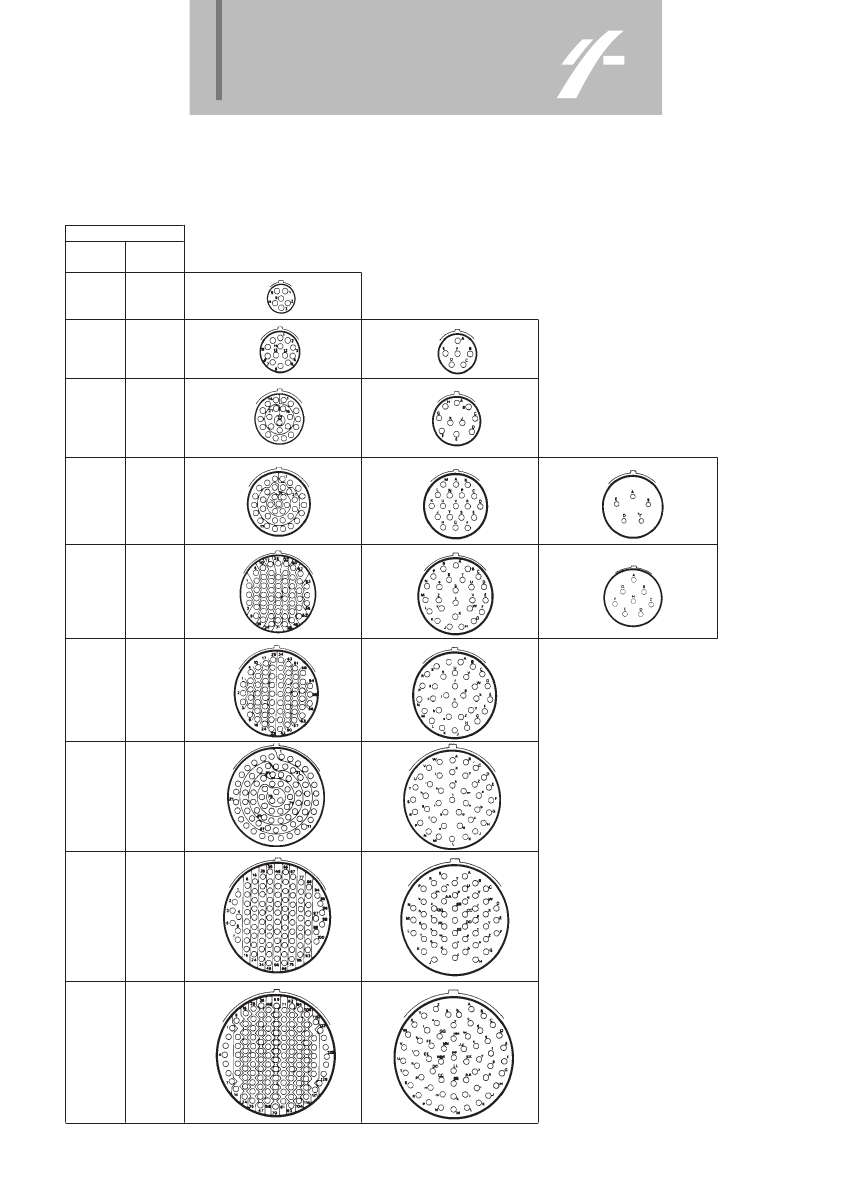

see table page 418)
type contact :
orientation
filter type
special modifiers
- P :
pin
- S :
socket
N-A-B-C-D
and
E
(for 8FD series)
B-M-T-H
-
partially loaded filter connector (with ground or non-filtered contacts)
- connector with different types of filters (in this case the preceding letter does not appear)
- non-standard filters
416
souriau
8FLT-8FT-8FST-8FD
Electrical and filter types
Size # 16 and # 20
Filter designation
Filter type
Max. voltage rating
Max. current rating
Insulation resistance, 25°C, 2mn electrification time
DWV, sea level, 25°C, 50 mA max. charge/discharge
Contact resistance
Capacitance at 1kHz : 0.1Vrms at 25°C
frequency (MHz)
0.1
0.3
1
Attenuation per MIL-STD-220 at 25°C
(with no applied voltage or current,
in 50
Ω
system)
3
10
30
100
300
1000
4
11
22
29
38
44
50
50
50
2
7
18
35
55
60
60
2
7
18
35
55
60
60
3
10
22
50
55
55
2
10
25
40
50
100 000 pF
min
500 Vdc
B
C filter
200 Vdc
120 Vac
7.5 A
360 Vdc
220 Vac
13 A
900 Vdc
7,5 mΩ max.
6 000 pF to 6 000 pF to
12 000 pF
12 000 pF
2 300 pF to
5 000 pF
1
500 pF to
1 300 pF
M ( # 16)
M ( # 20)
π
filter
200 Vdc
120 Vac rms 400 Hz
7.5 A
500 Vdc
T
H
> 5 000 MΩ (under 100 Vdc)
minimum attenuation (dB)
Size # 22 contacts
Filter designatation
Filter type
Max. voltage rating
Max. current rating
Insulation resistance, 25°C, 2mn electrification time
DWV, sea level, 25°C, 50 mA max. charge/discharge
Contact resistance
Capacitance at 1kHz : 0.1Vrms at 25°C
frequency (MHz)
0.3
1
Attenuation per MIL-STD-220 at 25°C
(with no applied voltage or current,
in 50
Ω
system)
3
10
30
100
300
1000
5
15
24
33
42
45
50
50
5
13
30
50
55
55
2
8
20
41
55
55
2
7
24
40
50
50 000 pF to
min.
> 500 MΩ
(under 100 Vdc)
250 Vdc
4000 pF to
12000 pF
B
C filter
100 Vdc
5A
> 5000 MΩ (under 100 Vdc)
500 Vdc
7,5 mΩ max.
2000 pF to
5000 pF
11500
pF to
1300 pF
M
T
π
filter
200 Vdc - 120 Vac rms 400 Hz
H
minimum attenuation (dB)
The capacitance, insulation resistance and dielectric withstanding voltage are tested 100% on all contacts.
Note : • M filter is the most popular filter. If you require other filter types, indicate the maximum operating voltage, maximum capacitance and minimum attenuation
required at various frequencies.
• B filter is substancialy more expensive than other filters.
417
