Preview

SP301MR/883: DescriptionLine Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP24, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size422KB，16 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP301MR/883 Overview

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP24, CERAMIC, DIP-24

SP301MR/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	CERAMIC, DIP-24
Reach Compliance Code	unknown
Other features	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK
Differential output	YES
Number of drives	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-D; EIA-422
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32.512 mm
Nominal negative supply voltage	-12 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	12 V
Output characteristics	TOTEM-POLE
Maximum output low current	0.0016 A
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-12 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	2
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.715 mm
Maximum slew rate	7 mA
Nominal supply voltage	5 V
Supply voltage1-Nom	12 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

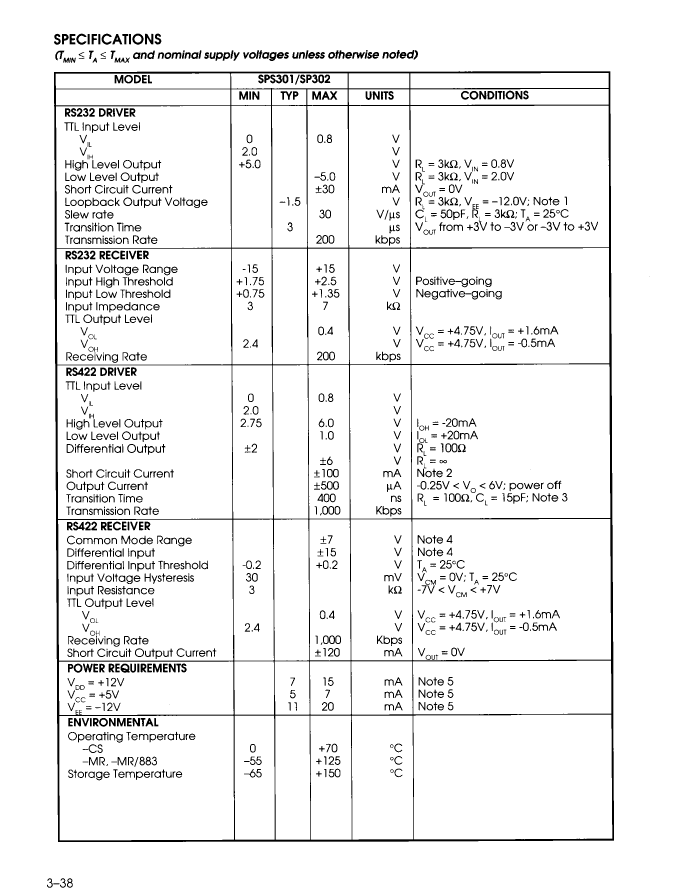

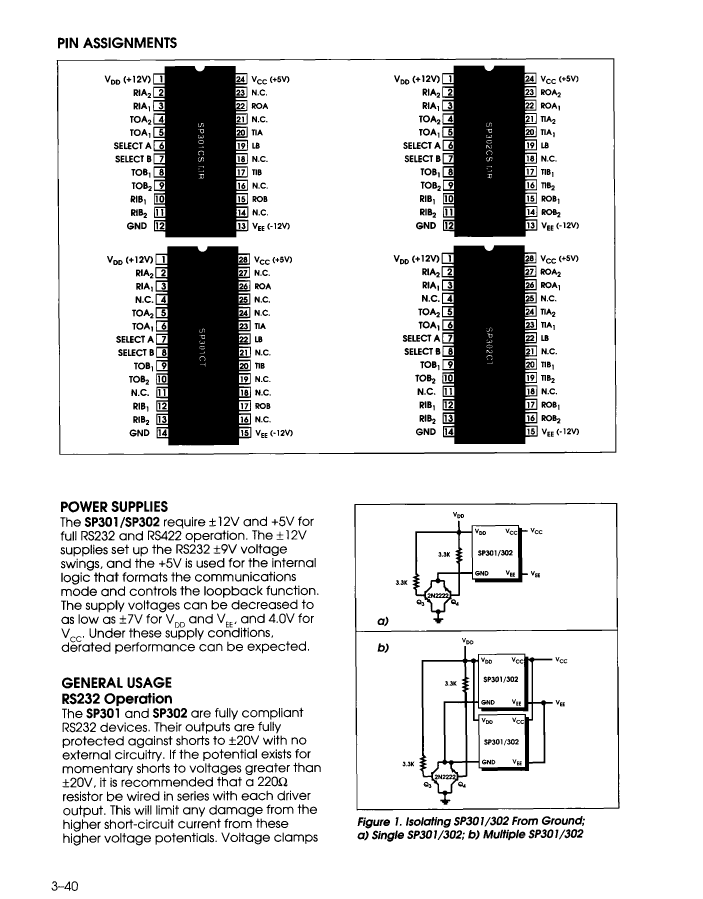

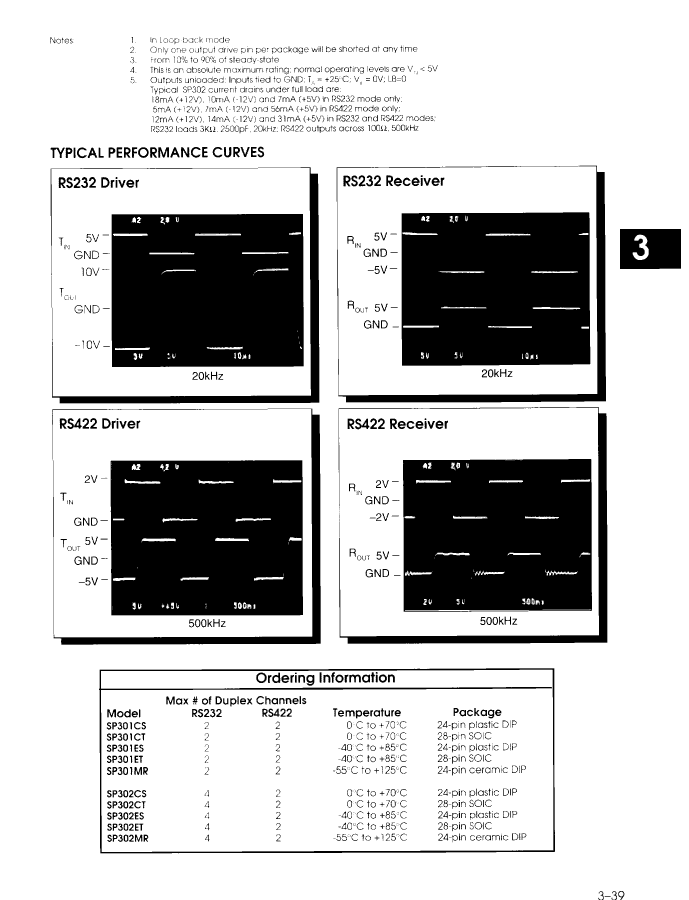

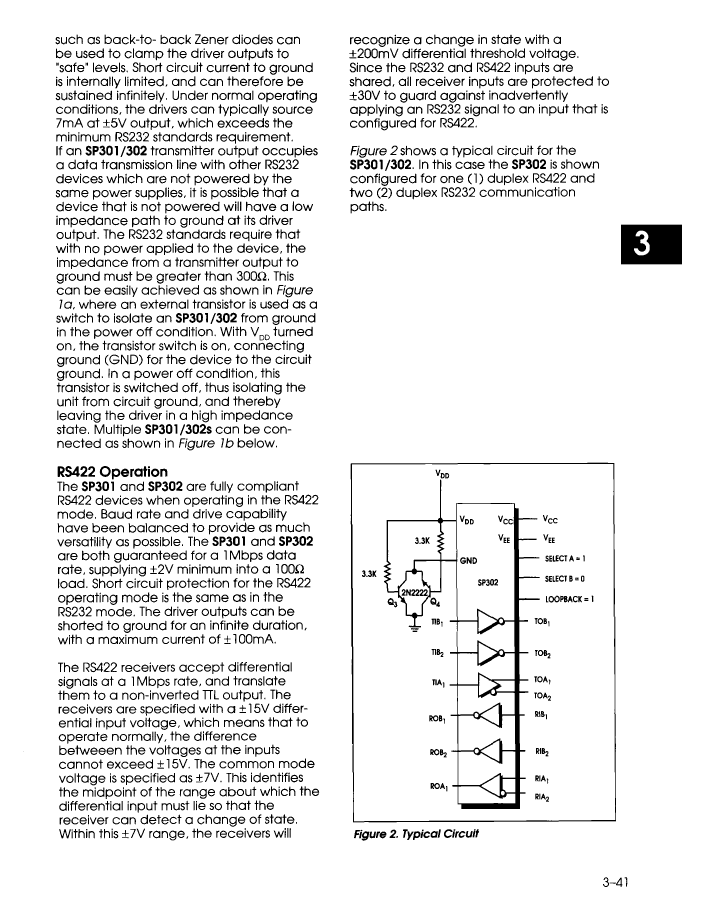

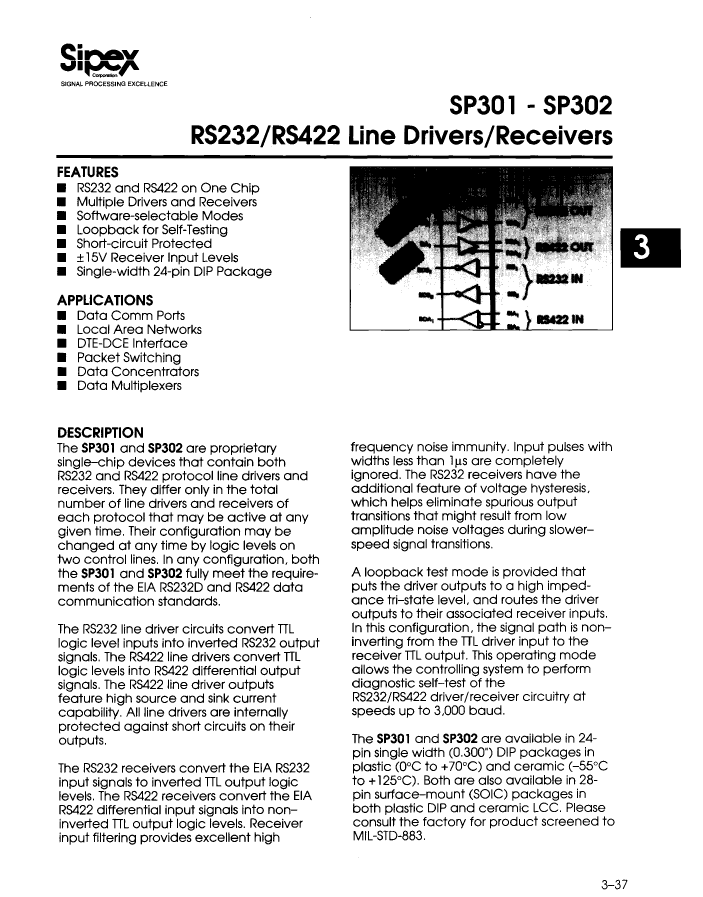

SP301MR/883 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SP301MR/883 Related Products

	SP301MR/883	SP302MR/883
Description	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP24, CERAMIC, DIP-24	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP24, CERAMIC, DIP-24
Is it Rohs certified?	incompatible	incompatible
Maker	SIPEX	SIPEX
package instruction	CERAMIC, DIP-24	CERAMIC, DIP-24
Reach Compliance Code	unknown	unknown
Other features	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK
Differential output	YES	YES
Number of drives	2	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232-D; EIA-422	EIA-232-D; EIA-422
JESD-30 code	R-GDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0
length	32.512 mm	32.512 mm
Nominal negative supply voltage	-12 V	-12 V
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Minimum output swing	12 V	12 V
Output characteristics	TOTEM-POLE	TOTEM-POLE
Maximum output low current	0.0016 A	0.0016 A
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-12 V	5,+-12 V
Certification status	Not Qualified	Not Qualified
Number of receiver bits	2	2
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.715 mm	5.715 mm
Maximum slew rate	7 mA	7 mA
Nominal supply voltage	5 V	5 V
Supply voltage1-Nom	12 V	12 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
