ECOS1VP472BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ECOS1VP472BA

ECOS1VP472BA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35 V, 4700 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size235KB，9 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance; Related ProductsFound9parts with similar functions to ECOS1VP472BA

Download Datasheet Parametric View All

ECOS1VP472BA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35 V, 4700 uF, THROUGH HOLE MOUNT

ECOS1VP472BA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	78 mΩ
JESD-609 code	e3
leakage current	1.21676 mA
length	30 mm
Manufacturer's serial number	TS-UP
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-i
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	3260 mA
series	ECO-SP
surface mount	NO
Delta tangent	0.35
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

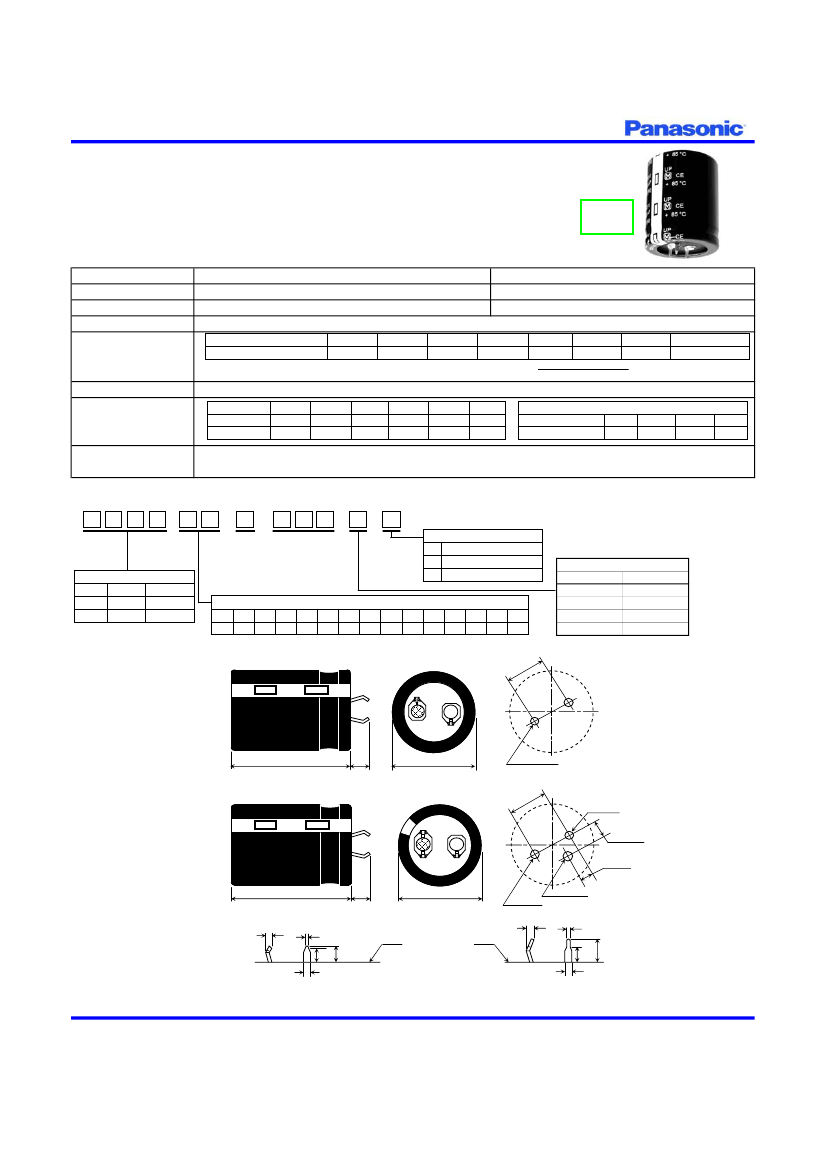

Aluminum Electrolytic Capacitors

TS-UP Series

85°C, 3000 hours

RoHS

Compliant

Compact size for general purpose and industrial applications

2 and 3 pin versions available

20mm lengths for low profile applications

Rated Working Voltage:

Operating Temperature:

Nominal Capacitance:

Capacitance Tolerance:

Dissipation Factor:

(120 Hz, +20°C)

Leakage Current:

Ripple Current Multipliers:

16 ~ 250 VDC

-40 ~ +85°C

120 ~ 68000µF

± 20%

Working Voltage [V]:

Max. D.F. (%):

100

160 ~ 450

350 ~ 450 VDC

-25 ~ +85°C

33 ~ 820µF

For capacitance values > 33000µF, add the value of:

(rated cap. [µF] - 33000 )

1000

3√CV (µA) max. after 5 minutes;

C = Capacitance in µF, V = WV

Frequency(Hz):

16~100WV:

160~450WV:

0.93

0.75

0.95

0.8

100~120

1.0

500

1.05

1.2

1.08

1.25

10k

1.15

1.4

Ripple Current Ambient Temperature Factors**

Temperature (°C): 85°C

70°C

60°C

Multiplier: 1.0

1.3

1.4

≤45°C

1.5

Endurance:

3000 hours* at +85°C with maximum specified ripple current (see page 4)

*2000 hours for 20mm length sizes

**Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.

Part Number System

Series

Code

Terminal Style

Prefix Length # of Pins

ECEC

4.0mm

ECOS

6.3mm

Capacitance

Code

Voltage Code

1K 2A 2C 2D 2E 2V 2T 2G 2S 2W

80 100 160 200 250 350 385 400 420 450

Suffix

Standard Ratings

Extended CV Ratings

20mm Length Ratings

RoHS compliant PVC sleeve and top

plate is standard. PET sleeve is

available without top plate.

Diameter

Code

Dimensions in millimeters

2 Pin Mounting Style

10.0±0.1

Circuit Board Mounting Holes

L+2 max.

D+1 max.

2 x Ø2.0±0.1

10.0±0.1

Circuit Board Mounting Holes

Ø2.0±0.1

4.75±0.1

3.3±0.1

3 Pin Mounting Style

(Optional)

L+2 max.

D+1 max.

Ø2.0±0.1

2.0 max.

Ø2.5 min.

Pin Dimensions

2.0 max.

0.8

-0.1

3.5

1.5±0.2

+0.2

0.8

+0.2

-0.1

Top of Capacitor Body

4.0±0.5

1.5±0.2

4.0

6.3±1.0

4mm Length: Standard on 2 Pin, Available on 3 Pin Mounting Styles

6.3mm Length: Available on 2 Pin Mounting Style Only
