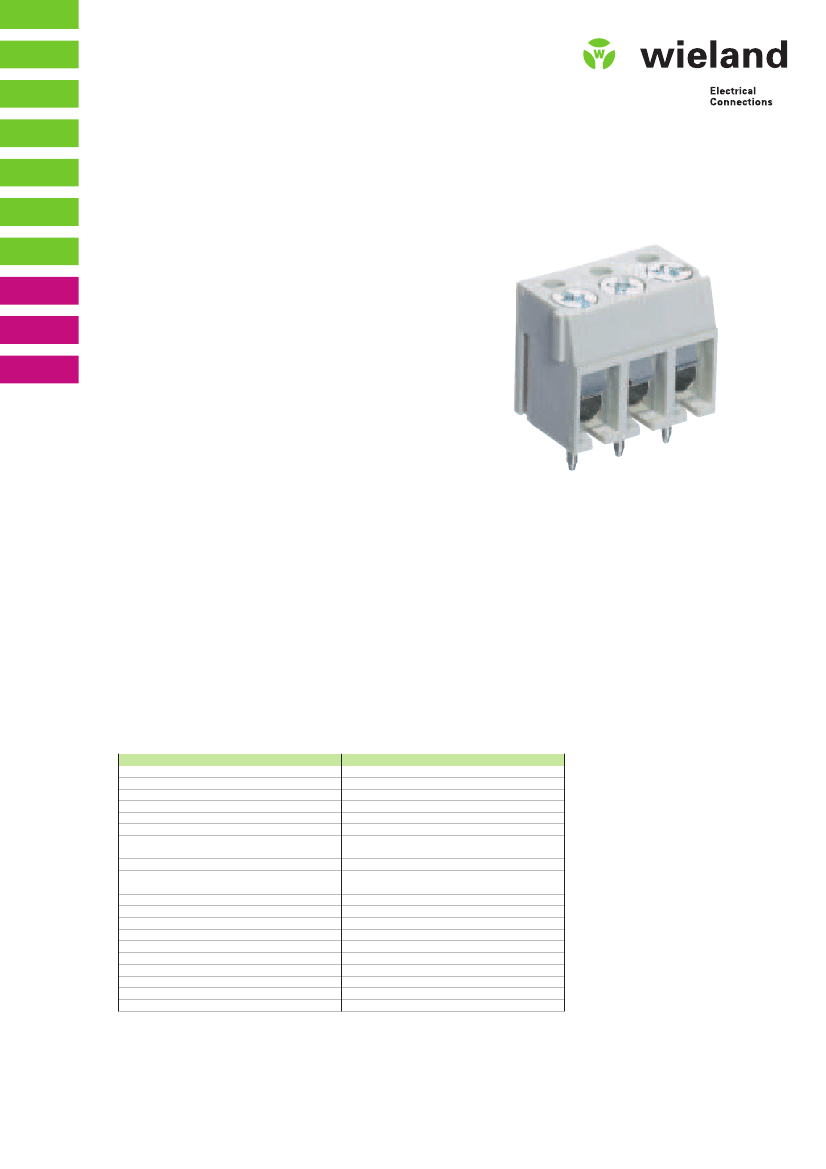

Type 8181
PC board terminal with wire protection
Characteristics
K
K
K
K
K
K
K
K
K
Conductor connection with screw and wire protection
For solid and fine-stranded wires
Horizontal insertion of the conductor
Large clamping body
Flat design
2 - 3 pole modular designs
Modular design
5.0 mm spacing
Color pebble gray (similar to RAL 7032)
PC Board Terminals and Connectors
CUSTOMER INFORMATION
Advantages
K
Assembly on site
K
Good price-performance ratio
K
No special tools required
Description
wiecon
Type 8181
PC board terminal with wire protection
Modular design
Spacing
Number of poles
Rated current
Rated voltage
Rated peak voltage
Rated cross section
AWG wire range
Degree of pollution
Material
Temperature range
Flammability according to UL 94
Conductor
– Insulation strip length
Torque
Recommended tightening torque
Approvals
Type
5.0 mm
2 - 24 (others on request)
16 A
250 V (DIN EN 60664-1)
300 V (UL, CSA)
4 kV
0.5 - 2.5 mm
2
0.5 mm
2
with ferrule
22 - 14
3
PA 66
- 40°C – + 100°C
V0
6 mm
0.5 Nm
0.3 – 0.5 Nm
UL, CSA
0142.8 H 11/06
Headquarters:
Wieland Electric GmbH
Brennerstraße 10-14
D-96052 Bamberg
Sales and Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone (0951) 93 24-0
Fax
(0951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
Technical information
Derating

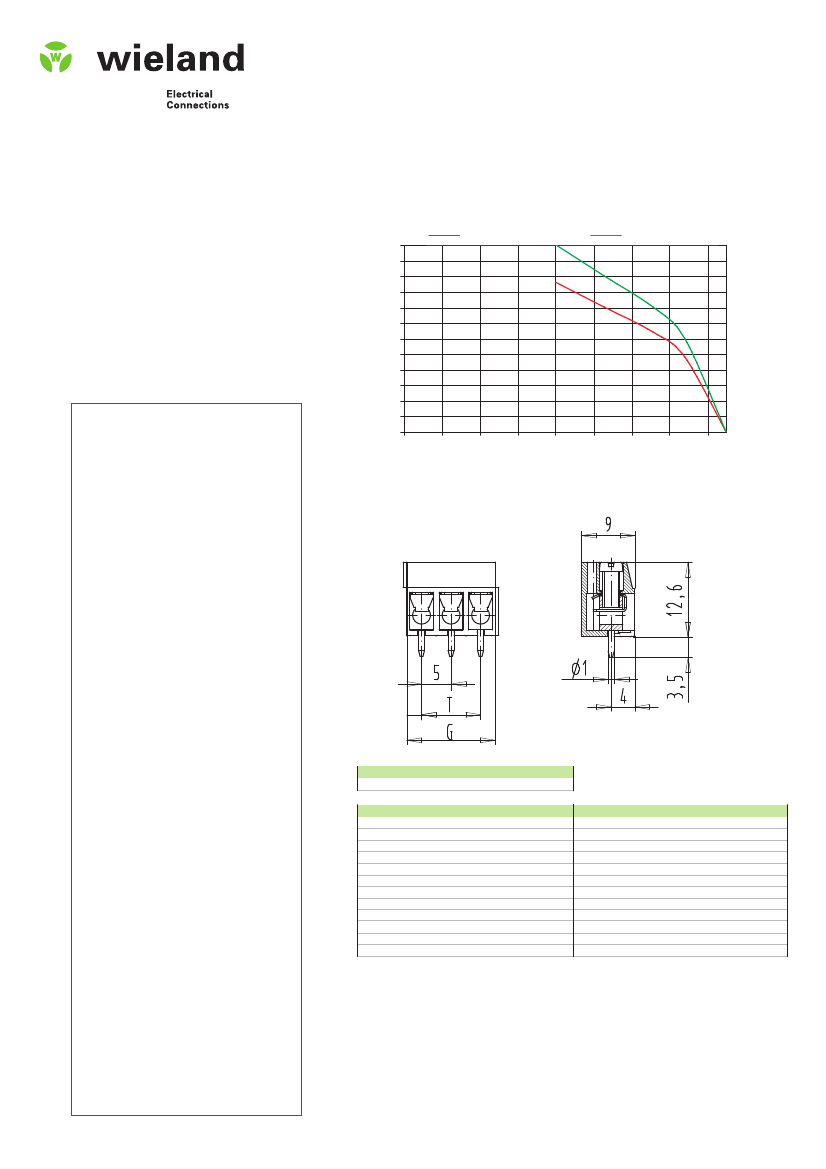

Derating curve according to DIN EN 60512-5-2
27
.102.3353.0; 8181/5 DS OB HW 2.5 mm
2
conductor, fine-stranded
Korrigierter Strom AC [A]
Basisstrom AC [A]
Current carrying capability [A]
24
20
18
16
14
12
10
8
6
4
2
0
20
30
40
50
60
70
80
90
100
