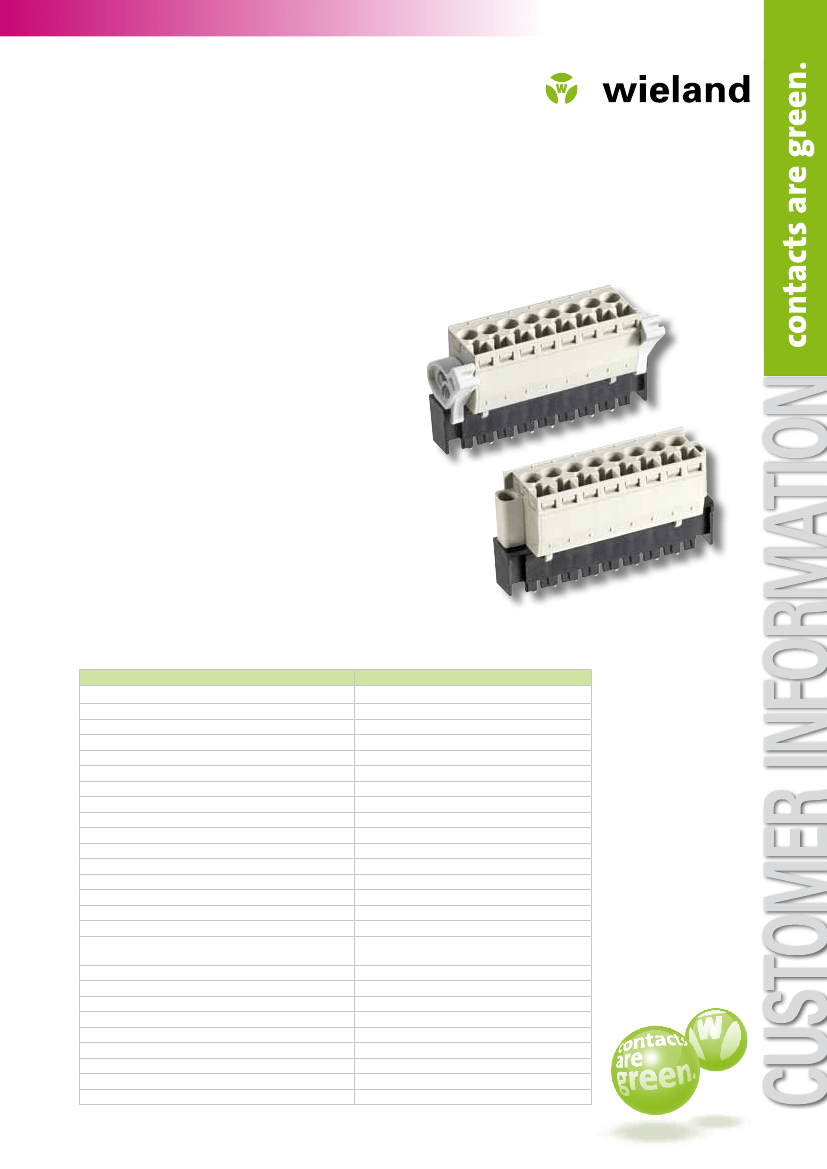

Typ 8213S/..F THR
PCB pin header with combined screw and locking flange
for the reflow process
Characteristics
q
Combinated screw and locking flange
q
Particularly suitable for the through-hole reflow pro-
cess of SMT technology
q
High temperature stability acc. to EN 61760-1
q
Highly accurate spacing that fits the PC board
and mating connector
q
Ready for automatic placement (Tape on Reel)
q
Tape on reel, 2 – 12 pole
q
Standard color black (similar to RAL 9005)
q
Other colors available on request
Advantages
q
Flexibel due to combined flange version
q
Applicable in the lead-free reflow process
q
High CTI value
q
Placement possible on both sides of the PCBs
q
No manual or wave soldering
Description
wiecon
Type 8213 S/…F G/W THR
PC board pin header
Pitch
Number of poles
Box
Tape on reel
Tray
Pieces per reel
Straight
Angular
Rated current
Rated voltage
Overvoltage category III / Pollution degree 3
UL, CSA
Rated peak voltage
Pin dimensions
Pin lengths
Pollution degree
Material
– CTI
– Halogen-free
– RoHS
Temperature range
– Dimensional stability at max. temperature
Flammability according to UL 94
Approvals
250 V (DIN EN 60664-1)
300 V
4 kV
1.0 x 1.0 mm
2.6 mm, single-side placement
1.5 mm, double-side placement
3
PPA
> 600
yes
compliant
- 40° C - + 280° C
+ 280° C
V0
UL, CSA
0143.9 MC 03/10
5.08 mm
2 - 12
2 - 12
available on request
190 pieces
220 pieces
12 A
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Sales- and
Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
Technical information
8213 S G/W F THR
Industrial technology
Solutions for the control cabinet
• DIN rail terminal blocks
– Screw, spring clamp or IDC connection
technology
– Wire cross sections up to 240 mm
2
– Numerous special functions
– Software solutions interfacing to
CAE systems
• Safety
– Safety sensors
– Safety relays
– Modular safety systems with fieldbus link
• PLC and fieldbus components
– Standard applications in IP 20
– Increased environmental conditions with
railroad and ship approvals
• Interface
– Coupling relays, semiconductor switches
– Measuring and monitoring relays
– Timer and switching relays
– Analog modules
– Passive interfaces
– Power supply units
– Overvoltage protection
Solutions for field applications
• Remote automation technology
– Power distribution
– Fieldbus interfaces and motor starters
• Connectors for industrial applications
– Square and round connectors
– Aluminum or plastic housings
– Degree of protection up to IP 68
– Current-carrying capacity up to 100 A
– Connectors for hazardous areas
– Modular, application specific technology

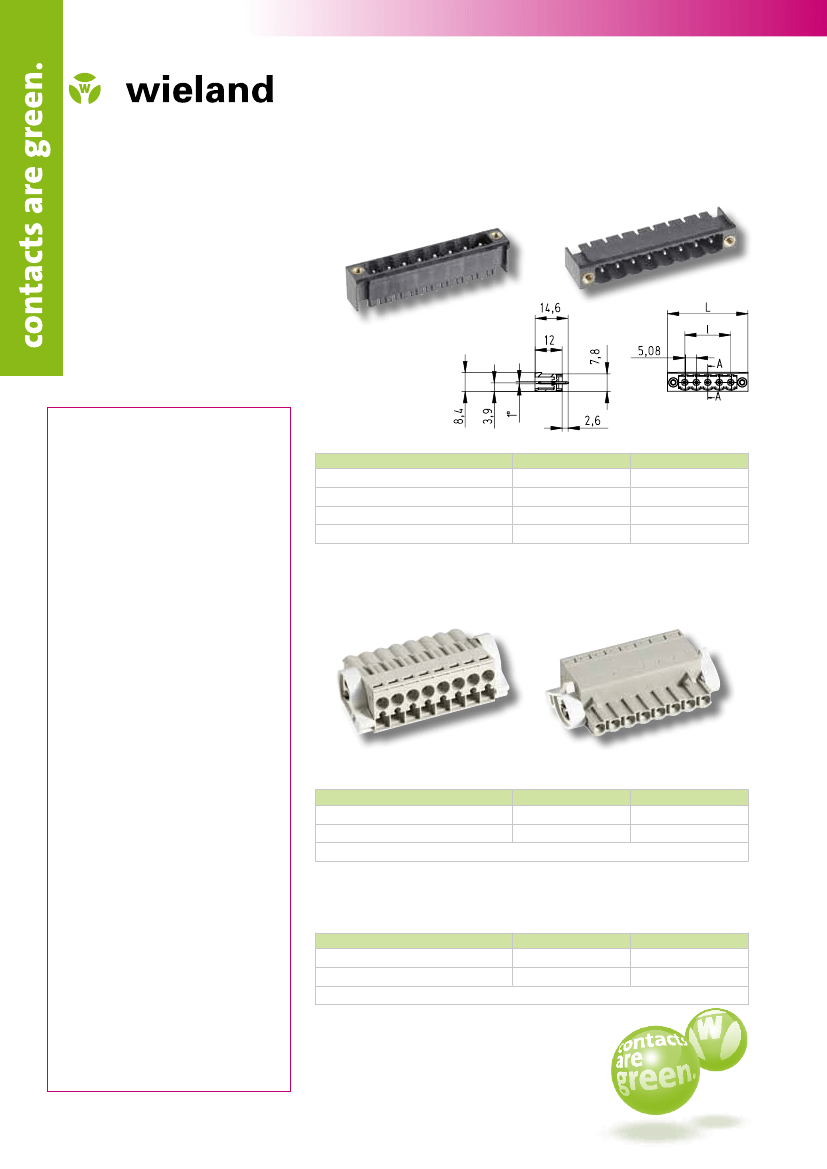

Type/Part No.
