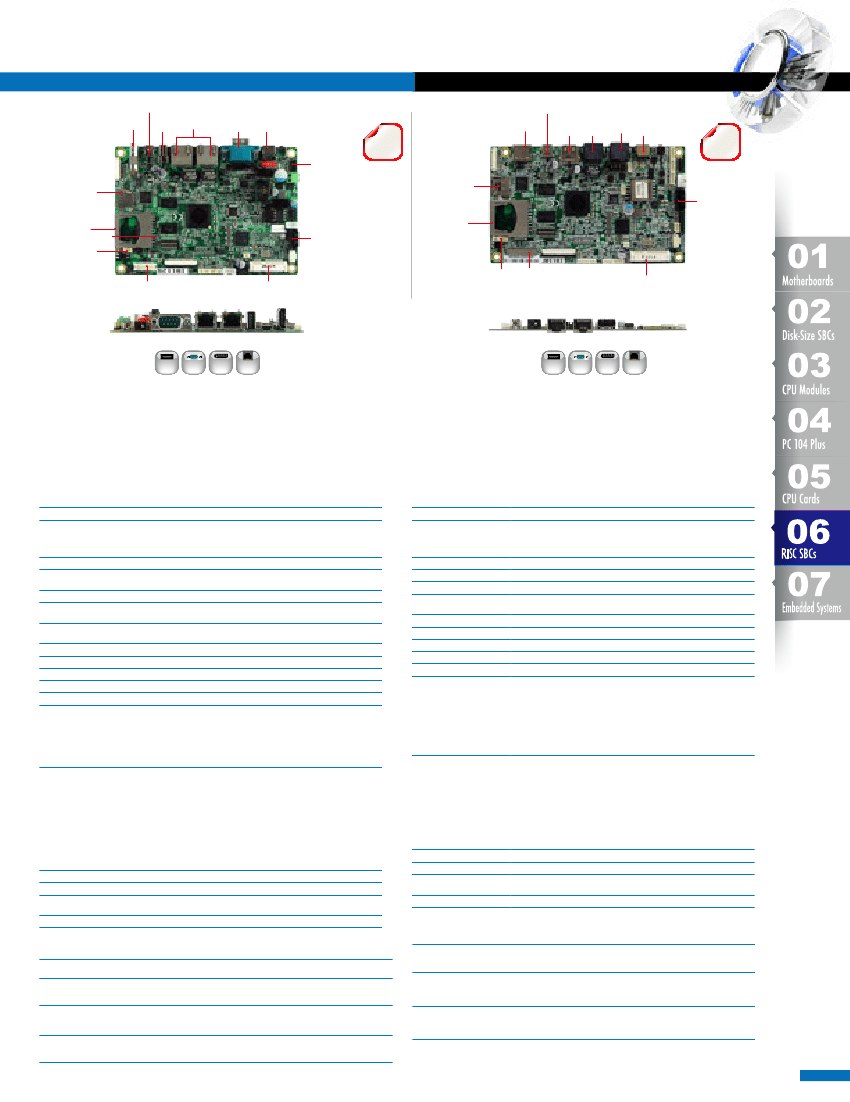

Freescale i.MX536 Industrial-Grade
Cortex-A8 Single Board Computer
RISC SBC
Micro USB
HDMI
USB
RJ-45
COM
12~30V
DC Jack
IB112
Freescale i.MX535 Consumer-Grade
Cortex-A8 Single Board Computer
RISC SBC
Micro USB
HDMI
12V DC
Jack
IB110
iSMART
Fanless
NEW
NEW
Digital I/O
NEW
FANLESS
iSMART
iSMART
Fanless
USB
NEW
NEW
LAN
COM
NEW
FANLESS
iSMART
Micro SD
socket
SD
socket
LCD
Backlight
Micro SD
socket
SD
socket
SATA
SATA
LVDS
Mini PCI-E
LCD
Backlight
LVDS
Mini PCI-E
4
USB
2
COM
1
SATA
1~2
10/100
4
USB
2
COM
1
SATA
1
10/100
Features
● Freescale ARM Cortex-A8, 800MHz industrial-grade processor
● 1GB DDR3 memory on board
● Supports USB-OTG
● Supports SD card/ MicroSD card
● Rich I/O for high expansion capability
● Watchdog timer, Digital I/O
Features
● Freescale ARM Cortex-A8, 1GHz consumer-grade processor
● 1GB DDR3 memory on board
● Supports USB-OTG
● Supports SD card/ MicroSD card
● Rich I/O for high expansion capability
● Watchdog timer, Digital I/O
Specifications
Form Factor
MPU Type Operating
Frequency
System Memory
Data Memory
Display
Video codec
LAN
USB
Touch Controller
Audio
Watchdog
NVRAM
3.5" Disk-Size SBC, 102mm x 147mm (4" x 5.8")
Freescale Industrial-Grade i.MX536:
1GHz Cortex™-A8
65nm, LP/GP
19x19 0.8mm (TE-BGA)
1GB DDR3-800 on board
Optional 8GB/16 GB eMMC
MicroSD slot supports up to 32GB
Sil9022A HDMI transmitter / LVDS
Decode: 1080p, 30fps
Encode: 720p, 30fps
1st LAN : 10/100 Base-T Ethernet
2nd LAN : 10/100 Base-T Ethernet (IB112S)
USB 4x Host via USB HUB
Via DA9053 (Resistive Touch Controller)
Pin header for speaker
By hardware
32KB (in IB112F, IB112S)
• 1x 1st 10/100 LAN / 1x 2nd 10/100 LAN (IB112S)
• 1x USB (USB Host. A-Type) / USB OTG x1 (mini USB B-Type) Default: Device mode
• 1x COM2 RS-232
• 1x SD / 1x MicroSD
• 1x 12~30V DC-in jack
• 1x Boot switch (Boot sequence - eMMC/MicroSD)
• 1x HDMI Type A connector
Headers:
• 8x GPIO ( IB112F, IB112S)
• COM (RS232) x 2 (COM1 / COM3 debug port)
• Audio pin header (1x MIC, 1x speaker)
• 2x USB 2.0 (2mm pitch)
• FPC connector for 4-wire Resistive Touch x1
• 2x CAN (Pin header in IB112S, IB112T)
• 1x 18 bit LVDS connector
• 1x VGA pin header (in IB112F, IB112S)
Slots:
• 1x SATA connector
• 1x Full Size Mini PCIe(x1) socket (USB I/F only)
12~30V DC-in
-20°C~ 70°C (-4°F ~ 158°F)
WiFi / GPRS / 3G Module (Optional)
Ubuntu Linux 10.04 (kernel 2.6.35)/ Android 2.3/ Windows CE7
Specifications
Form Factor
MPU Type Operating
Frequency
System Memory
Data Memory
Display
Video codec
LAN
USB
Touch Controller
Audio
Watchdog
90mm x 150mm (3.5" x 5.9")
Freescale Consumer-Grade i.MX535
1GHz Cortex™-A8
65nm, LP/GP
19x19 0.8mm PoP (Consumer)
1GB DDR3-800 on board
MicroSD slot supports up to 32GB
Sil9022A HDMI Transmitter / LVDS / TTL
Decode :1080p, 30fps
Encode : 720p, 30fps
10/100 Base-T Ethernet
USB 4x Host via USB hub
Via DA9053 (Resistive Touch Controller)
Pin header for speaker
By hardware
• 1x 10/100 LAN (RJ45)
• 1x USB (USB host, A-Type)
• 1x USB OTG (mini USB B-Type) Default: device mode
• 1x COM2 RS-232(RJ45 connector)
• 1x SD
• 1x MicroSD
• 1x 12V DC-in jack
• 1x Boot switch (Boot sequence: eMMC/MicroSD)
• 1x HDMI Type A connector
Headers:
• 8x GPIO (IB110H, IB110F)
• 2x COM (RS232) (COM1 / COM3 debug port)
• Audio pin header (1x speaker)
• 2x USB 2.0 (2.0mm pitch)
• 1x FPC connector for 4-wire Resistive Touch
• VGA, 18-bit TTL panel and LVDS header (IB110F)
Slots:
• 1x SATA connector (IB110F)
• 1x Full Size Mini PCIe(x1) socket (USB I/F only)
12V DC-in
0°C~ 60°C (32°F ~ 140°F)
WiFi / GPRS / 3G module (optional)
Ubuntu Linux 10.04 (kernel 2.6.35)/ Android 2.3/ Windows CE7
Edge I/O
Edge I/O
Headers & Expansion Slots
Headers & Expansion Slots
Power
Operating Temperature
Communication
Devices
Software Support
Power
Operating Temperature
Communication
Devices
Software Support
Ordering Information
IB112
IB112F
IB112S
IB112T
3.5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), 1GB DDR3,
10/100 LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot
3.5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), 1GB DDR3,
10/100 LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot, HDMI,GPIO x8, VGA,
32K NVRAM, SATA
3.5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), 1GB DDR3,
10/100 LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot, HDMI, GPIO x8,
CAN x2, 2nd LAN, 32K NVRAM, 16GB eMMC
3.5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), 1GB DDR3,
10/100 LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot, HDMI, CAN x2,
8GB eMMC
Ordering Information
IB110
RISC SBC w/ Consumer-Grade Freescale i.MX535 (1Ghz), DDR3 1GB, 10/100
LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot
RISC SBC w/ Consumer-Grade Freescale i.MX535 (1Ghz), DDR3 1GB, 10/100
LAN, SD, Micro-SD, 3 COM Ports, Mini-PCIe(x1) slot, HDMI, GPIO x8, SATA, VGA.
18-bit TTL Panel header, LVDS header
RISC SBC w/ Consumer-Grade Freescale i.MX535 (1Ghz), DDR3 1GB, 10/100
LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe(x1) slot, HDMI,GPIO x8, 8GB
eMMC (option)
IB110F
IB110H
For user’s manual & datasheet download, visit www.ibase.com.tw
6-3
