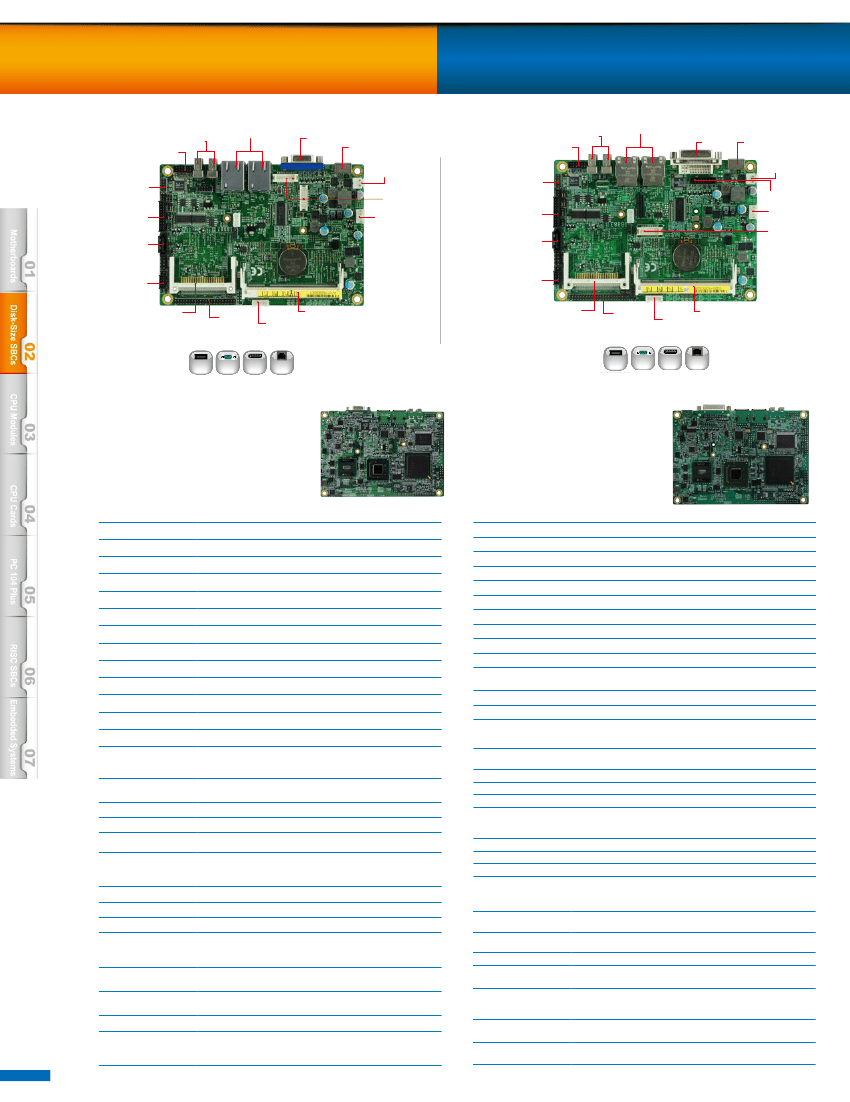

3.5" Disk-Size SBC
IB887
®
Intel Atom™ N270 3.5" Disk-Size SBC with
Intel
®
945GSE Chipset
IB883
Intel
®
Atom™ N270 3.5" Disk-Size SBC with
Intel
®
945GSE Chipset
RJ-45
USB
Audio
VGA
KB/Mouse
DC In
(12V)
Audio
USB
RJ-45
DVI-D
KB/Mouse
DC In(12V)
Digital I/O
LVDS
COM Port
HDD
Power
Digital I/O
CRT
COM Port
HDD
Power
LVDS
SATA
SATA II
USB
DDR2 Socket
Smart
Battery
Interface
USB
4
USB
2
COM
1
SATA II
2
GbE LAN
4
USB
● Onboard Intel
®
Atom™ Processor N270,
1.6GHz, 533MHz FSB
● 1x DDR2 SO-DIMM, Max. 2GB
● Intel
®
945GSE VGA for CRT / LVDS
● 2x Intel
®
PCI-E Gigabit LAN
● Watchdog timer, Digital I/O
● 1x SATA, 4x USB 2.0, 2x COM, CF socket
Features
● Onboard Intel
®
Atom™ Processor
N270, 1.6GHz, 533MHz FSB
● 1x DDR2 SO-DIMM, Max. 2GB
● Intel
®
945GSE VGA for CRT / LVDS
● Onboard Chrontel CH7307 for DVI
● 2x Intel
®
PCI-E Gigabit LAN
● Watchdog timer, Digital I/O
● 1x SATA, 4x USB 2.0, 2x COM, CF socket
Features
Specifications
CPU
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
VGA Controller
VGA Memory
Display Interface
LAN Controller
Connector
I/O Chipset
USB
Audio
Others
Dimensions
Intel Atom™ Processor N270, 1.6GHz
®
Specifications
1x DDR2 SO-DIMM, 400/533MHz, Max. 2GB
Intel
®
945GSE + ICH7M, 533MHz FSB
Award
256 levels
Type II CF socket
Yes
N/A
Intel
®
945GSE integrated GMA950
Supports DVMT 4.0; Max. shared memory - 224MB
Supports CRT VGA & 24-bit dual channel LVDS
2x Intel
®
82574L PCI-E Gigabit LAN
RJ-45 on board
ICH7M, Winbond W83627EHG
1x IDE, 1x KB, 1x mouse, 1x RS232,
1x RS-232/422/485, 1x SATA
2 ports on board
Pin header for 2 ports (USB 2.0)
Built-in Intel
®
HD audio + ALC662 codec for 6 channels
Digital I/O, +12V DC In
102mm x 147mm (4” x 5.8”)
CPU
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
VGA Controller
VGA Memory
Intel
®
Atom™ Processor N270, 1.6GHz
1x DDR2 SO-DIMM, 400/533MHz, Max. 2GB
Intel
®
945GSE + ICH7M, 533MHz FSB
Award
256 levels
Type II CF socket
Yes
LPC I/O interface for optional COM3~COM6
Intel
®
945GSE integrated GMA950
Supports DVMT 4.0; Max. shared memory - 224MB
Supports CRT VGA & 18-bit single channel LVDS, Chrontel CH7307
Display Interface
on board for DVI port
LAN Controller
2x Intel
®
82574L PCI-E Gigabit LAN
Connector
RJ-45 on board
ICH7M, Winbond W83627EHG
I/O Chipset
1x IDE, 1x KB, 1x mouse, 1x RS232,
1x RS-232/422/485, 1x SATA
2 ports on board
USB
Pin header for 2 ports (USB 2.0)
Audio
Built-in Intel
®
HD Audio + ALC662 codec for 6 channels
Others
Digital I/O, +12V DC In
Dimensions
102mm x 147mm (4” x 5.8”)
Intel
®
Atom™ N270 1.6GHz
Max. Power Requirement
w/ 512MB DDR2-533
+12V: 1.45A
Operating Temperature
0°C~60°C (32°F~140°F)
Storage Temperature
-20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90% (non-condensing)
Intel
®
Atom™ N270 1.6GHz
Max. Power Requirement
w/ 512MB DDR2-533
+12V: 2.03A
Operating Temperature
Storage Temperature
Relative Humidity
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Ordering Information
IB883
IB47
Intel
®
Atom™ N270 945GSE 3.5-inch Disk Size SBC w/
VGA and dual PCI-E Gigabit LAN
Cable kit for IB883 series, w/ IDE, PS/2, audio, USB,
VGA, COM, power cable and SATA
Heatsink for IB883/IB887 BGA
Aluminum Chassis with IB883 3.5” SBC Intel
®
Atom™ N270 (1.6GHz)
CPU, 2.5” HDD holder, VGA, 60W power adaptor
Aluminum Chassis with IB883 3.5” SBC, Intel
®
Atom™ N270
(1.6GHz) CPU, 2.5” HDD holder, 6x COM, DVI+CRT,
60W power adaptor
Fanless Chassis with IB883 3.5” SBC, w/ 2.5” HDD holder, 60W power
adaptor, mounting brackets
Steel Chassis for IB883 3.5” SBC, 2.5” HDD holder,
COM, 60W power adaptor
Ordering Information
IB887
IB47A
HSIB883-BGA1-4
ASB200-887M
Intel Atom™ N270 945GSE 3.5-inch Disk Size SBC w/
VGA and dual PCI-E Gigabit LAN
®
HSIB883-BGA1-4
ASB200-883
ASB200-883-6COMF
CSB200-883M
CSB100-883
Cable kit for IB887 series, w/ IDE, PS/2, audio, USB,
COM, power cable and SATA
Heatsink for IB883/IB887 BGA
Aluminum Chassis for IB887 3.5” SBC,
Intel
®
Atom
TM
N270(1.6GHz) CPU,
2.5” HDD holder, 60W power adaptor
2-20
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
