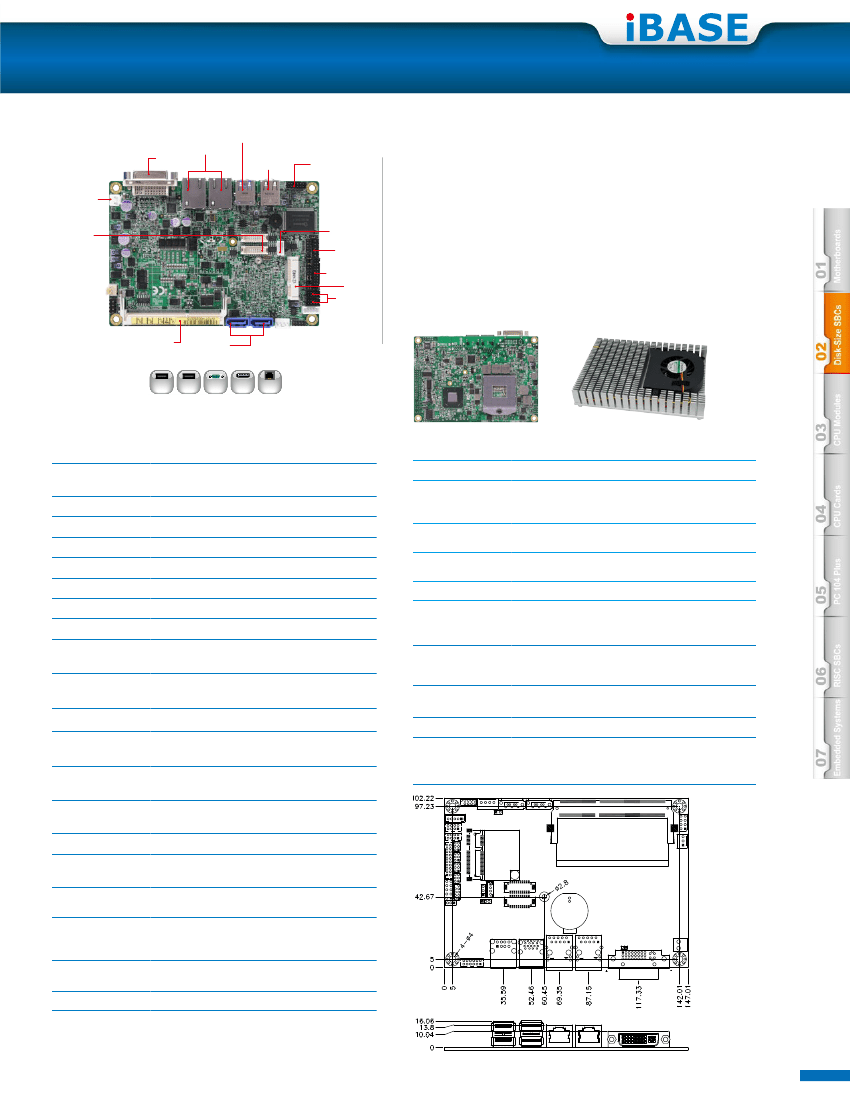

3.5" Disk-Size SBC
IB905
DVI-I
3rd Generation Intel
®
Core™ i7/i5/i3/Celeron
®
3.5" Disk-Size SBC w/
Intel
®
QM67 PCH
USB(3.0)
RJ-45
USB(2.0)
Audio
DC In
(12V)
LCD Backlight
Digital I/O
COM Port
Mini PCI-E
USB (2.0)
LVDS
● Supports 3rd Generation Intel
®
Core
TM
i7/i5/i3 /
Celeron
®
processors, up to 2.6GHz
● 1x DDR3 SO-DIMM, Max. 8GB
● Supports DVI-I and LVDS( 24-bit dual channel)
● Dual Gigabit LAN
● Watchdog timer
● 6x USB 2.0, 2x USB 3.0, 2x COM, 2x SATA III
Features
DDR3 SO-DIMM
Socket
SATA III
6
2
USB(2.0) USB(3.0)
2
COM
2
SATA II
2
Gbe LAN
System
CPU
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
rPGA988B for 3rd Generation Intel
®
Core i7/
i5/i3/Celeron
®
processors, up to 2.6GHz
1x DDR3 SO-DIMM, Max. 8GB (Non-ECC)
Intel
®
QM67 PCH
AMI BIOS
256 levels
N/A
Yes
1x Mini PCI-E - w/ USB signal (half-size)
TM
Mechanical and Environmental
Dimensions
Max. Power
Requirement
Operating
Temperature
Storage
Temperature
Relative Humidity
102mm x 147mm (4” x 5.8”)
Intel
®
Core™ i72710QE @ 2.10GHz
w/ Transcend DDR3 2GB/1333
+12V : 3.79A
0°C~60°C (32°F~140°F)
-20°C~80°C (-40°F~176°F)
10%~90% (non-condensing)
Ordering Information
IB905F
rPGA988B for Intel
®
2nd Generation Core™
i7/i5/i3 & Celeron
®
3.5-inch Disk Size SBC w/
DVI-I(CRT+DVI)+24-bit LVDS & Dual GbE LAN
Cable kit for IB905F, w/ SATA + Power cable,
COM, USB, audio, power cable
Heatsink w/ fan for IB905
Graphics
VGA Controller
VGA Memory
Display Interface
Intel Core i7/i5/i3/Celeron processor
integrated graphics Gen 5.75
®
TM
®
IB63
HSIB905-PGA
Max. shared memory – 1024MB
Supports VGA , DVI and 24-bit dual channel
LVDS
LAN
Controller
Connector
Intel
®
82579V Gigabit LAN PHY
Intel
®
82583V PCI-E Gigabit LAN
2x RJ-45 on board
Dimensions Drawing
Multi I/O
I/O Chipset
USB
Audio
Others
Fintek F81865-I
1x RS232, 1x RS-232/422/485, 2x SATA III
2 ports USB 3.0 on board
2 ports USB 2.0 on board
4 ports USB 2.0 via pin header
Intel
®
QM67 built-in HD audio controller
w/ Realtek ALC662 Codec for 5.1 CH
Digital I/O, +12V DC In, 1x smart battery
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
