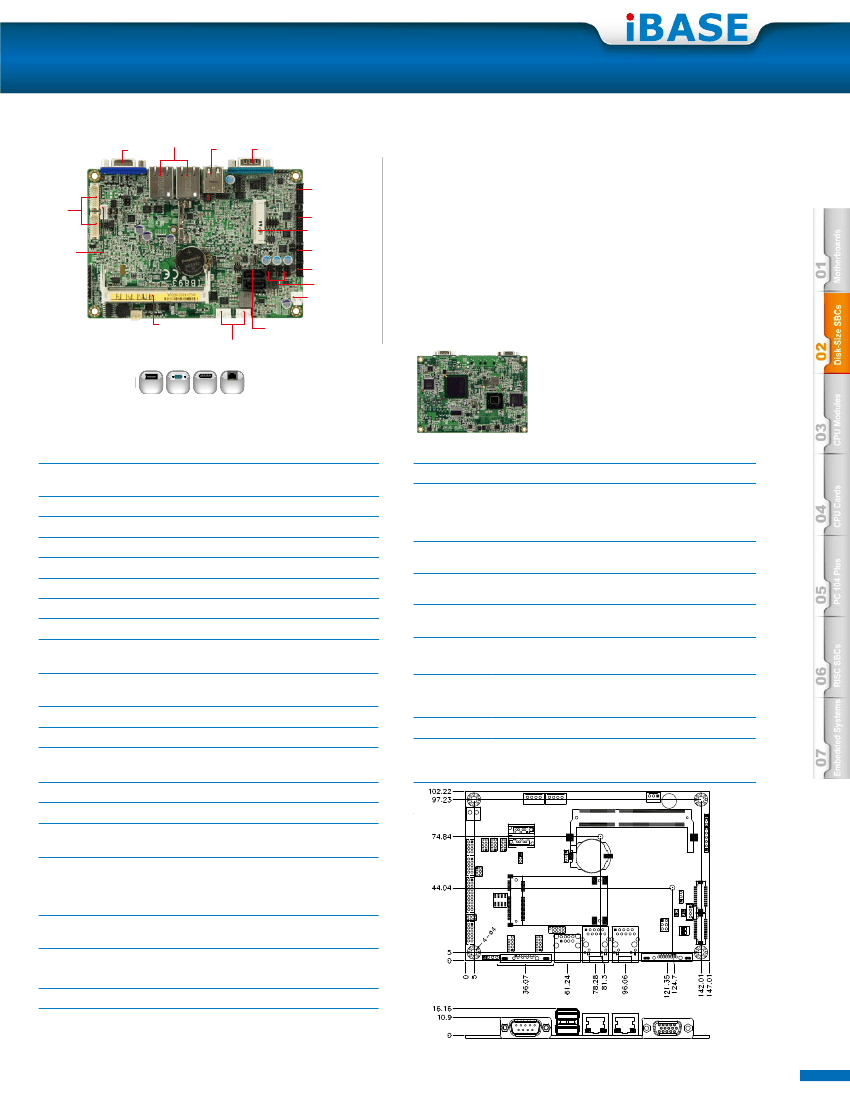

3.5" Disk-Size SBC
IB893
VGA
RJ-45
Intel
®
Atom™ D525 3.5-inch Disk Size SBC w/ Intel
®
ICH8M Chipset
USB
COM 1
Features
Audio
COM3~4
Mini PCI-E
LVDS
LCD
Backlight
COM2
KB/Mouse
USB 2.0
DC In
(12V)
DDR3 SO-DIMM
Socket
SATA power
● Onboard Intel
®
Atom
TM
D525 DC Processor,
1.8GHz
● 1x DDR3 SO-DIMM, Max. 4GB
● Supports CRT and LVDS
● 2x Realtek RTL-8111G-CG Gigabit LAN
● Watchdog timer, Digital I/O
● 8x USB, 4x COM, 2x SATA II
SATA II
8
USB
4
COM
2
SATA II
2
Gbe LAN
System
CPU
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
Intel
®
Atom
TM
D525 Processor
(1.8GHz, 1MB cache)
1x DDR3 SO-DIMM, Max. 4GB (Non-ECC)
Intel
®
82801HBM I/O controller (ICH8M)
AMI
256 levels
N/A
Yes
1x Mini PCI-E
Mechanical and Environmental
Dimensions
Max. Power
Requirement
Operating
Temperature
Storage
Temperature
Relative
Humidity
102mm x 147mm (4“ x 5.8“)
Intel
®
Atom™ D525 1.80 GHz
w/ 1x 2GB DDR3-1333
+5V: 0.23 A
+12V: 2.38 A
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Graphics
VGA Controller
VGA Memory
Display Interface
Intel
®
Atom
TM
D525 Processor integrated
GMA3150 graphics
Max. shared memory – 224MB
Support CRT and 24-bit dual channel LVDS
Ordering Information
IB893
HSIB893-BGA
Intel
®
Atom
TM
D525 1.8GHz Processor 3.5-inch Disk
Size SBC w/ VGA & LVDS (24-bit dual channel), dual
PCI-E Gigabit LAN
Heatsink for IB893
LAN
Controller
Connector
2x Realtek RTL-8111G-CG PCI-E Gigabit LAN
2x RJ-45 on board
Dimensions Drawing
Multi I/O
I/O Chipset
Nuvoton NCT6627UD
3x RS232
1x RS-232/422/485(jumperless selection),
2x SATA II, 1x KB, 1x Mouse
2x ports on board
Pin headers for 6 ports (USB 2.0)
Intel
®
ICH8M built-in audio controller w/ Realtek
ALC662-VD codec for 5.1CH
Digital I/O, +12V DC In
USB
Audio
Others
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
2-17
