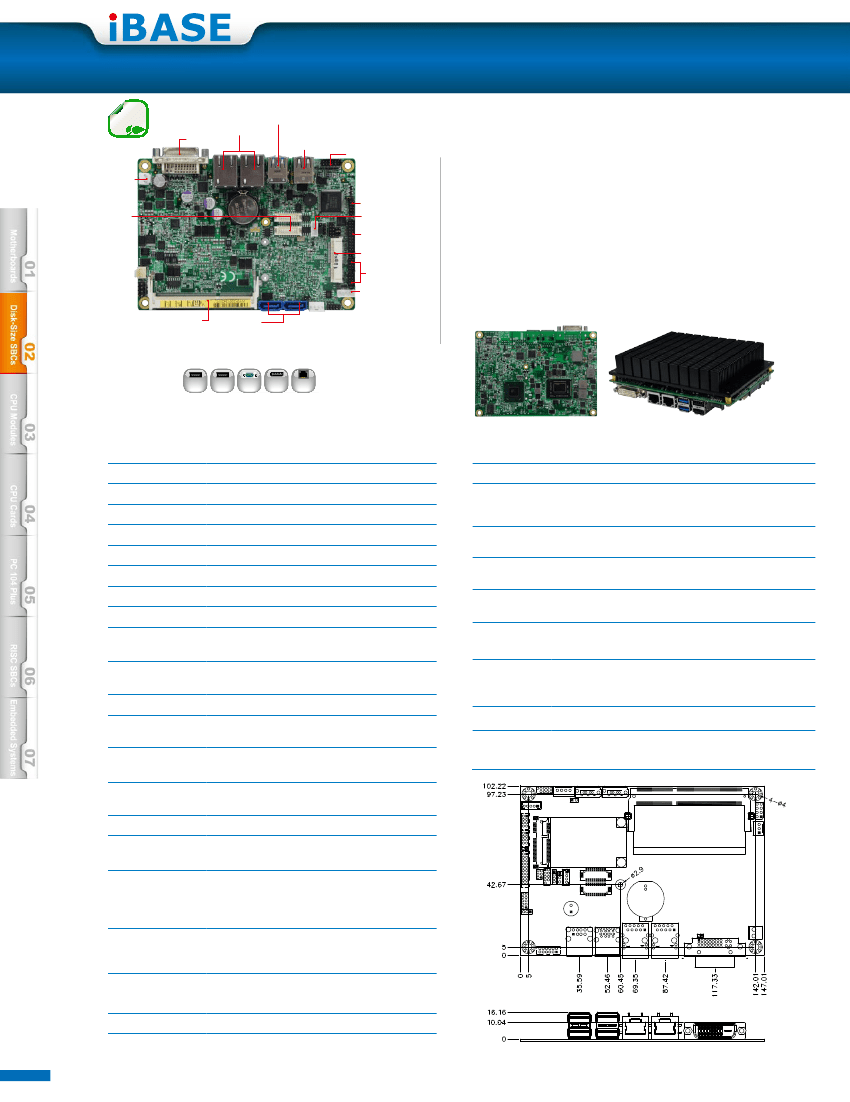

3.5" Disk-Size SBC
IB906
NEW
FANLESS
iSMART
DVI-I
RJ-45
DC In
(12V~24V)
Intel
®
Celeron
®
807UE 3.5" Disk-Size SBC w/ Intel
®
HM65 PCH
USB(3.0)
USB(2.0)
Audio
Features
Digital I/O
LVDS
LCD
Backlight
COM Port
Mini PCI-E
USB
(2.0)
Smart Battery
Interface
DDR3 SO-DIMM
Socket
SATA III
● Onboard Intel
®
Celeron
®
807UE Processors, 1.0GHz
● 1x DDR3 SO-DIMM, Max. 8GB
● iSMART - for EuP/ErP power saving, auto-scheduler
and power resume
● Supports DVI-I and LVDS( 24-bit dual channel)
● Dual Gigabit LAN
● Watchdog timer
● 6x USB 2.0, 2x USB 3.0, 2x COM, 2x SATA III
6
2
USB(2.0) USB(3.0)
2
COM
2
2
SATA III Gbe LAN
System
CPU
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
Intel
®
Celeron
®
807UE Processors, 1.0GHz
1x DDR3 SO-DIMM, Max. 8GB (Non-ECC)
Intel
®
HM65 PCH
AMI BIOS
256 levels
N/A
Yes
1x Mini PCI-E - w/ USB signal (full-size)
Mechanical and Environmental
Dimensions
Max. Power
Requirement
Operating
Temperature
Storage
Temperature
Relative
Humidity
102mm x 147mm (4“ x 5.8“)
Intel
®
Celeron
®
807UE 1.0 GHz
w/ 2GB DDR3-1333
+12V: 1.8A
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Graphics
VGA Controller
VGA Memory
Display Interface
Intel
®
Celeron
®
processor integrated graphics
Gen 5.75
Max. shared memory – 1024MB
Support VGA, DVI and 24-bit dual channel
LVDS
Ordering Information
IB906-1G
HSIB906-BGA
Intel
®
Celeron
®
807UE 3.5-inch Disk Size SBC w/ DVI-
I(CRT+DVI),24-bit LVDS & Dual GbE LAN, iSMART,
12V~24V DC-in
Heatsink for IB906-1G
LAN
Controller
Connector
Intel
®
82579V Gigabit LAN PHY
Intel
®
82583V PCI-E Gigabit LAN
2x RJ-45 on board
Dimensions Drawing
Multi I/O
I/O Chipset
Fintek F81866AD-I
1x RS232
1x RS232/422/485 (jumperless select)
2x SATA III
2 ports USB 3.0 on board
2 ports USB 2.0 on board,
4 ports USB 2.0 via pin header
Intel
®
HM65 built-in HD audio controller w/
Realtek ALC662 Codec for 5.1 CH
Digital I/O, +12V ~+24V DC in, iSMART
USB
Audio
Others
2-12
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
