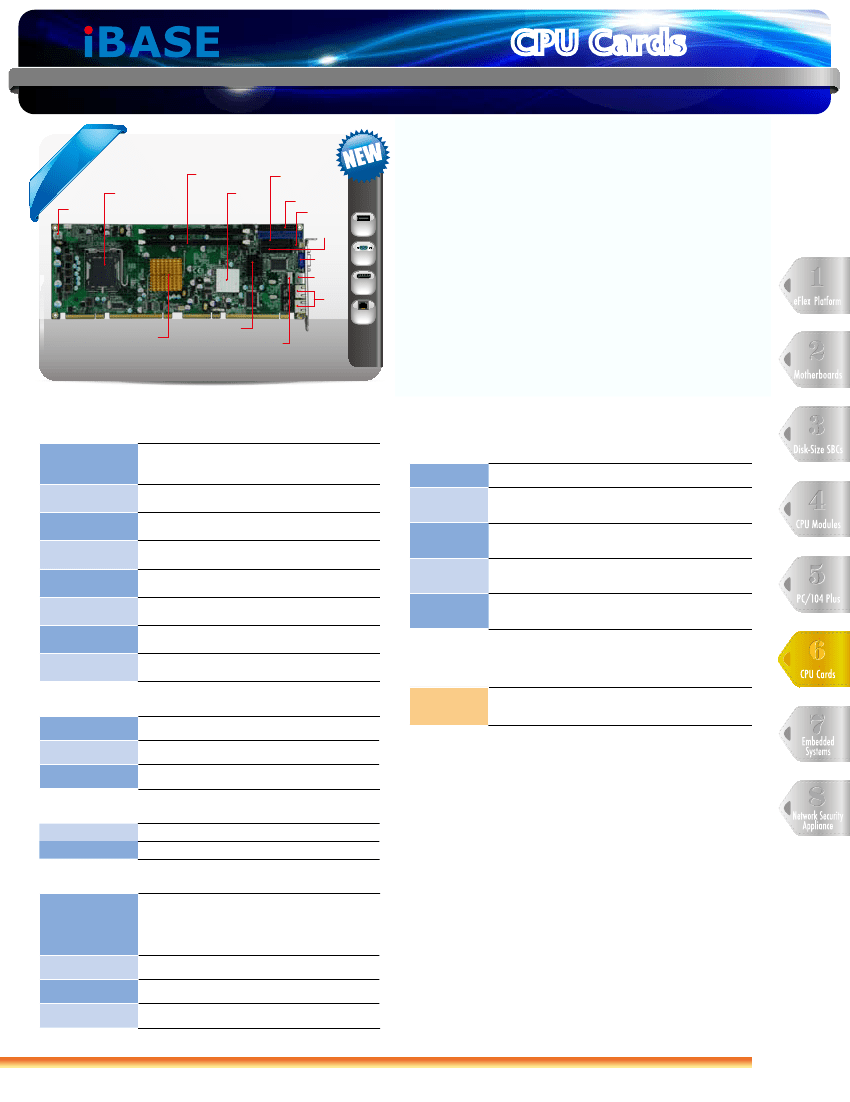

CPU Cards
Intel
®
Core
TM
2 Quad-Based
LGA775 PICMG 1.3 Intel
®
Core
TM
2 Quad / Core
TM
2 Duo Full-Sized CPU Card w/ Intel
®
Q35 Chipset
IB
93
6
DDR2 Sockets
LGA775
ICH9
LPT
FDD
IrDA
COM Ports
4
USB
ATX Power
CRT VGA
KB/Mouse
RJ45
2
COM
4
SATAII
2
Gbe LAN
Features
●
Support Intel
®
Core
TM
2 Quad / Core
TM
2 Duo /
Pentium
®
Dual-Core / Celeron
®
processors,
800/1066/1333MHz FSB
●
2x DDRII DIMM, Max. 4GB
●
Integrated VGA(GMA3100), CRT support
● 2x
Gigabit LAN
●
4x SATA II, 4x USB 2.0, 2x COM, Watchdog timer
Intel® Q35
Chipset
SATAII
External Mouse
System
CPU Socket
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
LGA775 for Intel
®
Core
TM
2 Quad / Core
TM
2 Dual /
Pentium
®
Dual-Core / Celeron
®
processors
2x DDR2 DIMM, Max. 4GB
Intel
®
Q35 + ICH9, 800/1066/1333MHz FSB
Award
256 levels
N/A
Yes
Via backplane
Mechanical
and Environmental
Dimensions
Max. Power
Requirement
Operating
Temperature
Storage
Temperature
Relative
Humidity
338mm x 122mm (13.31” x 4.8”)
TBC
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Ordering Information
IB936F
LGA775 PICMG1.3 Q35 Full-Size CPU card w/ VGA and
dual Gigabit LAN
Graphics
VGA Controller
VGA Memory
Display Interface
Intel
®
Q35 GMCH integrated graphics (GMA3100)
Max. shared memory – 256MB
Supports CRT
LAN
Controller
Connector
2x Realtek RTL8111E PCI-E Gigabit LAN
2x RJ-45 on board
Multi I/O
I/O Chipset
Winbond W83627EHG
1x IDE, 4x SATA II, 1x KB, 1x mouse,
1x FDD, 1x IrDA,
1x RS-232, 1x RS-232/422/485
4 ports on board
Built-in HD audio+ Realtek ALC892 codec
Digital I/O(4-in/4-out)
USB
Audio
Others
For user’s manual & datasheet download, visit www.ibase.com.tw
6-5
