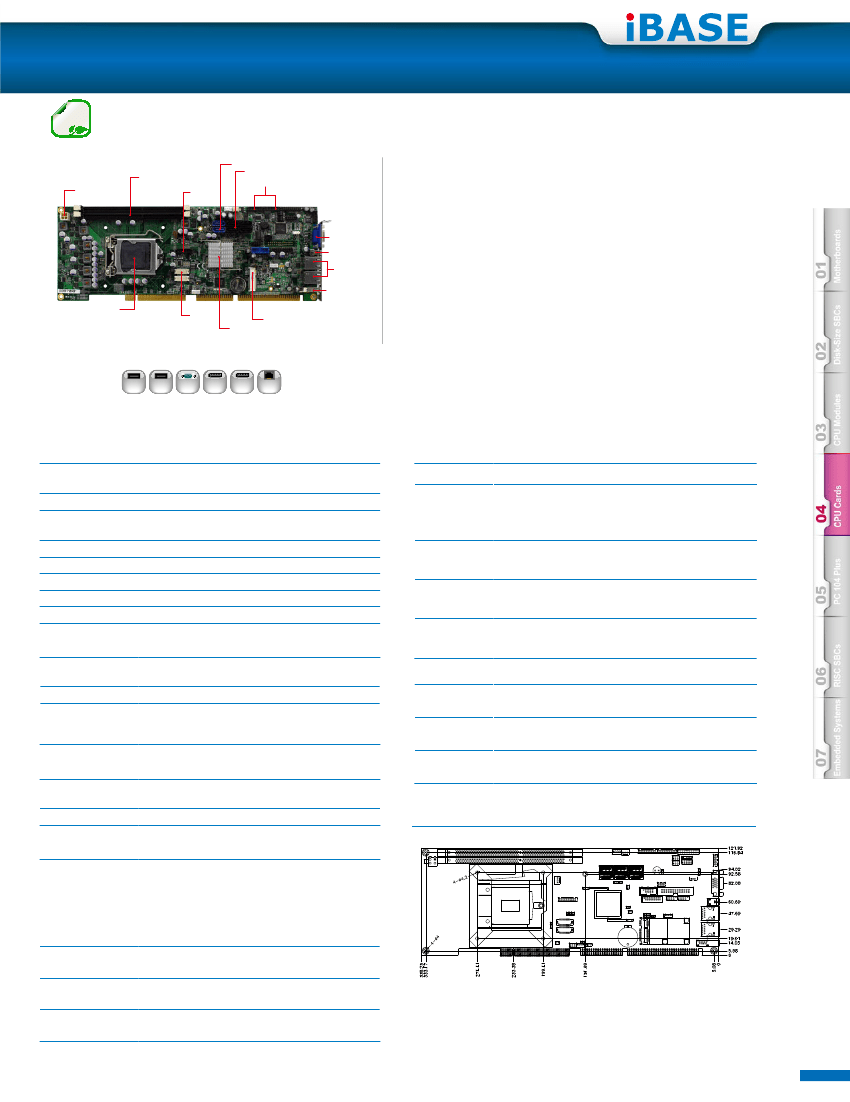

Full-Size CPU Card
IB970
iSMART
DDR3 Sockets
ATX Power
3rd Generation Intel
®
Core
TM
i7/i5/i3/Pentium
®
PICMG
®
1.0
Full-Size CPU Card w/ Intel
®
Q77 PCH
FANLESS
SATA III
DVI
SATA II
COM Ports
VGA
USB(2.0)
RJ45
USB(3.0)
LGA1155
LVDS
Intel® Q77
Chipset
Mini PCI-E
3
5
USB(3.0) USB(2.0)
4
COM
2
SATA III
4
SATA II
2
Gbe LAN
●
3rd Generation Intel
®
Core
TM
i7/i5/i3/
Pentium
®
QC/DC processors, up to 3.9GHz
●
2x DDR3 DIMM, Max. 16GB
●
Intel
®
Core
TM
Processor integrated graphics
HD4000, supports CRT,DVI-D
●
24-bit dual channel LVDS (IB970RF / IB970F)
●
Dual Intel
®
Gigabit LAN
●
5x USB2.0, 3x USB3.0, 4x COM, 4x SATA II,
2x SATAIII
●
Watchdog timer, Digital I/O
●
1x Mini PCI-E
Features
System
CPU Socket
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slot
LGA1155 for 3rd Generation Intel Core i7/i5/i3
/ Pentium
®
/ QC/ DC processors, up to 3.9GHz
2x DDR3 DIMM, Max. 16GB (Non-ECC)
IB970RF: Intel
®
Q77 PCH
IB970F/IB970: Intel
®
B75 PCH
AMI
256 levels
N/A
Yes
1x Mini PCI-E
®
TM
Mechanical and Environmental
Dimensions
Max. Power
Requirement
Operating
Temperature
Storage
Temperature
Relative
Humidity
3rd Generation Intel
®
Core
TM
i7/i5/i3 / Pentium
®
Processor integrated HD 4000 graphics
Max. shared memory – 1024MB
Supports CRT, DVI-D
24-bit dual channel LVDS interface (IB970F/
IB970RF)
338mm x 122mm (13.31” x 4.8”)
3nd Generation Intel
®
Core™ i7-3770 3.4GHz
w/ 2x 2GB DDR3-1333
+5V: 4.75A
+12V: 1.23A
+3.3V: 0.33A +5Vsb: 0.37A
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Graphics
VGA Controller
VGA Memory
Display Interface
Ordering Information
IB970RF
IB970F
IB970
LGA1155 Q77 Full-Size CPU Card w/ VGA, DVI-D, 24-bit
LVDS, dual Gigabit LAN, iSMART, TPM 1.2, RAID
LGA1155 B75 Full-Size CPU Card w/ VGA, DVI-D, 24-bit
LVDS, dual Gigabit LAN, iSMART, TPM 1.2
LGA1155 B75 Full-Size CPU Card w/ VGA, DVI-D, dual
Gigabit LAN, iSMART
LAN
LAN Controller
Connector
Intel
®
82579V Gigabit LAN PHY
Intel
®
82583V PCI-E Gigabit LAN
RJ-45 on board
Dimensions Drawing
Multi I/O
I/O Chipset
Fintek F81866AD-I
3x RS232,
1x RS232/422/485(Jumperless selection),
1x KB,1x Mouse,
IB970RF: 4x SATA II, 2x SATAIII
IB970F: 5x SATA II, 1x SATAIII,
IB970: 5x SATA II, 1x SATAIII, 1x LPT
1port USB2.0 & 1port USB 3.0 onboard
Pin headers for 4 ports USB 2.0 + 2 ports USB 3.0
Intel
®
Q77/B75PCH built-in HD audio controller+
Realtek ALC662 codec
Digital I/O(4-in/4-out), iSMART,
RAID(IB970RF only), TPM 1.2 (IB970RF / IB970F)
USB
Audio
Others
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
