30W Single Port Power over Ethernet Midspan
IEEE802.3at Compliant Power Injector
Features
Compliant with IEEE802.3at Standard
Non-vented Case
Full Protection OVP, OCP
Cisco AP1250 Full Power Support
Applications
IP Telephones
Wireless Access Points
Bluetooth
®
Access Points
Safety Approvals
CE
Mechanical Characteristics
Length: 140mm (5.51in.)
Width: 65mm (2.55in.)
Output Specifications
Model
POE31U-1AT
POE31W-1AT
AC Input
Three Wire
Two Wire
Limited Power Source
Gigabit Compatible
1 Year Warranty
Security Cameras
IP Print Servers
WiMAX
®
Access Points
cUL/US
Height: 36mm (1.42in.)
Weight: 0.2Kg (7.58oz)
DC Output
Voltage
56V
56V
Load
Min.
Max.
10mA 535mA
10mA 535mA
Regulation
Line
Load
±5%
±5%
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revision 11/17/2011
POE31X-1AT Characteristics
INPUT:
AC Input Voltage Rating
100 to 240VAC
WWW.PHIHONG.COM
EMI
EN55022 Class B
FCC part 15 Class B
AC Input Voltage Range
90 to 264VAC
EMC
ESD:
RS:
EFT/Burst:
Surge:
CS:
Voltage Dips:
Harmonic:
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
IEC61000-3-2
Level 3
Level 3
Level 2
Level 3
Level 3
Class A
AC Input Current
0.8A (RMS) maximum at 120VAC
0.55A (RMS) maximum at 240VAC
AC Input Frequency
47 to 63Hz
Leakage Current
350uA maximum for U models
250uA maximum for W models
Isolation (HI-POT)
Primary to secondary: 1500VAC for 1 minute, 10mA
Insulation Resistance
Max In-rush Current
60A maximum at 240VAC and maximum load
(Cold Start at ambient 25°C)
Primary to secondary: 10M Ohm 500VDC
FEATURES:
Cisco
No extern parts required for Legacy devices:
VoIP Phones: 7910, 7912, 7940, 7960
Access Points: 1040, 1140, 1250, 1260, 3500
OUTPUT:
Output Power
30W
Hold up Time
10mSec minimum at maximum load at 120VAC, 60Hz
Over Voltage/Current, Short Circuit Protection
The output is equipped with short-circuit protection and
overload protection as per the IEEE 802.3at specification
and conforms to UL60950-2. The output can be shorted
permanently without damage.
Transient O/P Voltage Protection
60V maximum at switch on/off at any AC line phase
Efficiency
80% Typical at maximum load at 120VAC, 60Hz
Indicator
Solid Green: Valid IEEE802.3at load detected and
connected “ON”
Blinking Green: Power “ON” ready for connection
Blinking Red/Green: Invalid load connected
Blinking Red: fault
Environment
Operating Temperature
Non-operating Temperature
Relative Humidity
0 to +40°C
-20 to +65°C
5 to 90%
AC Input Connector
IEC320 C14 - U Models – three wire
IEC320 C8 – W Models – two wire

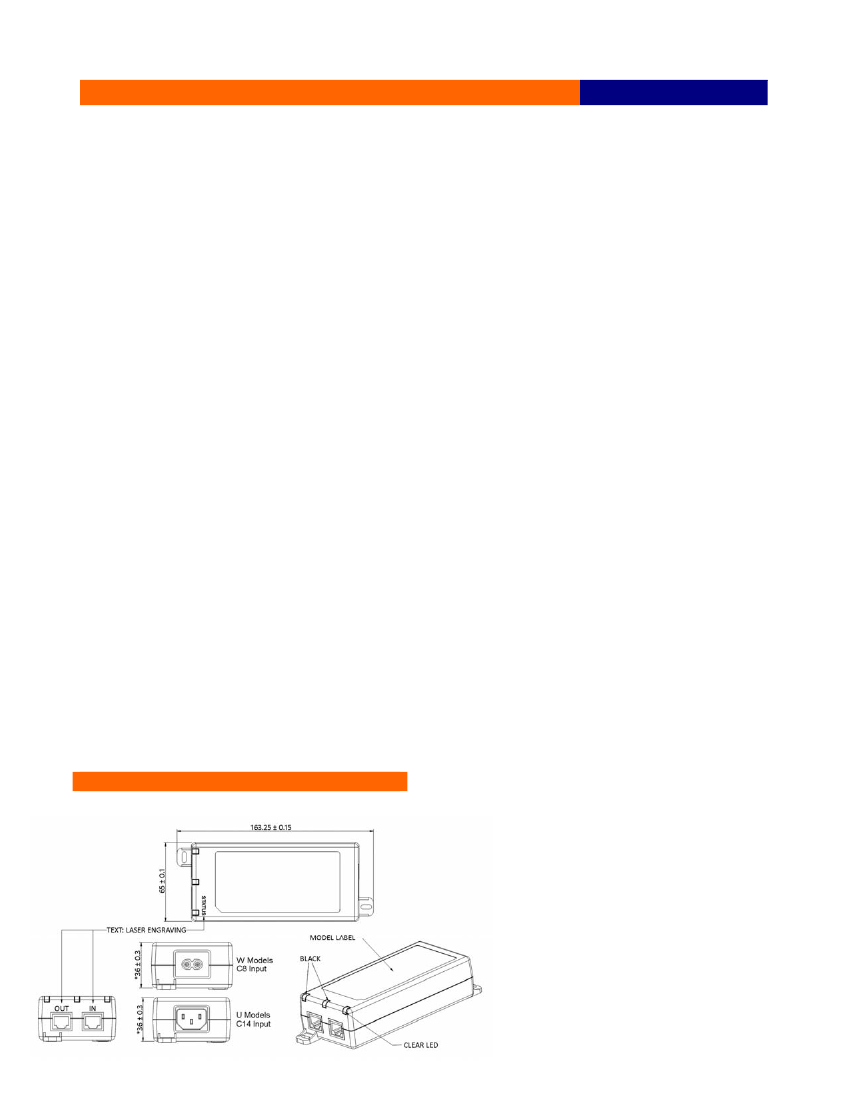

Dimension Diagram Unit: mm
Output Connection
+pins 3,6 / -pins 1,2
Data IN/POE OUT Connector
RJ45
Warranty
1 Year
