PHOTOCOUPLER
PS2502-1,-4,PS2502L-1,-4
HIGH ISOLATION VOLTAGE
DARLINGTON TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an
NPN silicon darlington connected phototransistor.
The PS2502-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -4 are lead bending type (Gull-
wing) for surface mount.
−NEPOC
Series−
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High current transfer ratio (CTR = 2 000% TYP.)
• High-speed switching (t
r
, t
f
= 100
µ
s TYP.)
<R>
• Ordering number of tape product: PS2502L-1-F3: 2 000 pcs/reel
• Safety standards
• UL approved: No. E72422
1
2
4
PIN CONNECTION
(Top View)
PS2502-1, PS2502L-1
3
1. Anode
2. Cathode
3. Emitter
4. Collector
APPLICATIONS
• Power supply
• Telephone/FAX
• FA/OA equipment
• Programmable logic controller
1
2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
PS2502-4, PS2502L-4
16 15 14 13 12 11 10 9
Document No. PN10226EJ04V0DS (4th edition)
Date Published September 2009 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
1988, 2009
PS2502-1,-4,PS2502L-1,-4
<R>

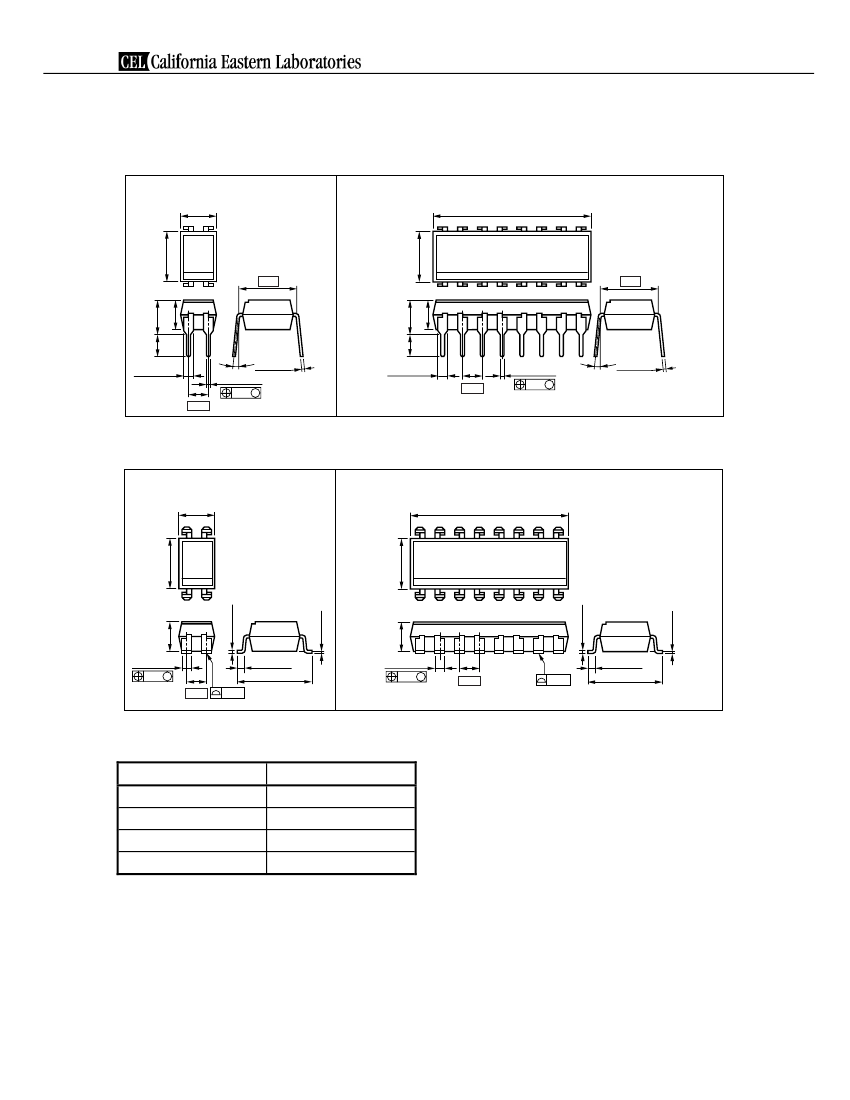

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type
PS2502-1
4.6±0.35
PS2502-4
19.8±0.5
4 3
6.5±0.5
6.5±0.5
16
9
7.62
7.62
3.2±0.4 4.15±0.4
3.2±0.4 4.15±0.4
1 2
3.5±0.3
1
3.5±0.3
8
1.25±0.15
0 to 15°
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15°
+0.1
0.25
–0.05
Lead Bending Type
PS2502L-1
4.6±0.35
PS2502L-4
19.8±0.5
4 3
6.5±0.5
6.5±0.5
16
9
0.25
+0.1
–0.05
0.1
+0.1
–0.05
0.25
+0.1
–0.05
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
<R>
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance
Outer Creepage Distance
Inner Creepage Distance
Isolation Distance
Unit (MIN.)
7 mm
7 mm
3.5 mm
0.3 mm
2
Data Sheet PN10226EJ04V0DS
0.1
+0.1
–0.05
1 2
1
8
PS2502-1,-4,PS2502L-1,-4
<R>
MARKING EXAMPLE
PS2502-1
No. 1 pin
Mark
No. 1 pin
Mark
PS2502-4
2502
NJ931
Assembly Lot
PS2502-4
NJ931
Country Assembled
Type Number
Assembly Lot
N
J
9 31
N
J
9 31
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Package
New PKG
Made in Japan
J
Made in Taiwan
K
Package
New PKG
Made in Japan
J
Data Sheet PN10226EJ04V0DS
3
PS2502-1,-4,PS2502L-1,-4
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
PS2502-1
PS2502L-1
PS2502L-1-F3
PS2502-4
PS2502L-4
PS2502-1-A
PS2502L-1-A
PS2502L-1-F3-A
PS2502-4-A
PS2502L-4-A
Embossed Tape 2 000 pcs/reel
Magazine case 20 pcs
PS2502-4
Pb-Free
Magazine case 100 pcs
Packing Style
Safety Standard
Approval
Standard products
(UL Approved)
Application Part
Number
PS2502-1
*1
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Symbol
Ratings
PS2502-1,
PS2502L-1
Diode
Reverse Voltage
Forward Current (DC)
Power Dissipation Derating
Power Dissipation
Peak Forward Current
Transistor
*1
Unit
PS2502-4,
PS2502L-4
6
80
V
mA/ch
1.2
120
1
40
6
mW/°C
mW/ch
A/ch
V
V
160
1.6
160
5 000
mA/ch
mW/°C
mW/ch
Vr.m.s.
°C
°C
V
R
I
F
∆
P
D
/°C
P
D
I
FP
V
CEO
V
ECO
I
C
1.5
150
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
200
2.0
200
∆
P
C
/°C
P
C
BV
T
A
T
stg
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
–55 to +100
–55 to +150
*1
PW = 100
µ
s, Duty Cycle = 1%
*2
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together (PS2502-1, PS2502L-1).
Pins 1-8 shorted together, 9-16 shorted together (PS2502-4, PS2502L-4).
4
Data Sheet PN10226EJ04V0DS
PS2502-1,-4,PS2502L-1,-4
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
Parameter
Diode
Forward Voltage
Reverse Current
Terminal Capacitance
Transistor
Collector to Emitter Dark
Current
Coupled
Current Transfer Ratio
(I
C
/I
F
)
*1
Symbol
V
F
I
R
C
t
I
CEO
I
F
= 10 mA
V
R
= 5 V
Conditions
MIN.
TYP.
1.17
MAX.
1.4
5
Unit
V
µ
A
pF
V = 0 V, f = 1.0 MHz
V
CE
= 40 V, I
F
= 0 mA
50
400
nA
CTR
I
F
= 1 mA, V
CE
= 2 V
200
2 000
%
Collector Saturation
Voltage
Isolation Resistance
Isolation Capacitance
Rise Time
Fall Time
*2
V
CE(sat)
I
F
= 1 mA, I
C
= 2 mA
11
1.0
V
Ω
R
I-O
C
I-O
t
r
t
f
V
I-O
= 1.0 kV
DC
V = 0 V, f = 1.0 MHz
V
CC
= 10 V, I
C
= 2 mA, R
L
= 100
Ω
10
0.5
100
100
pF
µ
s
*2
*1
CTR rank (only PS2502-1, PS2502L-1)
K : 2 000 to
L :
M :
(%)
700 to 3 400 (%)
200 to 1 000 (%)
*2
Test circuit for switching time
Pulse Input
PW = 1 ms
Duty Cycle = 1/10
I
F
50
Ω
V
OUT
R
L
= 100
Ω
V
CC
Input
t
on
t
d
t
s
90%
Output
10%
t
r
t
f
t
off
Data Sheet PN10226EJ04V0DS
